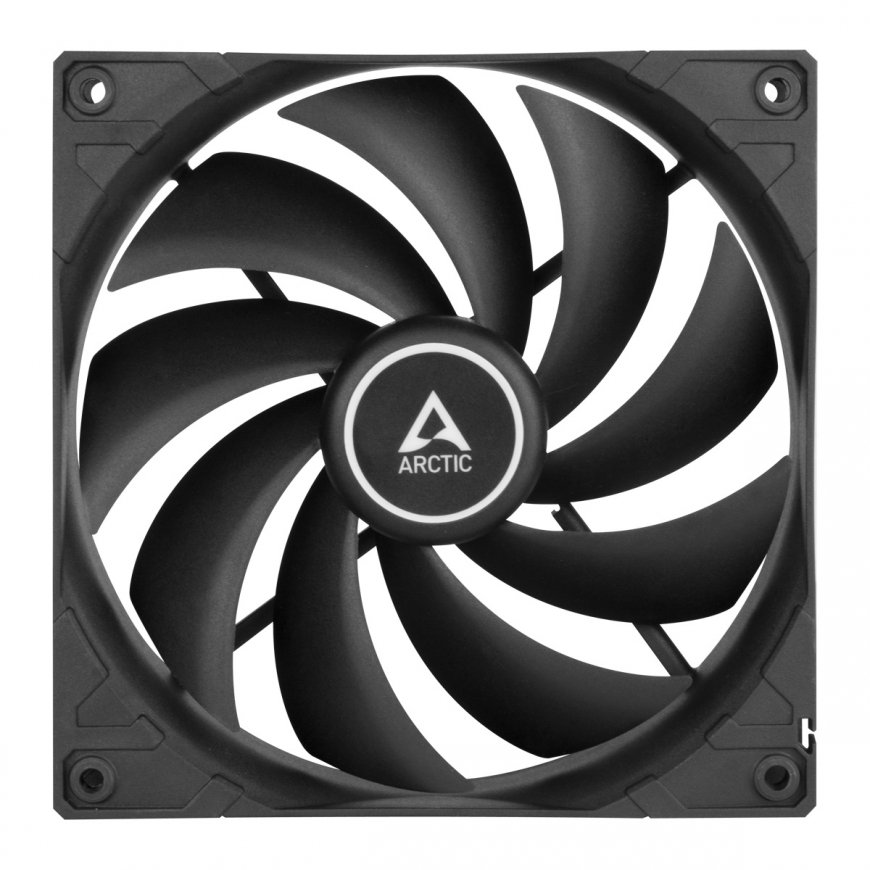

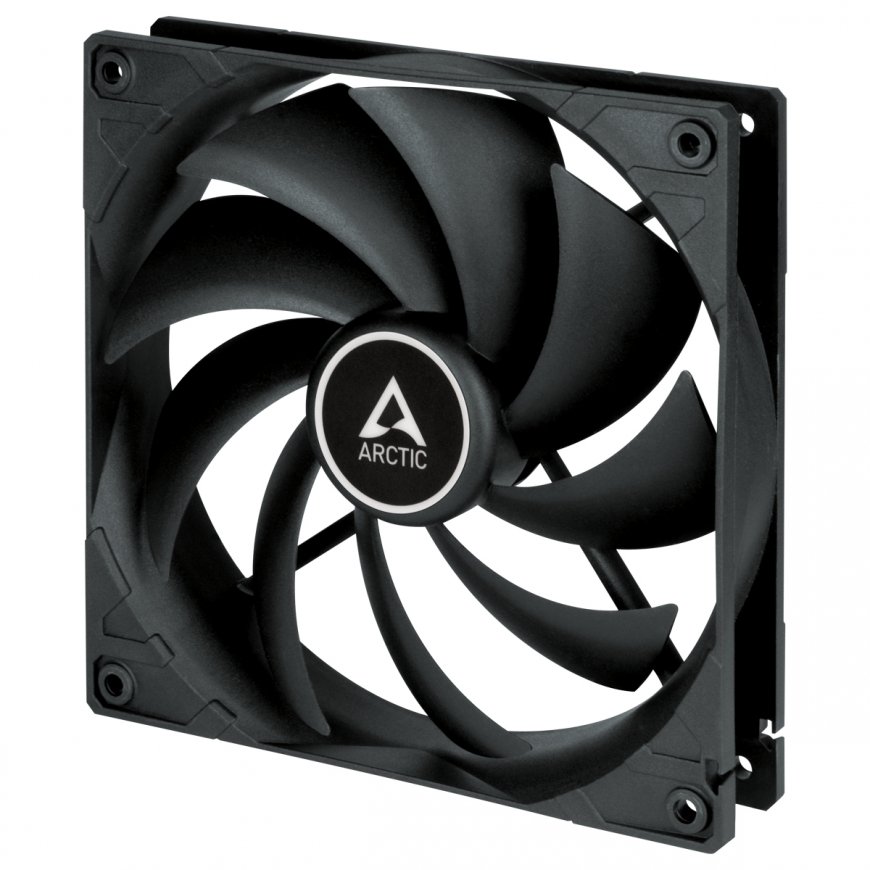

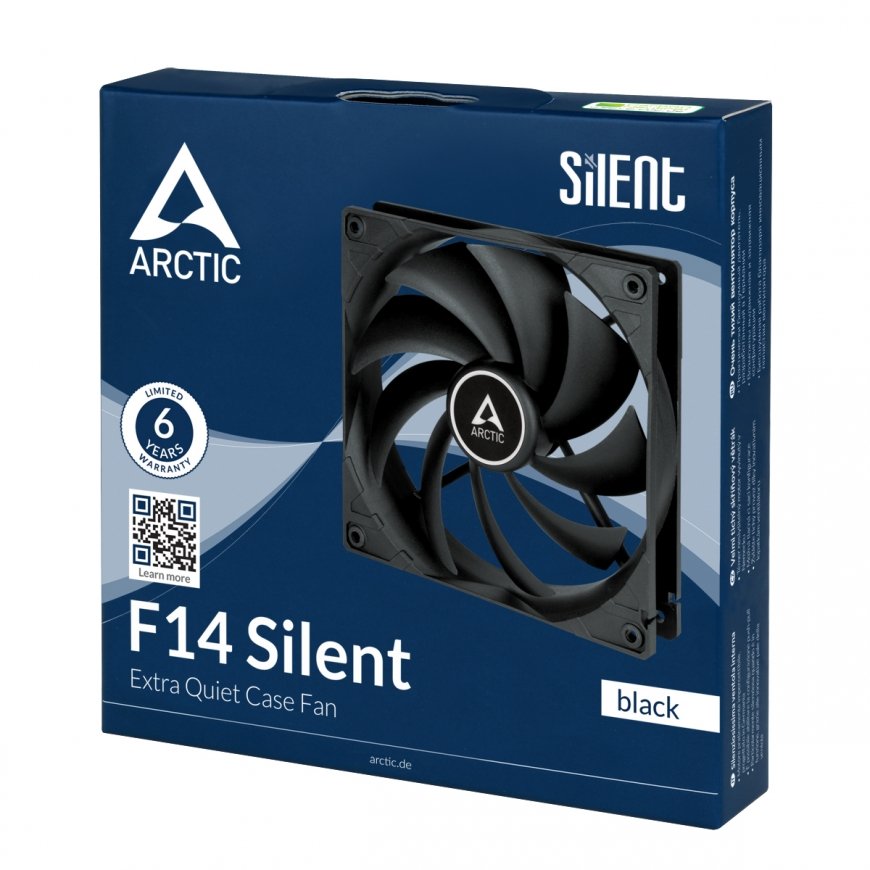

ARCTIC F14 Silent Extra Quiet 140 mm Case Fan
3934896 ACFAN00217A
4895213703048
Shipping 8-11 b.d.
All about the product

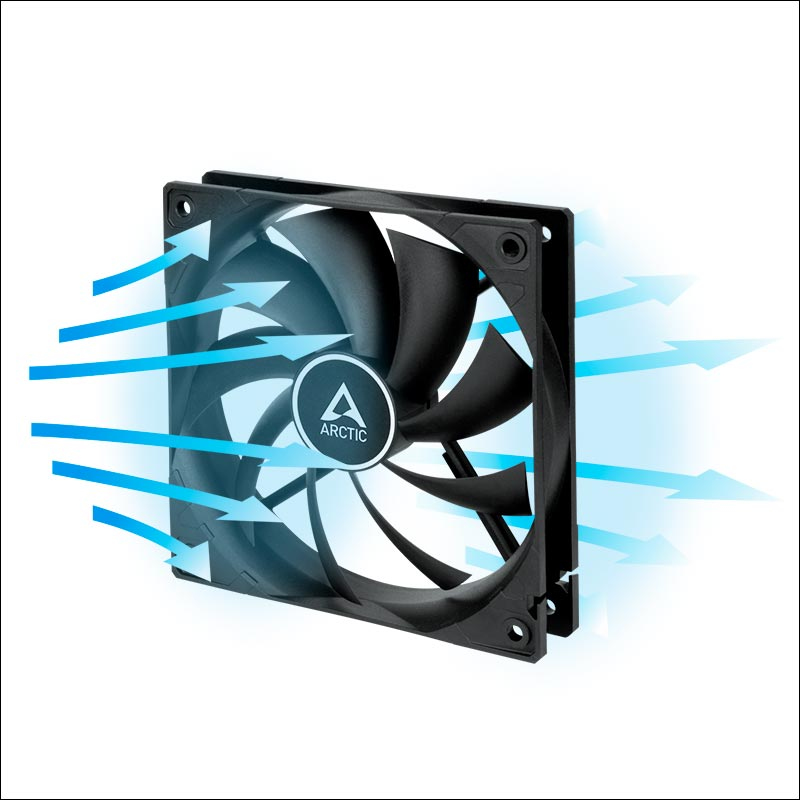

Greater Efficiency - Less Noise at Higher Airflow
At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise.
Our impeller is not just quiet but moves at a given fan speed more air than any other product.
Long Service Life

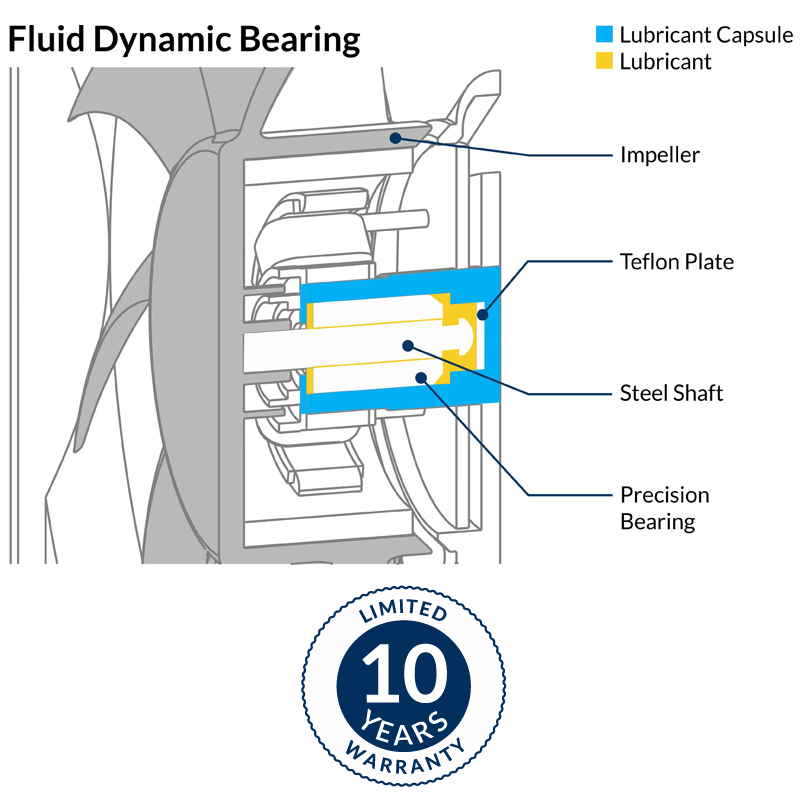

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Innovative Design Enables Quiet and Efficient Ventilation

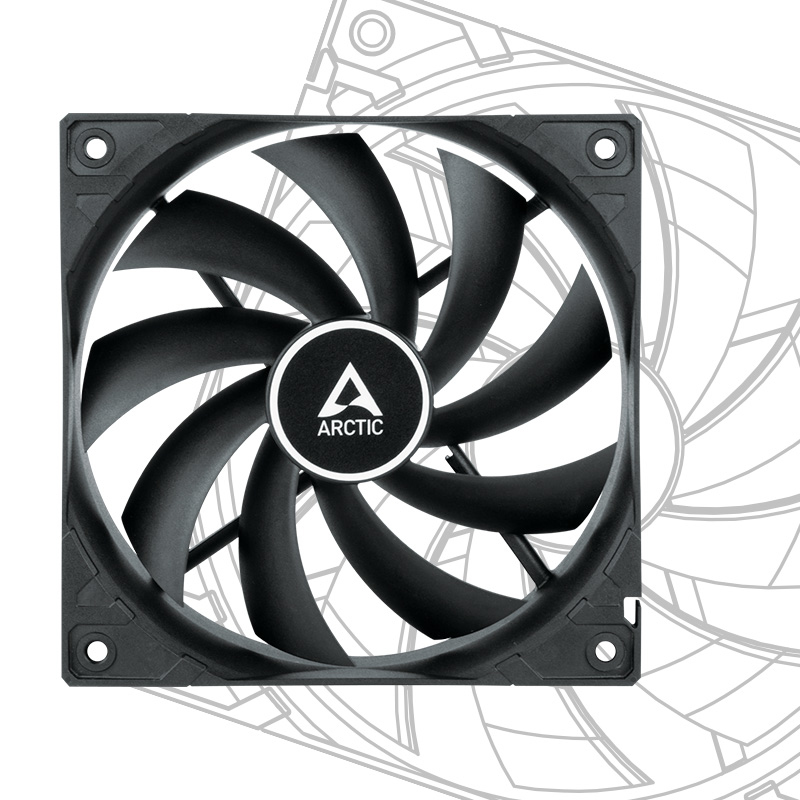

The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

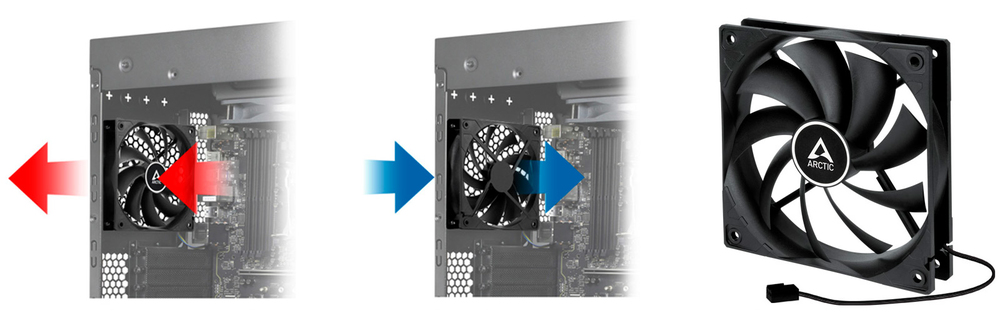

Different installation
- Exhaust hot air out of the case
- Intake cool air into the case
- 3-pin connector for mainboard and power supply that also works with 4-pin headers
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 14 cm |
| Airflow | 78 m³/h |
| Maximum airflow | 46 cfm |
| Maximum air pressure | 0.45 mmH2O |
| Compatible processor series | Not supported |
| Rotational speed (max) | 800 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.08 sone |
| Quantity per pack | 1 pc(s) |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Fan connector | 3-pin |
| Number of fan blades | 9 |
Power | |
| Rated current | 0.11 A |
| Voltage | 12 V |
| Starting voltage | 7 V |
Weight & dimensions | |
| Weight | 180 g |
| Package weight | 220 g |
| Height | 27 mm |
| Width | 140 mm |
| Depth | 140 mm |
| Cable length | 0.4 m |
| Package height | 143 mm |
| Package width | 143 mm |
| Package depth | 29 mm |
Packaging content | |
| Screws included | Yes |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
