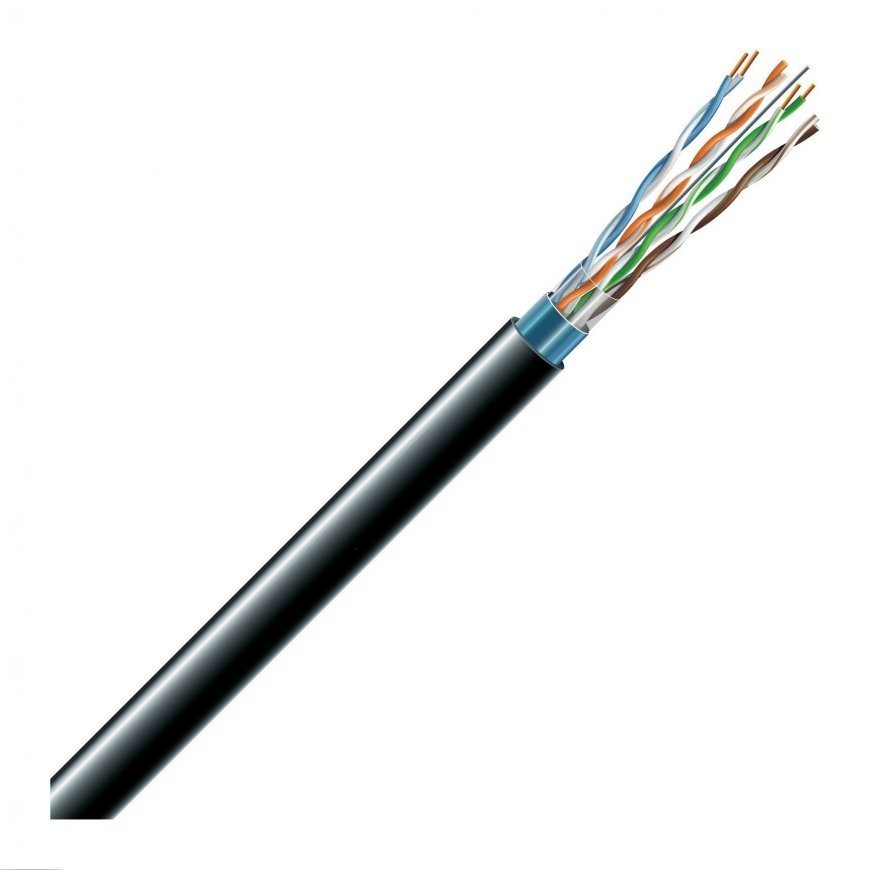

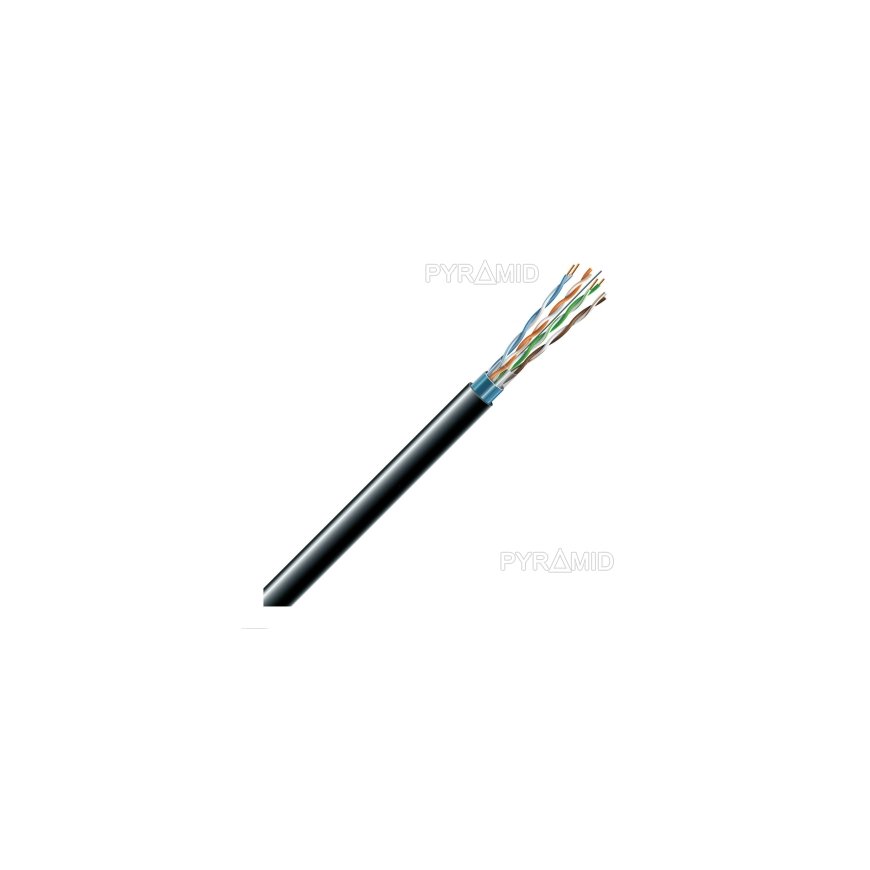

LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm) – 2
-17%
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)
LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LAN network cable ECG FTP 6 (outdoor, PE, Fca, 305m, 23 AWG/0.56mm)

299,00 €
248.92 €
Monthly payment from 7,31 €
3929287

2070910143058

Shipping 5-8 b.d.

You are interested in this product?
(Read terms of service)

All about the product

  • Main
  • Operating conditions (temperature) -20°C...+60°C
  • Bending radius min. 4 x D
  • Tension strength max. 85 N
  • Crushing force min. 1000 N/10 cm
  • Impact strength min. 10 impacts
  • Conductor resistance max. 95 Ω/km
  • Resistance imbalance max. 2%
  • Insulation resistance min. 5000 MΩ x m
  • Capacitance max. 56 pF/m
  • Capacity imbalance max. 1600 pF/km
  • Propagation speed 67-69%
  • Signal delay max. 45 ns/100 m
  • Test voltage 1000 V
  • Operating voltage max. 72 V
