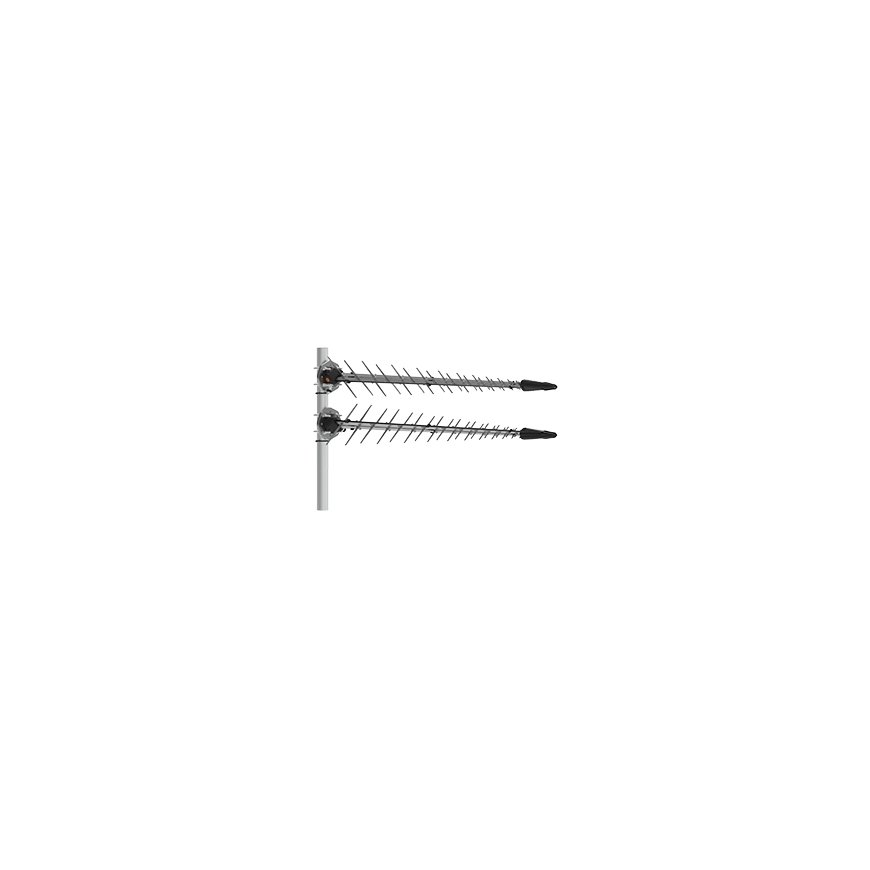

Poynting LPDA-500 network antenna Directional antenna N-type 11.5 dBi
229.00 €
Monthly payment from 6,80 €
3919951 A-LPDA-0500-V1-01
6009710925447
Shipping 7-10 b.d.
You are interested in this product?
All about the product
The LPDA-500 is Poynting’s next-generation log-periodic dipole array (LPDA) antenna, designed to deliver high-gain, ultra-wideband performance. Covering frequencies from 617 to 7200 MHz, this uni-directional antenna supports current 5G, future cellular bands, and Wi-Fi 6E, making it ideal for various wireless communication deployments.Ultra-Wideband Frequency Coverage Operates from 617–7200 MHz:, supporting 5G, LTE, and Wi-Fi 6E applications.
Consistent High-Gain Performance: Ensures reliable and stable connectivity across the entire frequency range.
Enhanced MIMO Compatibility: New adjustable mounting bracket allows for vertical, horizontal, or ±45° orientations for MIMO configurations.
Proven Durability: Built to withstand extreme weather conditions, maintaining performance in harsh environments.
Future-Proof Design: Engineered for long-term wireless deployments, ensuring seamless integration with evolving technologies.
The LPDA-500 is the ideal solution for high-performance wireless communication, offering exceptional coverage, versatility, and durability for 5G, LTE, and Wi-Fi 6E networks.
Design | |
| Product colour | Grey |
| International Protection (IP) code | IP65 |
Antenna | |
| Antenna connector type | N-type |
| Antenna gain level (max) | 11.5 dBi |
| Antenna type | Directional antenna |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 98% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 250 mm |
| Depth | 1385 mm |
| Height | 175 mm |
| Weight | 1.52 kg |
Packaging data | |
| Package width | 280 mm |
| Package depth | 1430 mm |
| Package height | 160 mm |
| Package weight | 3.34 kg |
Other features | |
| Frequency band | 0.617-7.2 GHz |
| Mounting | Pole |
Certificates | |
| Certification | MIL-STD 810G/ASTM B117 |
Technical details | |
| Compliance certificates | CE, RoHS |
Logistics data | |
| Quantity per pack | 1 pc(s) |
