Velleman VMA330 development board accessory Sensor extension plate Multicolour
19.31 €
3914615 VMA330
5410329680824
Shipping 8-15 b.d.
You are interested in this product?
All about the product

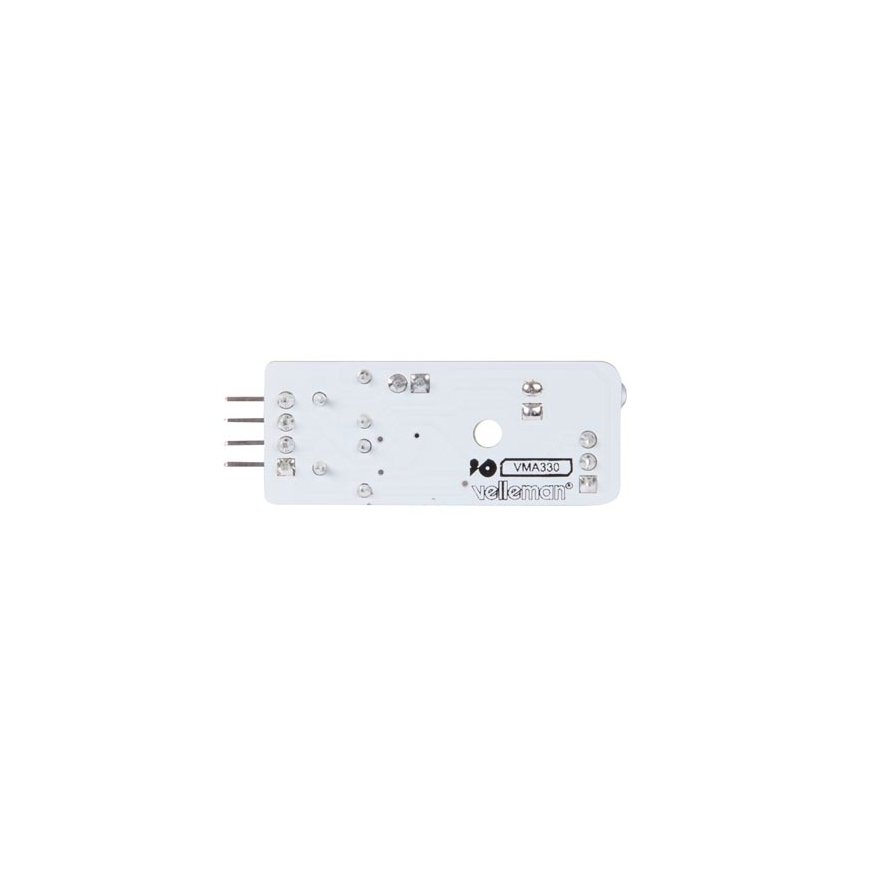

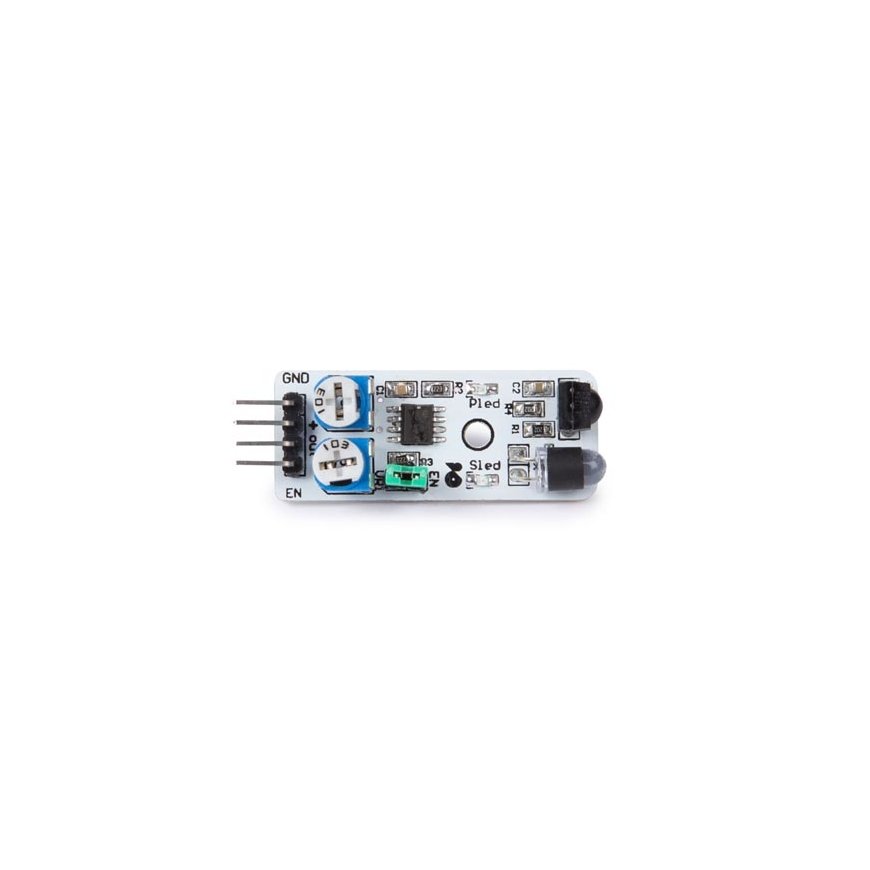

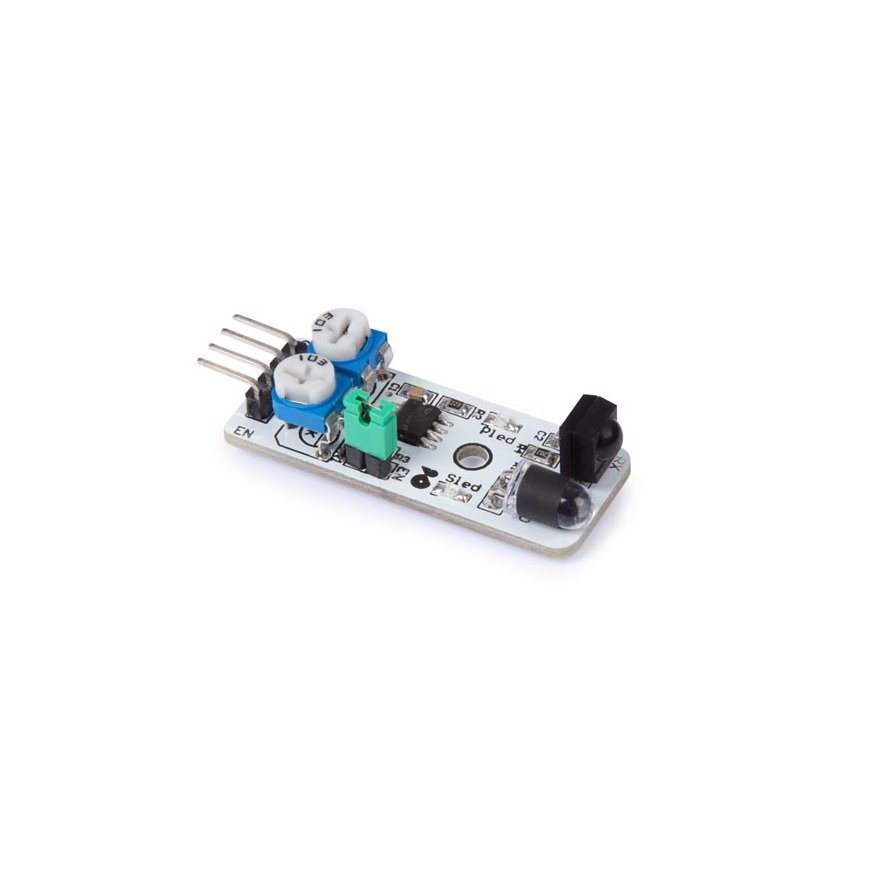

IR OBSTACLE AVOIDANCE SENSOR MODULEThis module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino® and compatible boards. The module has two potentiometers, one to control frequency and one to control the intensity.
- operating voltage: 3.3 V to 5 V
- output: digital (on/off)
- detection threshold: adjustable by 2 trimmers
- distance range: 2 to 10 cm
- adjustment R6: frequency adjustment 38 KHz (already optimised)
- adjustment R5: IR LED power adjustment (already optimised)
- operating temperature: -10°C to +50°C
- effective angle: 35°
- I/O interface: 4 wire interface (- / + / S / EN )
- dimensions: 45 x 16 x 10 mm
- weight: 9 g
Features
| Product colour | Multicolour |
| Weight | 9 g |
| Width | 45 mm |
| Depth | 16 mm |
| Height | 10 mm |
| Brand compatibility | Any brand |
| Compatibility | Arduino |
| Product type | Sensor extension plate |
