UT210D CATII, CATIII current measuring clamps with temperature measurement, small UNI-T
3906134 UT210D
6935750521199
Shipping 10-15 b.d.
All about the product

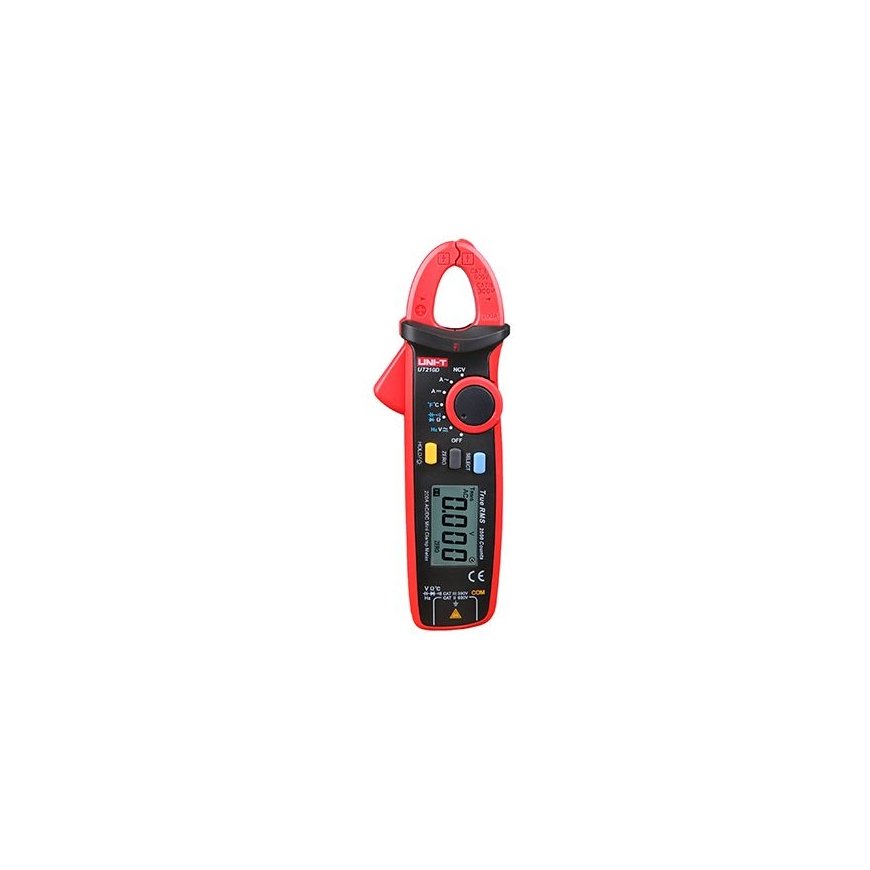

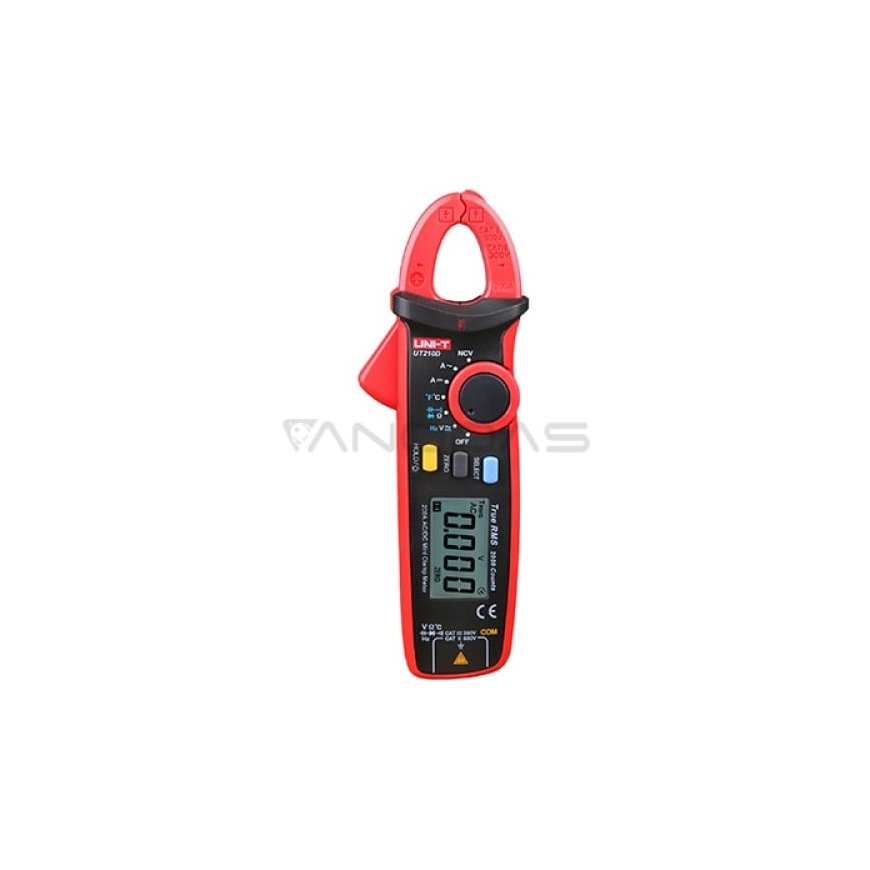

Uni-T UT210D Mini Digital Clamp Meter
The Uni-T UT210D Mini Digital Clamp Meter is a handy tool designed for work on electrical installations, equipment maintenance, and measurements in confined spaces. Its lightweight and compact housing, combined with a 17 mm jaw opening, allows for comfortable measurements even in tight spaces, enhancing daily usability both in the field and during service work.
Features that make work easier
The UT210D model allows for precise measurement of AC and DC current up to 200A and voltage up to 600V, and the additional frequency measurement function significantly expands its potential in professional applications. User comfort and speed of operation are ensured by smart solutions such as automatic range switching and Data Hold, diode test, and continuity check functions.
Included
- Clamp meter
- Batteries x2
- Test leads
- Temperature probe
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT210D |
| Type | Mini clamp meter |
| AC current | 200A ±(2.5%+8) |
| DC current | 200A ±(2%+3) |
| AC voltage | 600V ±(1%+3) |
| DC voltage | 600V ±(0.7%+3) |
| Resistance | 20MΩ ±(1%+2) |
| Frequency | 60kHz ±(0.1%+4) |
| Capacitance | 20mF ±(4%+5) |
| Temperature | -40°C ~ 1000°C ±(1%+3) |
| Maximum reading | 2000 |
| Functions | Circuit continuity buzzer, diode test, automatic range switching, Data Hold, backlight, auto power off |
| Jaw opening | 17 mm |
| Power supply | 2x 1.5V battery (R03) |
| Display | 39.3 x 26.5 mm |
| Dimensions | 175 x 60 x 33.5 mm |
| Weight | 170 g |
| Certifications | CE, UKCA, cETLus |
