Cudy AC1300 1167 Mbit/s White Power over Ethernet (PoE)
51.31 €
Monthly payment from 2,22 €
3900116 AP1300
6971690793432
2026-10-05
You are interested in this product?
All about the product
Connects More DevicesMU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices, improving efficiency and throughput under heavy use.
Boosted Coverage
Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Flexible Wired-and-Wireless Hybrid Backhaul
Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Versatile Powering and Installation
Flexible PoE & DC Power Options
Supports 802.3at/af PoE, 48V Passive PoE, and DC Power input. Please note: DC adapter is not included in the package.

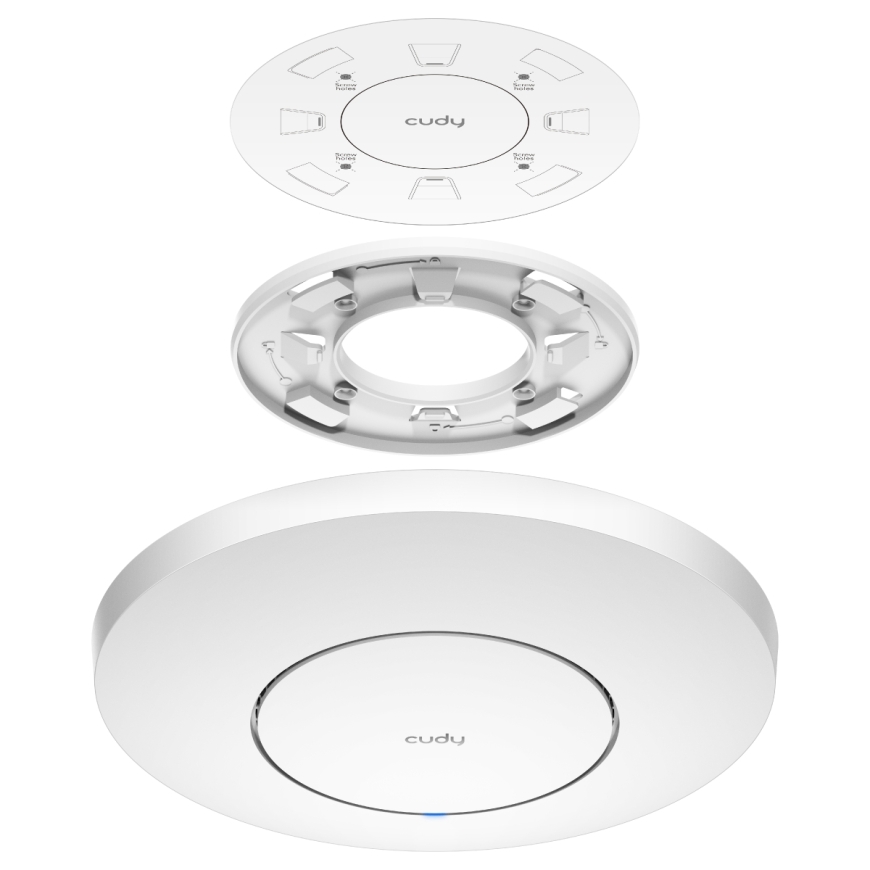

Versatile Mounting
Mounting kits are included in the box.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10, 100, 1000 |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Management features | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| MIMO | Yes |
Security | |
| Security algorithms | WPA-PSK, WPA2-PSK |
| MAC address filtering | Yes |
| IP address filtering | Yes |
Design | |
| LED indicators | Yes |
| Product colour | White |
Antenna | |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
Features | |
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 232 mm |
| Depth | 57.1 mm |
| Height | 232 mm |
Other features | |
| Compatible operating systems | Windows, MAC OS, NetWare, UNIX, Linux |
Technical details | |
| Compliance certificates | CE |
Logistics data | |
| Quantity per pack | 1 pc(s) |
Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
Sustainability | |
| Sustainability compliance | Yes |
