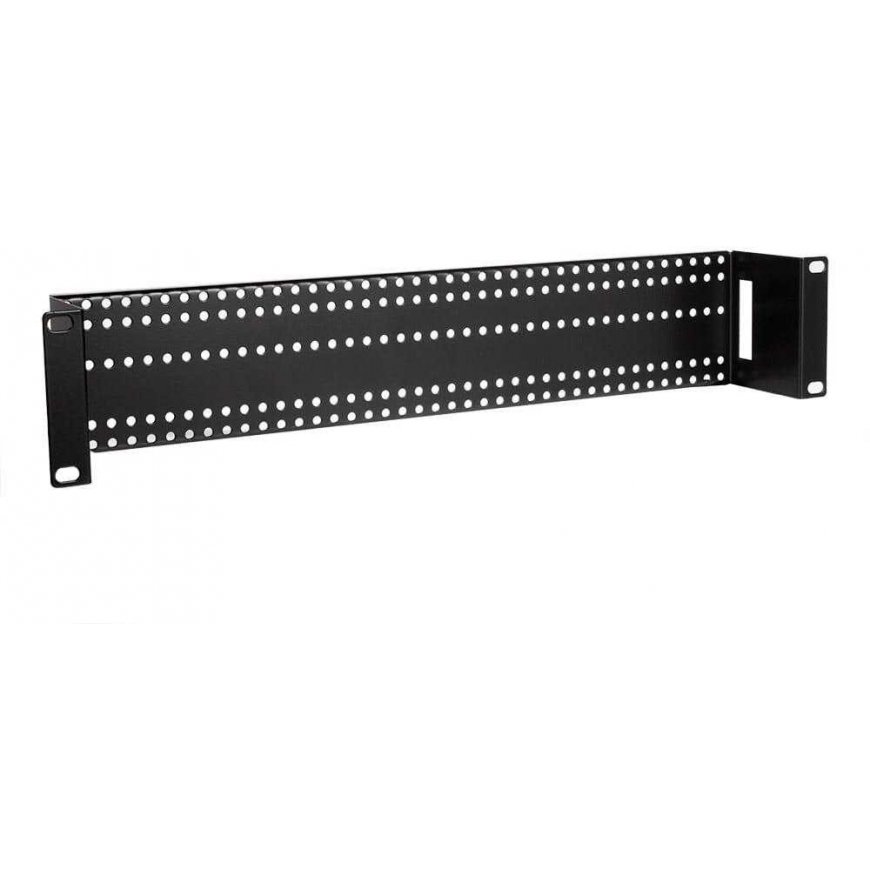

Atte Power ADD-RACK2U2 RACK 2U mounting adapter with recessed drilling
3895492 ADD-RACK2U2
5902143691440
Shipping 11-15 b.d.
All about the product

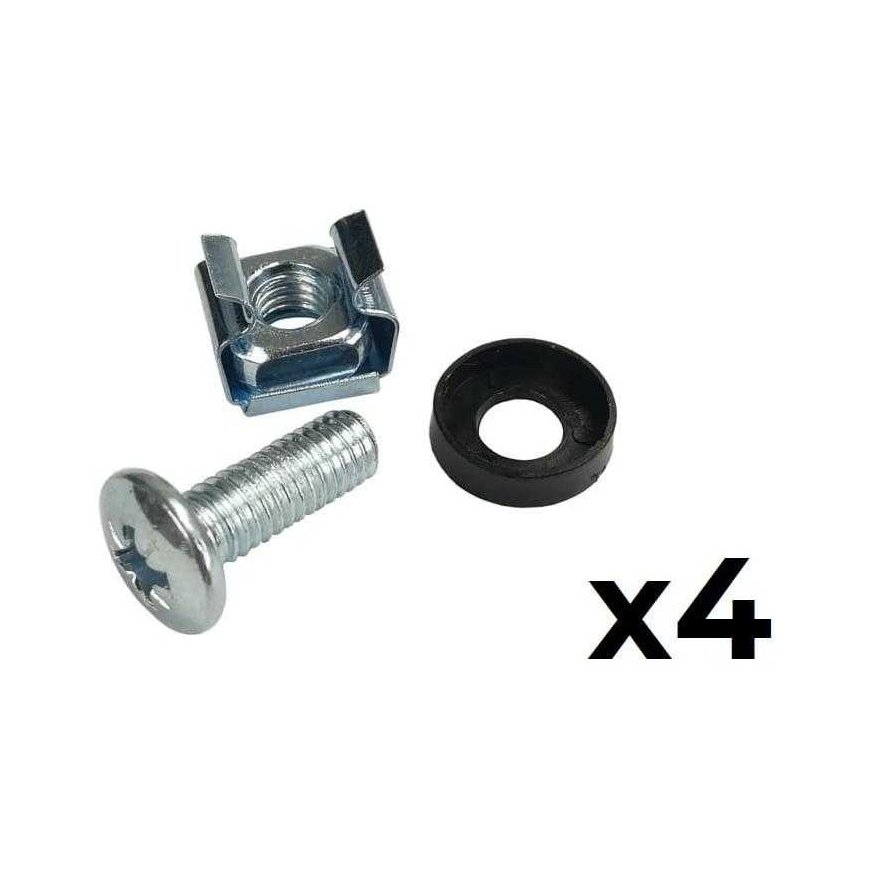

The ADD-RACK2U2 mounting adapter is a dedicated solution for mounting ATTE modules in a RACK cabinet. The ADD-RACK2U2 is set back 68 mm from the front of the RACK cabinet. Using the adapter facilitates the installation and convenient arrangement of modules and helps organize the cabling. Along with the patch panel, which serves as the termination for structured cabling for computer twisted pair, and the cable organizer, which aids in routing wires in the cabinet, it enhances the aesthetics of the installation and provides a professional appearance. It allows for the installation of ATTE modules in a RACK cabinet Front mounting System hole pattern 4.8 mm in a 10.8 mm grid compatible with all modules in the offer Possibility of mounting elements in any vertical or horizontal arrangement Technical data: Housing construction Powder-coated steel sheet RAL 9004 RACK 19" housing mounting, M6 screws (included) Protection class IP20 Operating temperature -25°C...+60°C Dimensions 482x 87 x 80 mm Weight 0.45 kg
