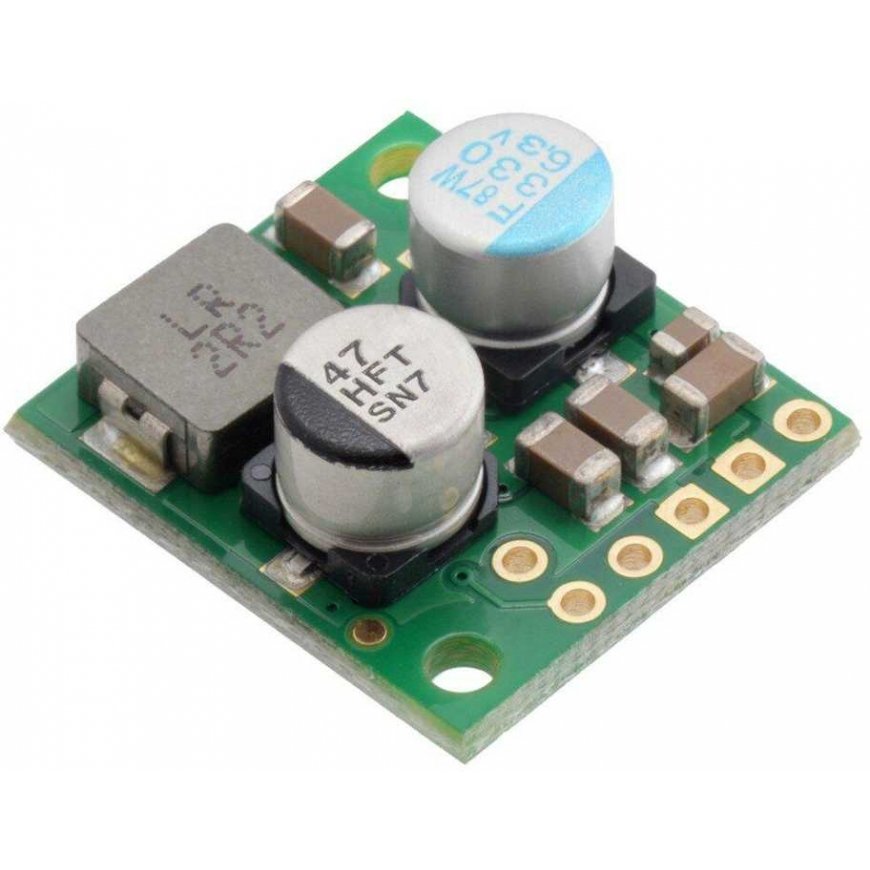

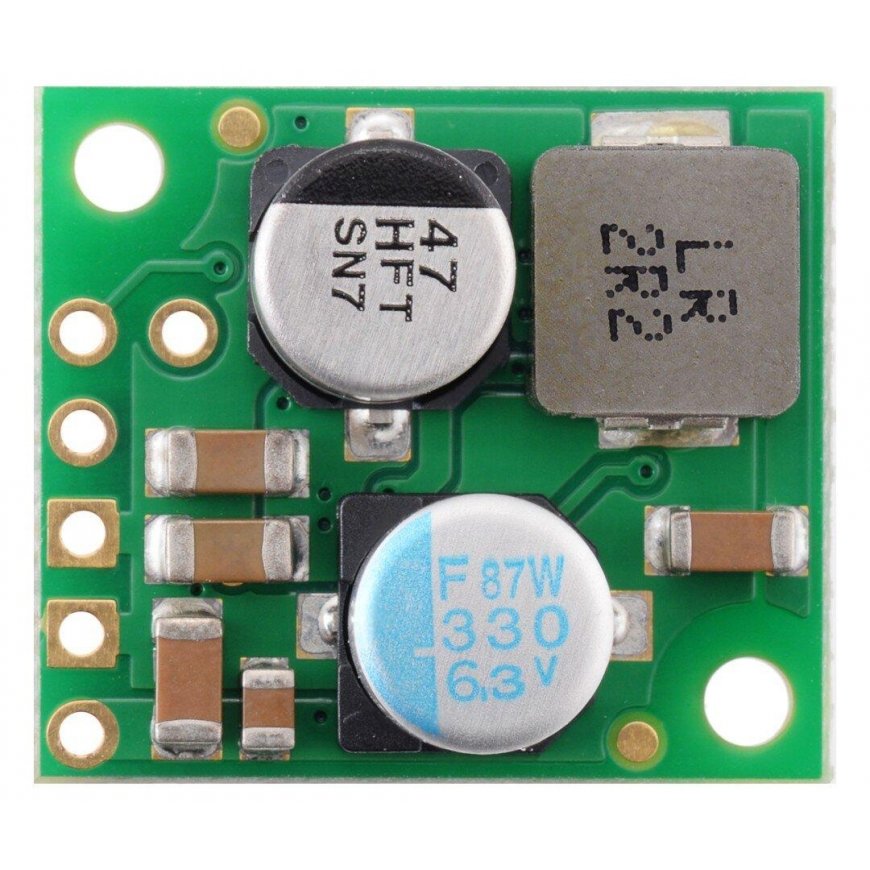

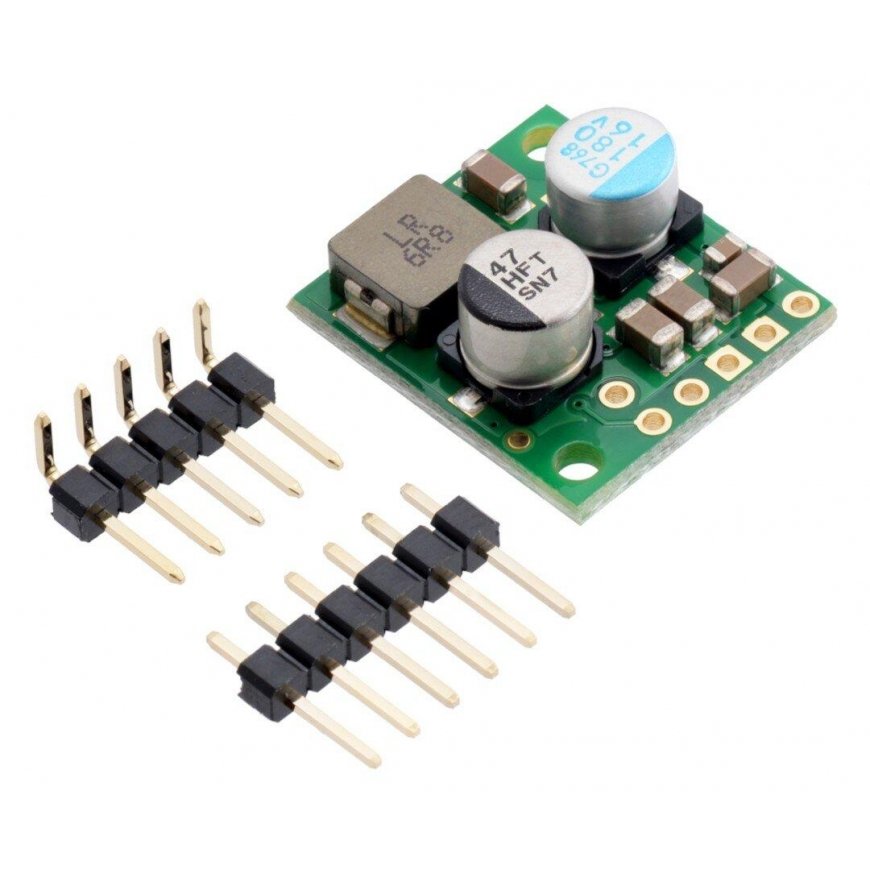

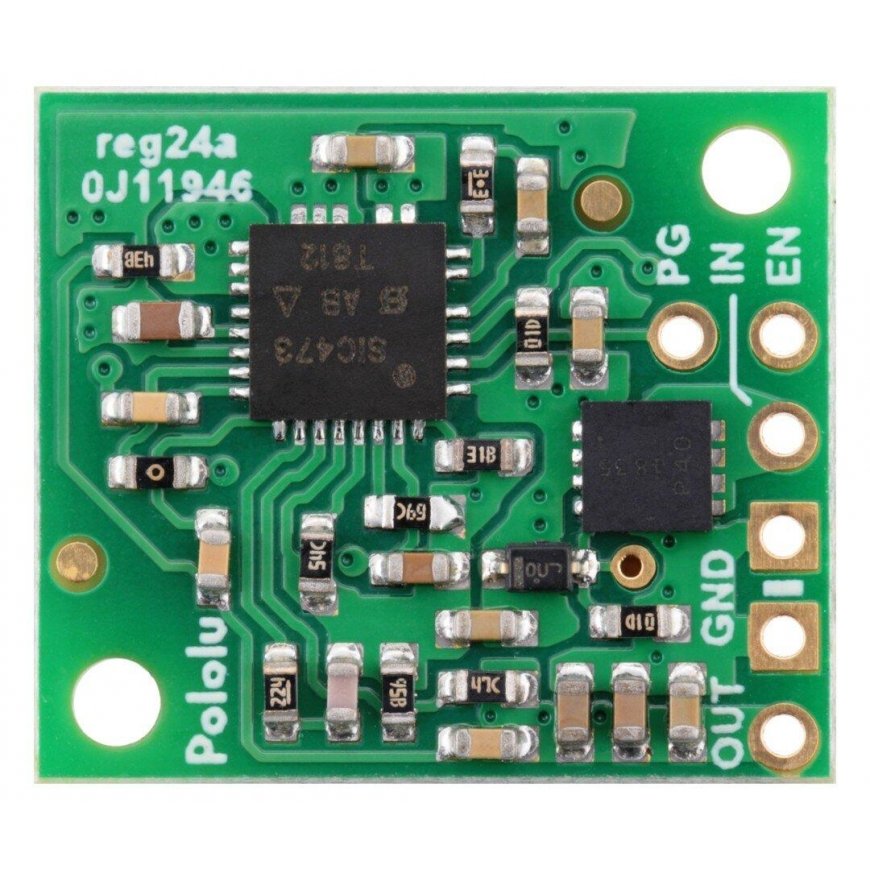

Step-Down Voltage Converter D36V28F3, 3.3V 3.6A, Pololu 3781
39.00 €
Monthly payment from 1,90 €
3894709 AN-17168
5903351242820
Shipping 8-15 b.d.
You are interested in this product?
All about the product
Step-Down converter with 3.3 V output voltage and current power from 3.2 A to 4.5 A (typically 3.6 A). The supported input voltage is from 4.5 V to 50 V. The module dimensions are 20 x 18 mm.
Specifications:
- Input voltage: from 4.5 V to 50 V
- Output voltage: 3.3 V
- Output voltage accuracy: 4%
- Continuous output current: 3.6 A

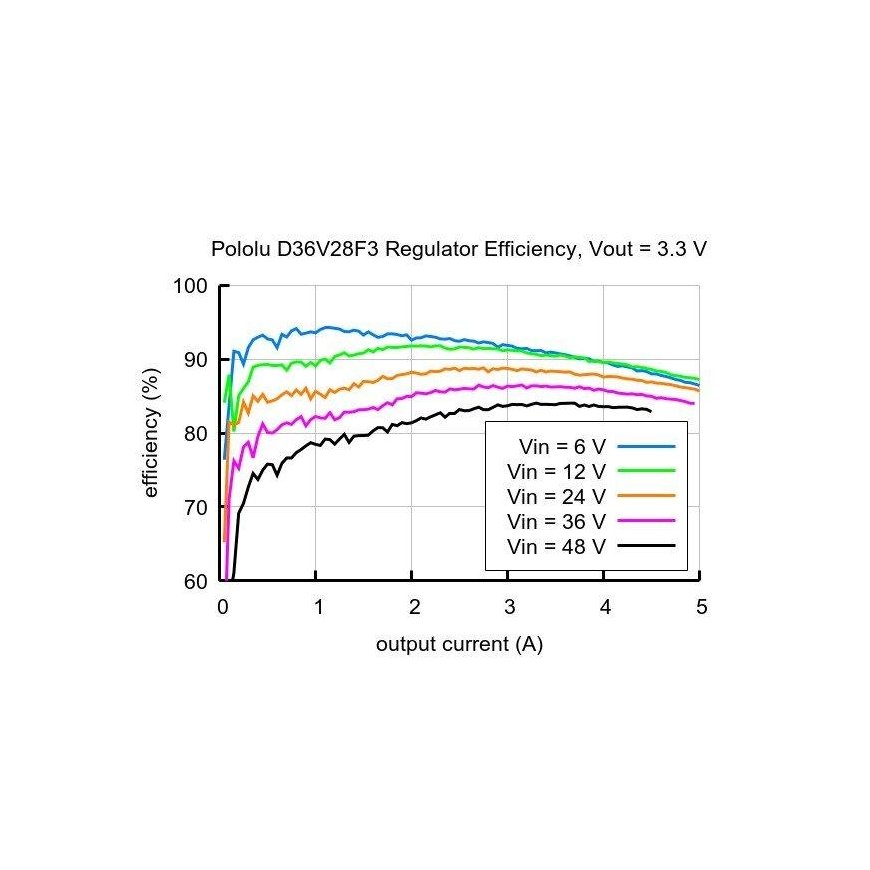

- Efficiency 80% - 90%
- Protection against reverse polarity and overcurrent, voltage, and temperature
- Switching frequency: approximately 500 kHz
- Soft-start function
- Two 2.2 mm (M2) mounting holes
- Dimensions: 20 x 18 mm
- Weight: 3.3 g
