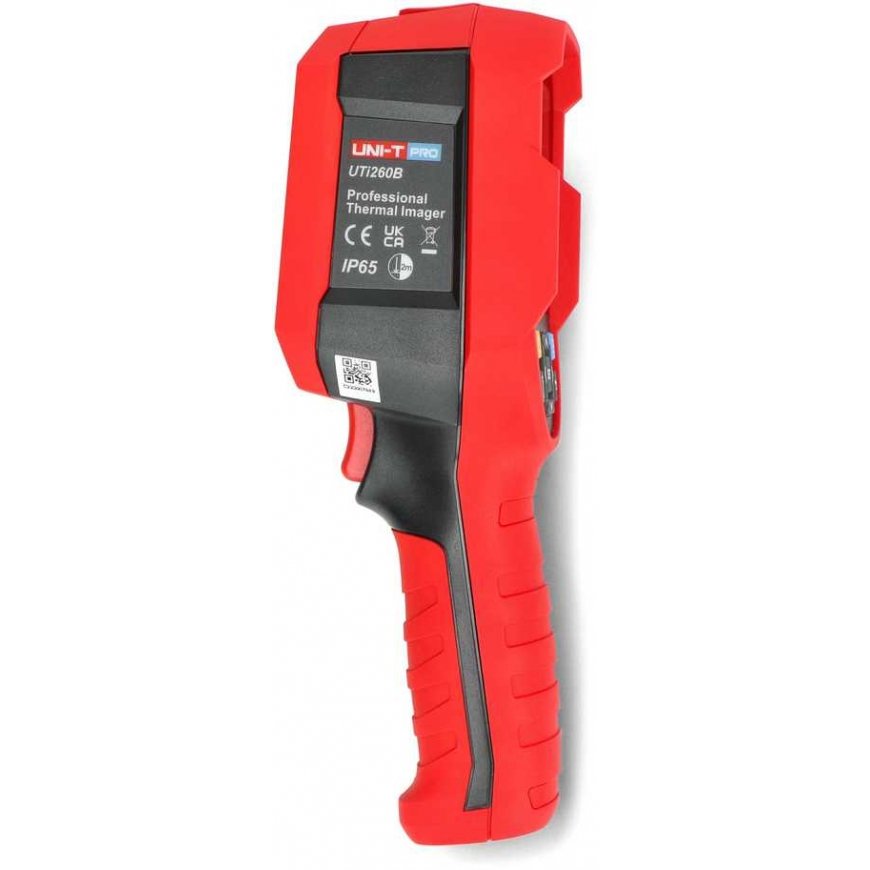

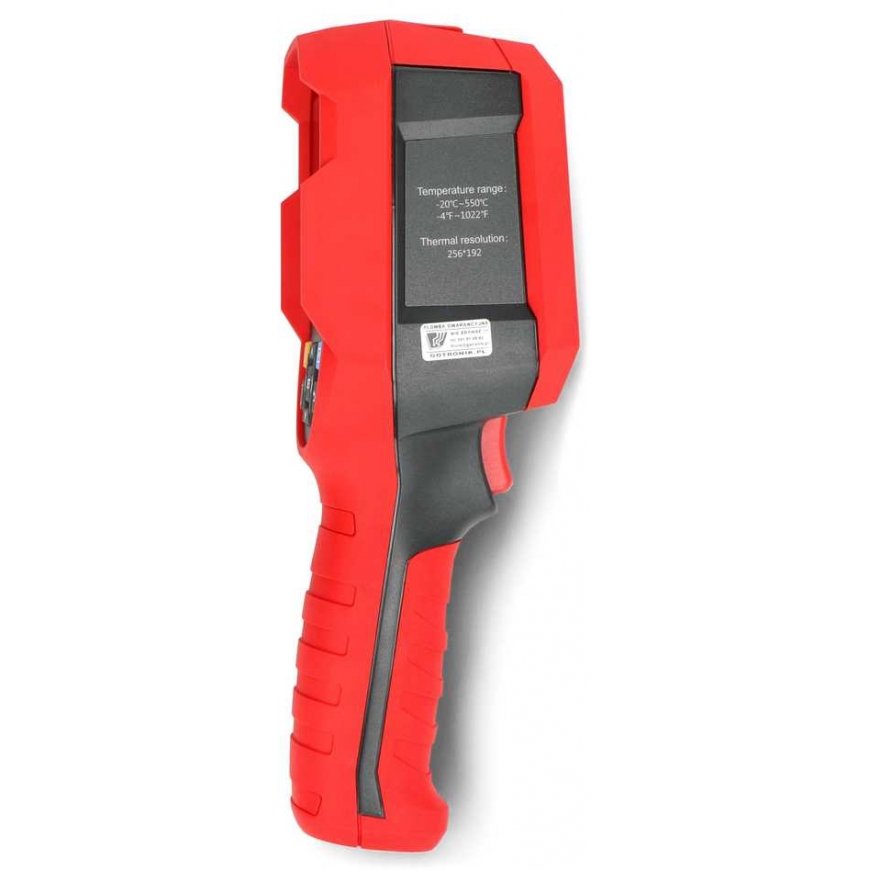

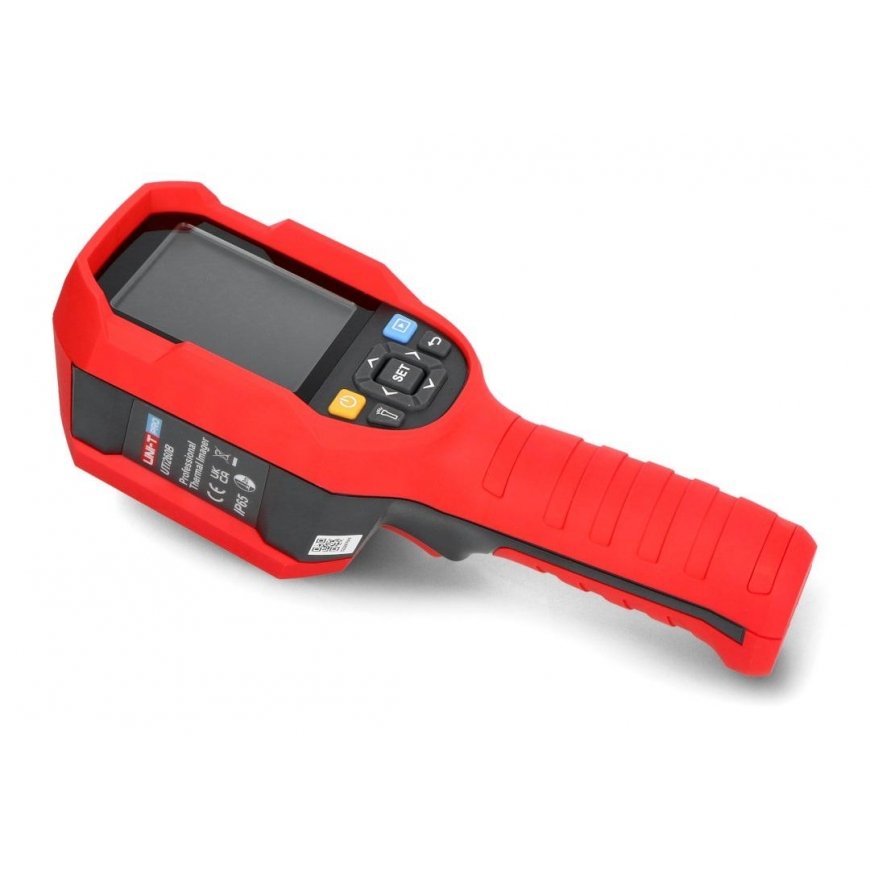

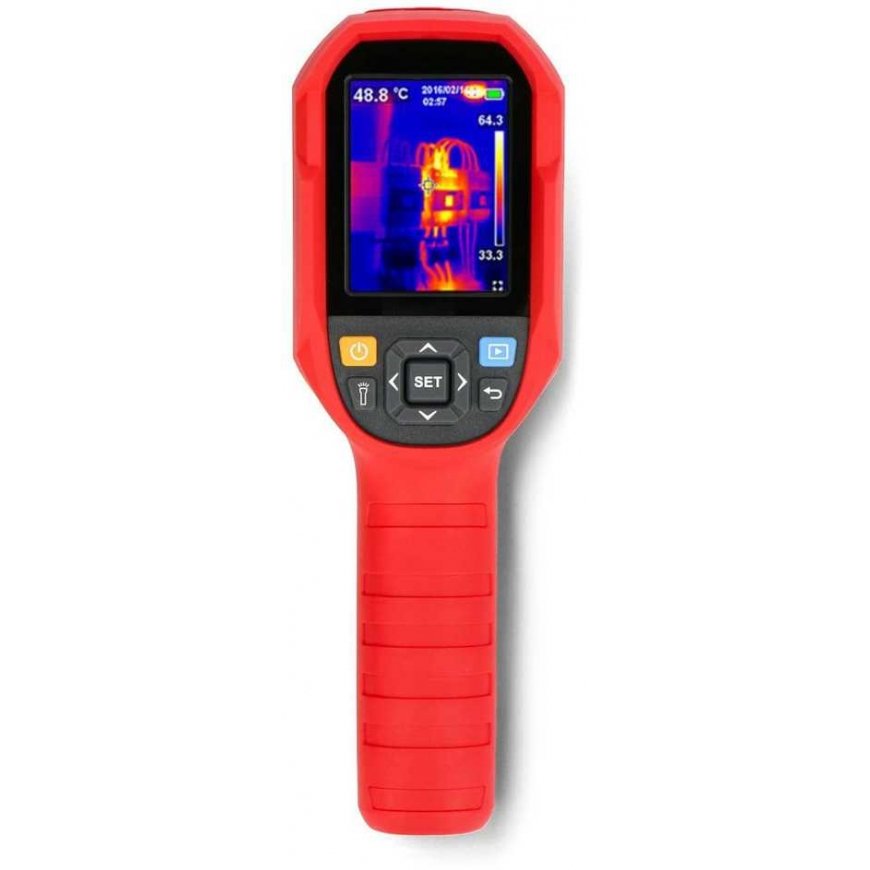

Thermal imaging camera - 256x192px - UNI-T UTi260B
3890752 AN-23003
6935750526149
Shipping 7-13 b.d.
All about the product
UNI-T handheld thermal imaging camera that allows for precise temperature measurements and displays thermal images in real time. It can be used in various ways, making it ideal for industrial and construction applications or for checking electrical installations. The camera can detect a wide temperature range from -20 °C to even 550 °C. For thermal measurements, it uses an infrared lens with a resolution of 256x192px, and the results are recorded onto a memory card. The device has 4 display modes: thermal, visual, fusion, and picture-in-picture. The camera body is made of sturdy material, ensuring high durability.
- Accurate temperature measurements and real-time thermal imaging
- Ability to operate in challenging conditions
- Wide detected temperature range
- 2.8" TFT display
- Infrared lens with a resolution of 256x192px
- 7 color palettes
- 4 display modes (thermal, visual, fusion, and picture-in-picture)
- Automatic high/low temperature alert
- Automatic hot/cold spot monitoring
- Ability to record images to a microSD card
- Selectable °C or °F measurement units
- Powered by a lithium-ion battery
- Manufacturer: UNI-T
- Model: UTi260B
- Infrared resolution: 256x192px
- Temperature measurement range: from -20 °C to 550 °C
- Measurement accuracy: ± 2 °C
- Thermal sensitivity (NETD): ≤ 50 mK
- Spatial resolution (IFOV): 3.8 mrad
- Frame rate: ≤ 25 Hz
- Field of view: 56° x 42°
- Digital camera resolution: 640x480px
- Connections: USB-C
- Power source: Li-Ion cell
- Ingress protection class: IP65
- Dimensions: 236 x 75.5 x 86 mm
- Weight: 910 g

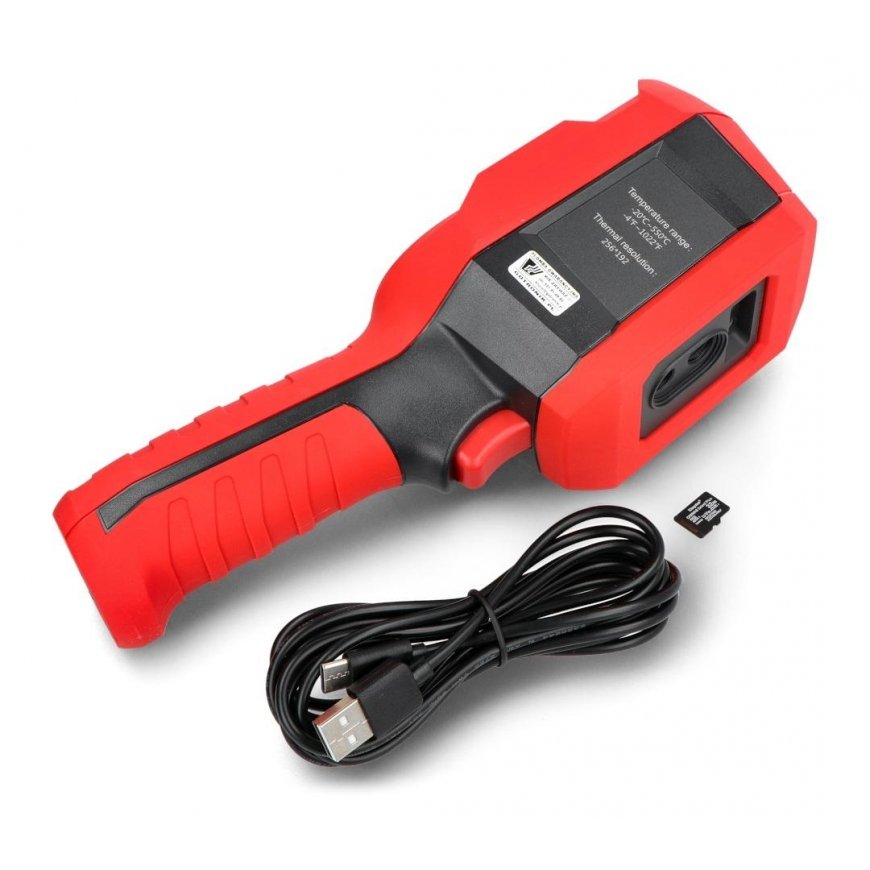

- Thermal imaging camera - 256x192px - UNI-T UTi260B
- 32 GB microSD memory card
- USB-C cable
- User manual in English
