Qoltec Voltage Balancer 24V for batteries 2 x 12V | 5A | LiFePO4 AGM GEL
3886976 51097
5901878510972
Shipping 9-13 b.d.
All about the product
Reliable compact device supporting long and trouble-free operation of 12V battery sets

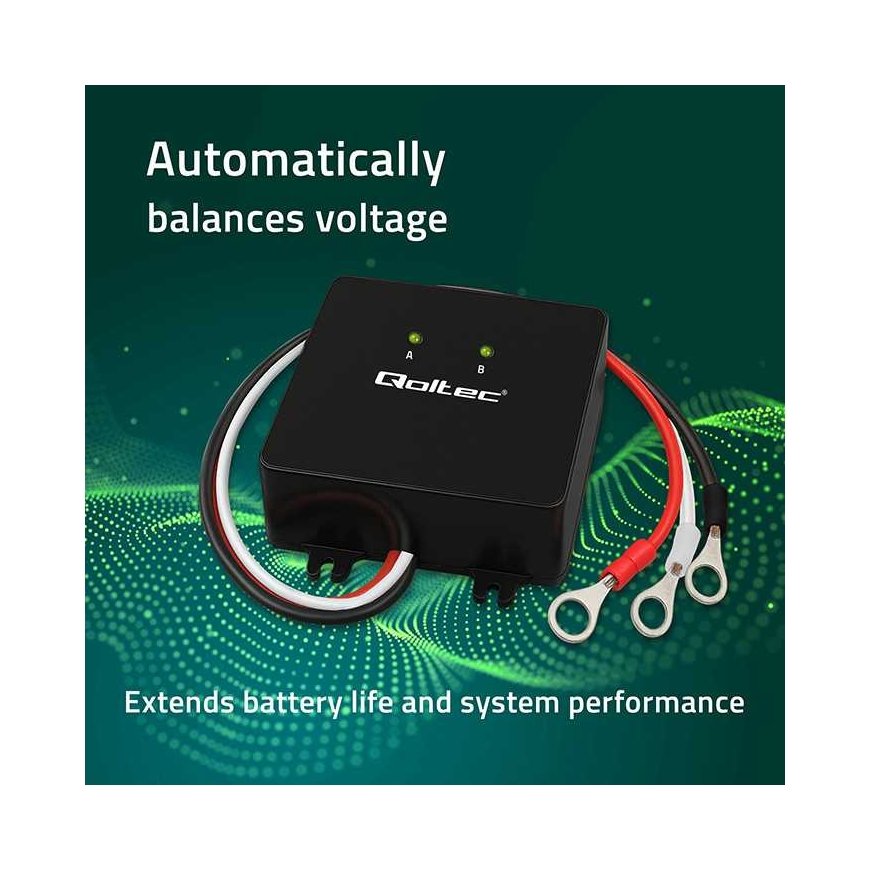

Automatically balances voltage differences between batteries, protects against damage, and increases their lifespan, ensuring stable and safe operation of the 24V system – all in a compact, fireproof housing, ready to work in any conditions. Does not require connection to the 230V network, operates fully autonomously drawing energy from connected batteries . An ideal solution for demanding and long-lasting applications – from photovoltaics to electric vehicles.
Key functions and technical features
• Automatic voltage balancing between 12V batteries in 24V systems• Maximum balancing current: 5A
• Built-in protection against reverse polarity

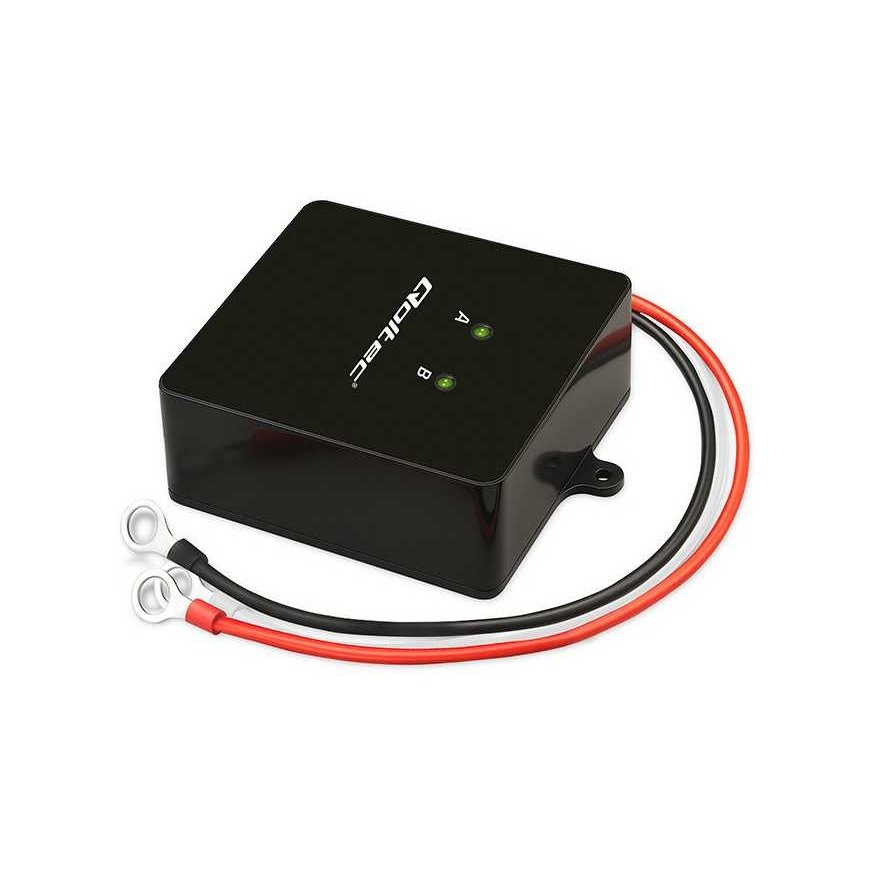

• Connection cable 35 cm with M8 eyelet – ready for immediate installation
• Supports: 2 x 12V batteries – both lead-acid (AGM, GEL) and lithium (LFP, NCM, LTO)

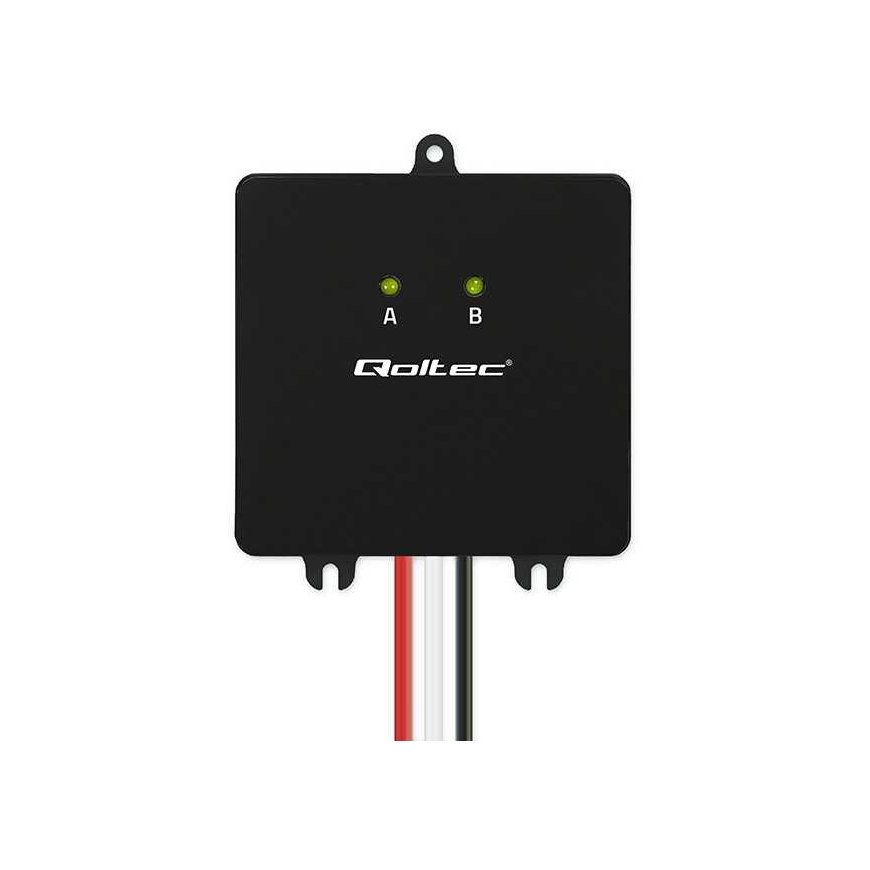

• LED indicator informing about the operation of the device
• Recommended battery capacity 20Ah – 200Ah

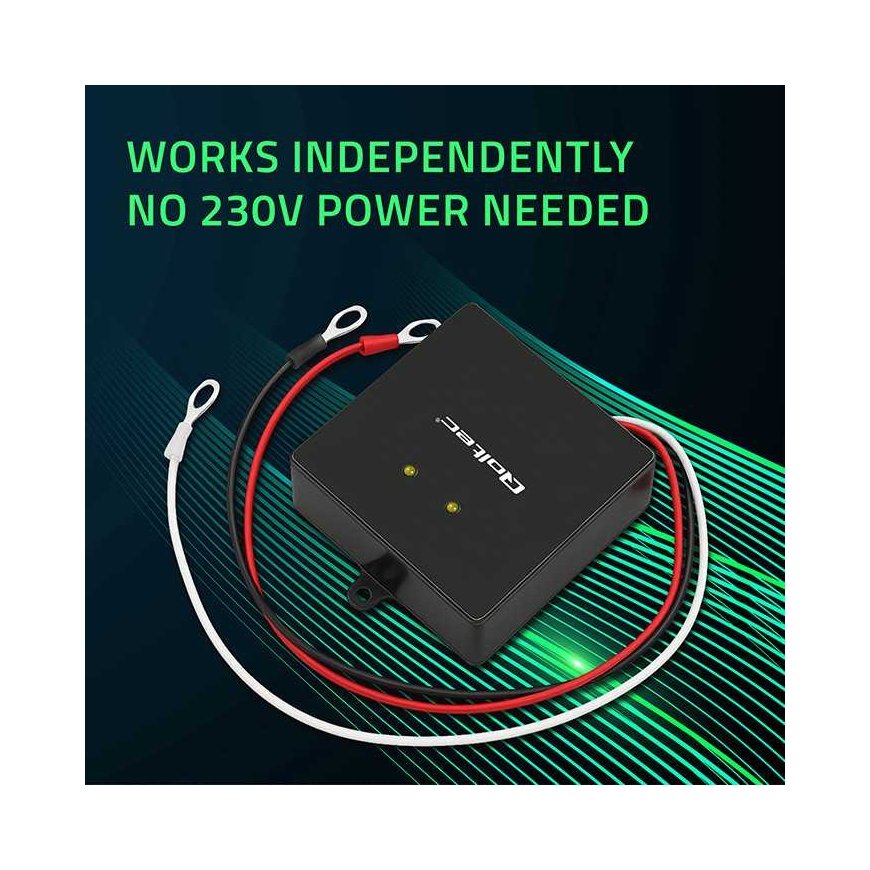

• Powered directly from batteries - does not require connection to the 230V AC network
• Highly precise integrated circuits reduce component deviations
How to connect the voltage balancer

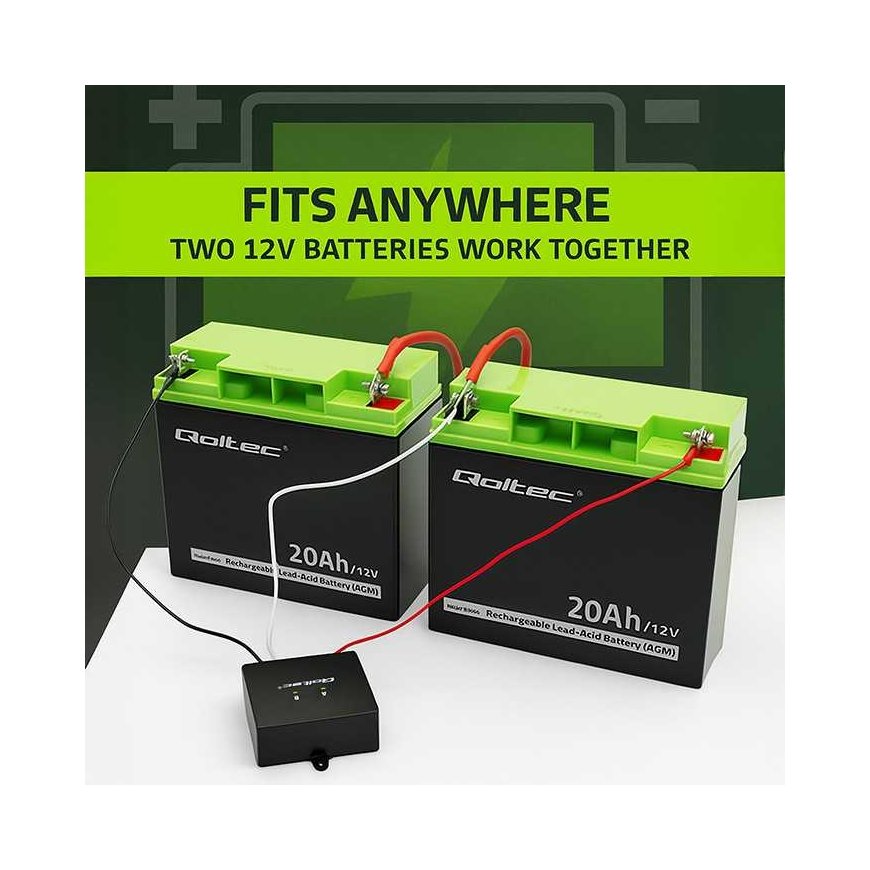

Before connecting the voltage corrector, make sure that both batteries are fully charged, of the same type, and have identical capacity . The voltage difference between them should not exceed 0.2V. It is also extremely important that the batteries are correctly connected in series, and the total voltage of the system is around 24V. Connecting the balancer is simple - just connect the black wire to the negative, the red to the positive of the entire 24V set, and the white to the point between the batteries – the balancer will take care of the rest. The device will start automatically, and the LED indicators A and B will inform you that the system is working and taking care of your batteries .
For campers, on yachts, for photovoltaics - Compatible with AGM, GEL, LiFePO4, NCM, and LTO batteries
The 24V voltage balancer is an excellent choice wherever you use two connected 12V batteries in series. It works perfectly in campers, caravans, boats, solar systems, electric vehicles, forklifts, and emergency power installations . It easily cooperates with lead-acid batteries (AGM, GEL), as well as with lithium ones, such as LiFePO4, NCM, or LTO . This small device can significantly extend the lifespan of the entire battery and prevent costly failures.
Product covered by a 24-month warranty
Do you care about the high quality of the purchased product? Our solutions will meet your expectations. The balancers we offer are covered by a 24-month warranty valid from the date of purchase. Take care of your batteries' condition and enjoy the confidence that they are always in the best condition!
