GARNI 6INT - integrated wireless sensor
129.00 €
Monthly payment from 4,22 €
3886489 GARNI6INT
8592733021459
Shipping 7-9 b.d.
You are interested in this product?
All about the product

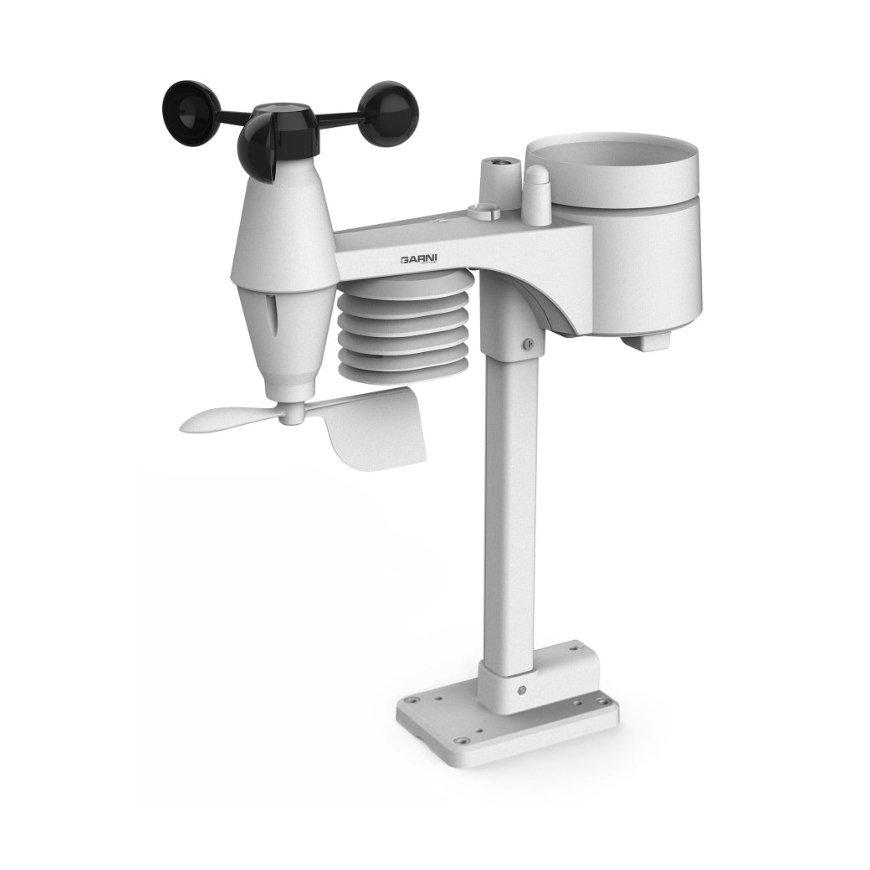

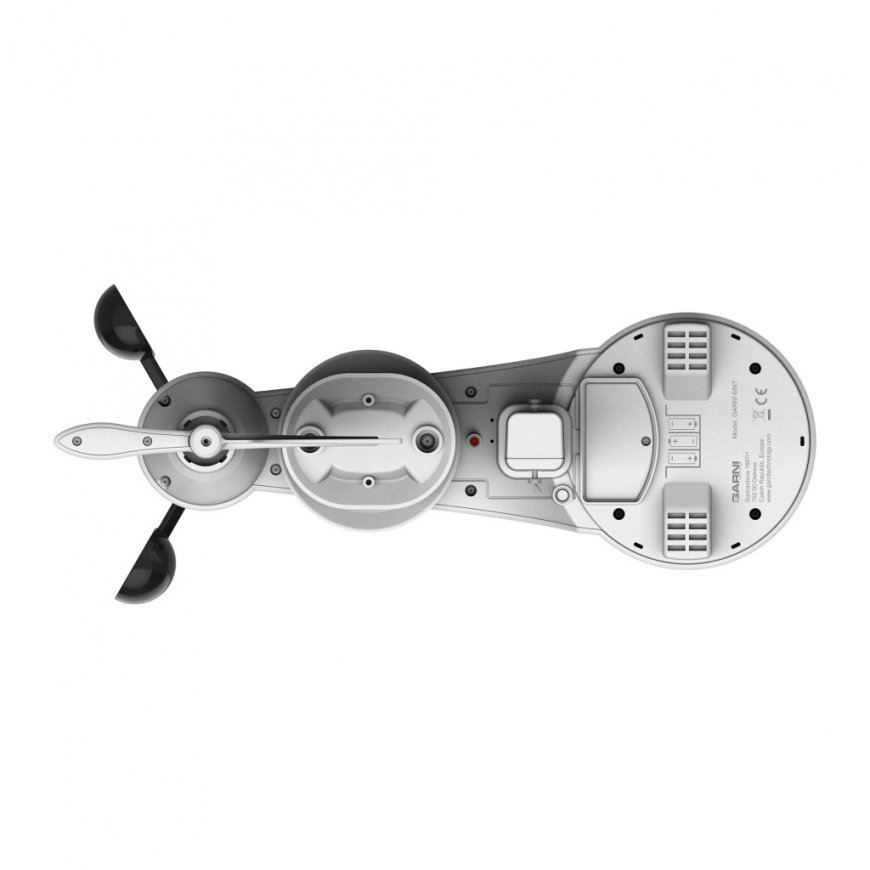

Integrated Wireless Sensor GARNI 6INT
Integrated wireless sensor designed for weather station models GARNI 750, GARNI 1025 Arcus, GARNI 925T and Wi-Fi weather interface GARNI GTWay Plus.
wear-resistant design
measurement of external temperature and relative humidity, precipitation, wind speed and direction, UV radiation and solar radiation intensity
LED data transmission indication
powered by batteries (lithium batteries recommended)
color light gray, wheel black
recommended mounting pole diameter is from 30 to 42 mm
Specifications
| Parameters | |
|---|---|
| Designed for model | GARNI 750, GARNI 1025 Arcus, GARNI 925T, GARNI GTway Plus |
| Temperature measurement range / tolerance | -40°C to +80°C operating temperature -40°C to +60°C (from -40 to -20 °C ±1.5 °C, from -19.9 to +5 °C ±1 °C, from +5.1 to +60 °C ±0.4 °C) (SENSIRION sensor) |
| Temperature measurement resolution | 0.1°C |
| Measurement range relative humidity / tolerance | from 1% to 99% (from 1 to 20 % ±6.5 % , from 21 to 80 % RH ±3.5 %; from 81 to 99 % ± 6.5 %) (SENSIRION sensor) |
| Measurement resolution relative humidity | 1 % |
| Wind speed measurement range / tolerance | from 0 to 50 m/s; from 0 to 180 km/h; from 0 to 112 miles per hour; from 0 to 97 knots < 5 m/s: ±0.5 m/s; > 5 m/s: ±6 % (depending on which value is greater) |
| Wind speed resolution | 0.1 m/s, 0.1 km/h, 0.1 mph, 0.1 knot |
| Wind direction measurement | Yes |
| Wind direction measurement resolution | 16 positions |
| Precipitation measurement | Yes |
| Total precipitation measurement range | 0 - 19,999 mm |
| Precipitation resolution | 0.1 mm |
| Precipitation amount required to tip the bucket | 0.4 mm (0.0157 inches) ±7 % or 1 tipping of the bucket |
| UV index measurement range | from 1 to 16 |
| Illumination intensity (solar radiation) / tolerance measurement range | From 0 to 200 Klux |
| Illumination intensity resolution (solar radiation) | 0.01 |
| Wireless sensor signal range | 150 m in open space |
| Transmission frequency | 868 MHz |
| Data transmission interval | Wind speed and direction, UV index, solar radiation intensity 12 seconds, temperature, relative humidity and precipitation 24 seconds |
| Power supply | 3 pcs 1.5 V AA type (batteries not included) |
| Overall dimensions | 343.5 x 393.5 x 136 mm |
| Weight | 688g (without batteries) |
| Color | Light gray, wind sweater black |
| Ability to stand/hang | Can be mounted on a pole |
| Pole / rod diameter | from 30 to 42 mm |
