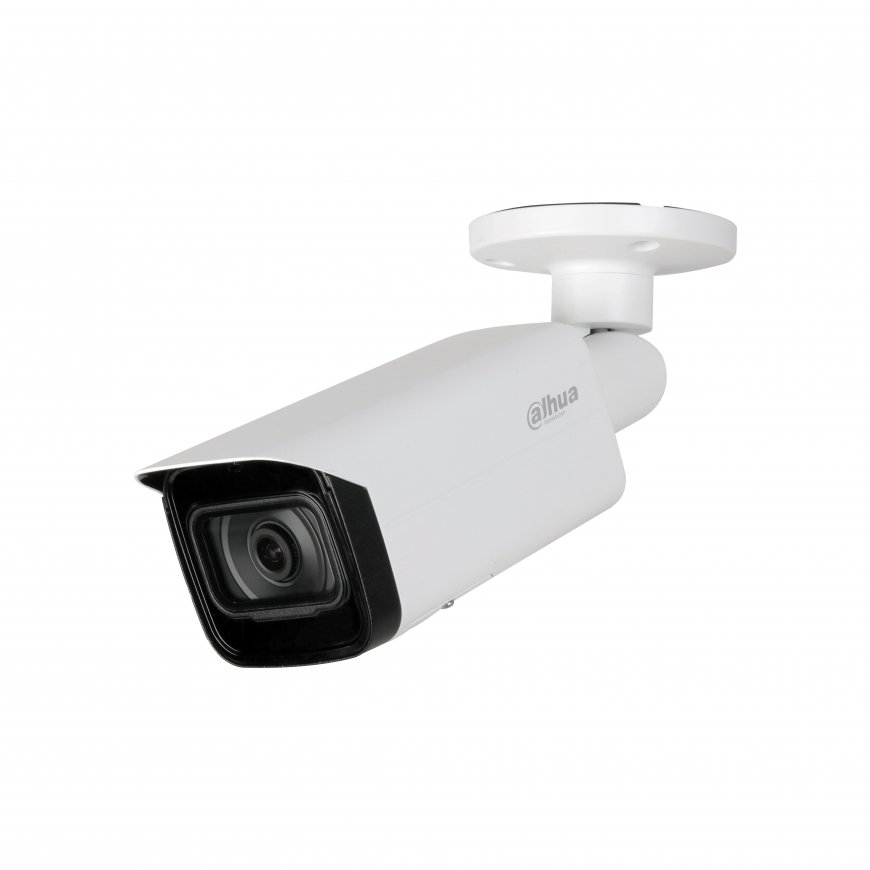

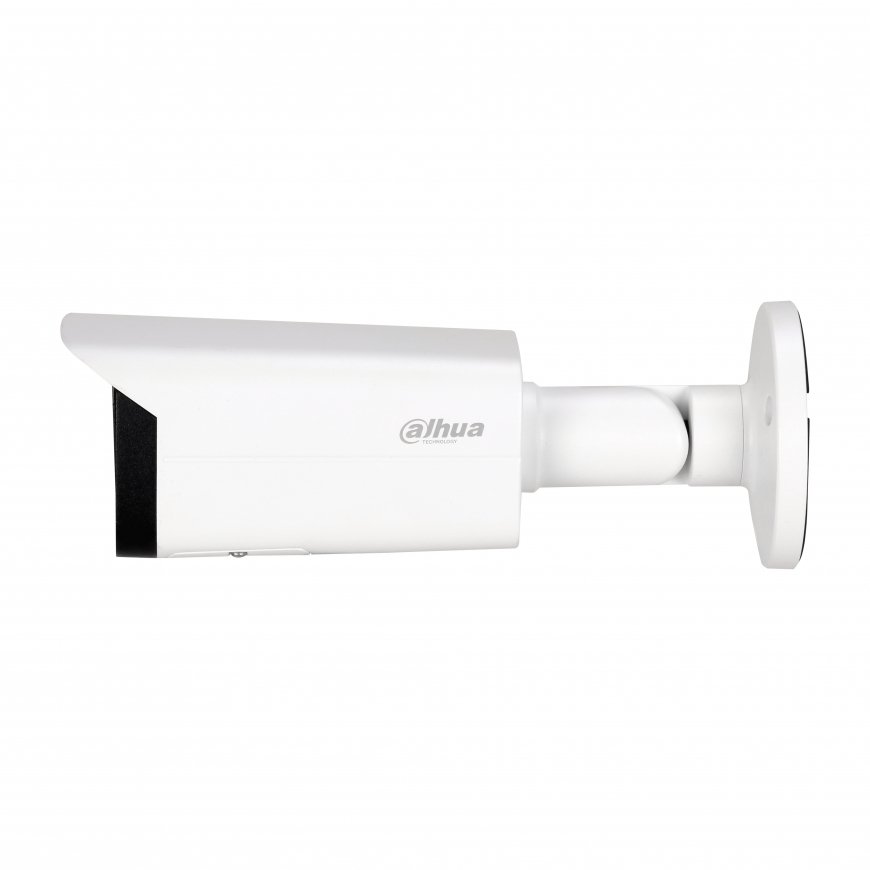

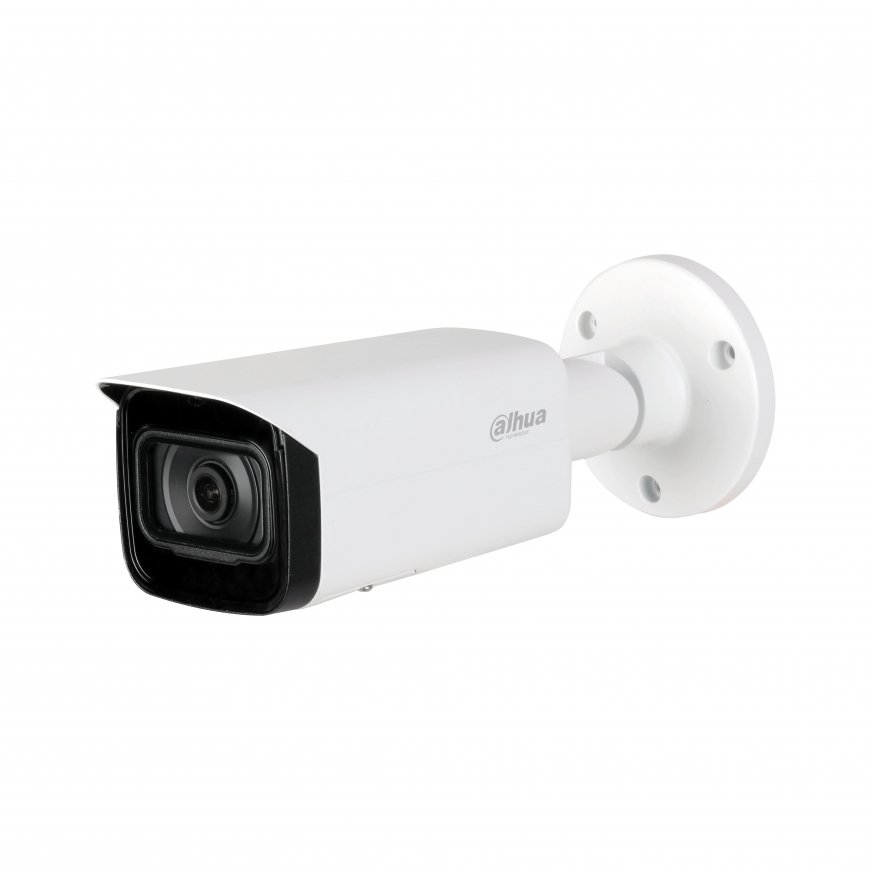

Dahua Technology WizMind IPC-HFW5541T-ASE-0360B Box IP security camera Indoor & outdoor 2960 x 1668 pixels Ceiling/wall
131.11 €
Monthly payment from 4,28 €
3883477 DH-IPC-HFW5541T-ASE-0360B
6939554966439
Shipping 1-2 days
You are interested in this product?
All about the product
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI-Powered Image technology and has the Deeplight night vision effect. The camera is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).
Functions
AI-Powered Image
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
Smart Sound Detection
With deep learning algorithms, Dahua Smart Sound Detection technology can detect and identify the sound of screams, glass breaking, and more.
People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.
Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Features
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Form factor | Box |
| International Protection (IP) code | IP67 |
| Audio formats supported | PCM; G.726; G.711 A-law; G.711 μ-law; G.723 |
| Weight | 820 g |
| Width | 79 mm |
| Height | 75.9 mm |
| Type | IP security camera |
| Maximum resolution | 2960 x 1668 pixels |
| Package weight | 1.08 kg |
| Connectivity technology | Wired |
| Mobile operating systems supported | Android; iOS |
| Supported graphics resolutions | 1280 x 720 (HD 720); 1920 x 1080 (HD 1080); 2560 x 1440; 640 x 480 (VGA); 352 x 240; 352 x 288; 704 x 480; 704 x 576; 1280 x 960; 2688 x 1520; 2304 x 1296; 2048 x 1536 (QXGA); 2880 x 1620 |
| Certification | CE-LVD: EN62368-1;; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;; FCC: 47 CFR FCC Part 15, Subpart B;; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Operating relative humidity (H-H) | -40 - 60% |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Housing material | Metal |
| Power consumption (typical) | 5.2 W |
| Noise reduction | Yes |
| Audio output channels | 1.0 channels |
| Mounting type | Ceiling/wall |
| Power source type | DC; PoE |
| Power consumption (max) | 9.8 W |
| Angle of rotation | 360° |
| Placement supported | Indoor & outdoor |
| Tilt angle range | 0 - 90° |
| Length | 244.1 mm |
| Web browser | Yes |
| Storage relative humidity (H-H) | 10 - 95% |
| Built-in microphone | Yes |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| IK code | IK10 |
| Camera shutter speed | 1/3 - 1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Video compression formats | H.264; H.265; M-JPEG; H.264B; H.264H |
| Audio input channels | 1.0 channels |
| Built-in HDD | No |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Number of cameras | 1 |
| Mirror | Yes |
| Number of illumination LEDs | 4 |
| Internal memory | 1000 MB |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Field of view (FOV) angle | 110° |
| Number of users | 20 user(s) |
| Minimum illumination | 0.0009 lx |
| White balance | Auto; Manual; Outdoor; Custom modes; Natural; Street lamp |
| Gain control type | Auto |
| Pan range | 0 - 360° |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Camera shutter type | Electronic |
| Night vision | Yes |
| LED type | IR |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.7 m |
| Dynamic range | 120 dB |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Number of lenses | 1 |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Power consumption (Power over Ethernet (PoE)) | 5.2 W |
| Detect distance | 85.4 m |
| Observe distance | 34.2 m |
| Recognize distance | 17.1 m |
| Identify distance | 8.5 m |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Streaming method | Multicast |
| ROM capacity | 4000 MB |
| Management software | SmartPSS Lite; DSS; DMSS |
| Noise reduction technology | 3D noise reduction |
| Fixed focal length | 3.6 mm |
| Adjustment shutter speed | Auto/Manual |
| Smart IR | Yes |
| Lens viewing angle, diagonal | 110° |
| Lens viewing angle, horizontal | 92° |
| Lens viewing angle, vertical | 45° |
| Network access storage (NAS) | Yes |
