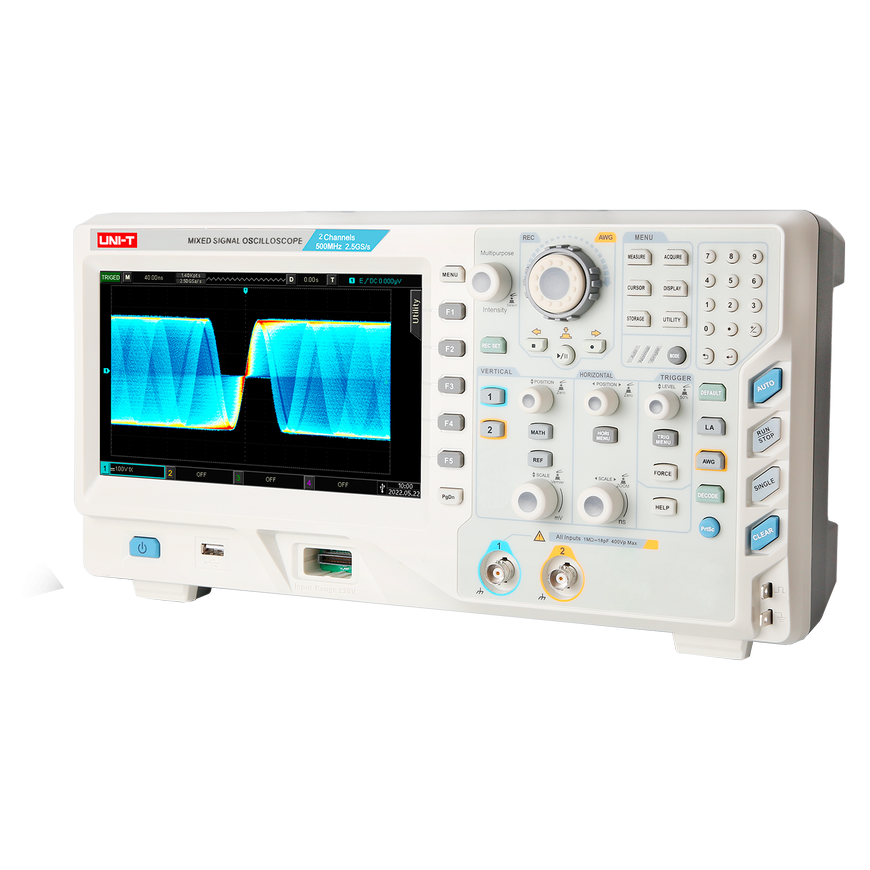

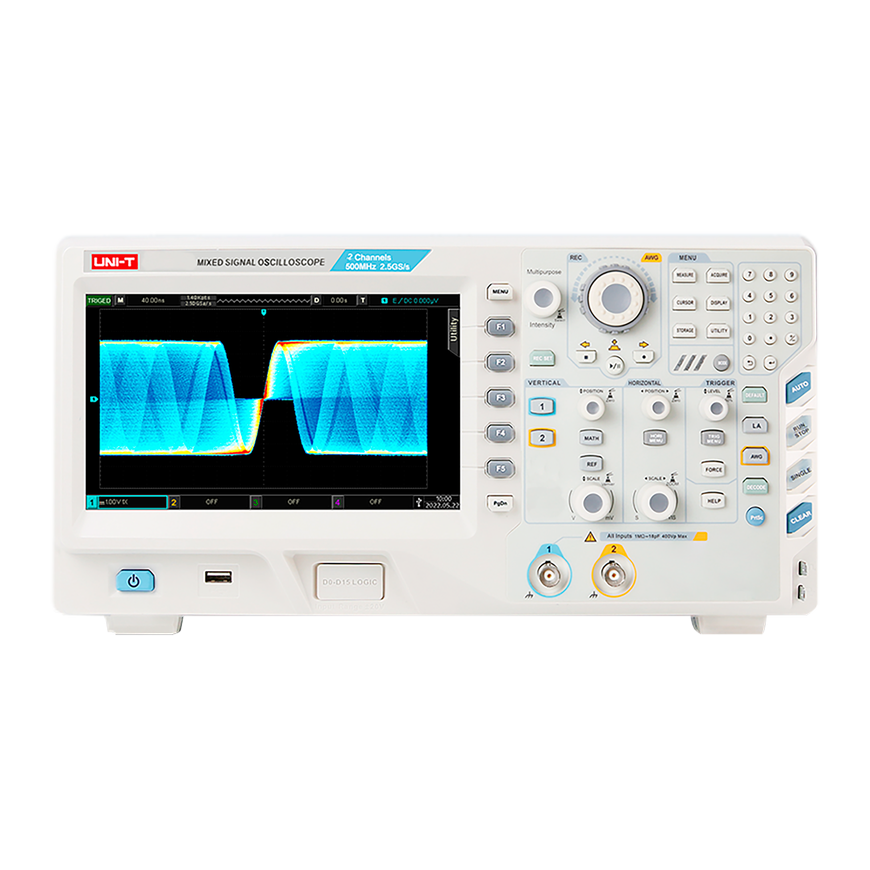

Uni-T UPO3352E oscilloscope
1 499.00 €
Monthly payment from 39,50 €
3881660 LEC-MIE0501
5901890104555
Shipping 9-13 b.d.
You are interested in this product?
All about the product
------------MAIN PARAMETERS
------------
Analog bandwidth: 350 MHz
Rise time: <=1 ns
Number of channels: 4
Sampling rate: 2.5 GS/s
Memory depth: 250 Mpts (1 channel)
Waveform capture rate: 200,000 wfms/s / 1,000,000 wfms/s
Time base: 5ns/div ~ 50s/div
Input impedance: (1MOhm ?2%) II (20 pF ?3 pF)
Vertical deflection sensitivity: 1mV/div ~ 20V/div (1M?)
Signal gain accuracy: <=?3 %
Waveform recording: 65,000 frames
Trigger methods: edge, pulse width, run, window, N edge, delay, time difference, duration, setup/hold, slope, video, code
Serial bus decoding options: RS232/UART, I2C
Waveform operations: A+B, AB, AxB, A/B, FFT, logical operations, extended
Automatic measurement of 27 parameters: maximum peak, amplitude, maximum, minimum, top, bottom, average, median, cycle average, mean average, cycle RMS, area, cycle area, overshoot, pre-trigger, frequency, cycle, rise time, fall time, positive pulse, negative pulse, positive power coefficient, negative power coefficient, delay A->B (rising edge), delay A->B (falling edge), delay B->A (rising edge), delay B->A (falling edge).
Result display types: 5 results simultaneously
Measurement statistics: Average, Max., Min., standard deviation, measurement number
Frequency window: 6 bits

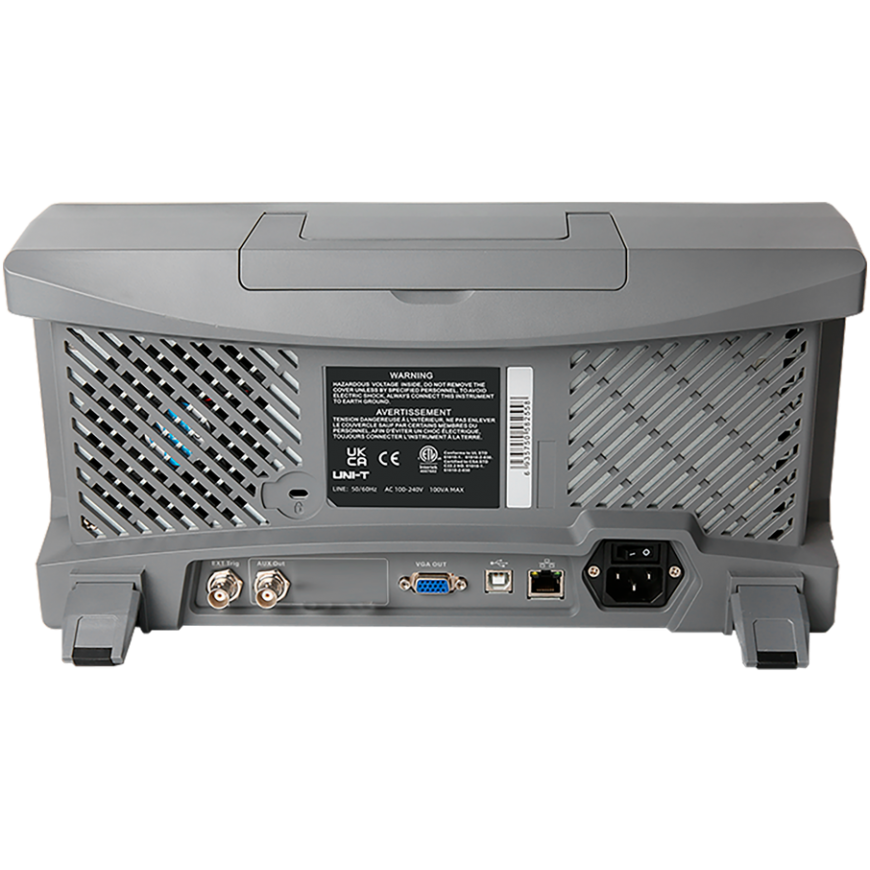

Interfaces: USB-host, USB-device, LAN, AUX (Trig Out, Pass / Fail)
------------
GENERAL PROPERTIES
------------
Power supply: 100V~240VAC, 50Hz/60Hz
Display: 8? TFT LCD, WVGA (800 × 480 px)
Weight: 4.5 kg
Dimensions: 370 x 185 x 115 mm
