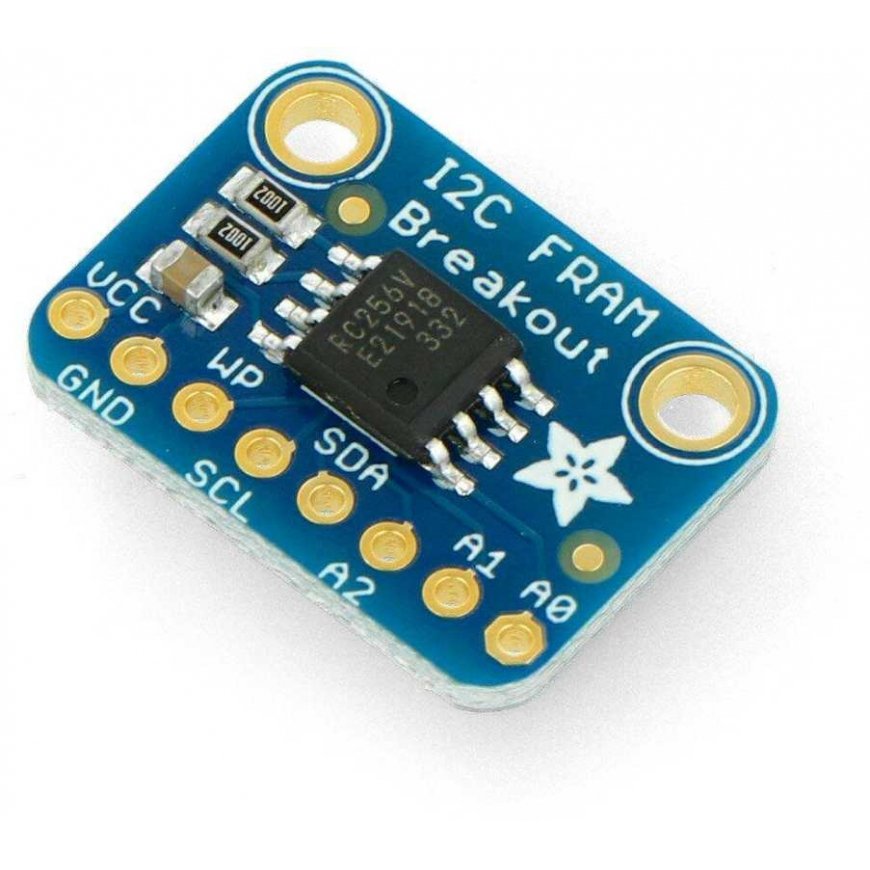

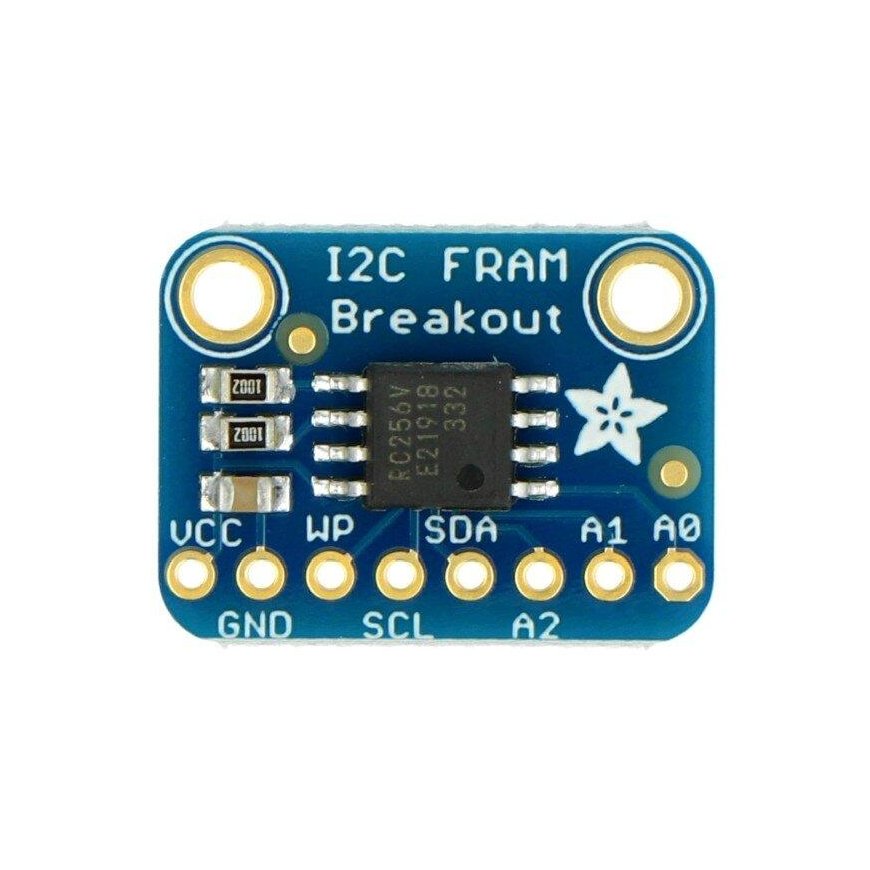

MB85RC256V, 256Kb / 32KB FRAM non-volatile I2C memory, Adafruit 1895
29.00 €
3879763 AN-04137
5904422354206
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with non-volatile FRAM memory, designed for data storage, characterized by low power consumption and durability. Each byte can be read or saved 10,000,000,000,000 times. FRAM is also extremely stable over time, allowing data storage for up to 95 years at room temperature.
The capacity of this system is 256 KB (32 KB), interacting with the main microcontroller via the SPI bus. The pins operate at 3.3 V and 5 V voltage.
Specifications:
- Supply voltage: from 3.0 V to 5.0 V
- Pin operating voltage: from 3.3 V to 5.0 V
- Chip: MB85RC256V
- Memory: 256 KB (32 KB)
- Memory type: FRAM
- Interface: I2C bus

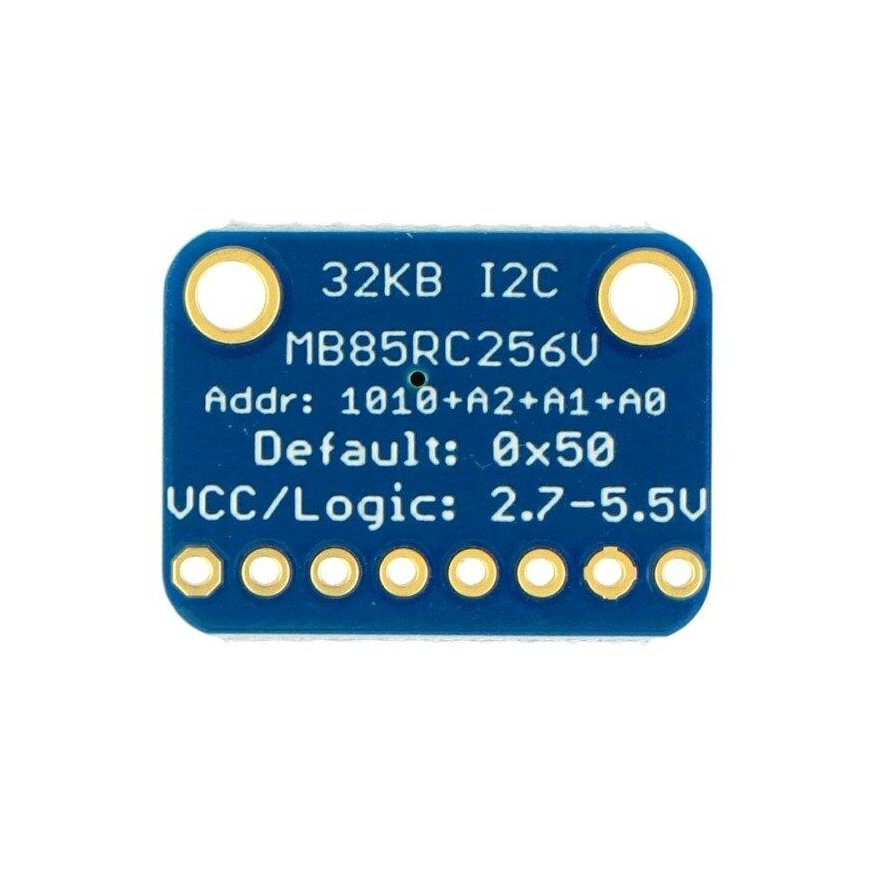

- Bus address: 0x50 (changes via A0, A1, A2 pins)

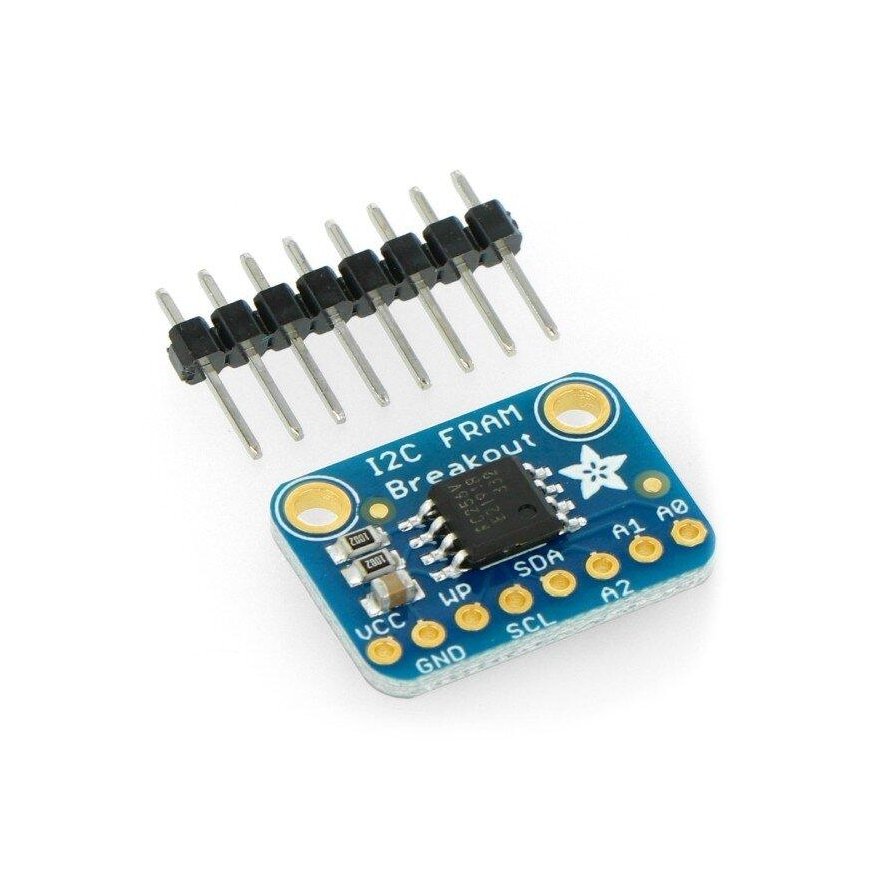

- Pins: holes for gold pin connections - 2.54 mm (strip included for soldering)
- Dimensions: 15.5 x 20 x 2 mm
- Weight: 1.5 g
