The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

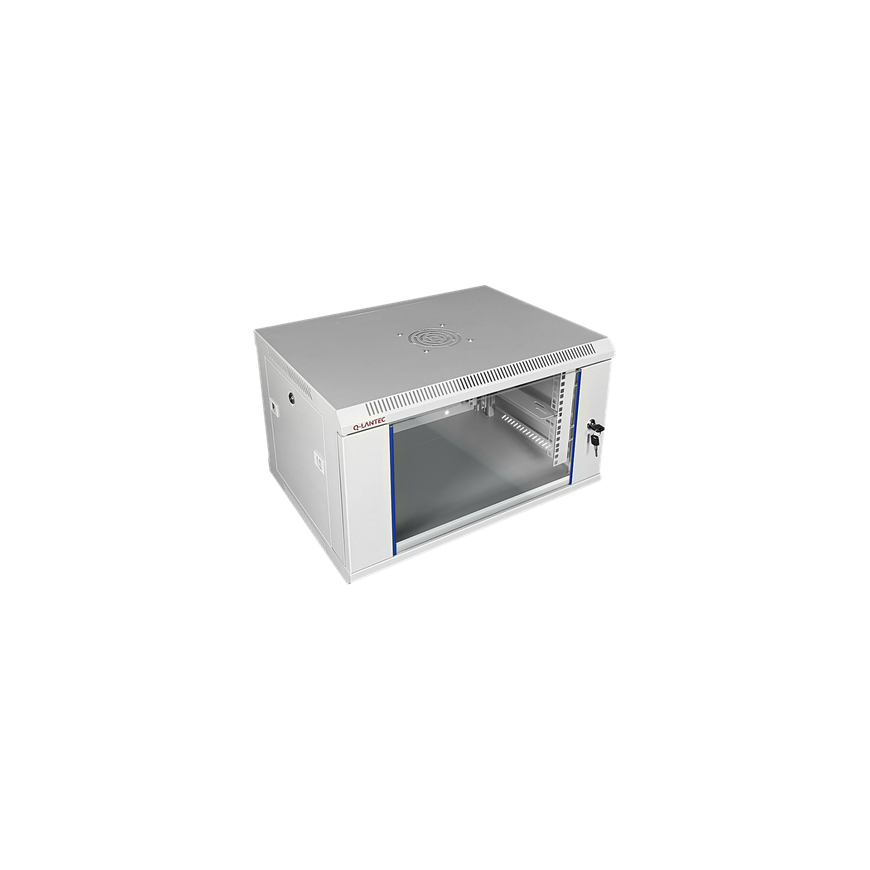

19" 6U 600x450 wall cabinet, single leaf glass door, fully removable back panel, fully removable lockable side panels, 4 rails,
3873885 SW-6U-600-450-01-SF
5904204406499
4-6 b.d.
All about the product
19-inch wall-mounted rack cabinets designed for indoor installation are offered in five useful heights (6U, 9U, 12U, 15U, and 18U). The tempered glass (ESG) front doors ensure an aesthetic appearance and safe operation. The cabinets are intended for structured cabling and mounting active devices in the 19-inch standard, and are also successfully used in video surveillance systems and security devices.
The cabinet's design allows for optional installation of a two-section frame, thus increasing mounting flexibility and access to equipment from the back. The cabinet has removable cable entry points. The product is supplied assembled or for self-assembly (flat packaging), in gray or black color.
Features:
- made of steel sheet
- Front doors made of tempered ESG glass
- removable doors with the option to change the opening direction
- removable, lockable side panels
- lockable front doors
- option to install a 120 × 120 mm fan in the top cover
- IP20 protection class (according to PN-EN 60529)
- optional installation of a two-section frame
- can be equipped with shelves, drawers, ventilation panels, and other accessories
- The product is delivered in a box with grounding wires and mounting hardware
| TECHNICAL DATA | |
|---|---|
| Height | 6U |
| Doors | glass, tempered safety glass ESG |
| Color | RAL 7035 (gray) |
| Load capacity | 60 kg |
| Protection degree | IP20 |
| Wall thickness | 1.2 mm |
| External width | 600 mm |
| External depth | 450 mm |
| Total weight | 13.5 kg |
