Anodas Electronics DIY Electronics Kit - Smart Circuits with ATmega328P Microcontroller
39.00 €
Monthly payment from 1,90 €
3873514 AN0315
4779044510122
Shipping 8-12 b.d.
You are interested in this product?
All about the product
The kit is designed to introduce you to the basics of electronics and programming. With the components in this kit, you will be able to create 5 projects from the book Smart Circuits with Arduino. You can download this book for free in PDF format.

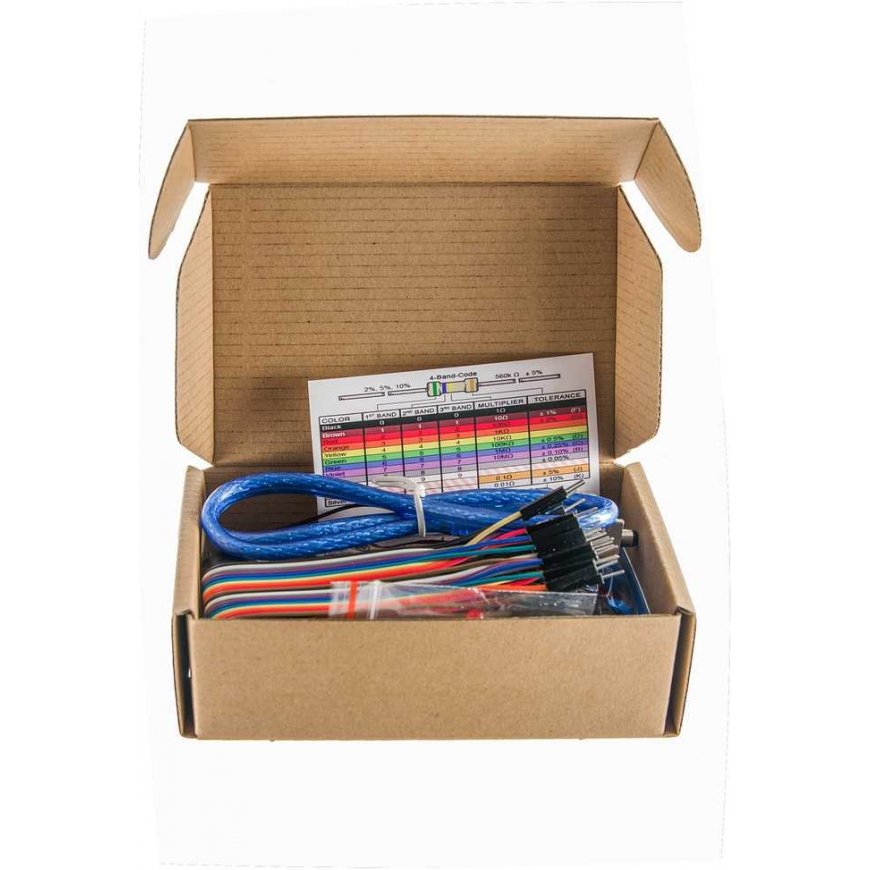

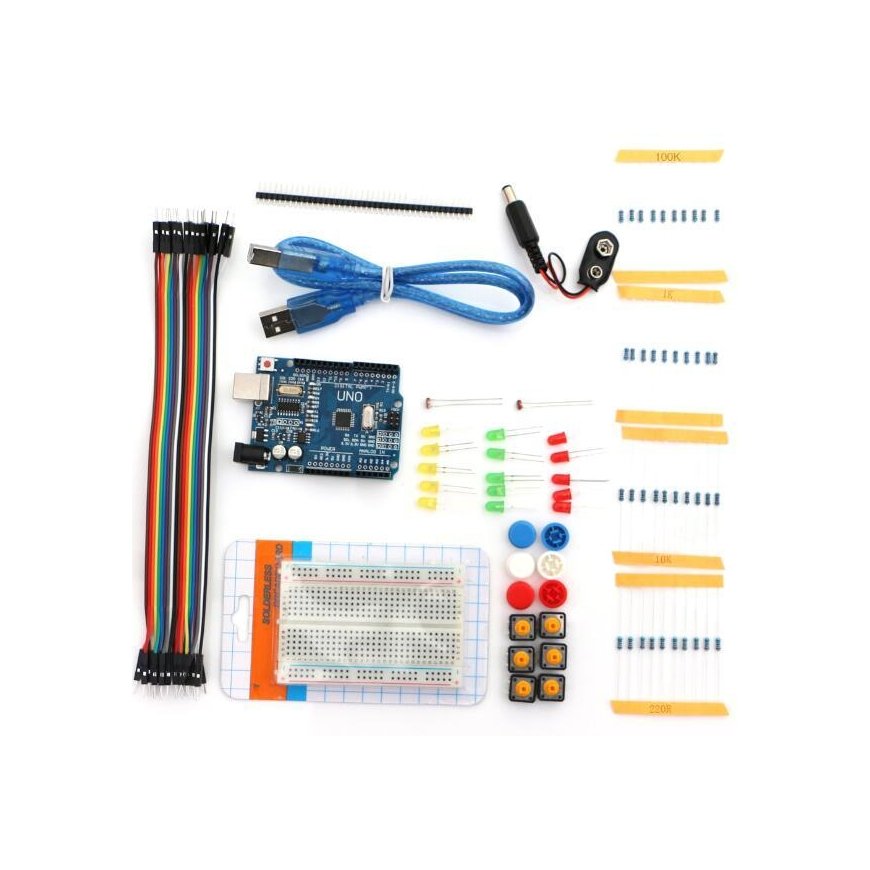

In the kit:
- 1x UNO R3 analog microcontroller
- 20x T-T prototyping wires
- 1x USB cable
- 1x midi prototyping board
- 5x 3 color LED diodes (random)
- 10x 220ohm resistor
- 10x 1K resistor
- 10x 10K resistor
- 10x 100K resistor
- 2x Photoresistor 5516
- 6x Buttons (with random color caps)
- 1x 9V battery connector
- 1x 40 pin header
Drivers (for Win7/Win8.1/Win10): Download
Specifications:
- Power supply voltage: from 7V to 12V
- Fully compatible with Arduino Uno Rev3
- Microcontroller: ATmega328 - operating voltage 5V
- Maximum clock frequency: 16 MHz
- SRAM memory: 2 kB
- Flash memory: 32 kB (5 kB reserved for bootloader)
- EEPROM memory: 1 kB
- 14 IN-OUT inputs, including 6 PWM
- single pin current efficiency 40mA
- Number of analog inputs: 6 (A/D converter channels)
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Connector: USB port
- Soldered ISP connector
- Board dimensions: 75x54x15mm
- Distance between pins 2.54mm (can be mounted on breadboards)
- Includes USB cable
- The module is fully compatible with Arduino Uno R3. (this means it can be programmed via Arduino IDE using available libraries.)
- The module has:
- - ATmega328 microcontroller - the system operates with a clock signal of 16MHz
- - 14 digital inputs/outputs,
- - 6 PWM channels - e.g., to control servos/motors, etc.
- - 6 analog inputs
- - popular communication interfaces
- - USB connector CH340
- - DC power jack
- - RESET button
- - pins for connecting an AVR programmer.
- To run DFRduino, connect the system to the computer via USB cable and select the Arduino Uno board in the Arduino IDE environment.
- the module is mostly compatible with shields designed for Duemilanove and Diecimila
- By default, the BLINK LED 13 program and bootloader are uploaded to the module
