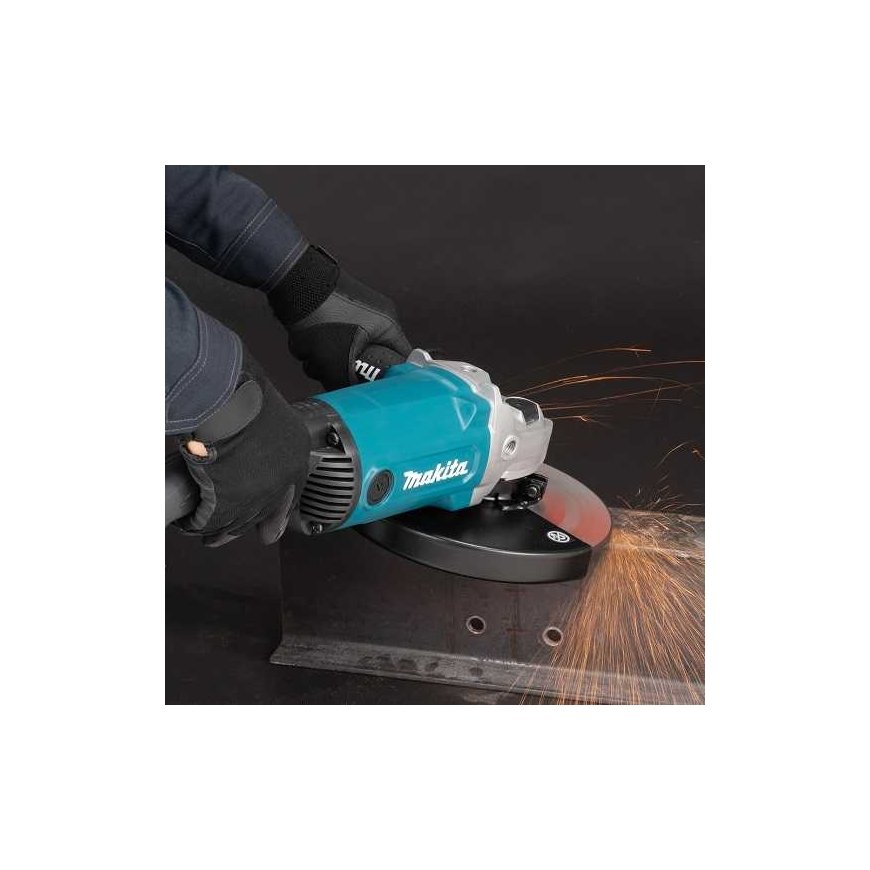

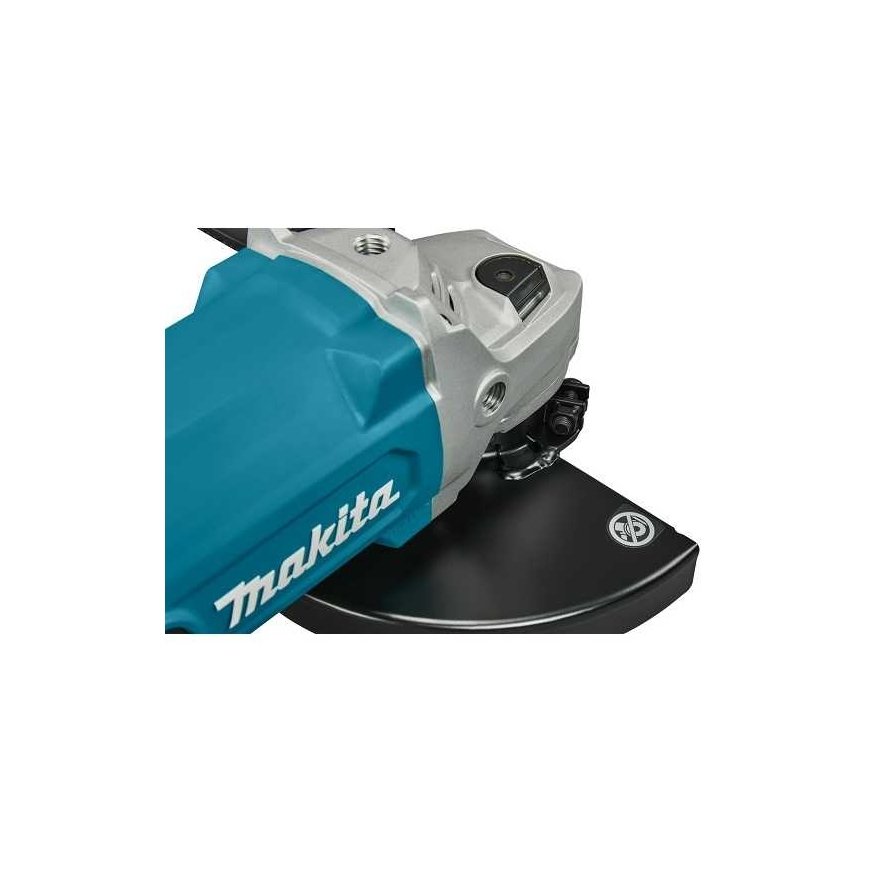

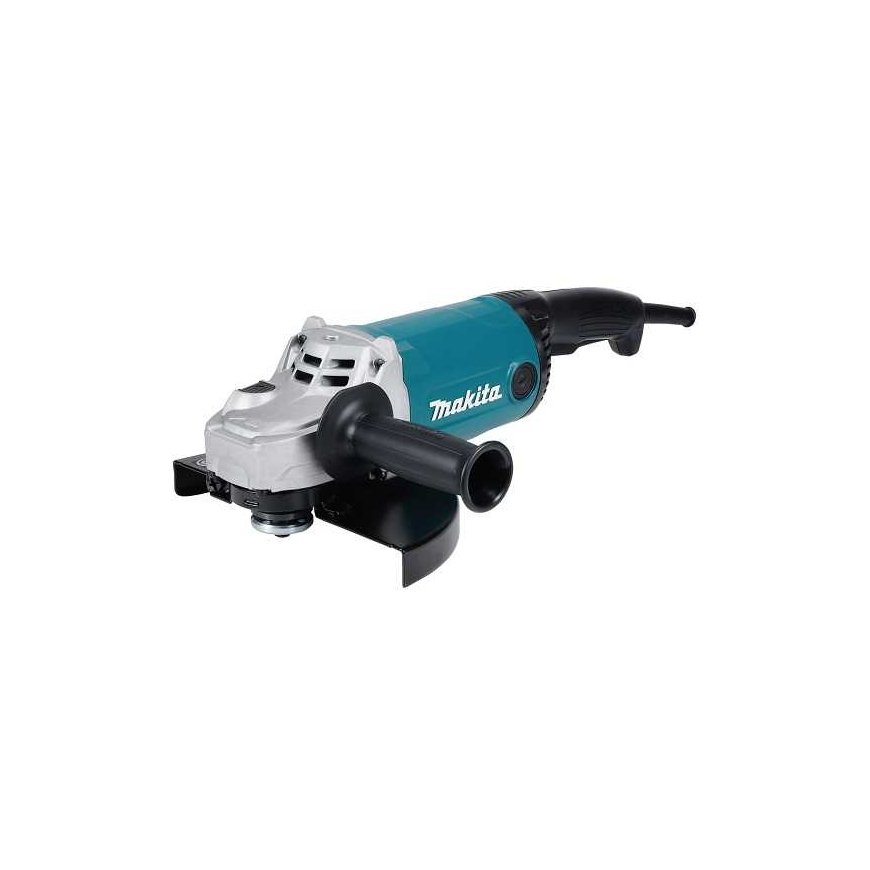

angle grinder 2200W, 230mm, Makita [GA9090N]

All about the product

Meie ettevõte ei ole Makita kaubamärgi tootja, volitatud edasimüüja ega volitatud esindaja Eestis-s.

Electric Angle Grinder 230mm, Makita [GA9090N]:

• angle grinder with 2200 W motor, double insulation, increased wear resistance,
• features a large start switch with increased resistance to contamination,
• reinforced stator protection,
• serial number located under the disc cover, which protects the nameplate from damage,
• The side handle can be attached to the grinder in three positions to adapt the handle to the work being performed.

ANGLE GRINDER MAKITA [GA9090N] TECHNICAL PARAMETERS:

• rated power : 2200W,
• no-load speed : 6600 rpm,
• disc diameter : 230 mm,
• disc hole diameter : 22.23 mm,
• spindle thread : M14,
• maximum cutting depth : 69 mm,
• sound power level : 101 dB(A),
• sound pressure level : 95 dB(A),
• noise coefficient : 3 dB(A),
• vibration level:
  - grinding : 2.7 m/s²,
  - Steel brush : 7.0 m/s²,
• vibration coefficient _Kh : 1.5 m/s²,
• power cord length : 2.0 m,
• dimensions (L x W x H) : 438 x 250 x 144 mm,
• weight : 7.4 kg,
• weight without cable (EPTA) : 5.3 kg


ANGLE GRINDER MAKITA [GA9090N] EQUIPMENT :

• handle 37 [143486-6],
• grinding disc cover [141P32-5],
• mounting flange [224490-5],
• flange nut 14-45 mm [224485-8],
• wrench for locking nut35 [782040-7],
• user manual

User manual: https://www.icmsmakita.eu/CMS/custom/fi/attachments/user_manuals/User_manuals_EU3/GA9090.pdf

Declaration of conformity: https://www.icmsmakita.eu/CMS/custom/fi/attachments/ec_declaration_conformity/GA9090.pdf

Service diagram: https://www.icmsmakita.eu/CMS/custom/fi/attachments/part_drawings/EN/GA9090.pdf
