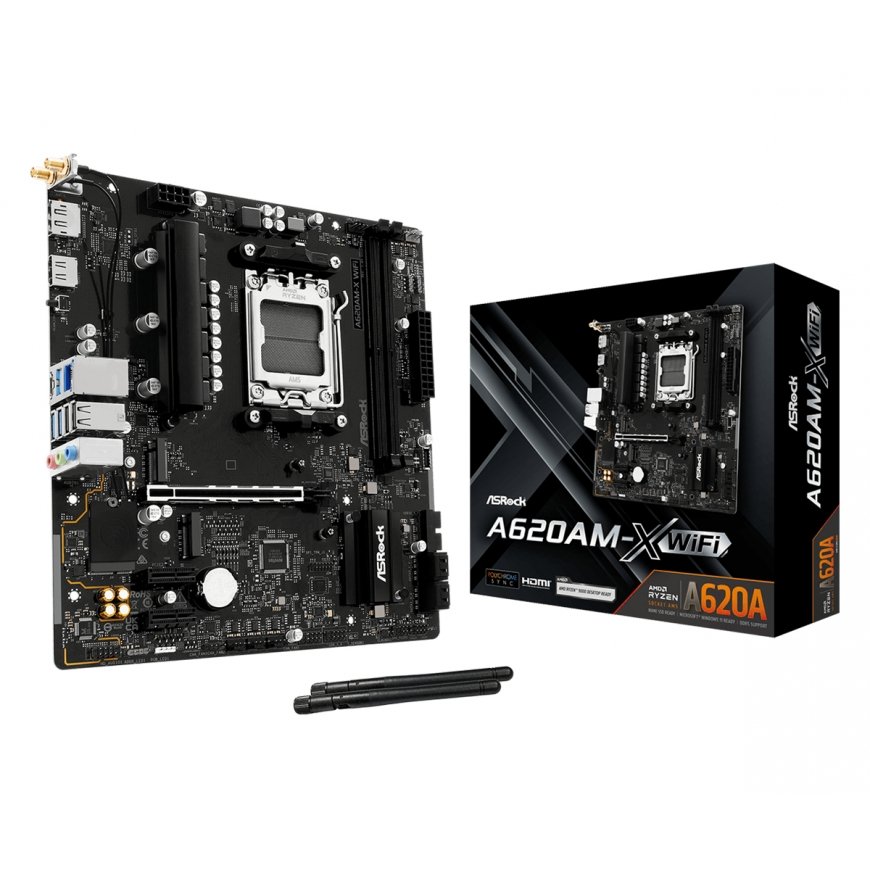

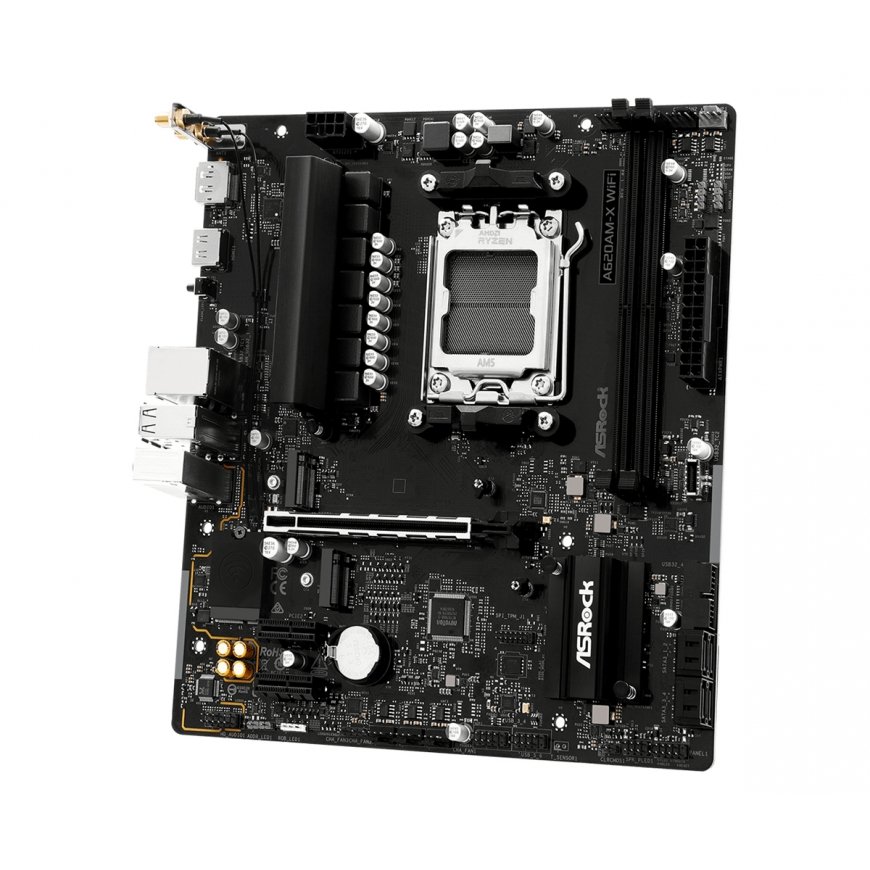

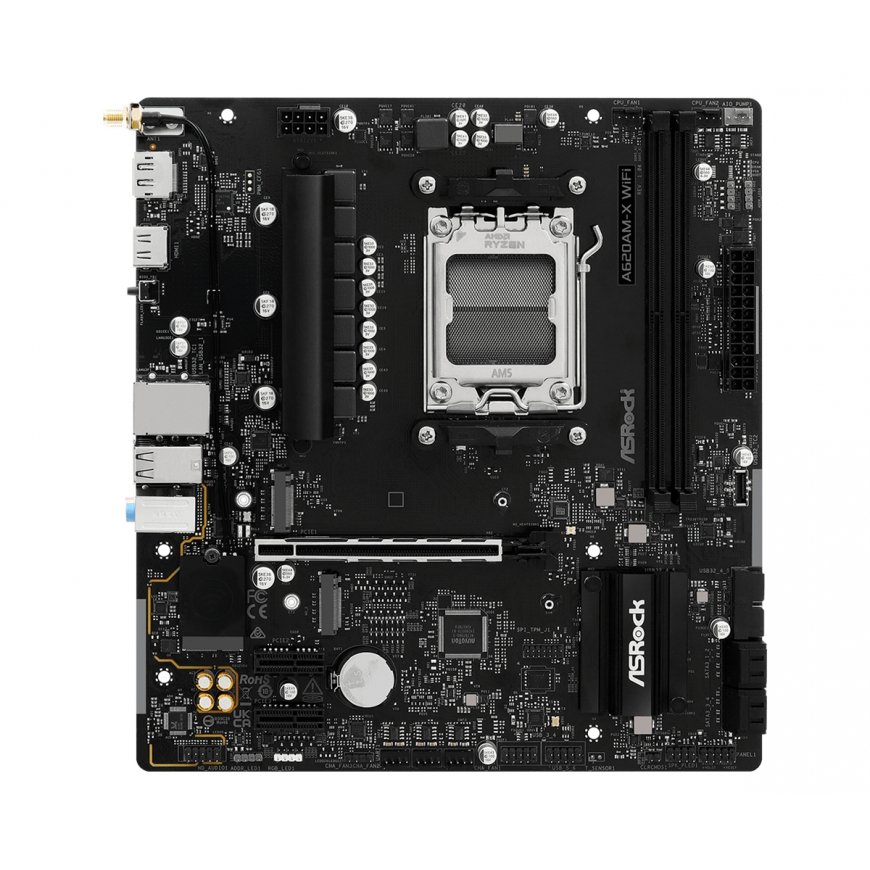

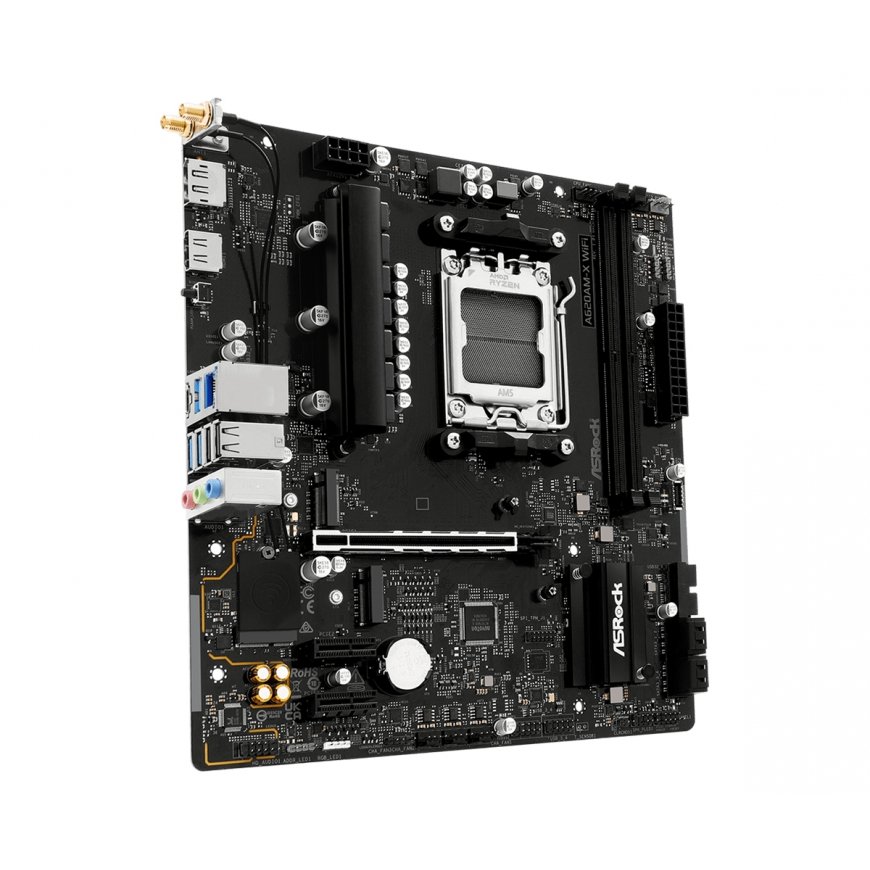

Asrock A620AM-X WiFi AMD A620A Socket AM5 micro ATX
111,17 €
105.01 €
Monthly payment from 3,60 €
3866259 90-MXBSU0-A0UAYZ
4711581490826
2026-11-02
You are interested in this product?
All about the product
The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
Features
| Wi-Fi | Yes |
| Bluetooth | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Wi-Fi standards | 802.11a; 802.11b; 802.11g; Wi-Fi 4 (802.11n); Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Width | 244 mm |
| Depth | 226 mm |
| Cables included | SATA |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64; Windows 11 x64 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Supported storage drive interfaces | M.2; SATA III |
| HDCP | Yes |
| Compatible processor series | AMD Ryzen 7000 Series; AMD Ryzen 8000 Series; AMD Ryzen 9000 Series |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Processor manufacturer | AMD |
| Maximum internal memory | 128 GB |
| On-board graphics card | Yes |
| Line-in | Yes |
| Motherboard chipset | AMD A620A |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Processor socket | Socket AM5 |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio chip | Realtek ALC897 |
| Supported memory types | DDR5-SDRAM |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| HDCP version | 2.3 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Motherboard form factor | micro ATX |
| DVI-D ports quantity | 0 |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Graphics card family | AMD |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Motherboard chipset family | AMD |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| RGB LED pin header | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Maximum number of SMP processors | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 4 |
