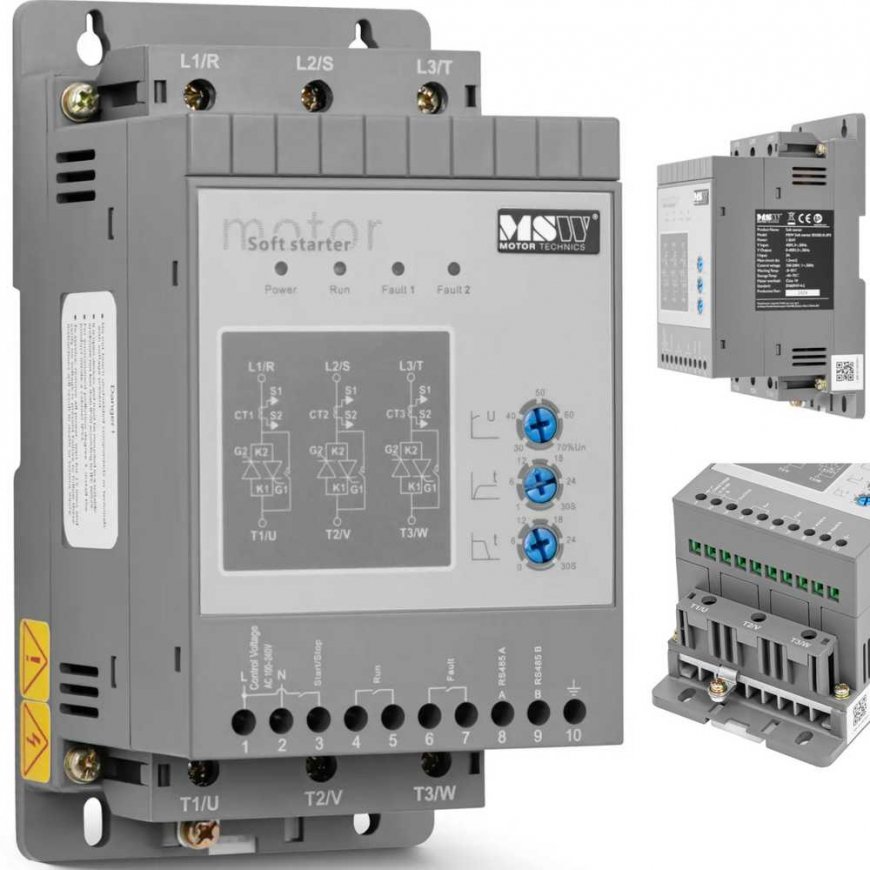

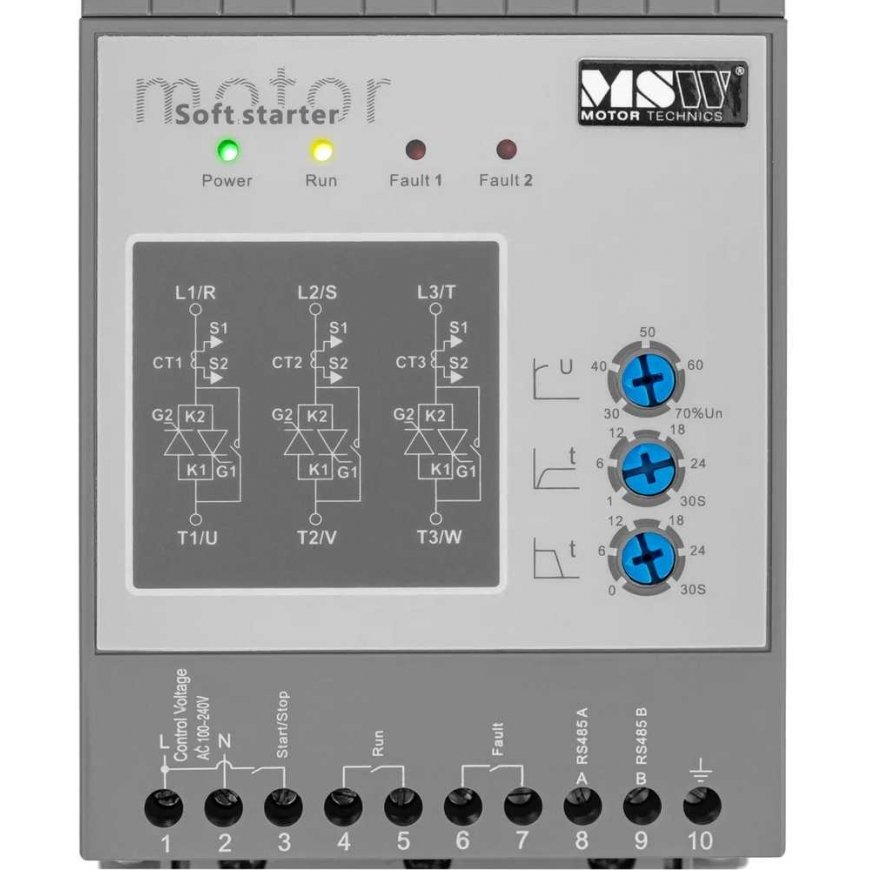

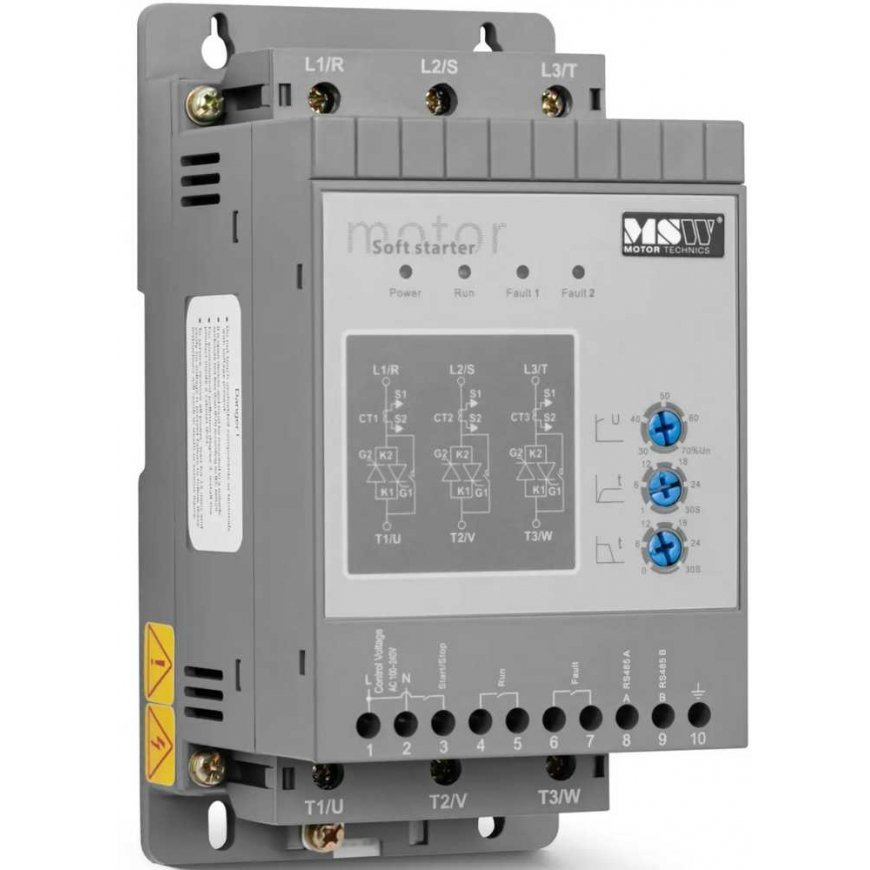

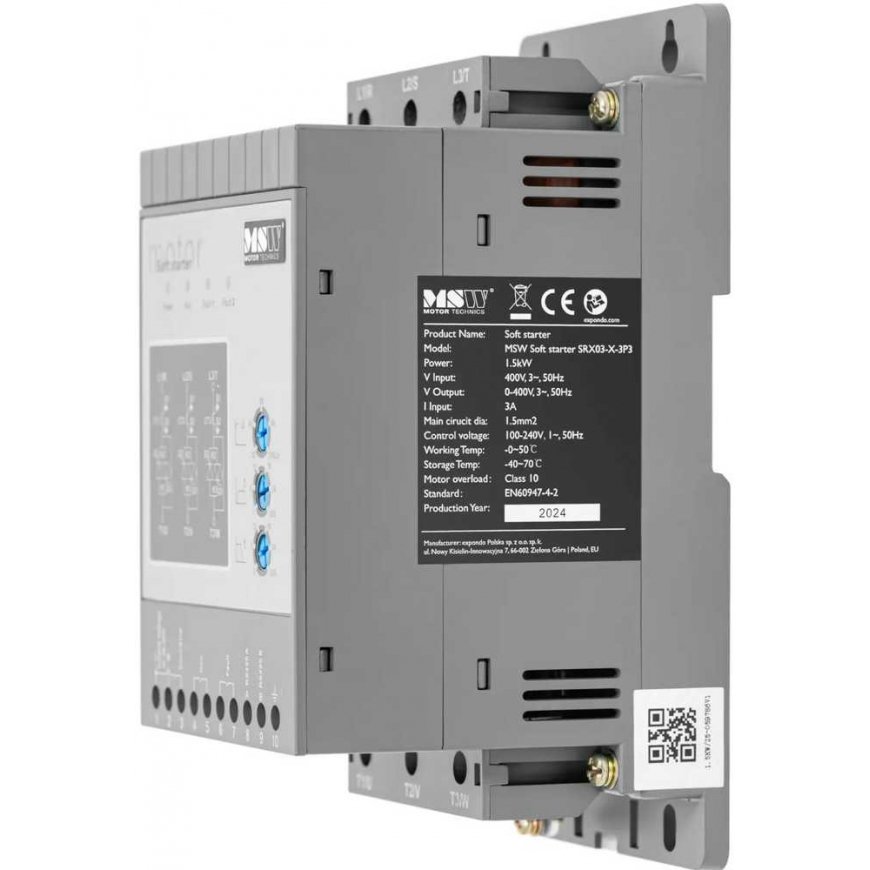

MSW Soft starter for gentle motor start 3 A 1.5 kW 400 / 100-240 V

All about the product

Manufacturer code: 10062931
MSW brand soft starter extends the equipment's lifespan and allows for the starting of pump motors, compressors, or conveyors with a voltage of 400 V . The control voltage range of 100 - 240 V allows it to be used with various power networks. The drive starts at a reduced voltage, which will increase according to the precisely set voltage ramp until it reaches the operating value. As a result, the motor will operate more smoothly and without fluctuations. The model also prevents water hammer during pump operation. The high-quality soft start module can be connected to devices with a maximum power of 1.5 kW . Therefore, it is ideal for commercial and industrial applications. In addition to high efficiency, the MSW soft start system ensures optimal energy efficiency. The integrated bypass reduces power loss as soon as the motor reaches full power. The automatic, contactless start/stop function reduces consumption during operation. Additionally, three-phase control reliably adjusts the torque, resulting in a smooth motor start without jerks. Overload protection class 10 ensures safe operation, preventing machine damage and thus improving motor resilience. The 400 V soft starter impresses with its ease of use, and thanks to its compact design, it takes up little space.
Product features:

• - At a voltage of 400 V and a power of 1.5 kW, the soft starter gently and safely starts motors at reduced voltage,
• - The soft start system with pump control function helps avoid water hammer,
• - With class 10 overload protection, the soft starter provides adequate motor protection,
• - The contactless start/stop function of the soft starter module enables gentle and smooth motor starting,
• - With a control voltage of 100 - 240 V, the 240 V soft starter can be used worldwide with various power networks.

• - Catalog number - 10062931
• - Article condition - New
• - Model - MSW SOFT STARTER SRX03-X-3P3
• - Color - Gray
• - Maximum power - 1.5 kW
• - Material - ABS
• - Voltage [V] - 400, 100-240
• - Protection class IP - -
• - Storage temperature [deg C] - 0-50
• - Operating temperature range [deg C] - -40-70
• - Rated input current [A] - 3
• - Weight - 0.8
• - Shipping weight - 1

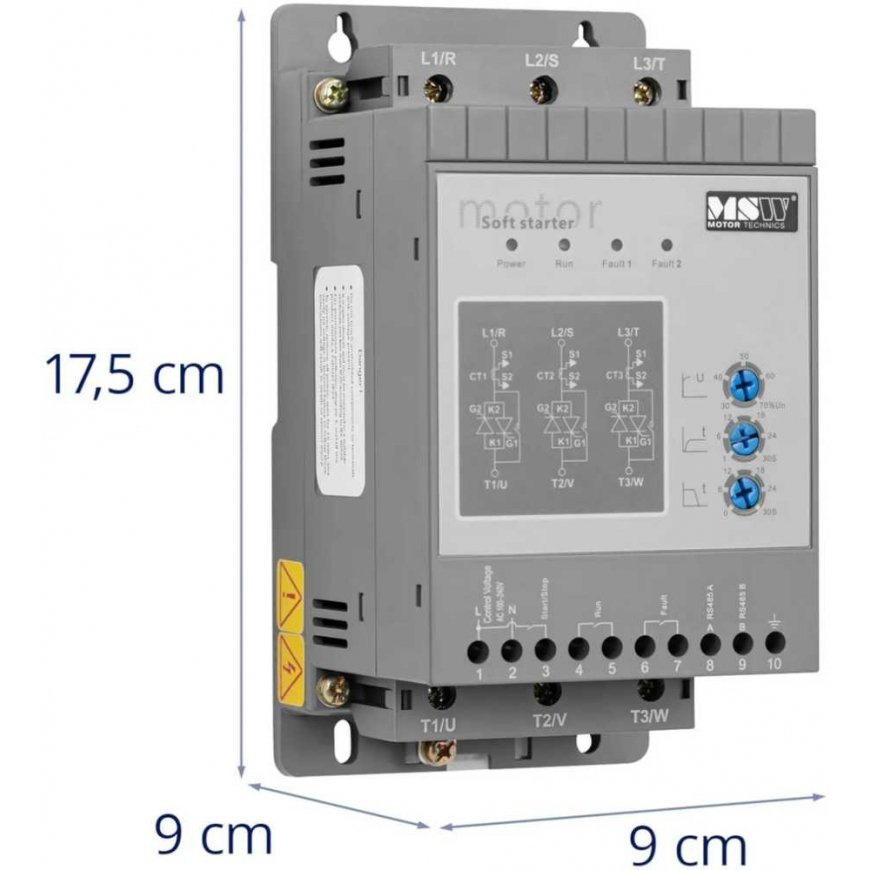

• - Dimensions (LxWxH) - 17.5 x 9 x 9 cm
• - Shipping dimensions (LxWxH) - 23x15x16

• - Soft starter
