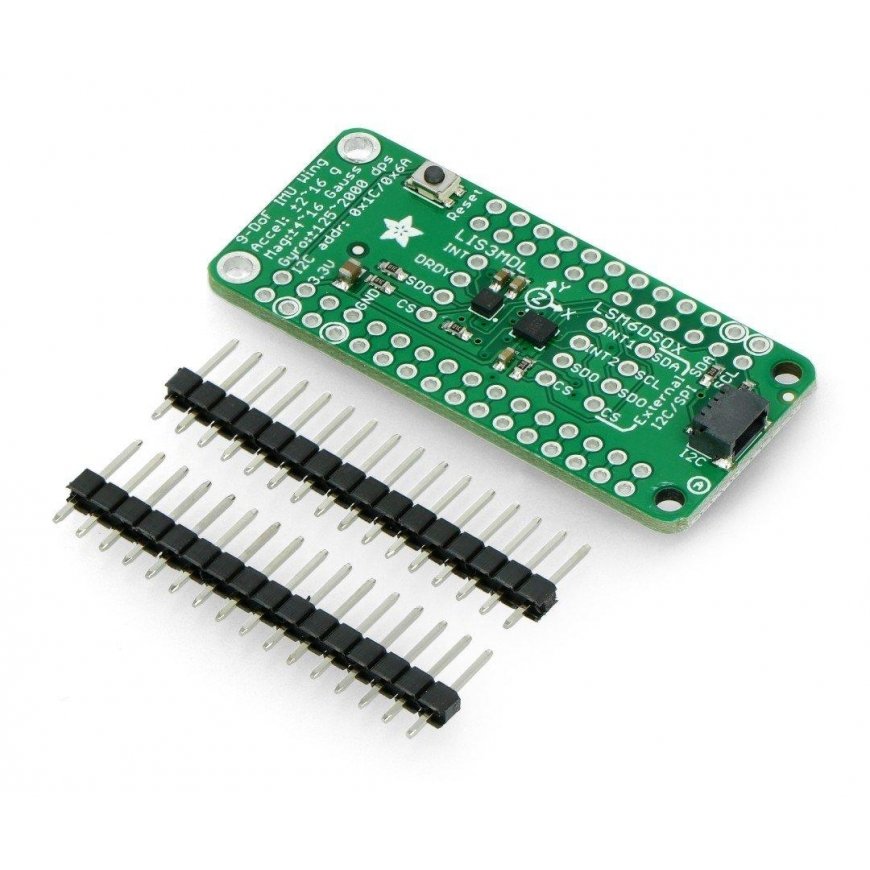

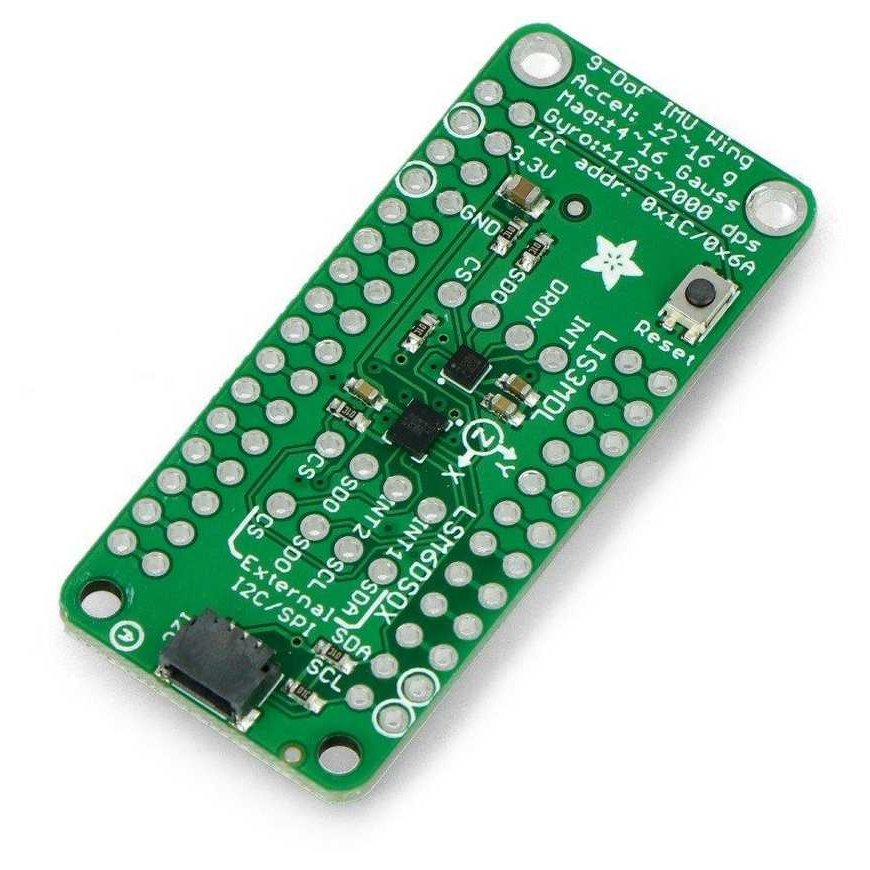

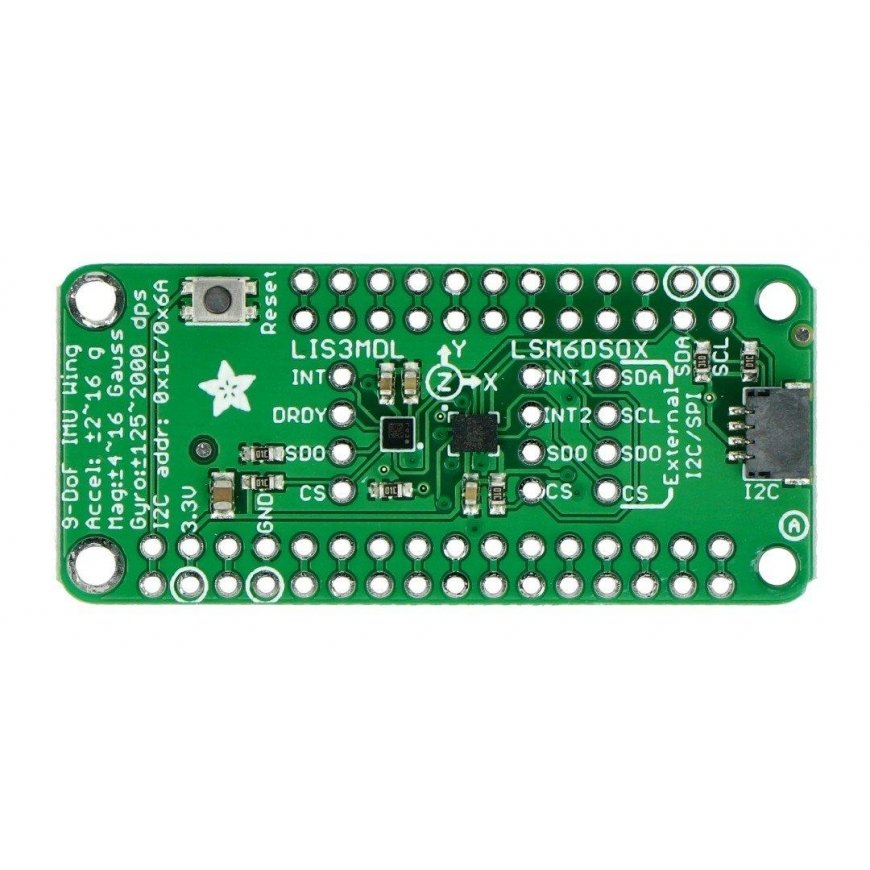

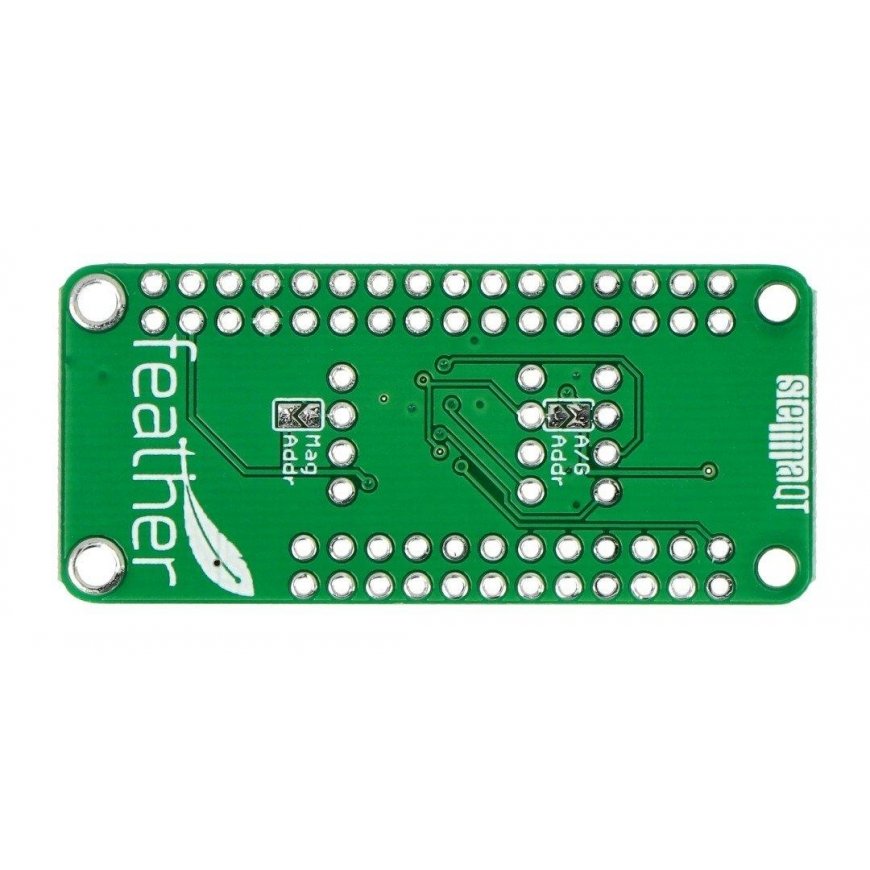

LSM6DSOX + LIS3MDL IMU 9DoF FeatherWing, 3-axis accelerometer, gyroscope, and magnetometer, FeatherWing accessory, Adafruit 4565
42.41 €
Monthly payment from 1,99 €
3857538 AN-17767
5904422378806
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Model from the Feather family. The sensor is a combination of an accelerometer, gyroscope, and magnetometer. This allows measuring acceleration, angular velocity, and magnetic field in three axes. Resistant to noise and interference, making measurements fast and accurate.
LSM6DSOX 3-axis accelerometer and I2C / SPI gyroscope specifications:
- Accelerometer: ± 2 / ± 4 / ± 8 / ± 16 g with a refresh rate from 1.6 Hz to 6.7 kHz
- Gyroscope: ± 125 / ± 250 / ± 500 / ± 1000 / ± 2000 dps at 12.5 Hz - 6.7 KHz
- Conversion: continuous and single
- Advanced pedometer, step sensor, and step counter
- Significant motion detection, tilt detection
- Communication interface: SPI / I2C
- Standard interrupts: free fall, wake-up, 6D / 4D orientation
- I2C address 0x6A or 0x6B
I2C / SPI 3-axis digital magnetometer LIS3MDL specifications:
- Supply voltage: from 2.5 V to 5.5 V
- Power consumption: 3 mA
- Three axes: X, Y, Z
- Communication interface: SPI / I2C
- Resolution: 16 bits per axis
- Measurement range (configurable): ± 4, ± 8, ± 12, ± 16 gauss
- I2C address 0x1C or 0x1E
- Dimensions: 23 x 10 mm
