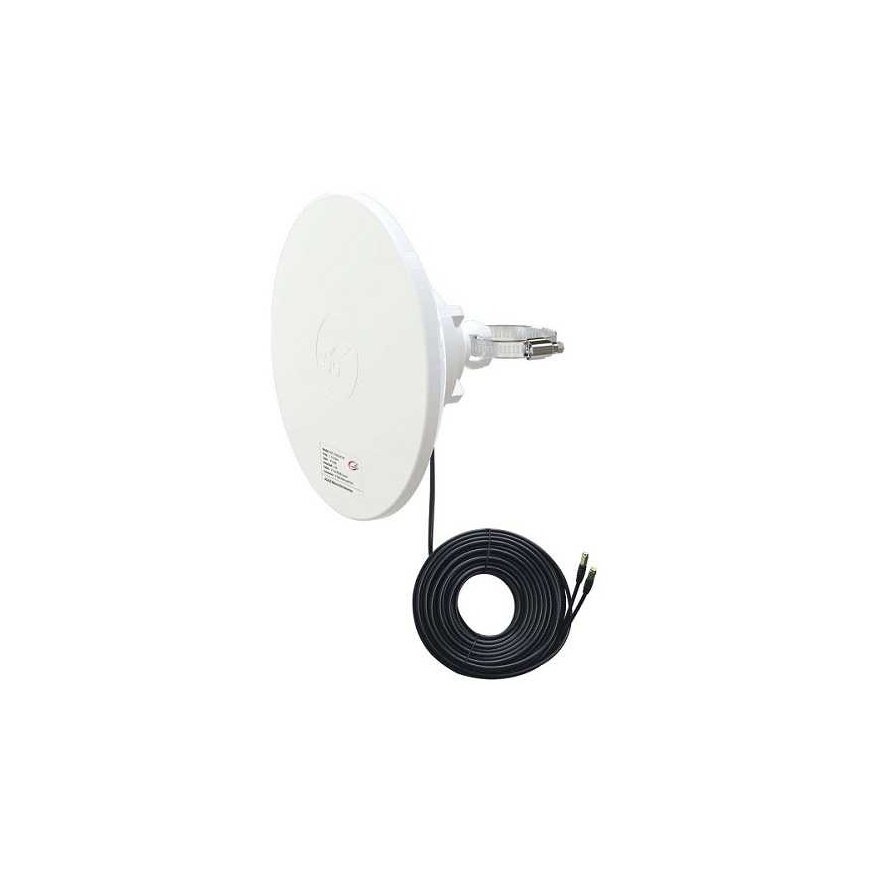

Hismart 5G / LTE / CBRS 2x2MIMO antenna, 1.7-4.2GHz, 2x 12dBi, IP67
3854441 TV992249
9990000992249
Shipping 1-2 days
All about the product
LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-4200MHz, 2x 12dBi, IP67, SMA Male connectors.
Features:
Dual polarization dish design antenna, 1710-2690MHz / 3300-4200MHz, 2x 12dBi.
Application: LTE, 5G, CBRS, mobile networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.
With 2x 15m long cables.
Lightning protection DC grounding.
Technical specification:
Frequency: 1710-2690MHz / 3300-4200MHz.
Gain: 2x 12 dBi.
VSWR: <1.5.
Impedance: 50 ohms.
Max. power per port: 50W.
Connectors: 2x SMA-male.
Cables: RG58 copper x2.
Cable length: about 15m.
Antenna diameter: 120 mm.
Mounting: on a pole with a diameter of 30-50mm.
Material: PC, ABS.
Dimensions: 200 x 200 x 94 mm.
Polarization: dual polarization +/-45°.
Color: white.
Weight: 1.34kg.
Operating temperature: -40°C~ +70°C.
Operating humidity: up to 95%RH.
Warranty: 24 months.
