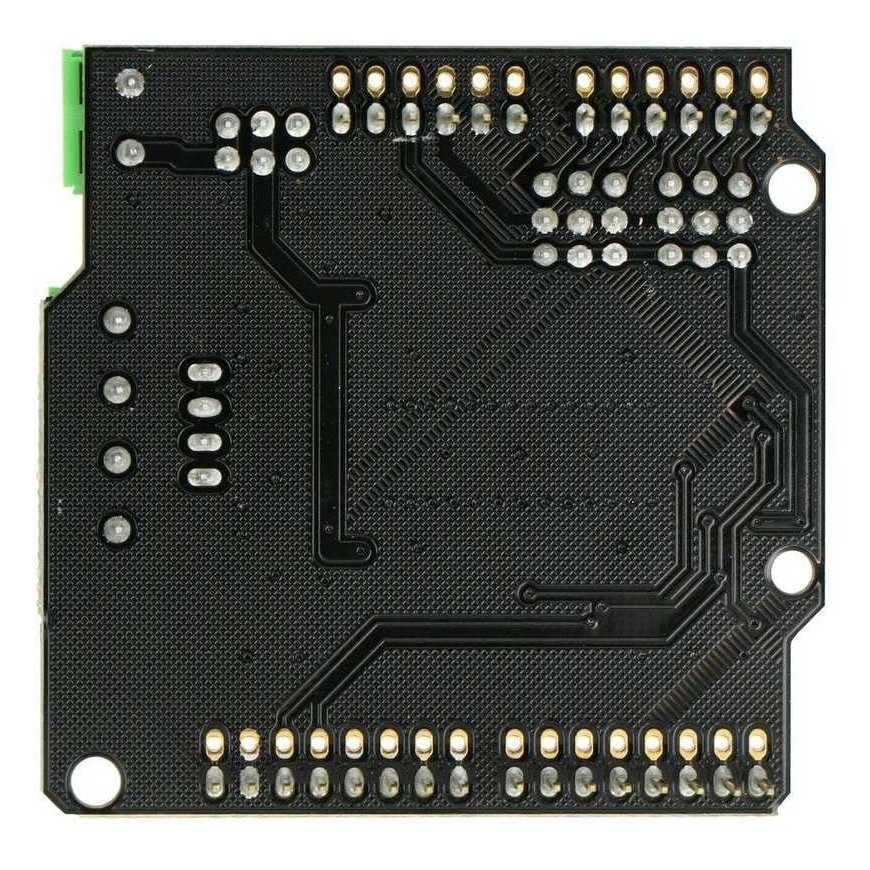

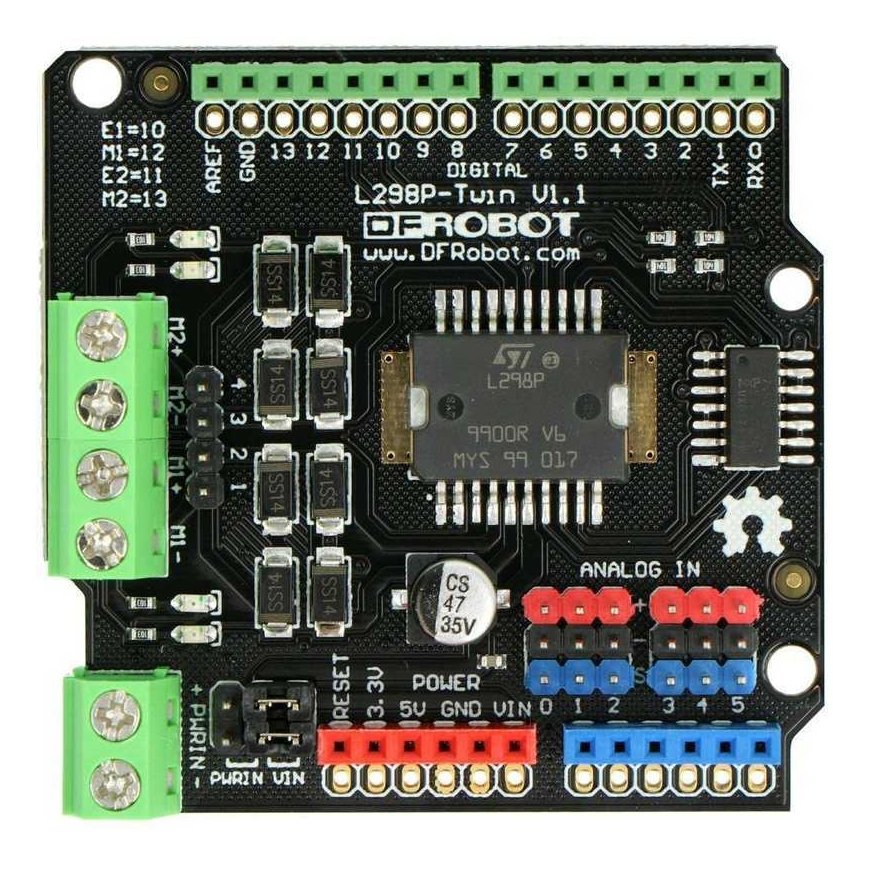

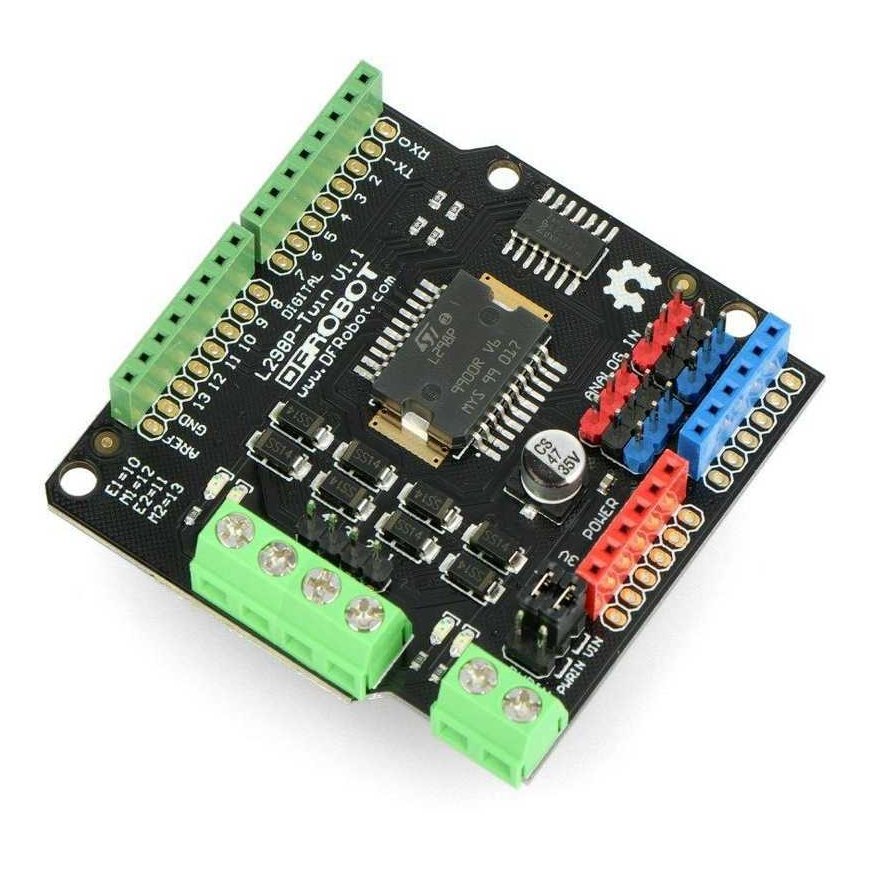

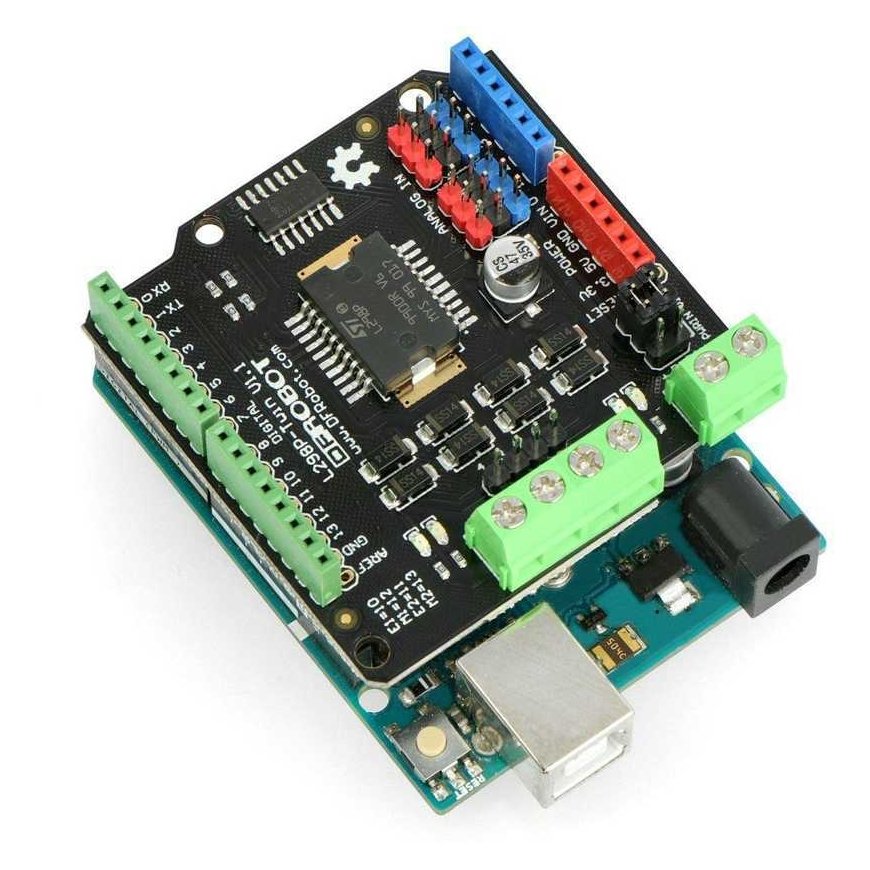

Gravity, 2x2A motor extension, two-channel motor controller 35V/2A, Arduino front part, DFRobot DRI0017
29.00 €
3847989 AN-19896
5904422349936
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Arduino extension made by DFRobot that allows you to control two 35 V / 2 A DC motors. Equipped with an L298P chip, it allows you to control the direction and speed of the connected motors. The extension provides an output current of up to 2 A per channel. It uses only four Arduino wires and can be powered from both the main board and an external source, but the manufacturer strongly recommends using an external power supply.
Specifications:
- Motor power supply voltage: from 4.8 V to 35 V
- Power from Arduino: from 7 V to 12 V
- External power supply: from 4.8 V to 35 V
- Maximum output current: up to 2 A per channel
- Total power dissipation: 25 W (T = 75 °C)
- Control: H-bridge L298P
- Number of supported motors (channels): 2
- Operating voltage: 5 V
- Power source: external power supply or Arduino VIN pin
- Output port: 2 channel terminals or screw terminals
- Control port: 4 TTL compatible digital signals (digital 10-13)
- Speed controlled via PWM signal
- Operating temperature range: from -25 °C to 130 °C
- Module dimensions: 56 x 57 mm
- Weight: 35 g
