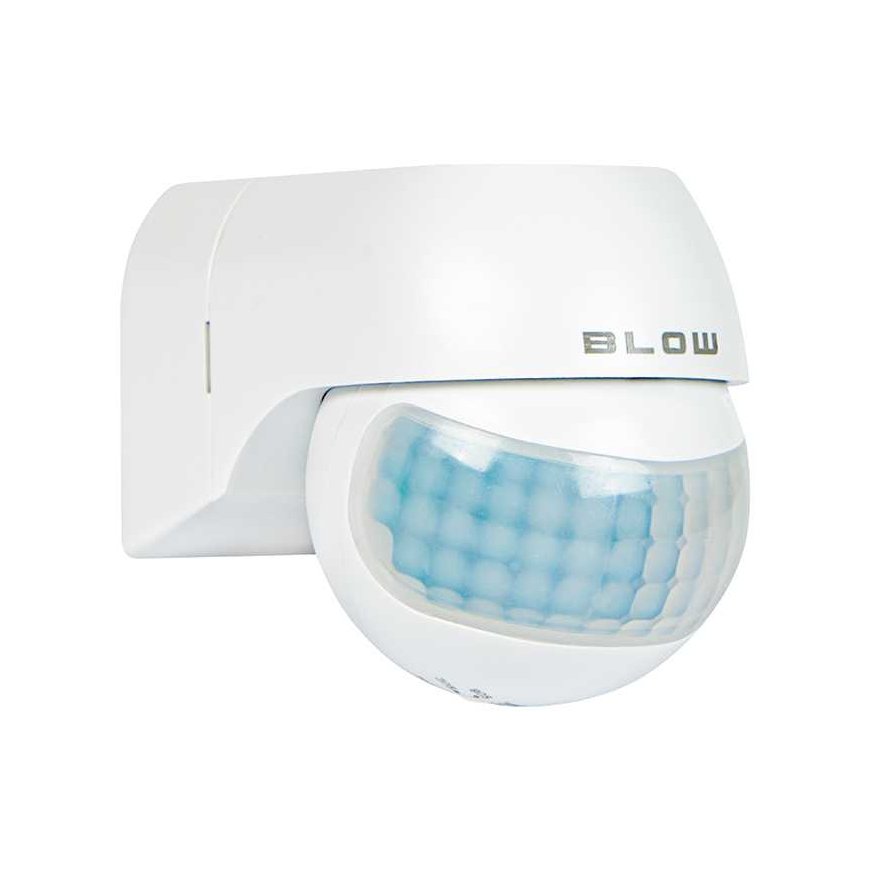

BLOW MS-04 motion sensor – white

Automatic motion detection

The BLOW MS-04 motion sensor uses infrared energy to instantly detect human presence and activate the connected device. A wide 180° detection range and up to 12 meters range ensure maximum efficiency.

Thanks to the smart delay system, the sensor automatically restores the operating time if it detects further movement, ensuring continuous lighting in the active zone.

Automatic day and night light adjustment

The sensor has a built-in ambient light detection function, allowing it to automatically adapt to lighting conditions. It can operate both in full sunlight and only at night – the user can easily adjust the sensitivity according to their needs.

Adjustable lighting threshold (from <3LUX to 2000LUX) allows precise setting of when the sensor should turn on, eliminating unnecessary energy consumption during the day.

Low energy consumption and high efficiency

Due to minimal energy consumption (only 0.5 W in standby mode), the BLOW MS-04 sensor is an economical solution that reduces electricity bills.

It supports devices with a power of up to 800 W for regular bulbs and 400 W for PLC (energy-saving) bulbs, allowing for versatile use – from LED lamps to alarm systems.

Easy installation and wide range of applications

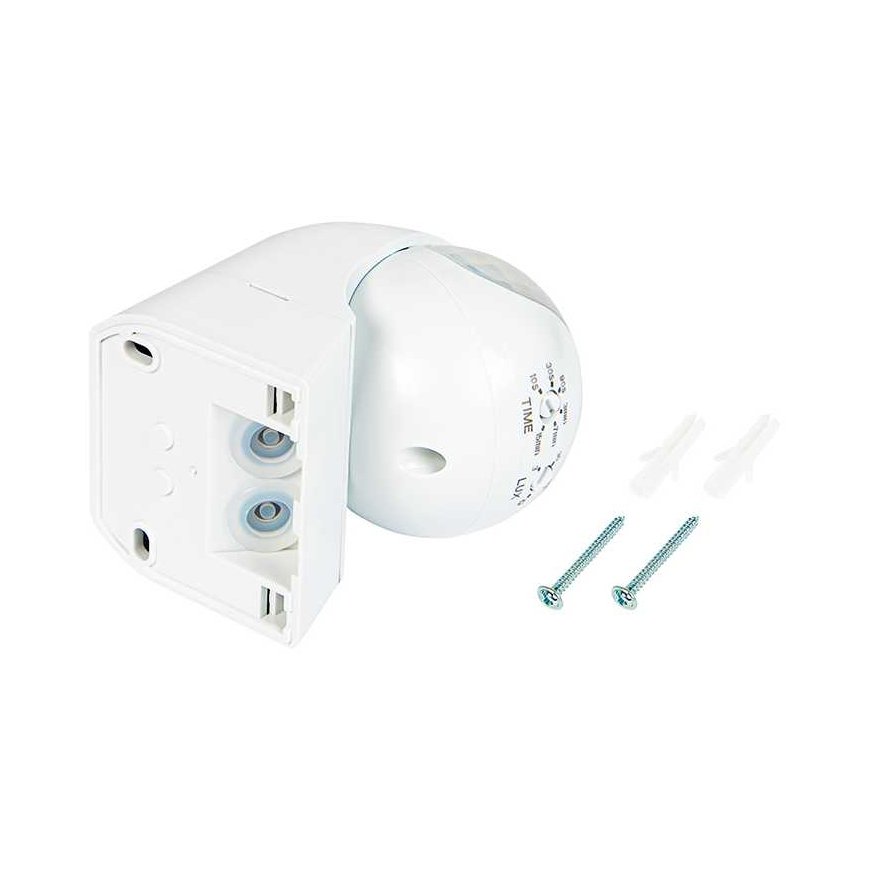

With simple installation at a height of 1.8–2.5 meters, the sensor is perfect for use both indoors and outdoors. It can be mounted on walls, ceilings, or in corners.

Ideal for garages, corridors, basements, stairwells, and anywhere automatic lighting enhances comfort and safety.

Specification:

• Voltage: 220-240V/AC
• Frequency: 50/60Hz
• Detection range: 180°
• Detection range: max. 12 m (<24°C)
• Ambient light: <3–2000 LUX (variable)
• Operating temperature: -20~+40°C
• Time delay: Min. 10 sec. ±3 sec Max 15 min ±2 min
• Load: Max 800W / 400W
• Power consumption: about 0.5W
• Installation height: 1.8-2.5m
• Detection motion speed: 0.6-1.5m/s
