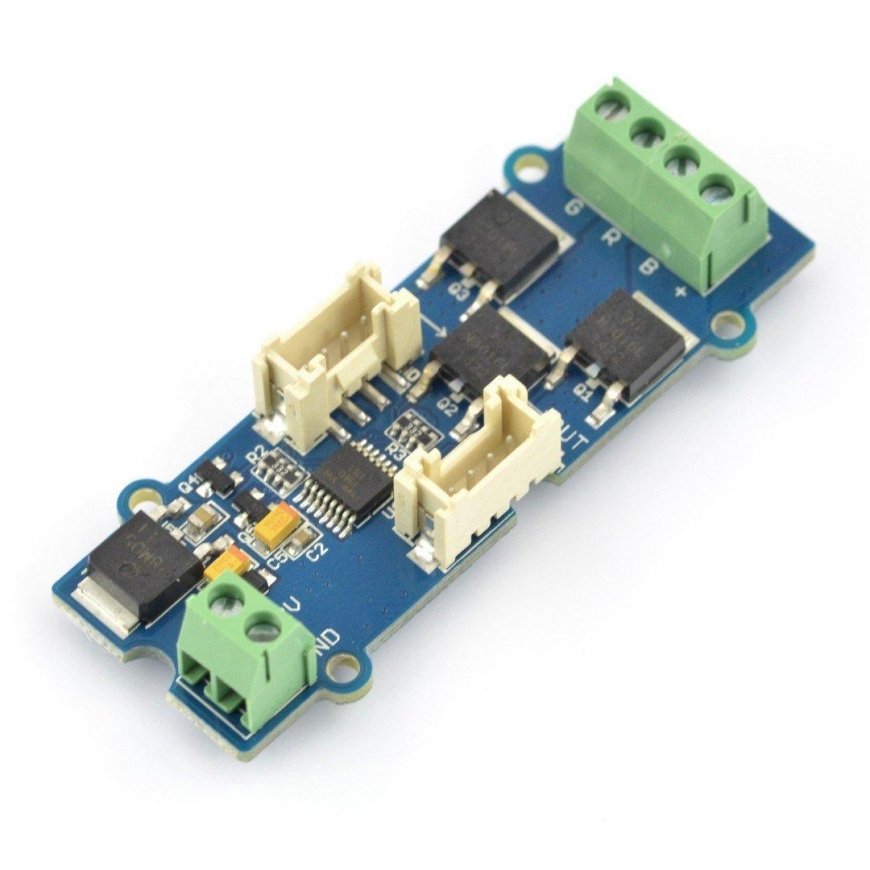

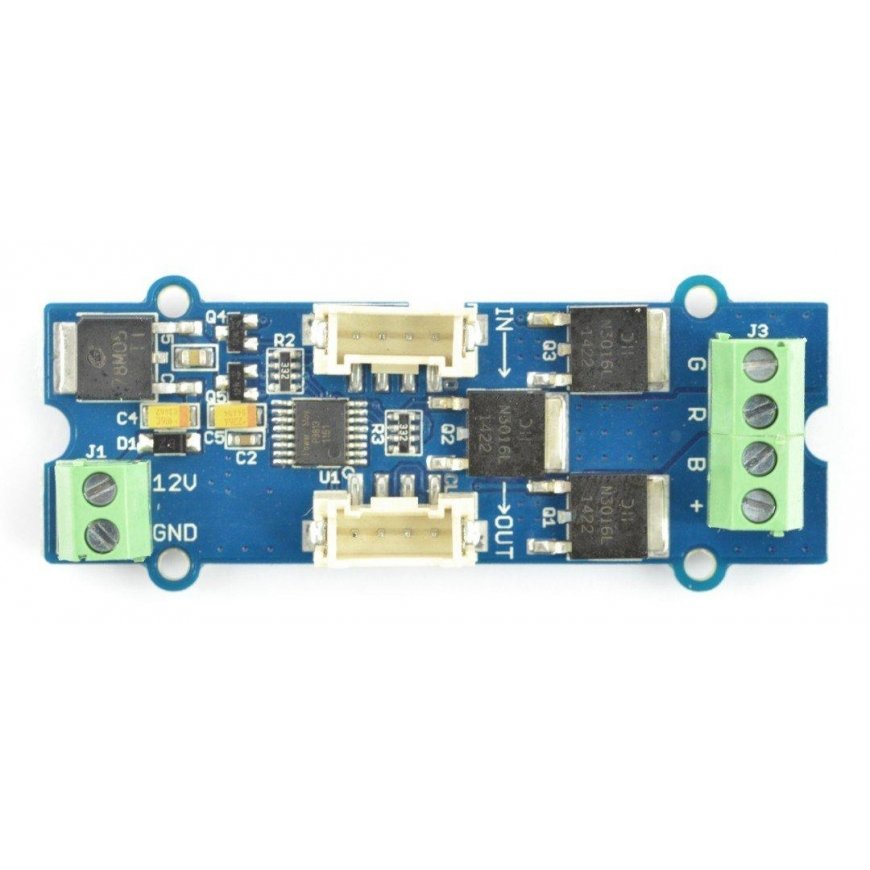

Seeed Studio Grove, LED strip controller, LED controller designed for Arduino
20.46 €
3840698 AN-04443
5904422350086
Shipping 11-18 b.d.
You are interested in this product?
All about the product

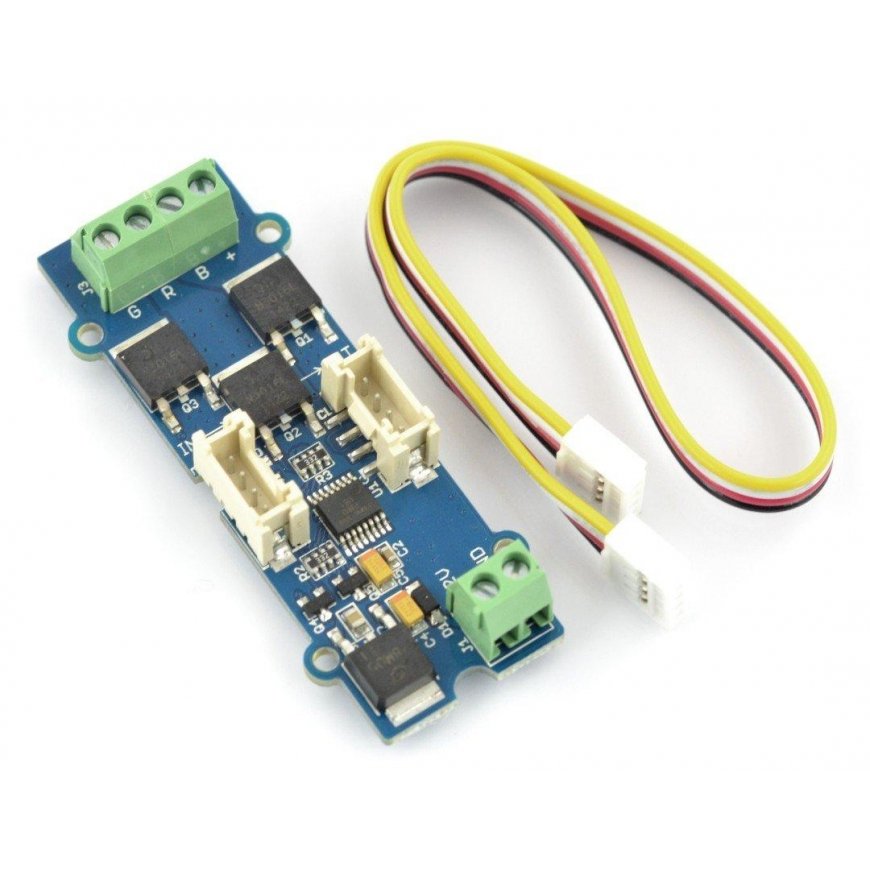

A module that allows you to control the brightness of single-color LED strips with LED RGB brightness and colors. It has 2 contact connectors, a power supply screw connector, a 4 contact screw terminal connector, and two 4 contact Grove interface connectors. It can supply a 2 m strip with 9 V and a 5 m strip with 12 V. The package includes a wire designed for Seeedstudio Base Shield v2.0.
Specifications:
- Works with
- LED RGB strip 12 V and 9 V
- Single-color LED strip (with white light)
- Maximum current: 3 A
- Outputs are PWM signals
- Operating voltage:
- up to 9 V 2 m strip
- up to 12 V 5 m strip
- The board works with Arduino Uno, Mega, and their variants

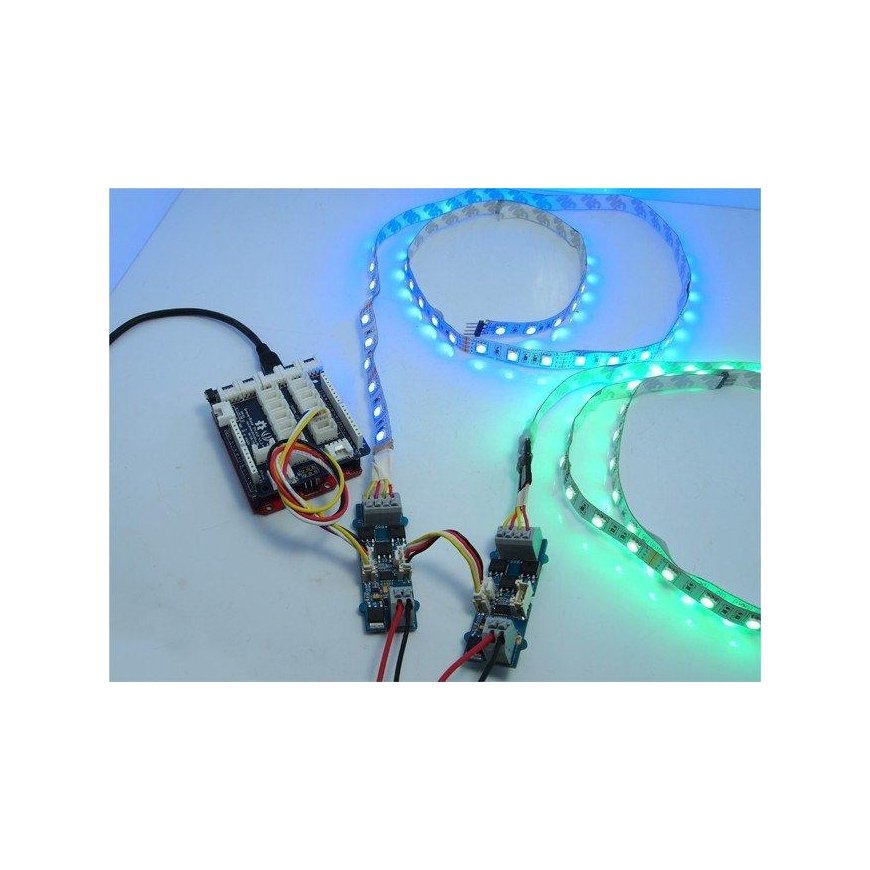

- Cascading connection capability
- Dimensions: 60 x 20 mm
