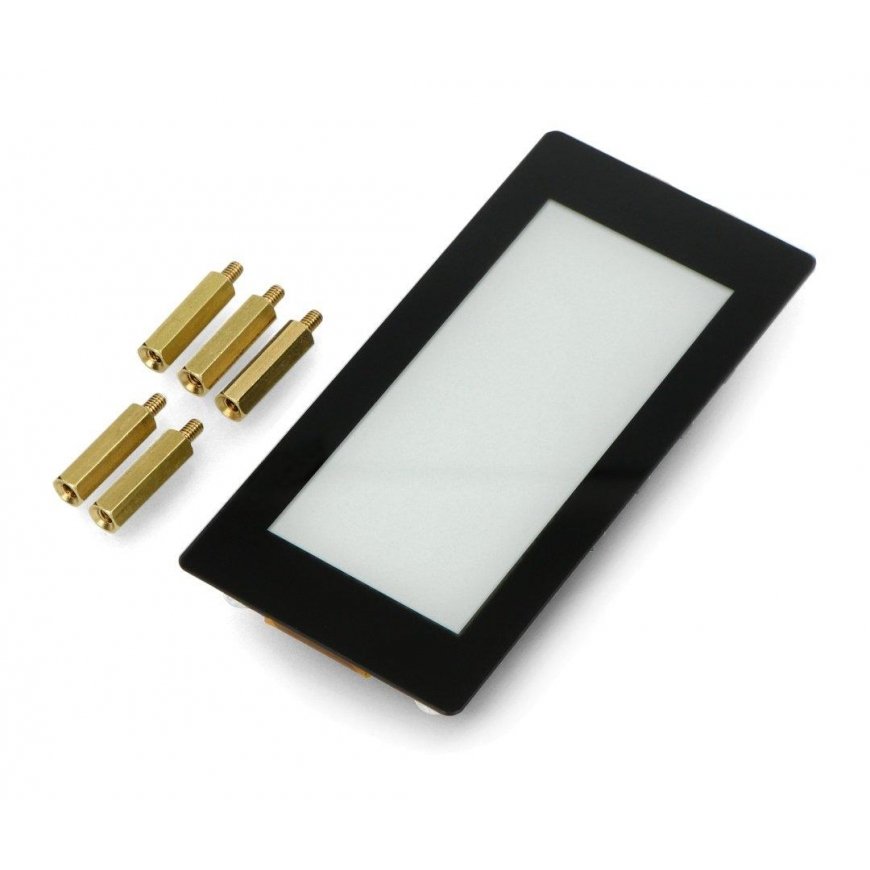

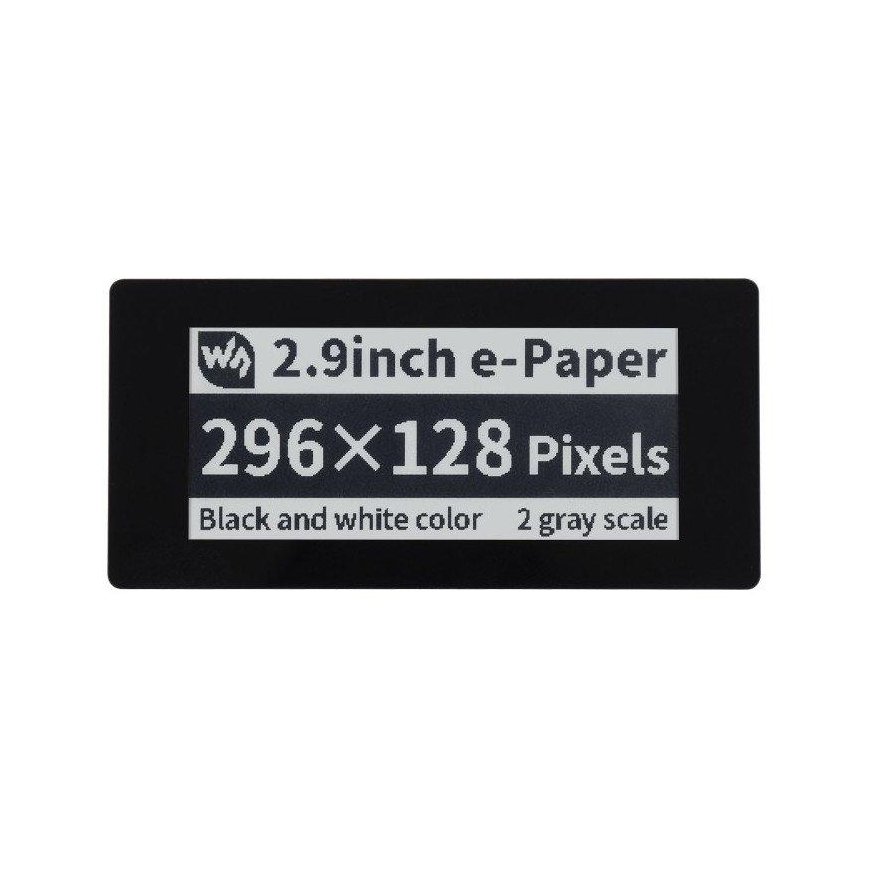

Touchscreen E-paper E-Ink, 2.9” 296x128px, SPI/I2C, monochrome, designed for Raspberry Pi Pico, Waveshare 20051
39.00 €
Monthly payment from 1,90 €
3836815 WSR-19720
5904422347260
Shipping 11-18 b.d.
You are interested in this product?
All about the product

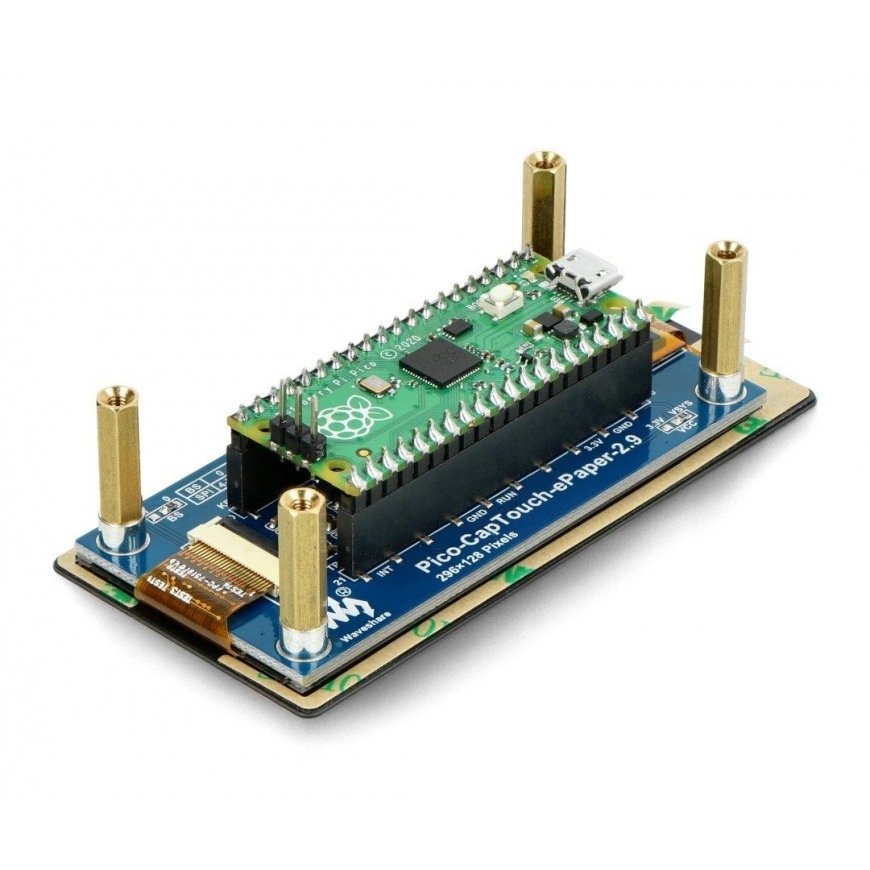

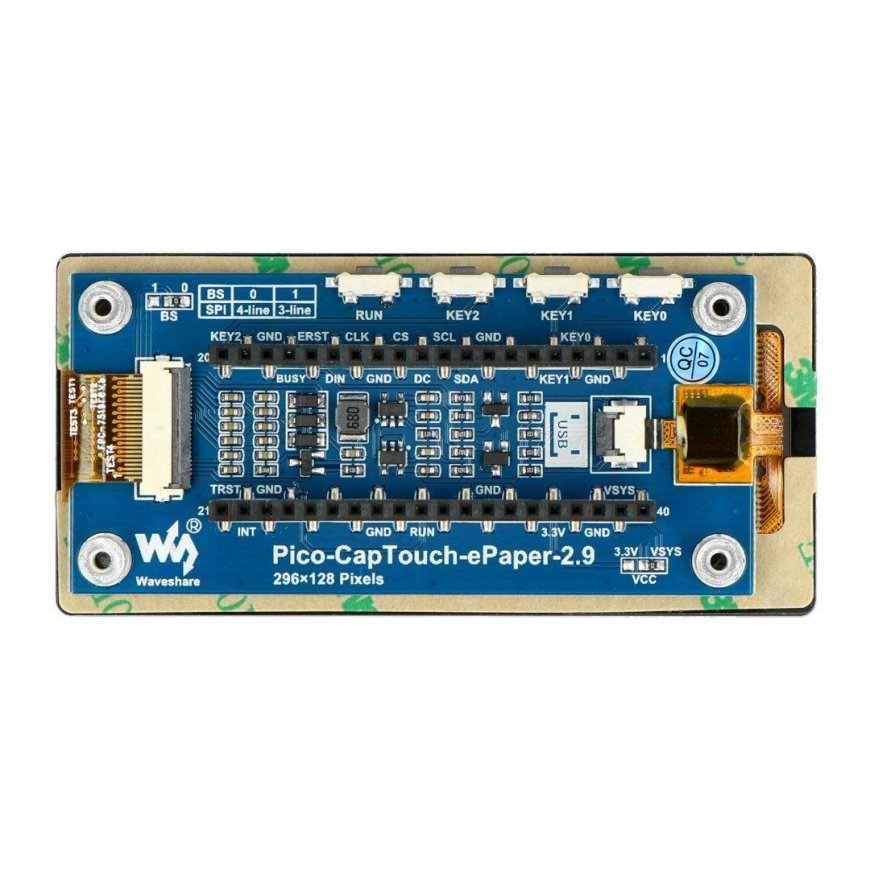

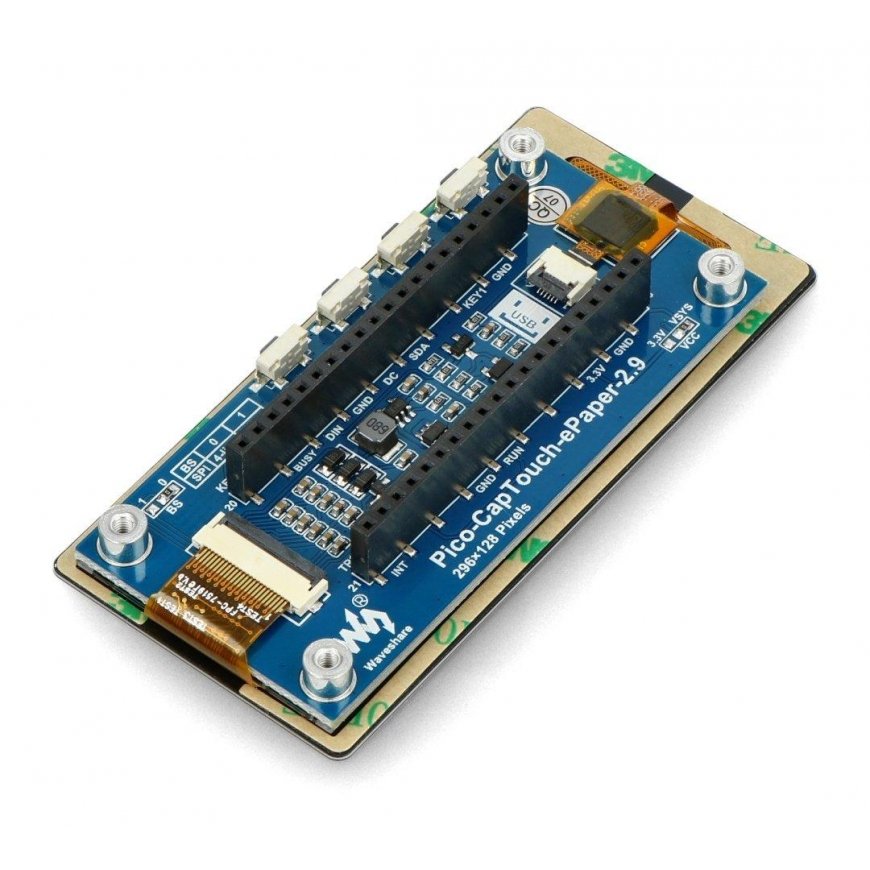

The Waveshare touchscreen display is made using e-paper technology, with a diagonal of 2.9" and a resolution of 296x128px. The display is designed for use with Raspberry Pi Pico. The image is displayed in two colors: black and white. It interacts via SPI and I2C interfaces. E-paper technology allows this type of display to be used in e-book and e-journal readers.
Main features:
- 2.9" display with 296x128px resolution with capacitive touch
- Supports 5 touch points, user-defined screen wake-up gesture
- No backlight allows the last displayed image to be retained for a long time after power off
- Extremely low power consumption, power is only needed to refresh the display
- SPI / I2C interface
- Operating voltage: 3.3 V
- Interface: 3-wire SPI, 4-wire SPI, I2C
- Displayed colors: black and white
- Gray scale: 2
- Partial refresh time: 0.3s
- Full refresh time: 2s
- Current consumption during refresh: 26.4 mW
- Current consumption in idle: up to 0.01 uA
- Viewing angle: up to 170°
- Capacitive touch
- Number of touch points: 5
- Diagonal size: 2.9"
- Resolution: 296x128px
- Pixel size: 0.227 x 0.226 mm
- External dimensions: 89.1 x 42.7 mm
- Display dimensions: 66.89 x 29.05 mm
