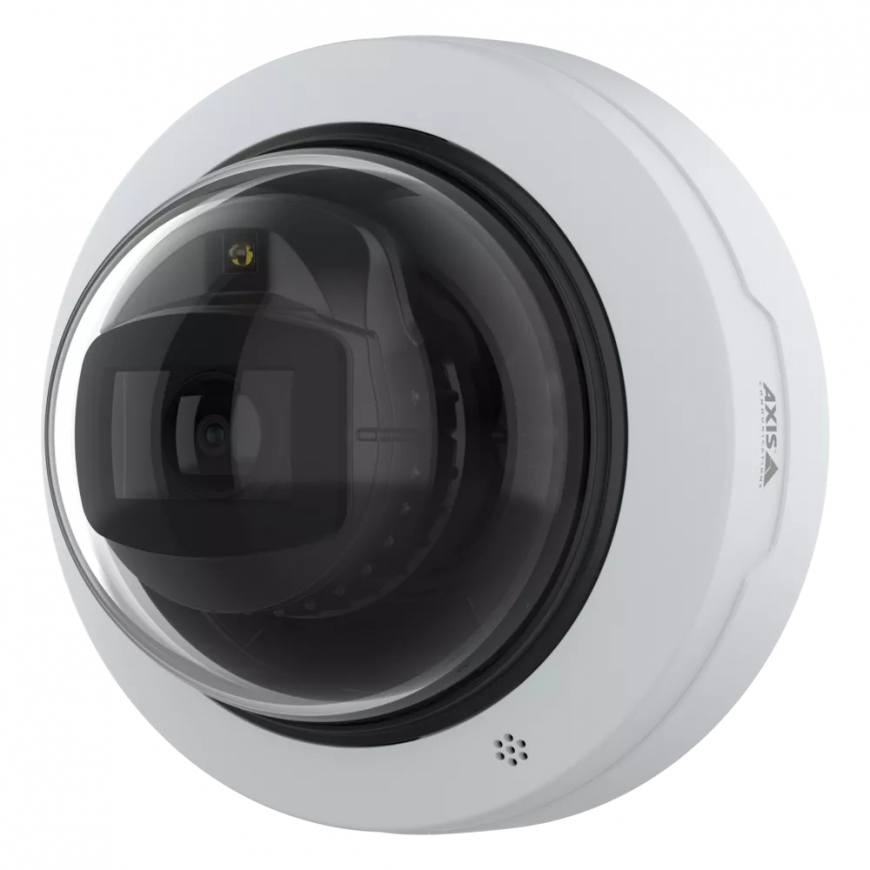

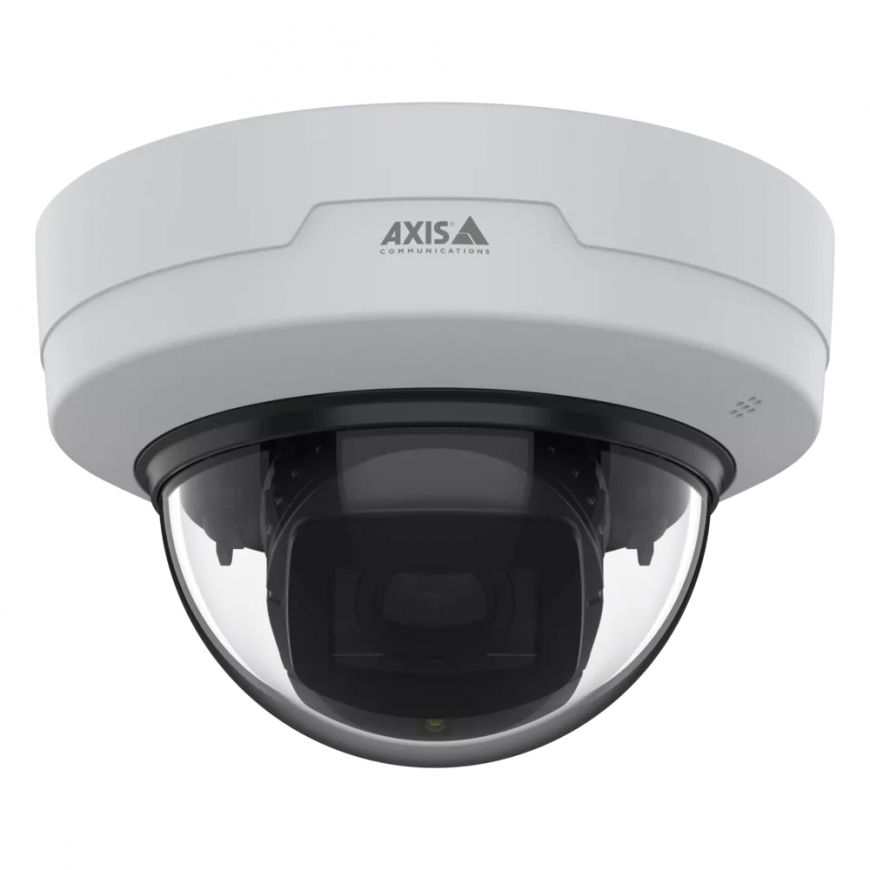

Axis M4228-LVE Dome IP security camera Outdoor 3840 x 2160 pixels Wall
1 099,00 €
1 089.00 €
Monthly payment from 28,94 €
3835722 02816-001
7331021084445
Shipping 13-14 b.d.
You are interested in this product?
All about the product
AXIS M4228-LVE Dome CameraThis compact, varifocal dome camera offers great images in 8 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.
Great images, every time
AXIS M4228-LVE delivers great image quality in 4K. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), AXIS M4228-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics, which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Small and discreet

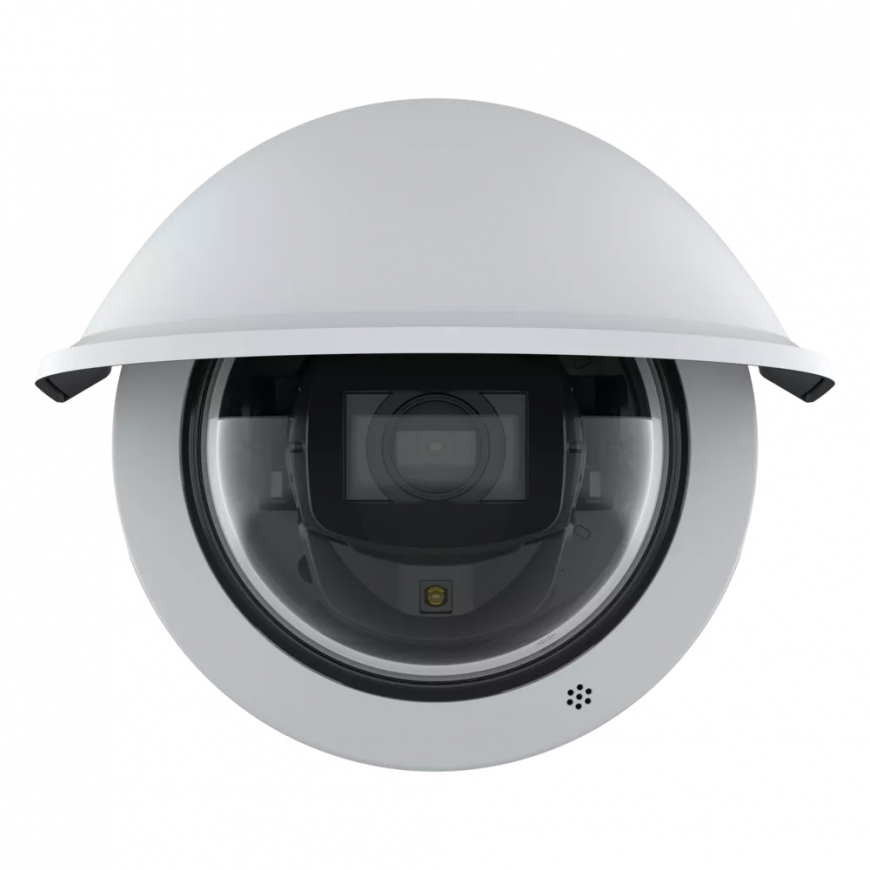

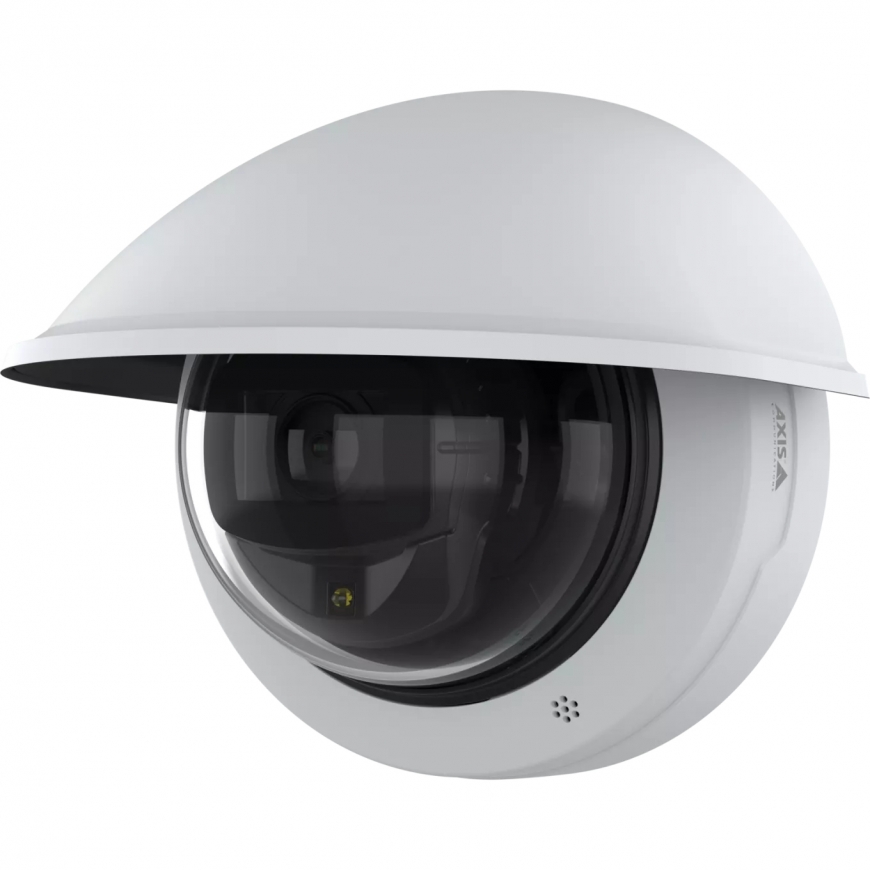

This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.
Features
| Product colour | Black; White |
| Compatible memory cards | MicroSD (TransFlash); MicroSDHC; MicroSDXC |
| Auto focus | Yes |
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| Weight | 540 g |
| Width | 140 mm |
| Depth | 112 mm |
| Height | 126 mm |
| Doesn't contain | PVC; CFR; Brominated Flame Retardant (BFR) |
| Type | IP security camera |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
| Manual | Yes |
| Supported graphics resolutions | 3840 x 2160; 320 x 240; 640 x 360; 2592 x 1944 |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x; IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt |
| LED indicators | Yes |
| Housing material | Plastic; Polycarbonate (PC) |
| Power consumption (typical) | 3.6 W |
| Ethernet interface type | Fast Ethernet |
| Mounting type | Wall |
| Power source type | PoE |
| Power consumption (max) | 12.9 W |
| Zoom capability | Yes |
| Focal length range | 3.2 - 7.2 mm |
| Angle of rotation | 360° |
| Placement supported | Outdoor |
| Tilt angle range | -10 - 65° |
| Security algorithms | EAP-TLS; HTTPS; PEAP; TLS; MSCHAPv2 |
| Storage relative humidity (H-H) | 5 - 95% |
| Video formats supported | H.264; HEVC; M-JPEG; AVC; H.265; MPEG4 |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| IK code | IK10 |
| Camera shutter speed | 1/16000 - 2 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Text caption overlay | Yes |
| Audio detection | Yes |
| Flash memory | 8000 MB |
| Intelligent Video Surveillance (IVS) system features | Abandoned object; Moving object; Line crossing detection |
| Human and vehicle targets classification | Yes |
| Number of cameras | 1 |
| RAM capacity | 2000 MB |
| Minimum illumination | 0.03 lx |
| Pan range | -180 - 180° |
| Frame rate | 30 fps |
| Total megapixels | 8 MP |
| Auto-tracking | Yes |
| Weatherproof | Yes |
| Night vision | Yes |
| LED type | IR |
| Minimum aperture number | 2.9 |
| Maximum aperture number | 2.7 |
| Closest focusing distance | 1 m |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Infra-red wavelength | 850 nm |
| Video streaming | Yes |
| Cloud-managed | Yes |
| Infrared (IR) cut-off filter | Yes |
| Tour recording | Yes |
| Night vision distance | 20 m |
| Flip & mirror | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Streaming method | Multicast |
| Detect distance (wide) | 43.7 m |
| Observe distance (wide) | 17.4 m |
| Recognize distance (wide) | 8.8 m |
| Identify distance (wide) | 4.4 m |
| Image quality adjustment | Brightness; Contrast; Saturation; Sharpness |
| Detect distance (tele) | 101.8 m |
| Observe distance (tele) | 40.4 m |
| Recognize distance (tele) | 20.4 m |
| Identify distance (tele) | 10.2 m |
| Preset points | Yes |
| Privacy protection | Yes |
| Sun shield included | Yes |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 52° |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Camera pixel size | 1.45 µm |
| Compliance certificates | CE; RoHS; REACH; UL; UKCA; EAC; VCCI; BSMI; RCM; Trade Agreements Act (TAA); cUL |
