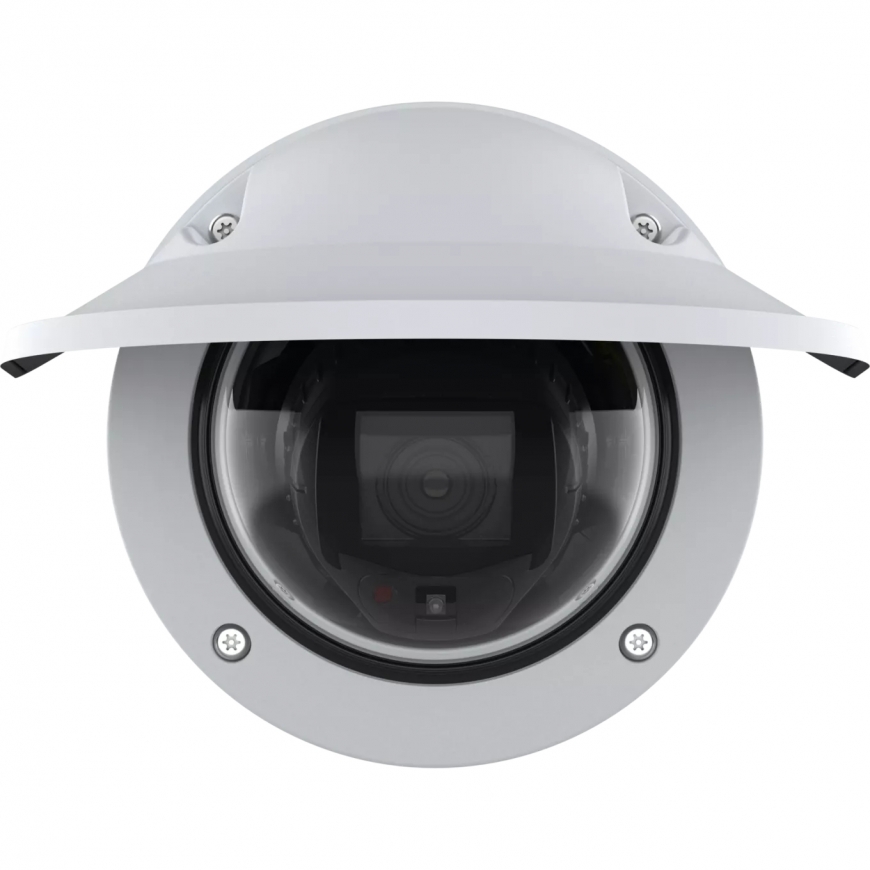

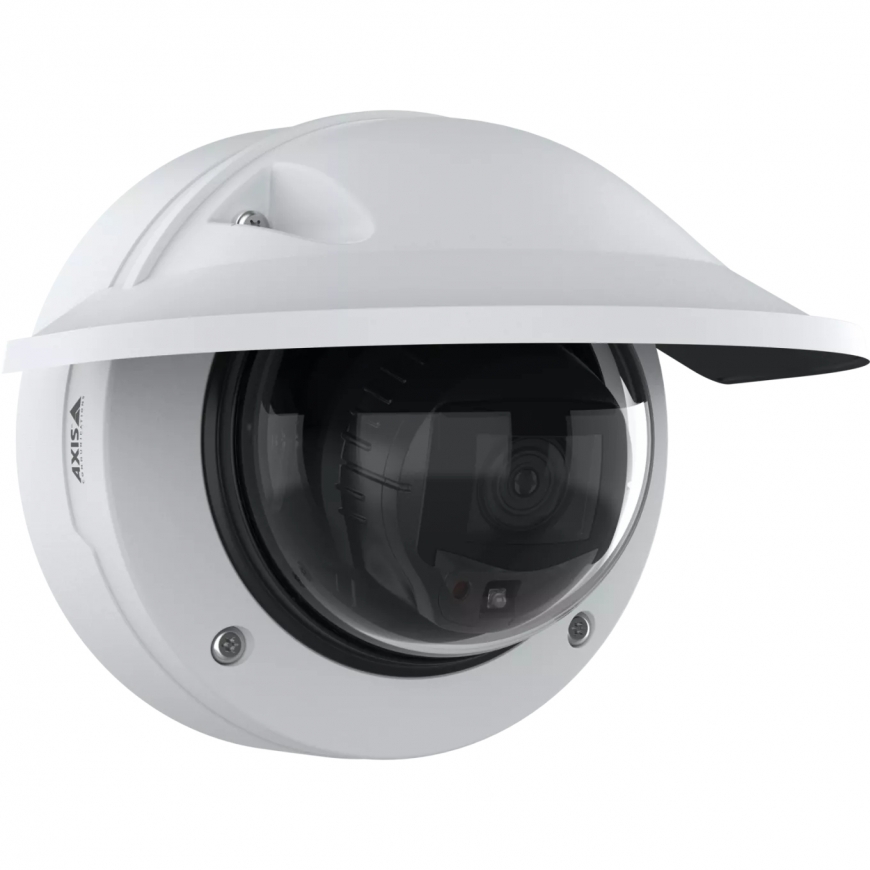

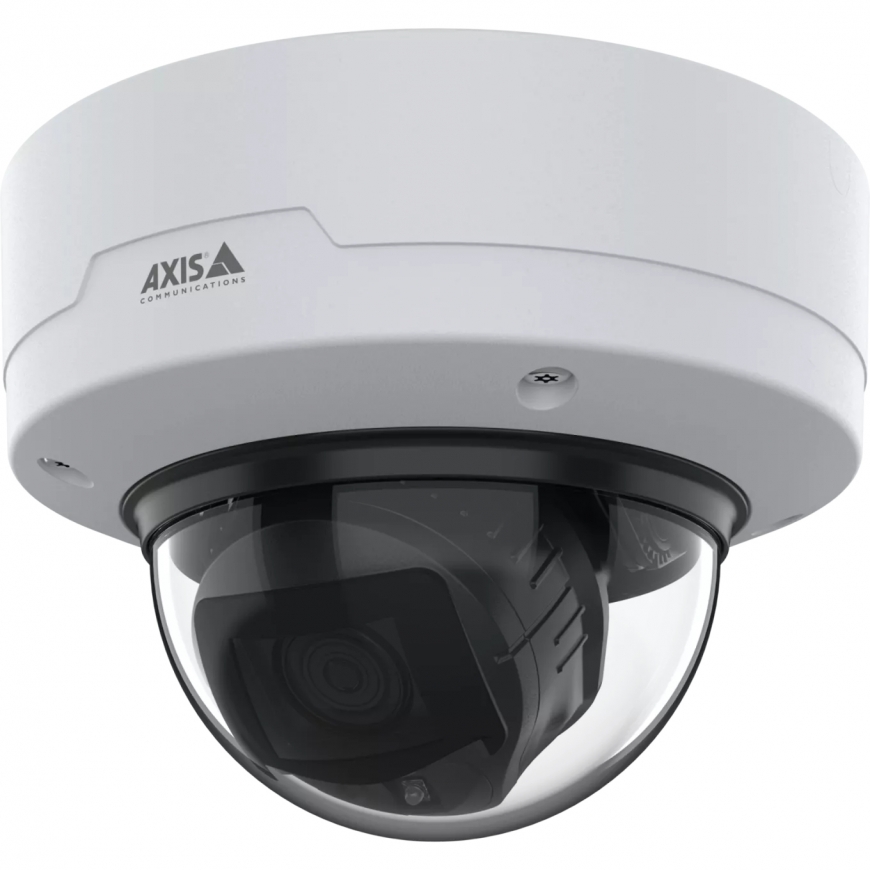

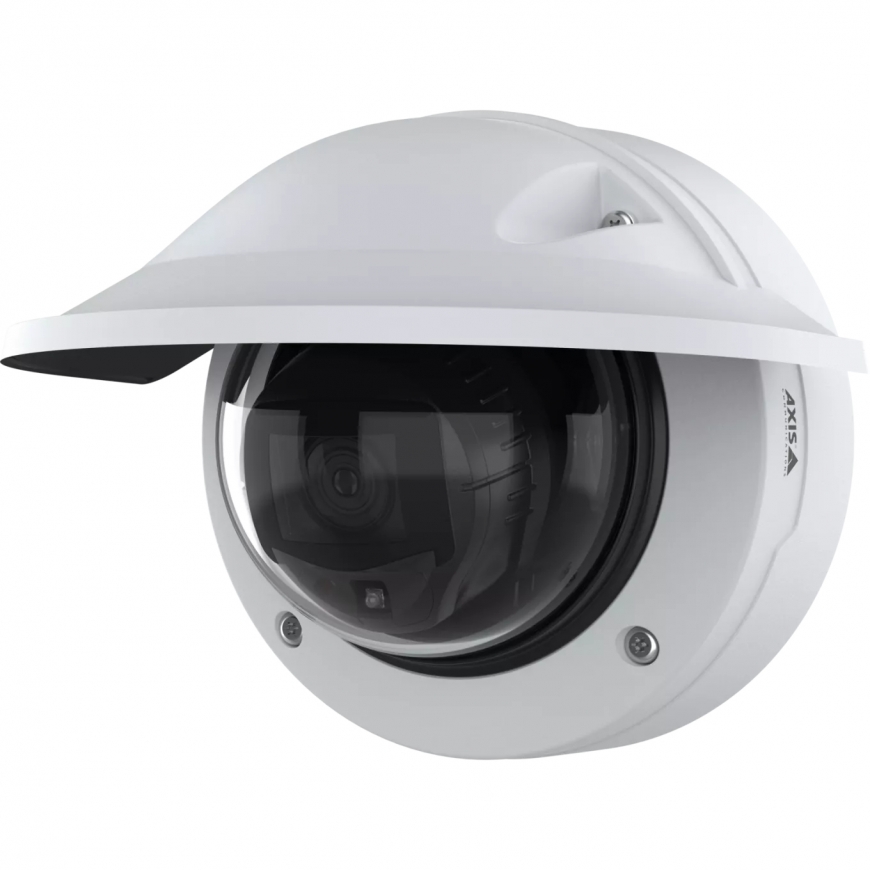

Axis P3277-LVE Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
1 390,99 €
Monthly payment from 36.72 €
3833107 03153-001
7331021089938
Shipping 2-3 b.d.
You are interested in this product?
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
Performance | |
| Connectivity technology | Wired |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Infrared (IR) cut-off filter | Yes |
| People counting function | Yes |
Design | |
| Housing material | Plastic, Polycarbonate (PC) |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Protection features | Vandal proof, Shockproof |
| LED indicators | Yes |
| Product colour | Black, White |
| Form factor | Dome |
| Weatherproof | Yes |
| IK code | IK10 |
| Fog proof | Yes |
Camera | |
| Minimum illumination | 0.03 lx |
| Camera shutter speed | 1/30500 - 2 s |
| Tilt angle range | -50 - 80° |
| Pan range | -190 - 190° |
| Angle of rotation | 190° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 104° |
| Lens viewing angle, vertical | 76° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of sensors | 1 |
Lens system | |
| Focal length range | 3 - 8.5 mm |
| Lens diameter | 1 cm |
| Auto focus | Yes |
| Maximum aperture number | 2.58 |
| Detect distance (wide) | 60 m |
| Detect distance (tele) | 170 m |
| Observe distance (wide) | 24 m |
| Observe distance (tele) | 67 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 34 m |
| Identify distance (wide) | 6 m |
| Identify distance (tele) | 17 m |
| Closest focusing distance | 1 m |
| Minimum aperture number | 1.38 |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Frame rate | 30 fps |
| Video formats supported | H.264, HEVC, M-JPEG, AVC, H.265, MPEG4, AV1 |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2560 x 1440, 2592 x 1944 |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Video streaming | Yes |
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction, 2D noise reduction |
| Total megapixels | 5 MP |
Audio | |
| Audio system full duplex | Yes |
| Audio formats supported | AAC-LC, LPCM, ADPCM, G.711, OPUS, PCM, G.726 |
| Audio detection | Yes |
| Audio system | 2-way |
Network | |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.1AE |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
Storage | |
| Flash memory | 8 MB |
| Internal memory | 2000 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Ports & interfaces | |
| Microphone in | Yes |
| Terminal block port | Yes |
Security | |
| Security algorithms | EAP-TLS, PEAP, MSCHAPv2, 256-bit AES-XTS |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Moving object, Line crossing detection |
| Human and vehicle targets classification | Yes |
Power | |
| Power consumption (typical) | 4.7 W |
| Power consumption (max) | 12.6 W |
| Power source type | PoE |
Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 850 g |
| Width | 149 mm |
| Depth | 149 mm |
| Height | 107 mm |
Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
Night vision | |
| Night vision | Yes |
| LED type | IR |
| Night vision distance | 40 m |
| Infra-red wavelength | 850 nm |
Other features | |
| Doesn't contain | PVC, BFR |
Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
Sustainability | |
| Compliance certificates | CE, RoHS, REACH, Federal Communications Commission (FCC), UL, UKCA, EAC, VCCI, RCM, KC, Trade Agreements Act (TAA), cUL, Electromagnetic Compatibility (EMC), ICES |
