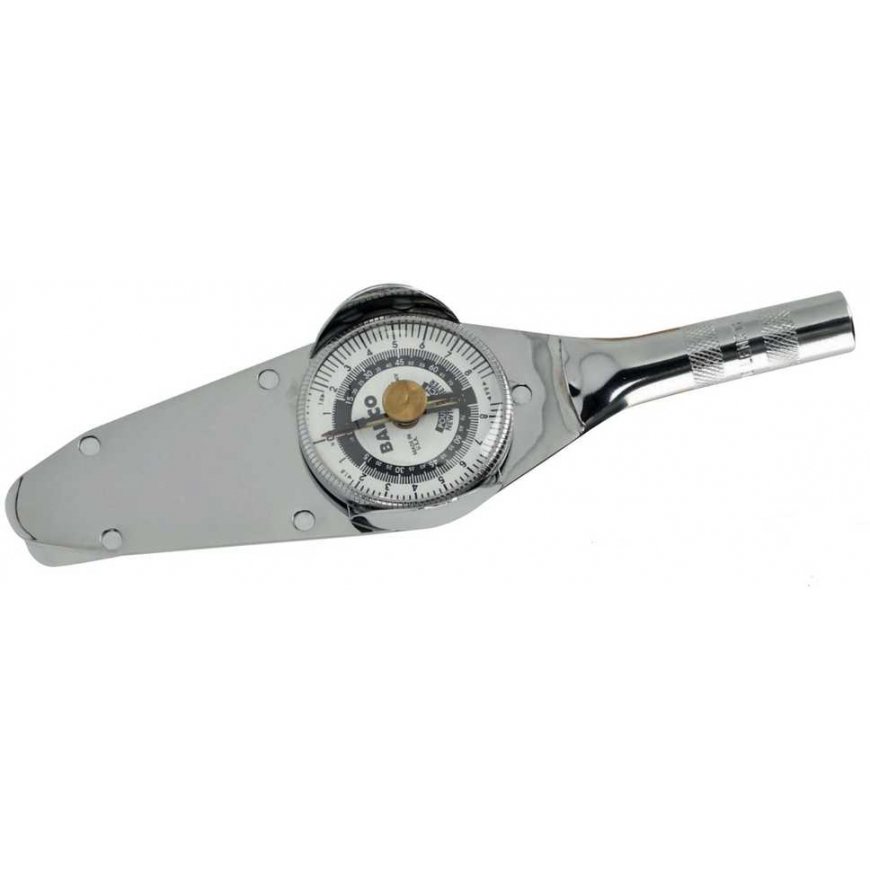

Mechanical torque wrench with 3/8 inch square drive, working range 14–70 Nm, Bahco [7454-70A]

All about the product

"Bahco" mechanical torque wrench with 3/8 inch square drive [7454-70A]:

• durable, metal construction ensures longevity,
• easily readable dual scale Nm/ft-lb,
• the gauge is protected by a durable, impact-resistant metal cover,
• Accuracy within ±3 % of the reading from 20 % to 100 % of the scale, clockwise (CW) and counterclockwise (ACW) directions,
• memory indicator retains the highest torque reached,
• the torque measurement is not affected by the position of the wrench handle,
• supplied in a durable case with calibration certificate,
• meets or exceeds the following specifications: GGG-W-686C, ANSI B107.14M,
• made in the USA

"Bahco" mechanical torque wrench specifications [7454-70A]

• tool attachment : 3/8 inch ,
• Working range : 14–70 Nm / 10–50 ft-lb ,
• torque adjustment increments : 1 Nm, 1 ft-lb ,
• Wrench length ( A ) : 318 mm ,
• dimension ( B ) : 254 mm ,
• dimension ( C ) : 254 mm ,
• dimension ( D ) : 60 mm ,
• dimension ( E ) : 42 mm ,
• dimension ( F ) : 31 mm ,
• dimension ( D ) : 69 mm ,
• weight : 550 g
• packaging: plastic case


BAHCO torque wrenches are reliable tools useful in an ever-expanding range of applications, wherever high precision is required or where bolt tightening needs to be controlled, such as when changing tires.

For torque wrenches, we recommend a wide range of sockets with bits from manufacturers BAHCO, IRIMO, KOKEN, and WERA, designed for various types of bolts.
