Pan-Tilt, extension accessory with camera mount, designed for Raspberry Pi, Waveshare 16138
30.29 €
3830892 AN-14430
5904422322151
Shipping 11-18 b.d.
You are interested in this product?
All about the product

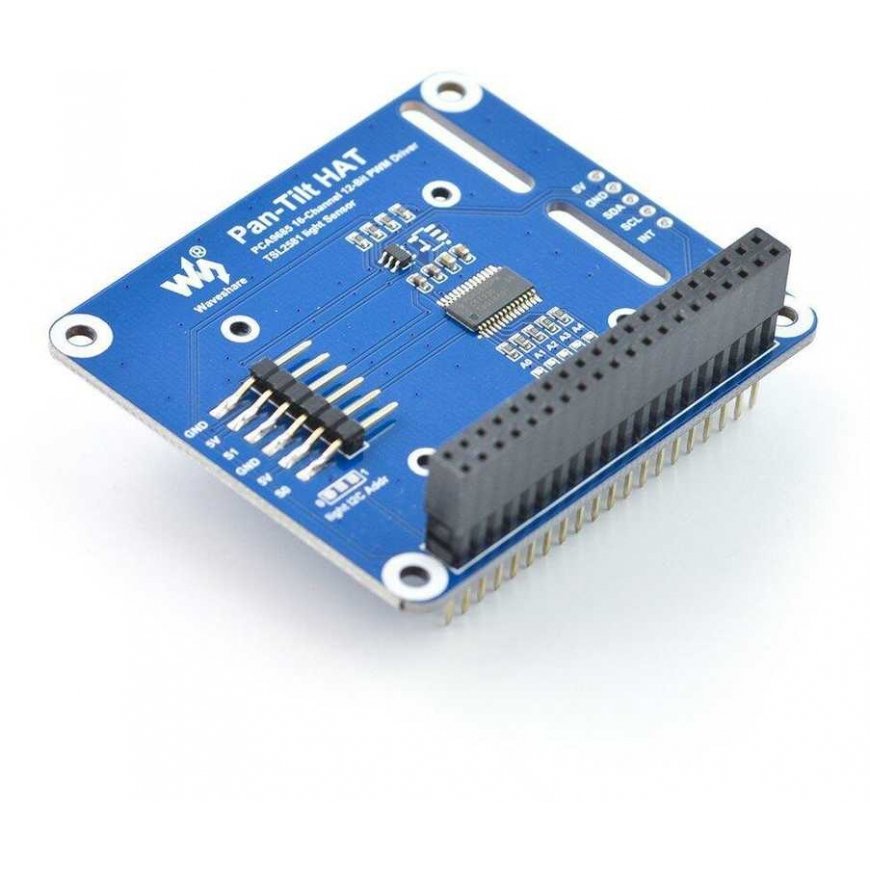

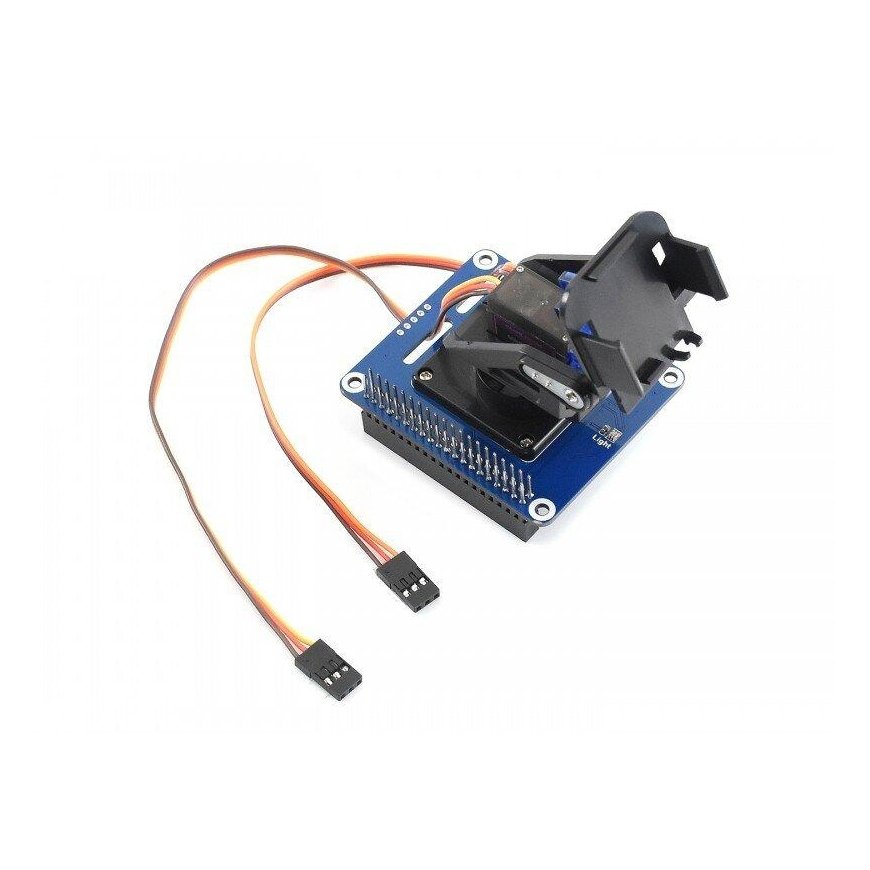

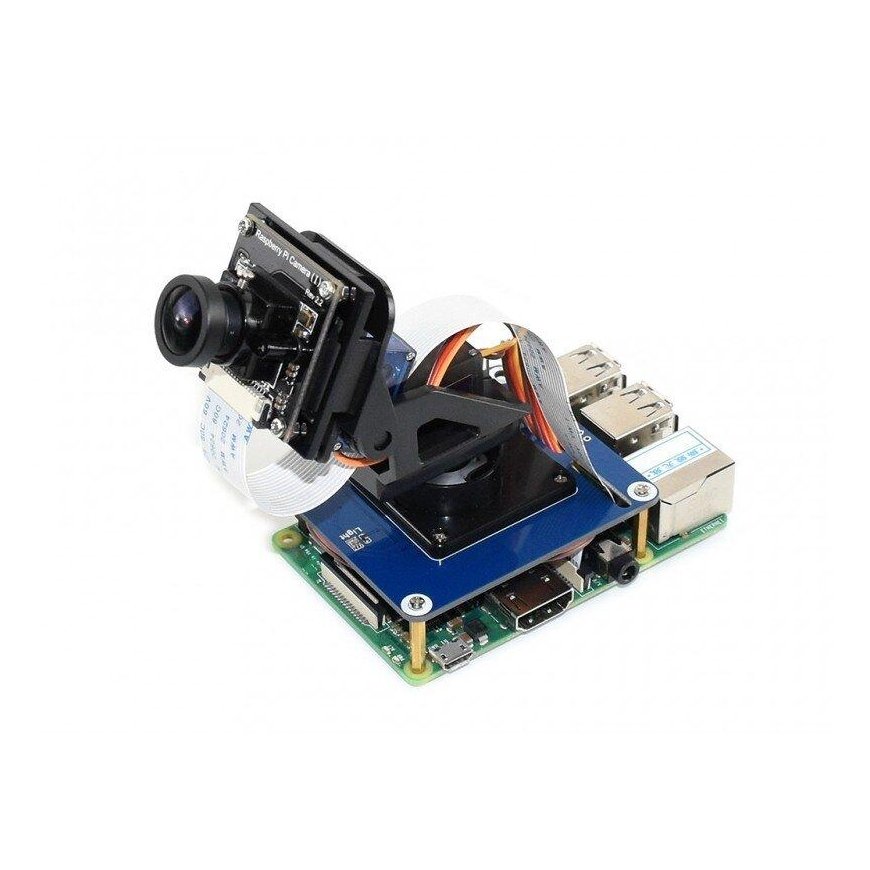

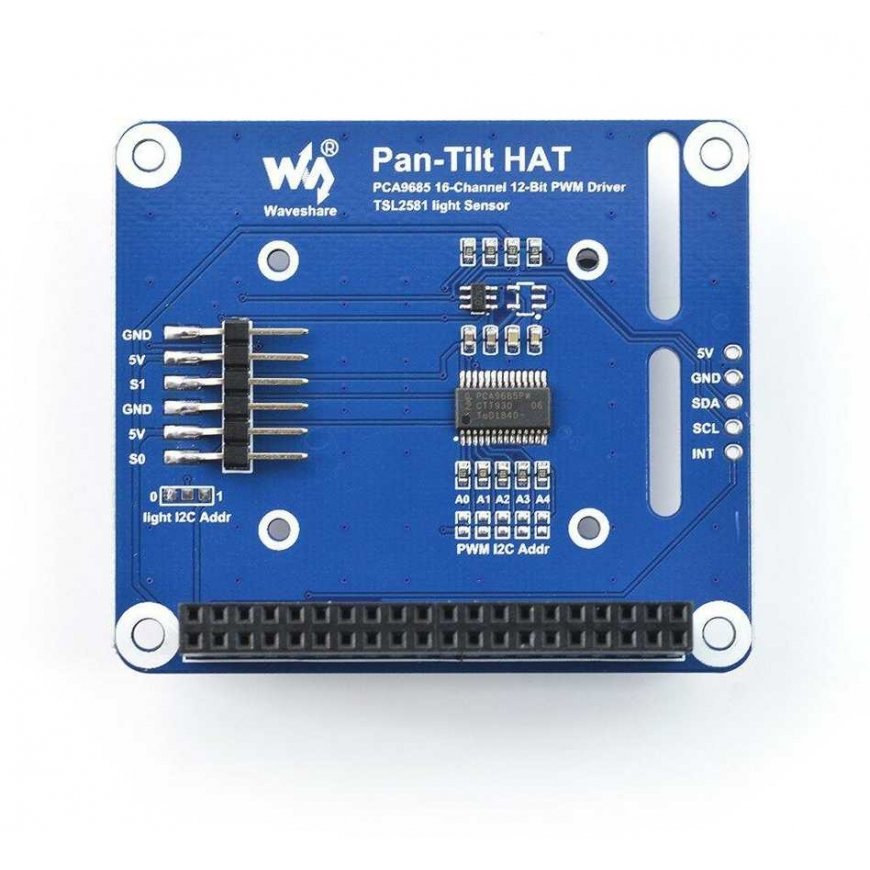

Special Raspberry Pi Pan-Tilt kit with a mount for installing a camera. Two-axis mount with two servo motors, mounted on a board compatible with the R Pi mini computer. You can create a face tracking system, motion tracking, and many other interesting projects.
Specifications:
- PWM controller: PCA9685
- PWM resolution: 12 bits
- Light sensor: TSL2581FN
- Sensor resolution: 16 bits
- Interface: I2C
- Operating voltage: 3.3 V or 5 V
- Dimensions: 56.6 x 65 mm

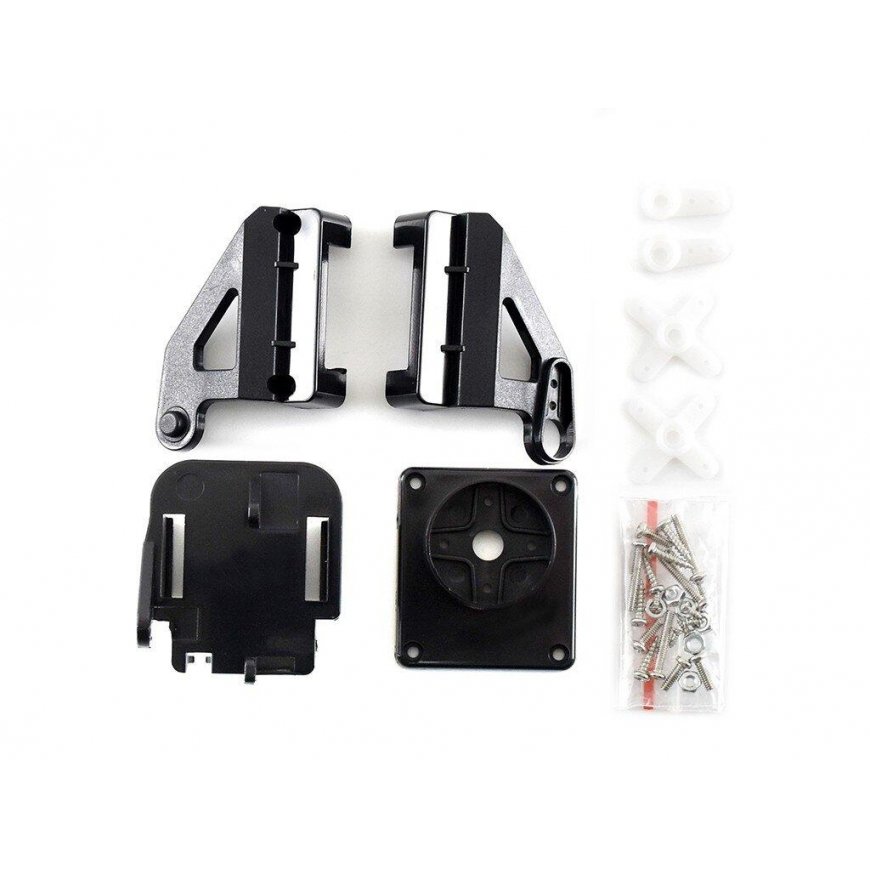

Included:
- Plate(s) Pan - Tilt - x1
- Two-axis servo mount Pan - Tilt - x1
- SG90 servo - x1
- MG90S servo - x1
- Acrylic plate for mounting the camera - x1
- M2 screws and nuts
- Raspberry Pi screw pack - x1
Links:
Manufacturer's page
Manual
