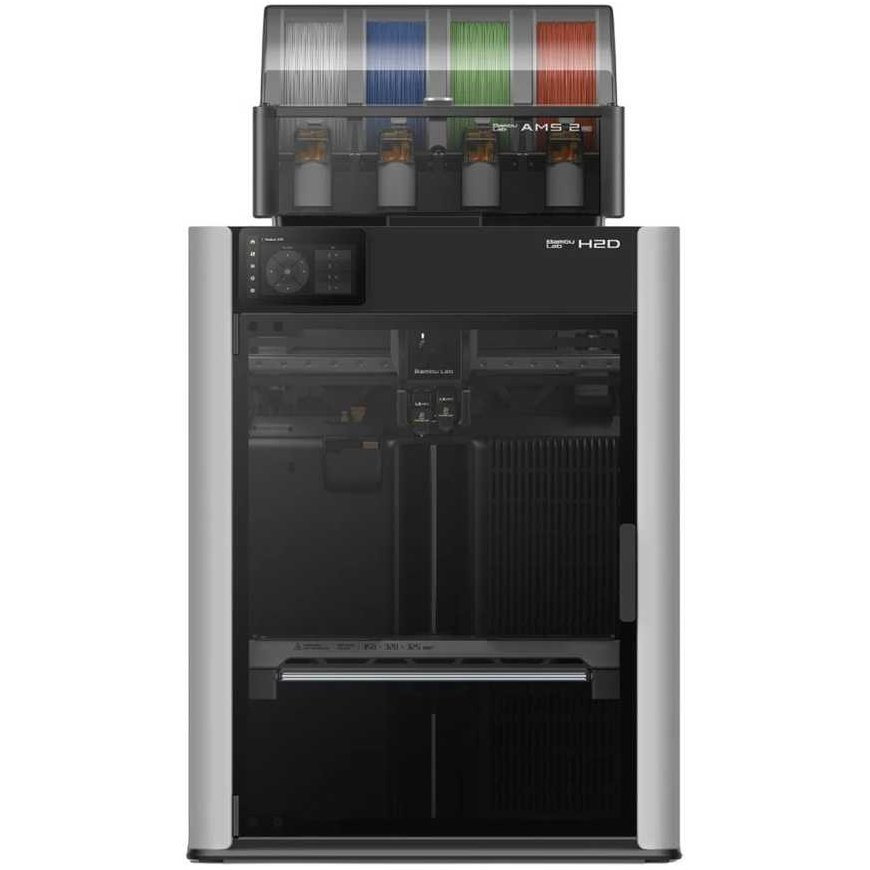

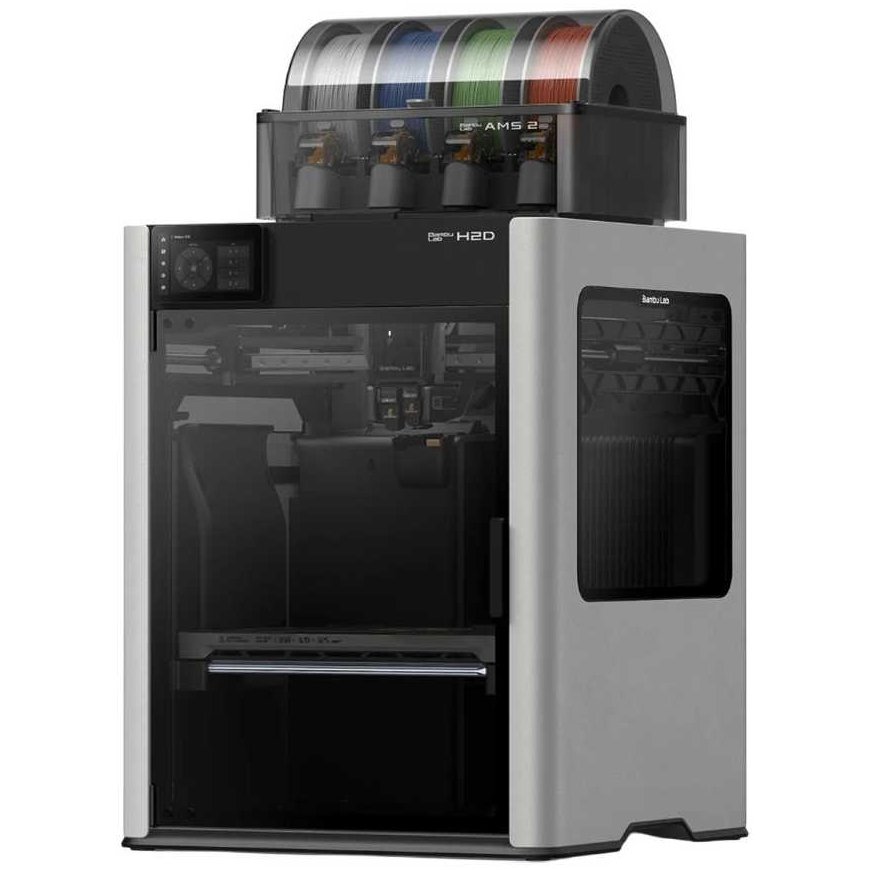

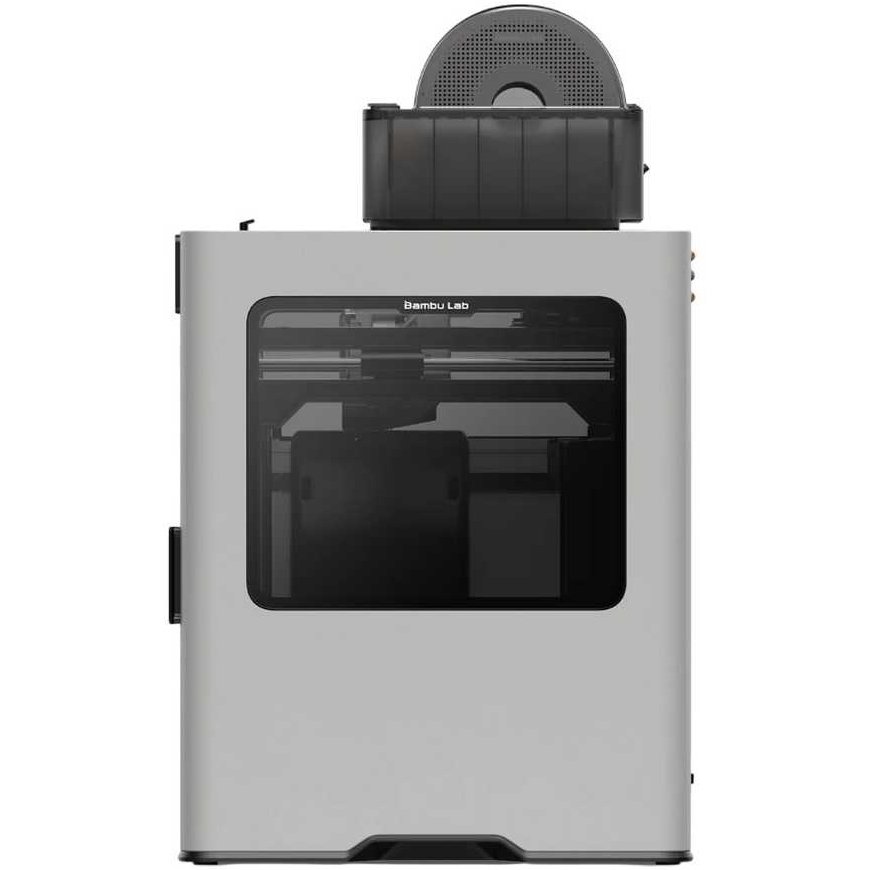

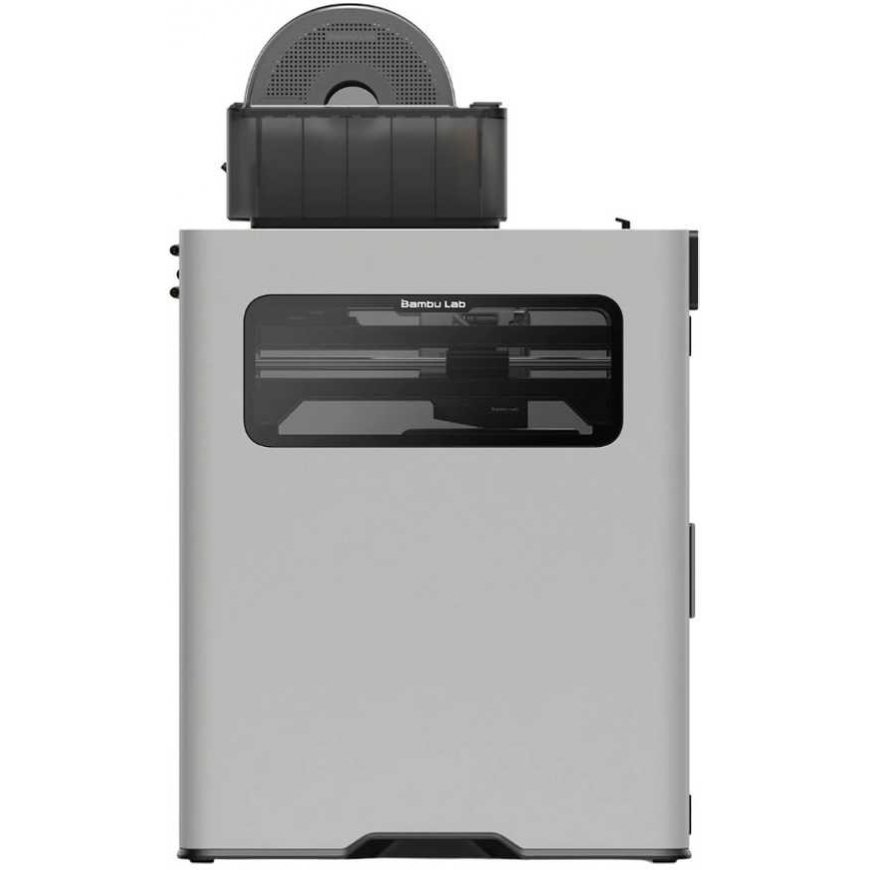

3D printer – Bambu Lab H2D AMS Combo

All about the product

Bambu Lab H2D Combo – a comprehensive solution for 3D printing professionals and enthusiasts, combining advanced FDM printing technology with the smart AMS system. With a working area of up to 350 × 320 × 325 mm and two print heads, the H2D Combo allows for multi-material and multi-color printing without manual intervention. The AMS system ensures automatic material supply, drying, and management, reducing the risk of errors and downtime. CoreXY kinematics, print head movement speeds of up to 1000 mm/s, and precise printing up to 600 mm/s guarantee excellent detail reproduction even for complex designs. The printer supports advanced materials thanks to the heated chamber (up to 65 °C) and print head (up to 350 °C). Additionally, automatic calibration, 36 sensors, and 4 cameras enhance work comfort and safety, making the H2D Combo an ideal choice for demanding users. This model does not have a laser module but is fully compatible with them. Both the printer interface and Bambu Studio (slicer software) support the Polish language, making device control and model preparation simpler.

Multifunctional and automated

Bambu Lab H2D is a modern 3D printer designed as a personal manufacturing center. The included AMS system allows for automatic filament management, eliminating the need for manual changes and speeding up the printing process. With a large working area (up to 350 × 320 × 325 mm), dual extruder, and sturdy reinforced construction, the H2D enables the creation of complex, precise models both at home and in workshops or professional environments. The ability to expand functionality with additional modules makes it a long-term investment.

Multi-material printing and dual heads

The integrated dual independent print head system allows for simultaneous printing with different materials or colors. For example, one head can be used for support material, significantly simplifying the printing of complex geometries. Automatic nozzle offset calibration (<25 µm) is performed tool-free, ensuring quick and precise head changes without loss of quality.

Top-level precision

The use of CoreXY kinematics and a 5 µm resolution sensor system allows for movement accuracy of up to 50 µm. Advanced vibration compensation and dynamic material flow control enable a smooth surface and precise edges. An additional “Vision Encoder” (available as an upgrade) further enhances precision – especially important when parts require perfect alignment.

Printing of technical materials and composites

The H2D Combo is excellent for advanced materials – thanks to the heated nozzle up to 350 °C and active chamber heating up to 65 °C. The heated bed reaches up to 120 °C, reducing the risk of warping. The die-cast aluminum construction and hardened steel components ensure durability and stability, even during long-term use, allowing printing with materials such as ABS, ASA, PA, PC, and composites.

Smart diagnostics and automatic calibration

The H2D Combo features 36 sensors and (depending on configuration) up to 4 cameras that help accurately monitor the printing process. The “Pre-Flight Check” system detects potential errors before each job, while automatic head calibration, leveling, and material flow adjustment reduce the risk of issues. Smart diagnostics ensure reliable operation and safety – even for less experienced users.

Modern interface and connectivity

The printer has an intuitive 5-inch touchscreen and can be controlled via the Bambu Handy app and Bambu Studio software. WiFi (2.4/5 GHz) and USB connectivity allow for convenient file transfer and software updates. Offline mode and 8 GB of internal memory ensure data security, which is important in a production environment.

Other key printer features

• Active cooling of the camera and components with temperature control in closed-loop mode
• Supports a wide range of filaments: PLA, PETG, TPU, ABS, ASA, PC, PA, PVA, BVOH, CF/GF composites
• Max. head movement speed: 1000 mm/s, precise printing up to 600 mm/s (with High-Flow heater)
• Acceleration up to 20,000 mm/s²
• Quick, tool-free nozzle change (clip-in system)
• Integrated sensors detect filament end, tangling, and extruder clogging
• Internal 8 GB memory and USB connection (FAT32/exFAT support)
• Stable die-cast aluminum metal construction
• The included AMS system automatically doses, dries, and monitors filament
• Ready for expansion with additional laser modules
• Full integration with the Bambu Lab ecosystem (Bambu Studio, Handy, Suite)
• Door opening sensor with emergency stop function

Technical specifications:

• Printing technology: Fused Deposition Modeling (FDM)
• Working area (1 nozzle): 325 × 320 × 325 mm
• Working area (2 nozzles): 300 × 320 × 325 mm
• Max. working area: 350 × 320 × 325 mm
• Filament diameter: 1.75 mm
• Nozzle diameter: 0.4 mm (default); other options: 0.2 / 0.4 / 0.6 / 0.8 mm
• Max. nozzle temperature: 350 °C
• Max. working table temperature: 120 °C
• Working table types: Smooth PEI / Textured PEI
• Head movement speed: up to 1000 mm/s
• Precise printing speed: up to 600 mm/s (with High-Flow heater)
• Acceleration: up to 20,000 mm/s²
• Flow (standard heater): up to 40 mm³/s
• Flow (High-Flow heater): up to 65 mm³/s
• Chamber heating: active, up to 65 °C
• Extruder motor: brushless PMSM servo motor
• Housing materials: aluminum, steel, plastic, glass
• Supported materials: PLA, PETG, TPU, ABS, ASA, PC, PA, PET, PVA, BVOH, PPS, CF/GF composites
• Cooling: closed-loop cycle fans (for extruder, chamber, electronics)
• AMS system: included (automatic dosing, drying, filament monitoring)
• Sensor system: 36 sensors: filament detection, door opening, temperature, pressure, etc.
• Cameras: nozzle, head, “Live View” (BirdsEye – only with laser module or upgrade)
• Calibration: fully automatic: leveling, head offset, material flow
• Display: 5-inch touchscreen (720 × 1280 px)
• Software: Bambu Studio, Bambu Handy, Bambu Suite; G-code support (Cura, PrusaSlicer)
• OS support: Windows, macOS
• Internal memory: 8 GB EMMC + USB connection (FAT32 / exFAT)
• Connectivity: WiFi 2.4GHz / 5GHz, USB
• Offline operation: yes (USB and internal memory)
• Safety: door sensor, emergency stop, power failure protection
• Max. power: 2200 W (up to 3 min.)
• Average power: 1050 W
• Power supply: 100V–120V / 200V–240V, 50/60 Hz
• External dimensions: 492 × 514 × 626 mm
• Weight: 31 kg
