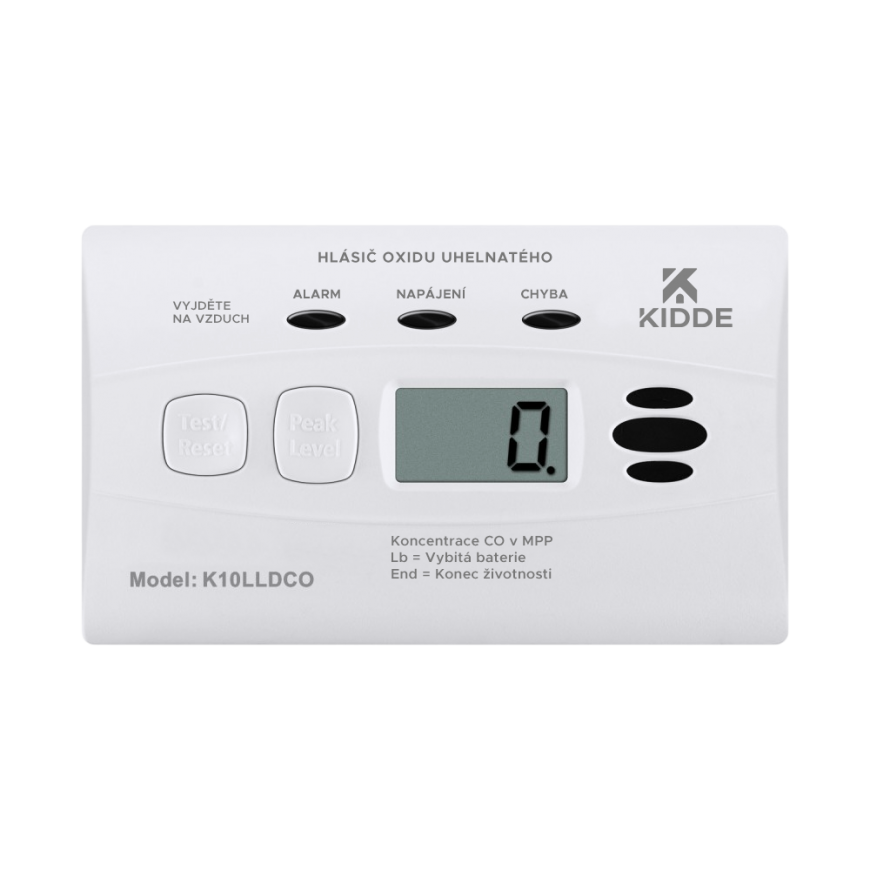

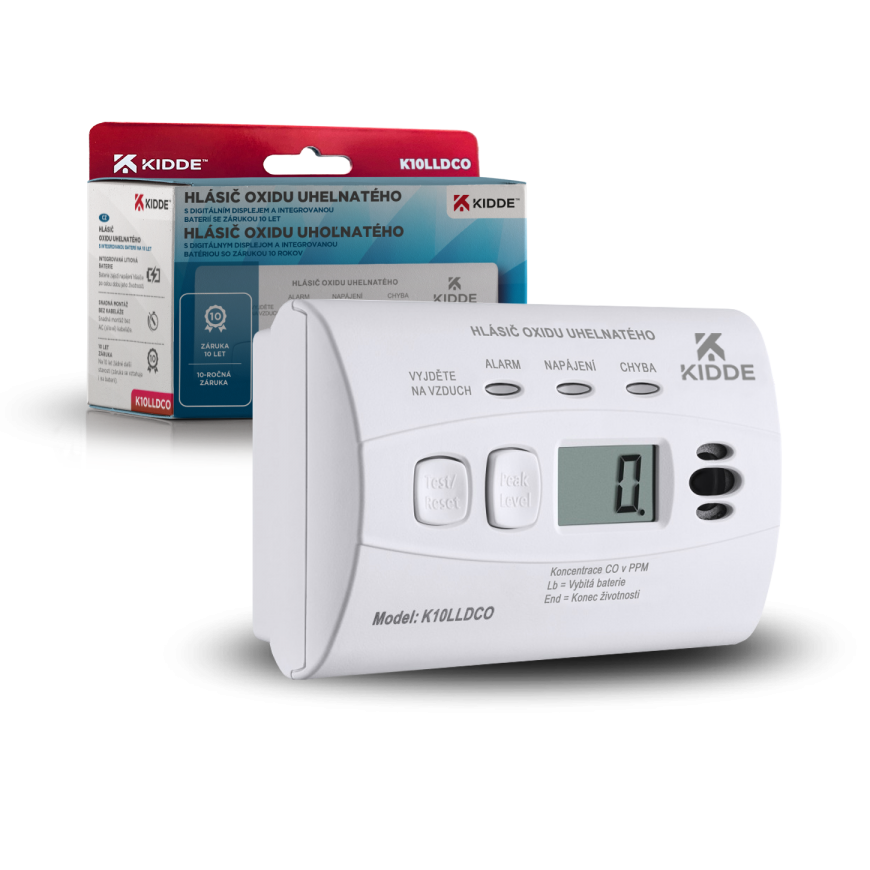

Kidde K10LLDCO CO detector, moisture resistant

Testing / Reset , used to check and verify the operation of the device and its reset

Peak/Level , which is used to display the highest measured CO level detected since the device's memory was reset.

The device now also offers a function that informs about alarm activations over the past 14 days, allowing the user to ensure that the detector has not recorded any unwanted carbon monoxide concentrations even in its absence.

The status of the sensor, batteries, and internal circuits is automatically monitored by a microprocessor-controlled safety system. In case of failure, any operational disruption, or low battery capacity, it will signal optically with a yellow LED indicator along with relevant information on the LCD screen, accompanied by a corresponding alarm sound signal.

The Kidde K10LLDCO detector also features a simulation testing function designed to quickly check whether the CO sensor responds correctly to test gases.

Due to its special design, it is not necessary to firmly mount the device on the wall in the room, but the detector can also be freely placed on flat surfaces, such as a nightstand, shelf, etc.

Carbon monoxide is a colorless, odorless, and tasteless gas produced by the improper combustion of fossil fuels such as coal, oil, natural gas, liquefied petroleum gas (LPG), charcoal, and firewood. It can also be emitted by poorly maintained or malfunctioning fuel-burning appliances used for heating homes, such as boilers, gas appliances, fireplaces, grills, blocked chimneys, ventilation systems, or damaged flues.

The most common symptoms of CO poisoning are headaches, nausea, fatigue, and muscle pain, but they can easily be mistaken for flu. That is why it is important to protect your family and home with carbon monoxide detectors.

Kidde K10LLDCO detector testing

The best way to check and maintain the CO detector's sensor performance is to use the SAFE 400 calibration gas testing kit. This testing gas verifies that the detector's circuits and systems operate reliably and that the CO sensor actively responds to the appropriate carbon monoxide concentration level.

Device advantages

• Kidde electrochemical technology – second-generation sensors, the most accurate electrochemical sensors in the world, perform measurements within seconds
• 40% longer sensor lifespan than other manufacturers on the market
• Powered by a built-in lithium battery that does not need to be replaced throughout the device's usage time (10 years)
• NANOWAX coating protects the device's electronics from moisture
• LCD screen with a maximum range of 999 ppm
• Loud alarm signal with a strength of 85 dB
• Testing / reset function – resetting the device, testing, and checking proper operation
• Maximum / level function – shows the highest measured CO level in the device's memory
• Alarm activity function over the past 14 days
• Impact-resistant housing design
• Wall mounting or placement on a flat surface
• End of device life signaling
• Low operating costs, small size, and weight
• Easy assembly and operation
• Timeless and modern design
• 10-year warranty for the device and power battery

The carbon monoxide detection device comes with a certificate confirming compliance with the Czech technical standard ČSN-EN EN50291-1:2018 requirements for household carbon monoxide detectors. Compliance with this standard has been confirmed by the independent testing laboratory British Standards Institute (BSI).
*0–30 ppm concentrations are marked as "0".

Product technical parameters

• Sensor technology: Kidde electrochemical technology – patented, one of the most accurate technologies in the world
• Sensor lifespan: 10 years
• Power source: 3 V DC, integrated lithium-ion power source
• Mounting method: On the wall (screws and plugs included) or freely on a flat surface
• When exceeding the permissible CO concentration: sound signal 85 dB (at 3 m distance; 3.0–3.5 kHz), optical indication (red LED) with information on the screen about the detected concentration (the screen shows CO concentration in the range of 0–999 ppm)
• Notification of end of operational life: sound signal (double short beep every 60 seconds), optical indication (yellow LED blinks twice every 60 seconds) with an informational message "End" on the detector's screen
• Fault indication: sound alarm tone (continuous tone or short beep every 30 seconds), optical indication (yellow LED blinks every 30 seconds) with an informational message "Err" on the detector's screen
• Alarm activation memory: red LED blinks every 60 seconds if the device has detected a CO concentration of 100 ppm or higher in the past 14 days
• "Test / Reset" button: Used to control and manage the device. Pressing the button performs an electronics control test. It is also used to restore measured values in the device's memory or to mute the alarm during an alarm.
• "Peak/Level" button: Pressing the button displays the highest measured CO level stored in the detector's memory, in the range of 11 to 999 ppm.
• Display: LCD screen (shows values from 0 to 999 ppm)

Operating conditions:
Temperature: -10°C - +45°C
Humidity: up to 90% relative humidity (RH), non-condensing

Storage conditions:
Temperature: -20°C - +60°C
Humidity: 5–95% relative humidity (non-condensing)

Technical specification

• Dimensions: 119 mm x 72 mm x 40 mm
• Weight: 0.38 kg
• Certification: ČSN - 50291-1:2018+AC:2021
• Marks: CE
• Warranty: 10 years for the device and power battery

Package contents
1 carbon monoxide detector with LCD screen - model Kidde K10LLDCO
1x mounting bracket
1x wall mounting kit
Manual
