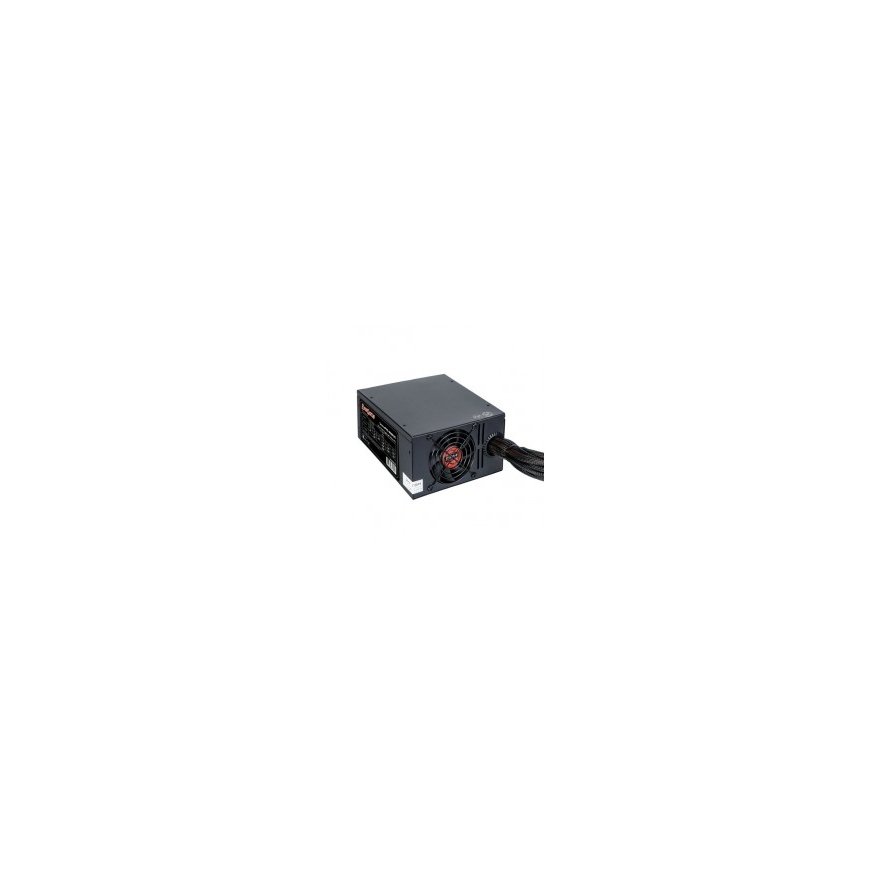

"Fortron" power supply FSP400-50WCB 80PLUS BRONZE, 2U, 400W
169,00 €
168.92 €
Monthly payment from 5,25 €
3829700 9PA400MP03
4713224523618
Shipping 9-13 b.d.
You are interested in this product?
All about the product
FSP/Fortron 2U FSP400-50WCB 80PLUS BRONZE, bulk, 400W
FSP400-50WCB is a standard 2U switched power supply. The power supply offers a total output of up to 400 W, making it excellent for use in industrial environments. Additionally, the power supply is an ideal solution for IPC control, workstations, communication, or any other automation applications. The product also meets the latest safety and EMC standards, which are in perfect compliance with various regulations worldwide.
- CB certificate 62368-1 and 60950-1
- Meet 80 Plus Bronze
- Designed for 5,000 meters above sea level
- High reliability
- Low ripple and noise
- Overcurrent protection
- Overheat protection
- Overvoltage protection
TECHNICAL SPECIFICATIONS
| model | FSP400-50WCB |
| format | 2U |
| Power | 400W |
| PFC | Active PFC |
| power fan | 70 mm |
| Efficiency | 80 Plus Bronze |
| Dimensions (D x W x H) | 200 x 100 x 70 (mm) 7.00 x 3.94 x 2.76 (inches) |
| hold-up time at 100 % | 115V / 60Hz: >= 10ms |
| loading | 230V / 50Hz: >= 12ms |
| operating altitude | 5,000 meters above sea level |
| operating temperature | 0°C to 50°C |
| storage temperature | -20°C to +80°C |
| operating humidity | 85% relative humidity non-condensing |
| storage humidity | 95% relative humidity non-condensing |
| mTBF | 100,000 hours of continuous operation at 25 °C, max. output load |
| applications | Workstation, storage system, IPC controller |
| Input voltage | 90-264 Vac |
| Input frequency | 47-63 Hz |
| Input current | 115 Vac @ 6A, 130 Vac @ 3A |
| Connectors | 1x 20 + 4 PIN 1x 4pin P4 (12V) 2x SATA 3x PATA 2x PCI-E 8pin 1x FDD |
.
