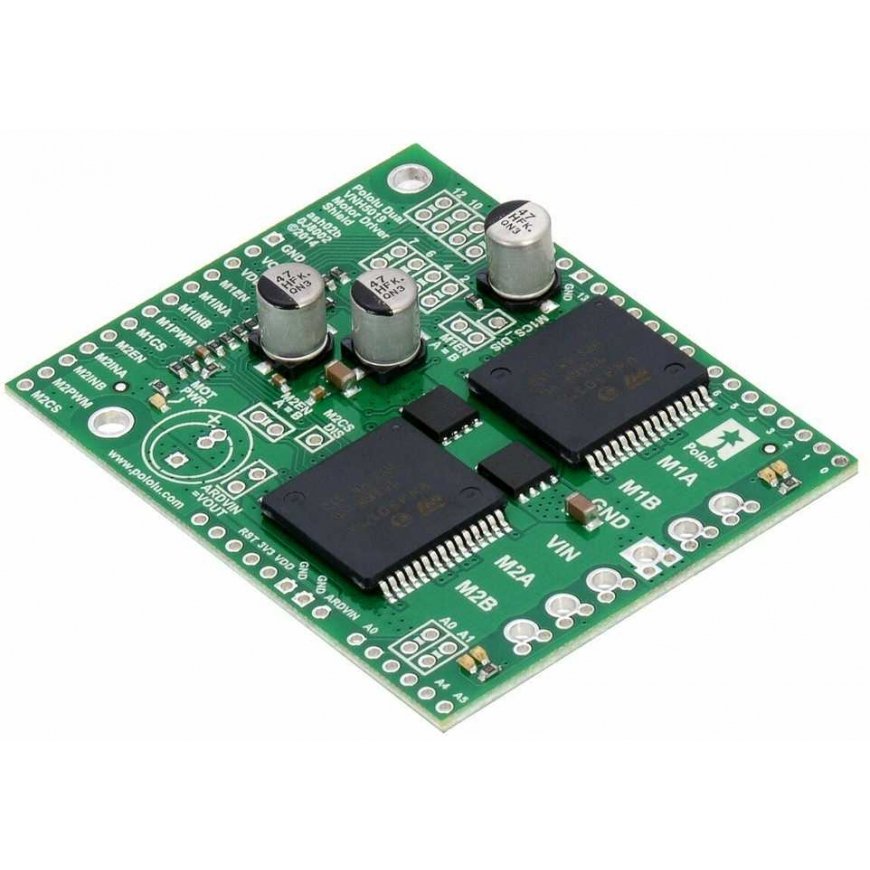

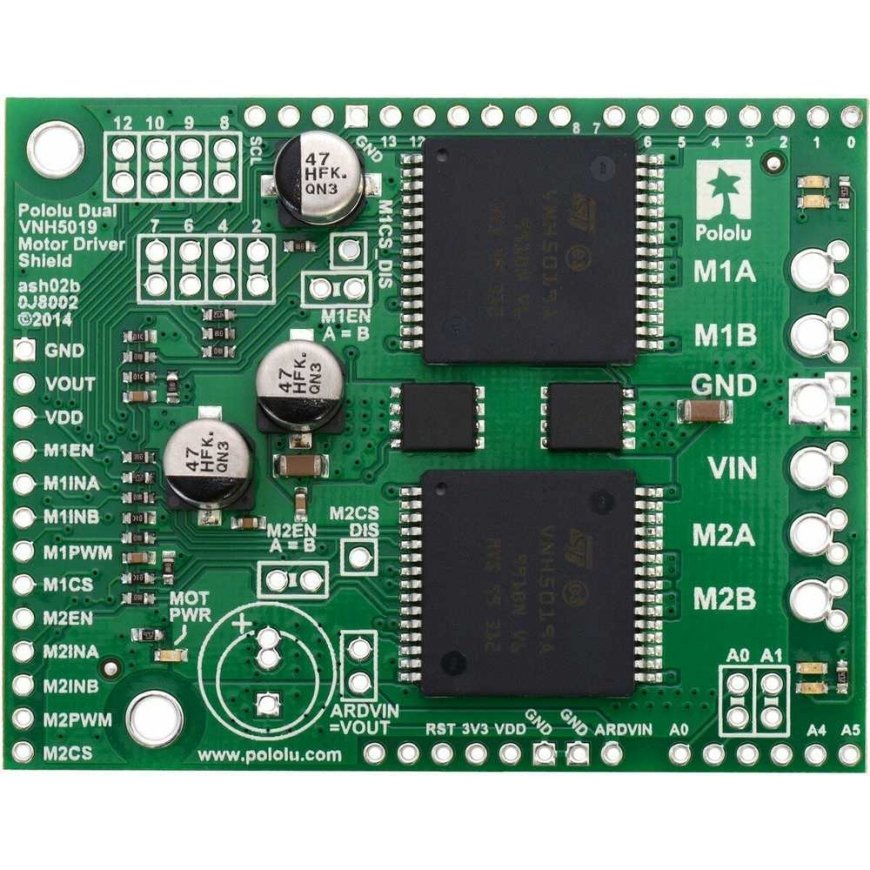

VNH5019 2 channel motor driver 24V/12A, Arduino accessory, Pololu 2507
79.00 €
Monthly payment from 2,93 €
3827762 AN-02262
5904422367978
Shipping 8-15 b.d.
You are interested in this product?
All about the product
The Arduino extension with a dual controller VNH5019 allows you to control two DC motors with a supply voltage of 5.5–24 V, with a continuous current consumption of up to 12 A (temporarily up to 30 A). The system allows you to change the motor's rotation direction and adjust the rotation speed via a PWM signal.
Specifications:
- Supply voltage: 5.5 V - 24 V
- Output continuous current: 12 A
- Maximum short-term current: 30 A
- Digital inputs operate at 5 V and 3.3 V voltage
- PWM frequency: up to 20 kHz
- Output for current measurement at an analog 140 mV/A voltage

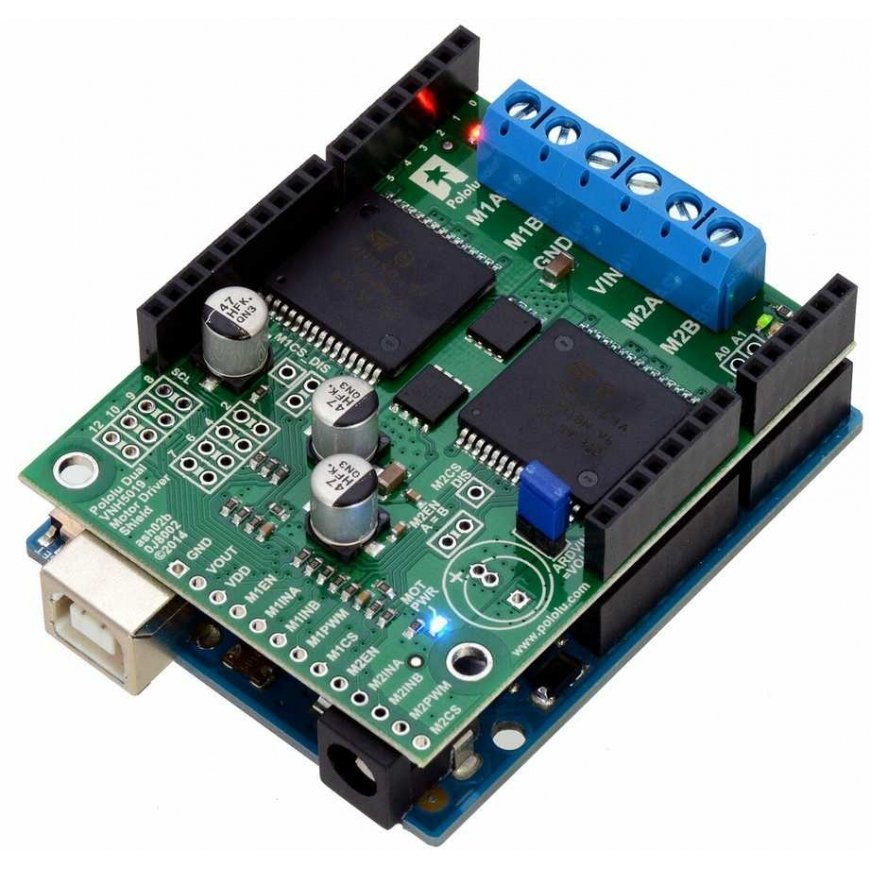

- Connectors compatible with Arduino Uno and Leonardo
- Ability to change default Arduino control pins (mapping)
- LEDs
- Space for an additional capacitor to filter the supply voltage
- Protection
- From incorrect power connection
- From overvoltage and undervoltage
- From grounding and supply voltage

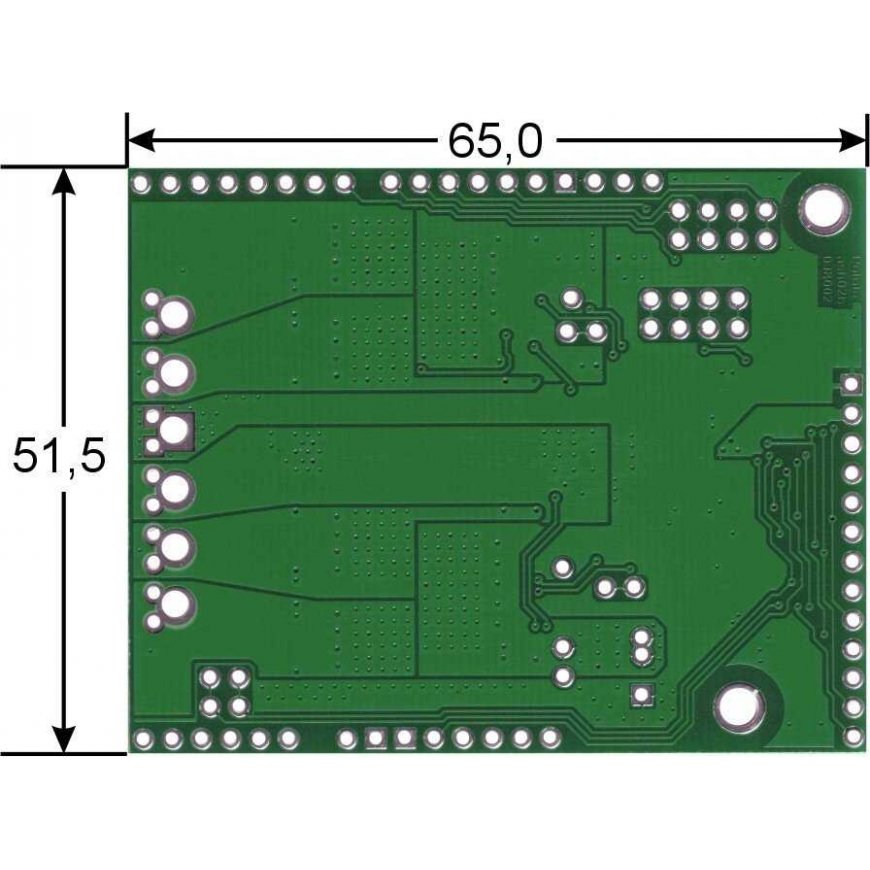

- Module dimensions: 65 x 51.5 mm

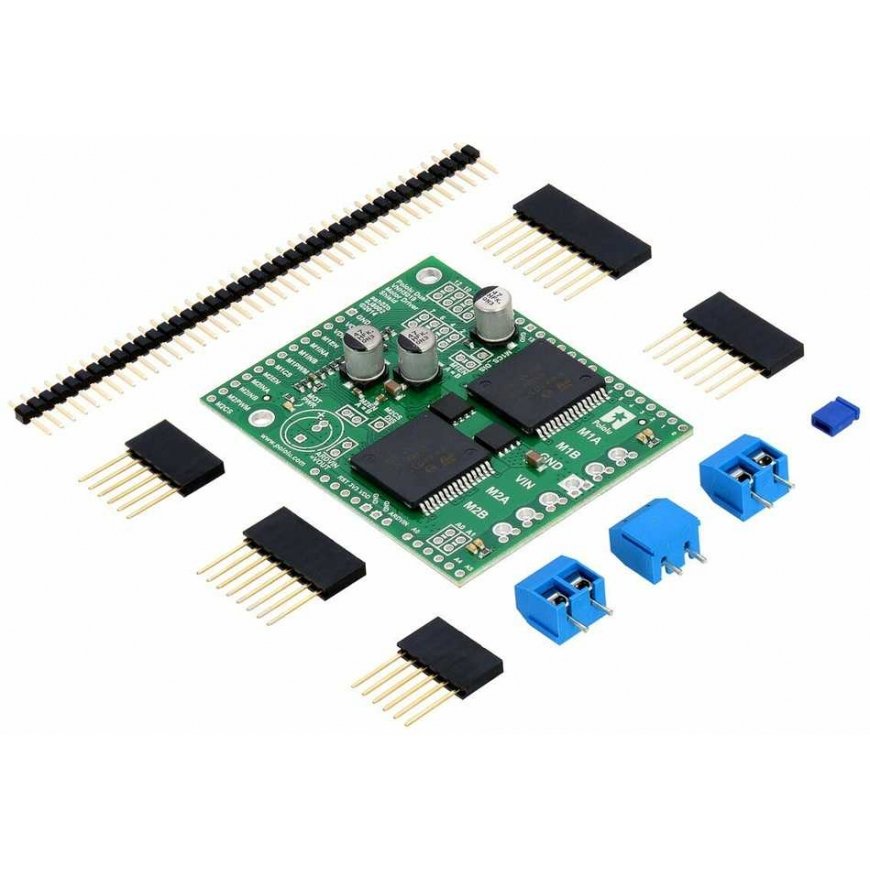

Included:
- Module with two VNH5019 controllers
- 3x dual ARK type power connector
- 1x gold pin 1x40 strip
- 1x extended connector Arduino 1x10
- 2x extended connector for Arduino 1x8
- 2x extended connector for Arduino 1x6
- 1x jumper
Links:
Manufacturer's page
Manual
