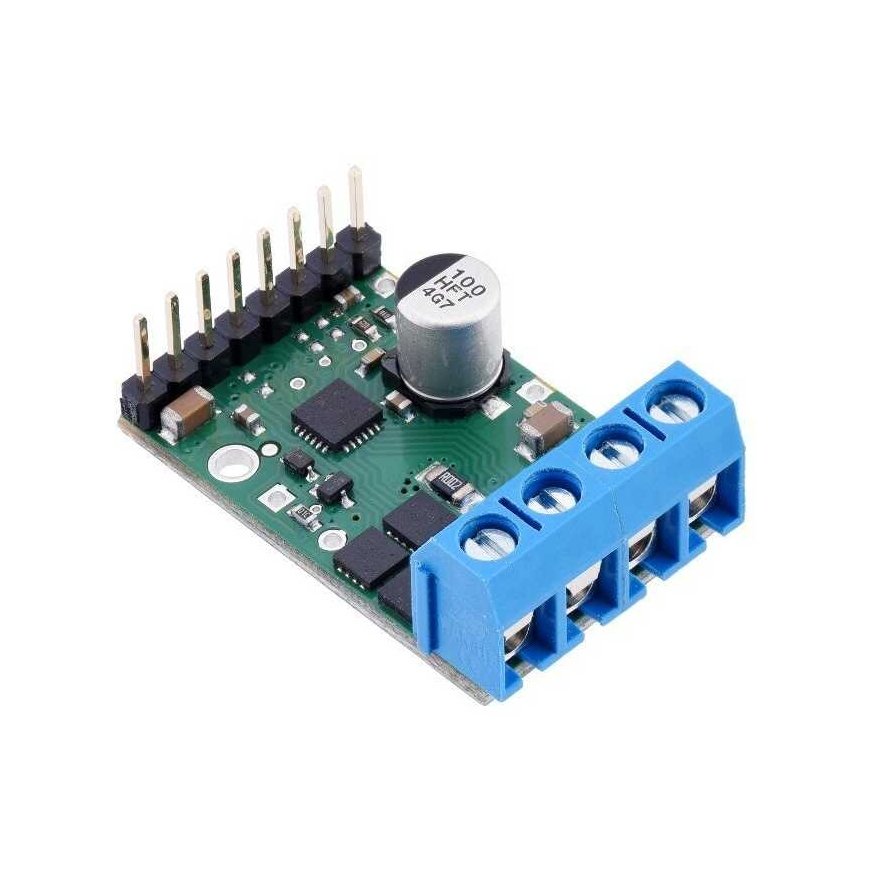

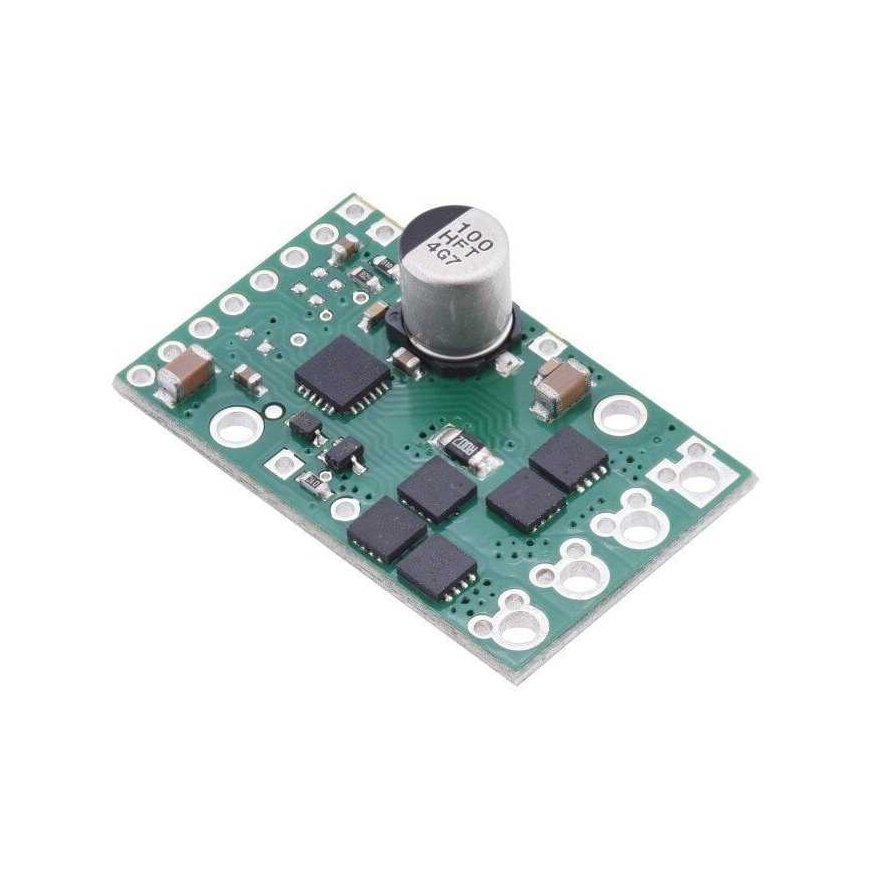

G2 High Power 18v17, single channel motor controller 30V/13A, Pololu 2991
69,01 €
68.93 €
Monthly payment from 2,67 €
3826923 AN-05990
5904422367244
Shipping 8-15 b.d.
You are interested in this product?
All about the product

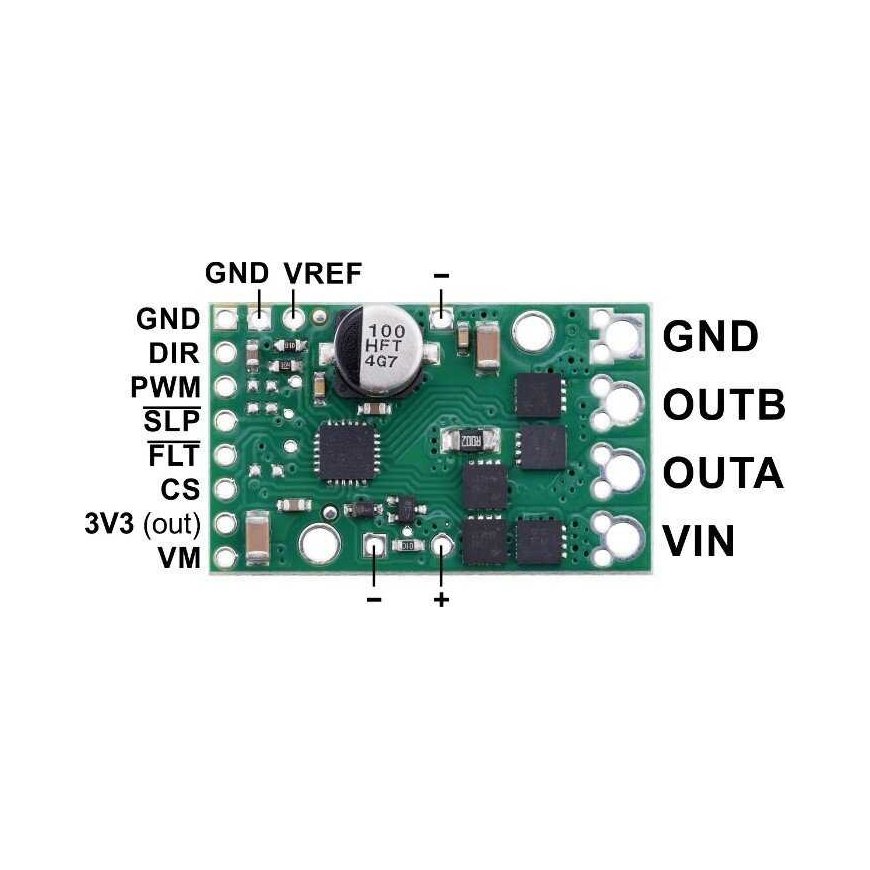

The module allows you to control a single DC motor. The motor can be powered from 6.5 to 30 V, with a continuous current consumption of up to 17 A, temporarily (10 ms) up to 100 A. The speed can be controlled by a PWM signal, and the direction by a digital DIR output - providing a low (logical 0) or high (logical 1) state. The device also includes a current flow sensor and the ability to limit the motor current.
Specifications:
- Number of channels: 1
- Supply voltage: from 6.5 V to 30 V
- Logic part operating voltage: from 1.8 V to 5 V
- Continuous current: 17 A
- Maximum instantaneous current (up to 10 ms): 100 A
- PWM frequency: up to 100 kHz
- Current sensor sensitivity: 0.02 V / A
- Safety:
- against reverse supply voltage connection
- against too low supply voltage
- against short circuit

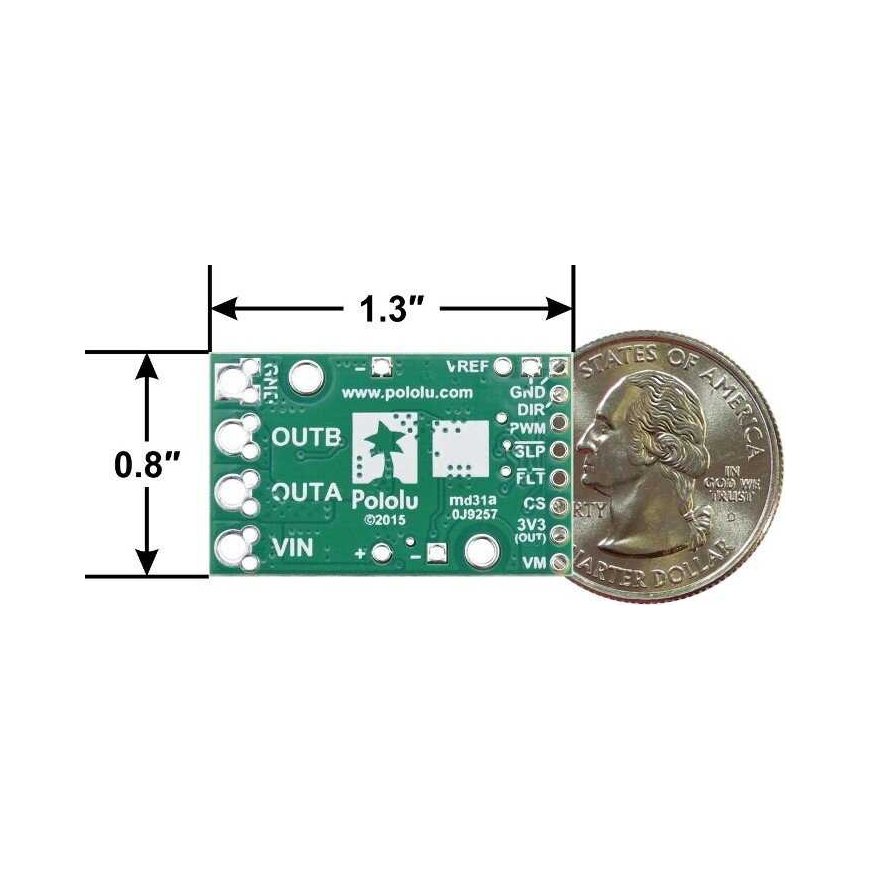

- Dimensions: 33 x 20 mm
- Weight: 3.3 g (without connectors)

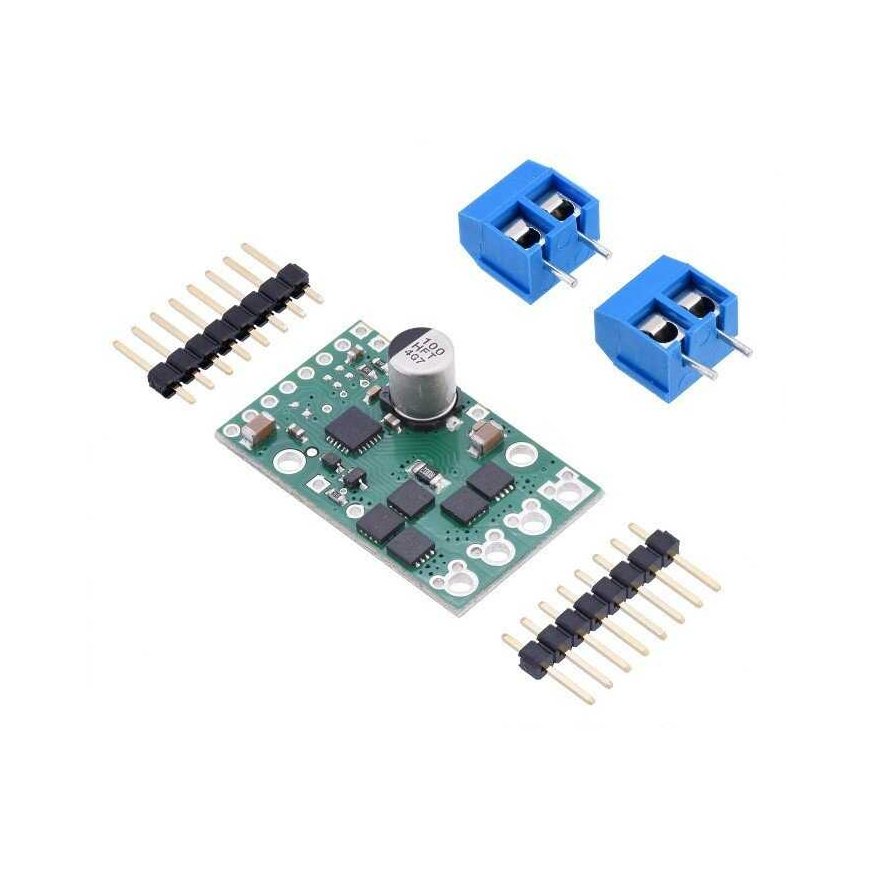

- Includes module, gold pins, and screw terminals
