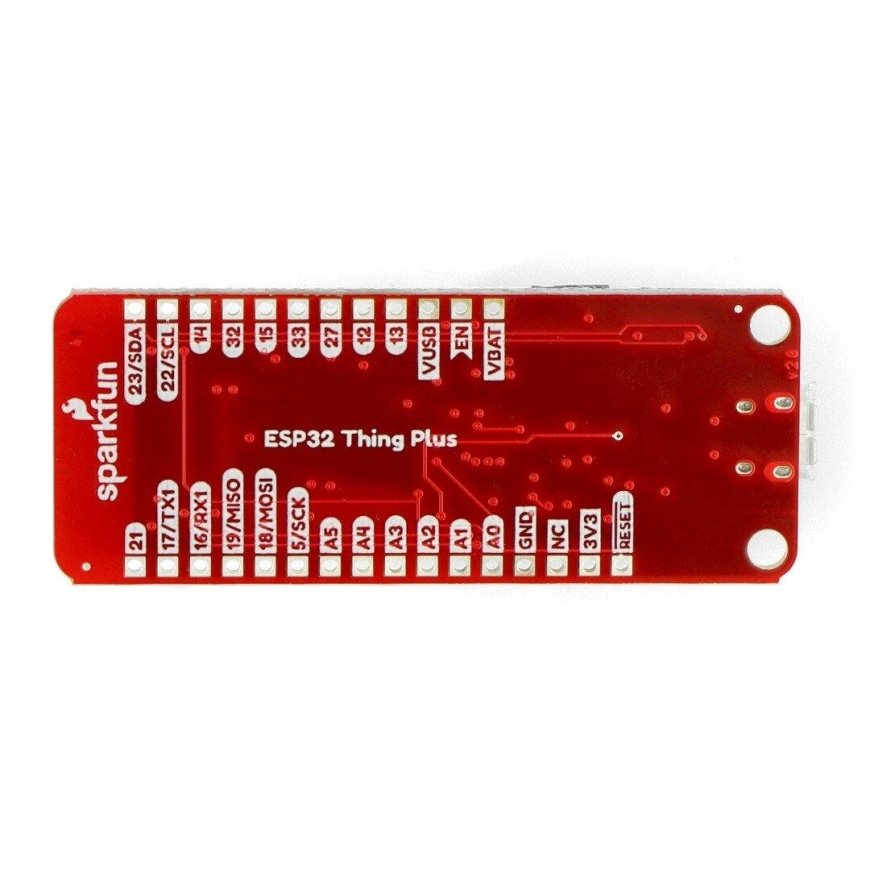

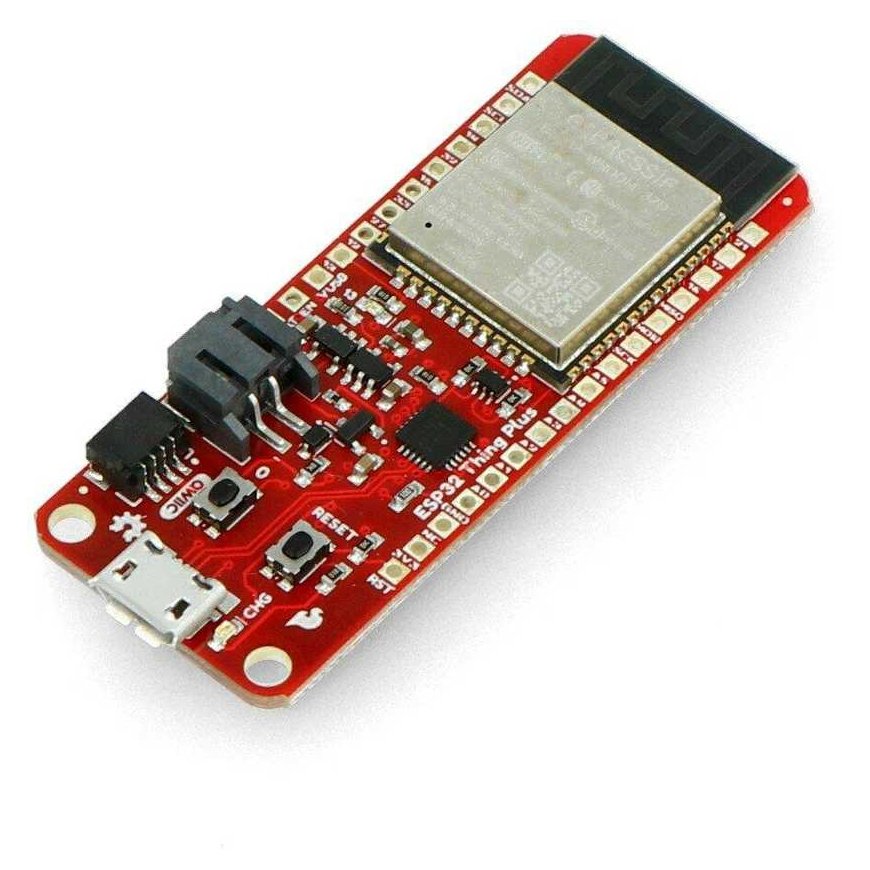

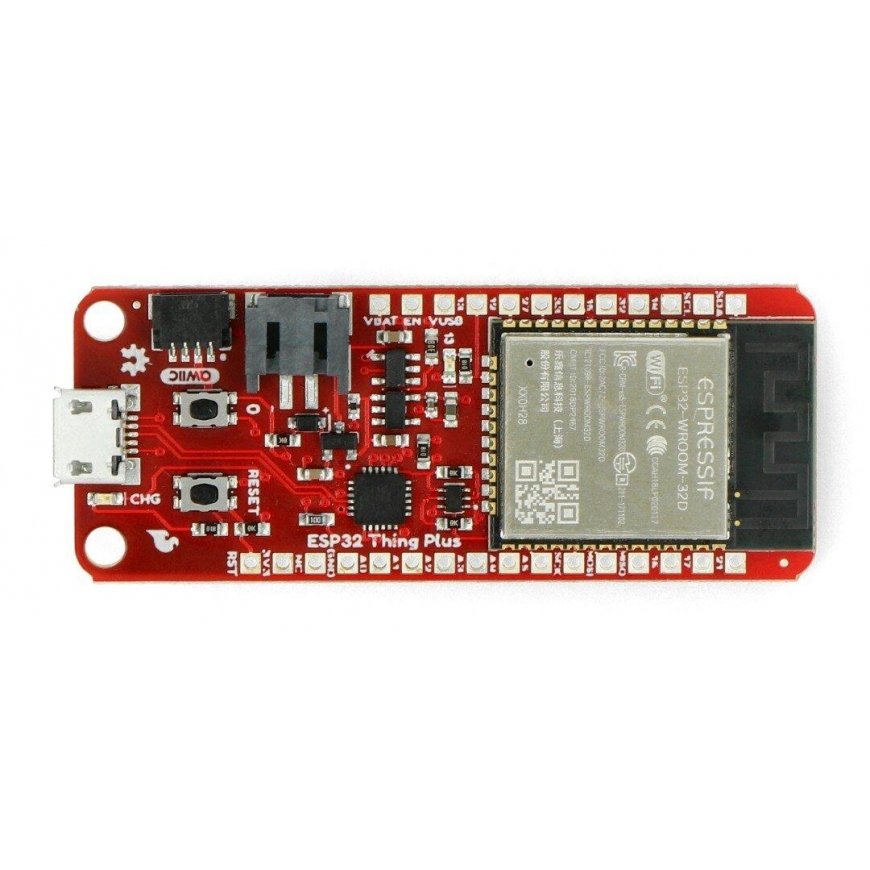

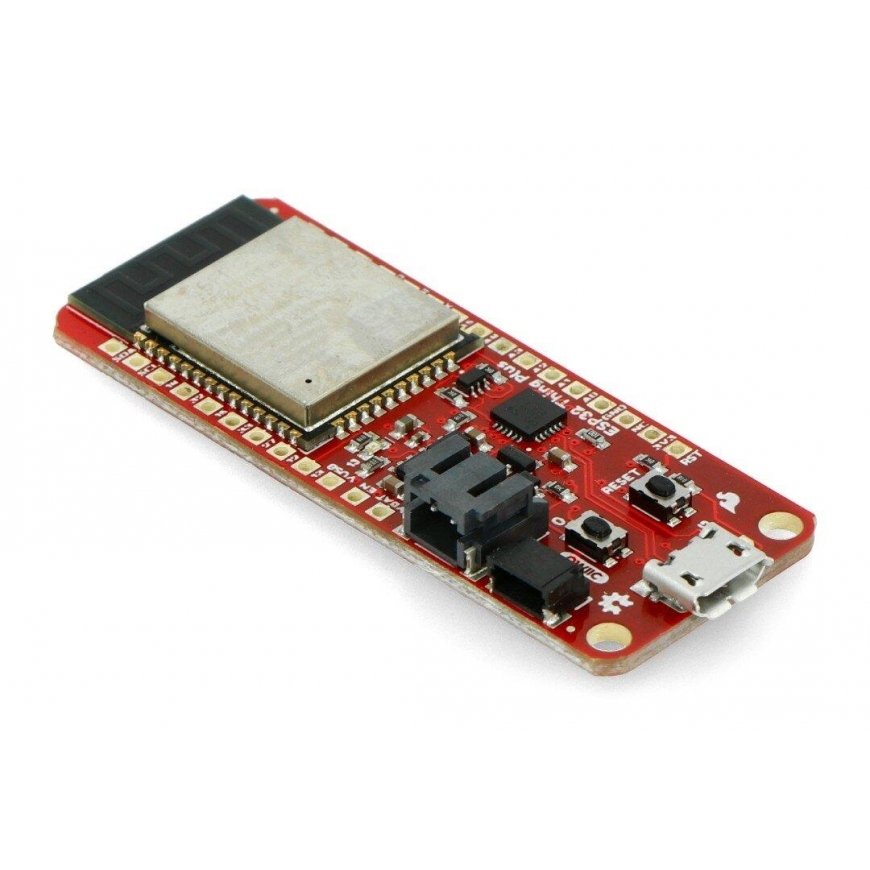

WiFi module Thing Plus, ESP32 WROOM, SparkFun WRL-15663
3826065 AN-16704
0845156010110
Shipping 11-18 b.d.
All about the product
The SparkFun module is equipped with ESP32 WROOM and ESP32-D0WDQ6 wireless communication, using WiFi and Bluetooth. Thing Plus uses the Qwiic Connect system for interaction, based on the I2C interface, allowing easy connection of the module to the system without soldering. The module provides immense potential for IoT systems and can be used to control LEDs and transmit data to a specific platform. Thing Plus can also be programmed using Arduino IDE and a special library.
Module outputs:
- 13x ADC converter
- 3x UART (by default configured to only two outputs, one of the outputs is used for uploading and debugging)
- 3x SPI (by default only one output configured in Arduino IDE)
- 2x I2C (by default only one output configured in Arduino IDE)
- 2x DAC converter channel
- 16x PWM output
- 8x capacitive touch controller
- 1x Hall sensor
- 1x CAN interface
- 1x SD/SDIO/MMC memory controller
- 1x microUSB connector
- 1x JST connector 2.0 mm
- 1x Qwiic connector
Specifications:
- Power supply voltage: from 3 V to 3.6 V
- Central processor: Xtensa LX6 32 bit
- Clock: up to 240 MHz
- Memory:
- 520 kB SRAM
- 16 MB Flash memory
- WiFi standard: 802.11b/g/n
- Bluetooth operating modes: classic and BLE
- Connections:
- GPIO - 21 pin
- Encryption acceleration: AES, SHA2, ECC, RSA-4096
- Dimensions: 58.42 x 22.86 mm
