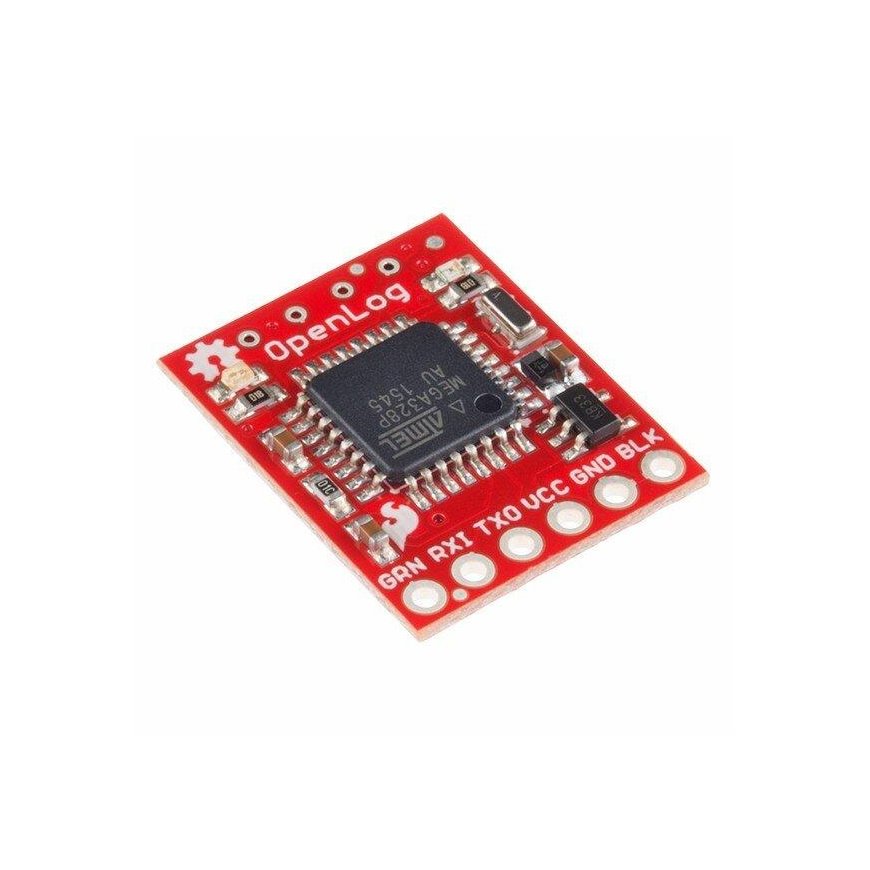

OpenLog Memory Card - Data Logger - SparkFun DEV-13712

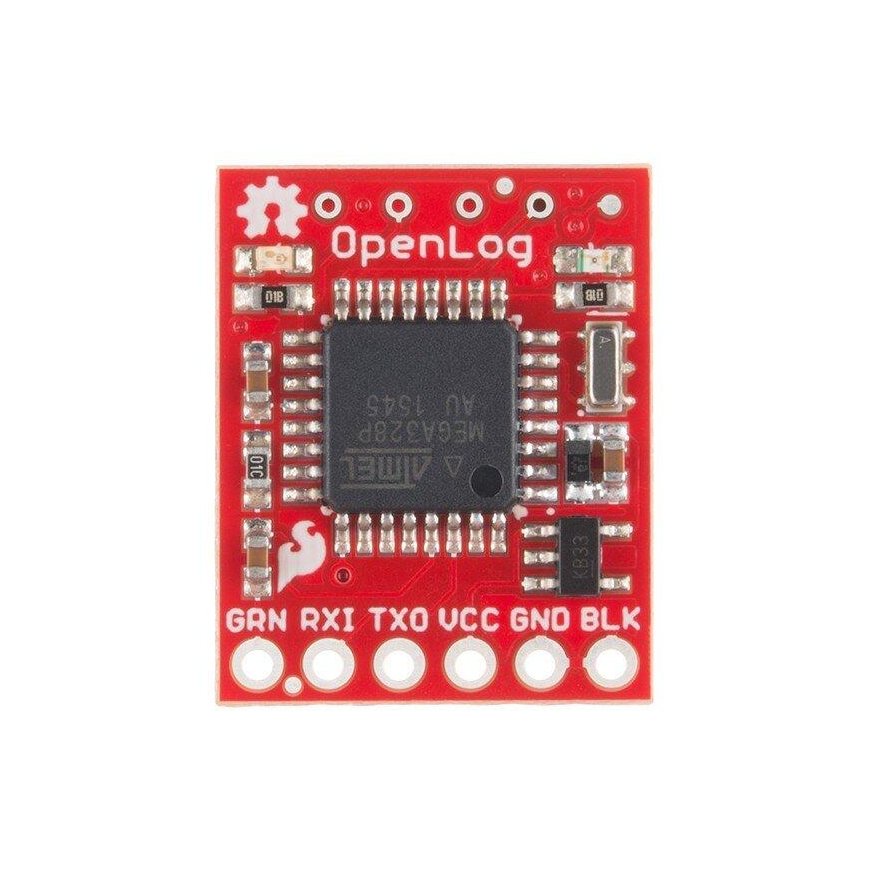

OpenLog Memory Card - Data Logger - SparkFun DEV-13712 – 2

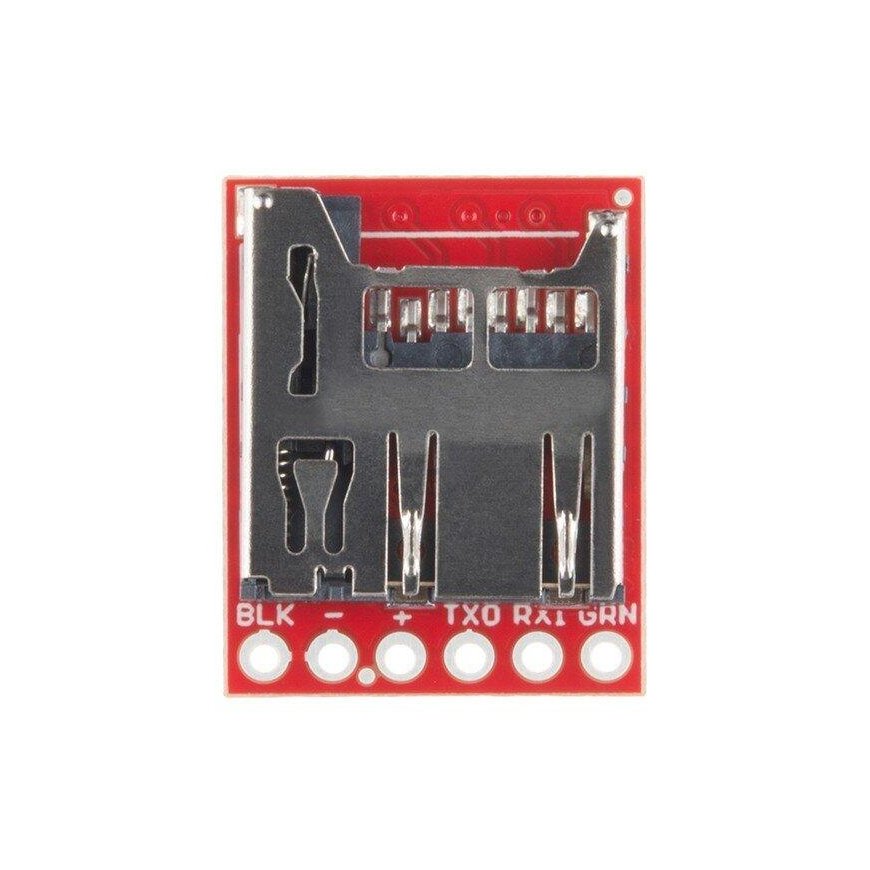

OpenLog Memory Card - Data Logger - SparkFun DEV-13712 – 3

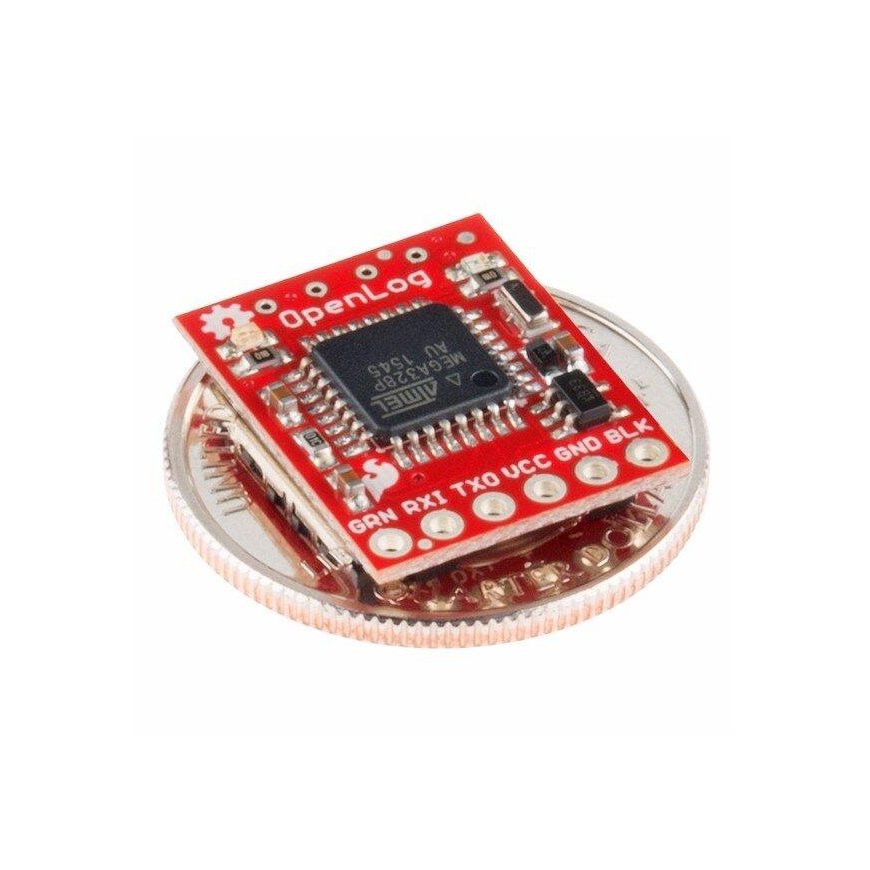

OpenLog Memory Card - Data Logger - SparkFun DEV-13712 – 4
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712
OpenLog Memory Card - Data Logger - SparkFun DEV-13712

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

OpenLog Memory Card - Data Logger - SparkFun DEV-13712

39.01 €
Monthly payment from 1,90 €
3825856

AN-01708

5904422330248

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

SparkFun OpenLog is an open-source data logger that processes connection series and supports up to 32GB microSD cards. It can store large amounts of sequential data, especially for projects that require debugging.
SparkFun OpenLog uses ATmega328 and, thanks to the onboard resonator, supports 16MHz. It consumes 2-3mA in idle mode and 10-20mA at full capacity, depending on the microSD.


Specifications:

  • VCC input: 3.3V-12V (recommended 3.3V-5V)
  • Supports up to 32GB microSD FAT 16/32 cards
  • Simple text interface
  • Data transfer rate (up to 115200bps)
  • Pre-programmed ATmega328 and bootloader
  • Four SPI "pogo" pins
  • Two LED lights indicating recording status
  • 2mA in idle mode, 6mA at full capacity
Links:

Schematic
Hookup guide
GitHub Hardware report
