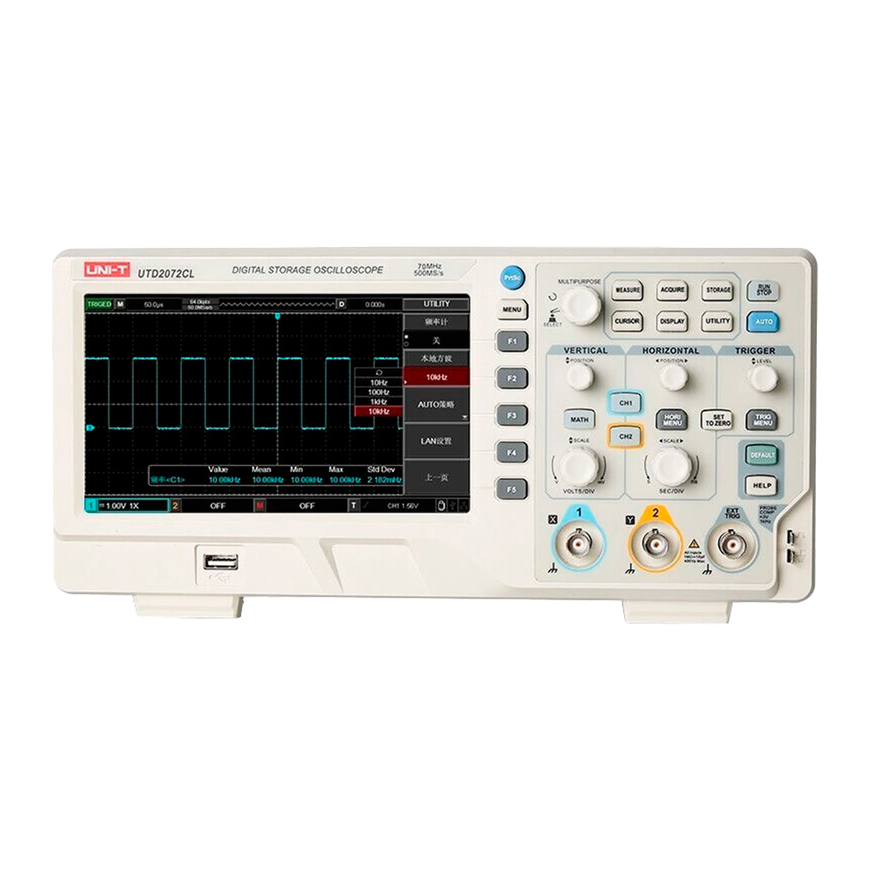

Uni-T UTD2072CL oscilloscope
3825308 MIE0482
5901890095143
Shipping 9-13 b.d.
All about the product
------------
MAIN PARAMETERS
------------
Bandwidth: 25 MHz
Number of channels: 2
Sampling frequency: 500 MS/s
Rise time: <5 ns
Memory depth: 64 kpt.
Waveform capture rate: >5000 wfms/s
Vertical sensitivity: 1 mV/div ~ 20 V/div
DC measurement accuracy (average measurement): ±(3 % x reading + 0.1 div + 1 mV)
Input impedance: 1 MOhm ±2% / 24 pF ±3 pF
Polarity: positive/negative
Input voltage: max. 400 V (DC + AC peak value)
Mathematical operations: addition, subtraction, multiplication, division, FFT
Time base: 2 ns/div ~ 50 s/div
Measurement data storage: setup, waveform length, bit graph
------------
POWER ON
------------
Frequency counter: 6 digits
Trigger types: edge, pulse width, video, variable
Trigger sources: CH1, CH2, line, EXT
Trigger level range:
internal: ±8 div, measured from the center of the screen
external: ±3 V
Dead time rise range: 80 ns ~ 1.5 s
Edge trigger types: rising, falling, rising and falling
Self-adjusting: Yes
Ports: confirmed/failed output, USB OTG
------------
GENERAL SPECIFICATIONS
------------
Power supply: 100–240 V AC (RMS), 50/60 Hz
Display: 7 inch TFT LCD, WVGA (400x240 pixels)
Weight: 2.5 kg
Dimensions: 306 x 138 x 124 mm
Accessories: 2 measurement probes, power cable, USB cable
