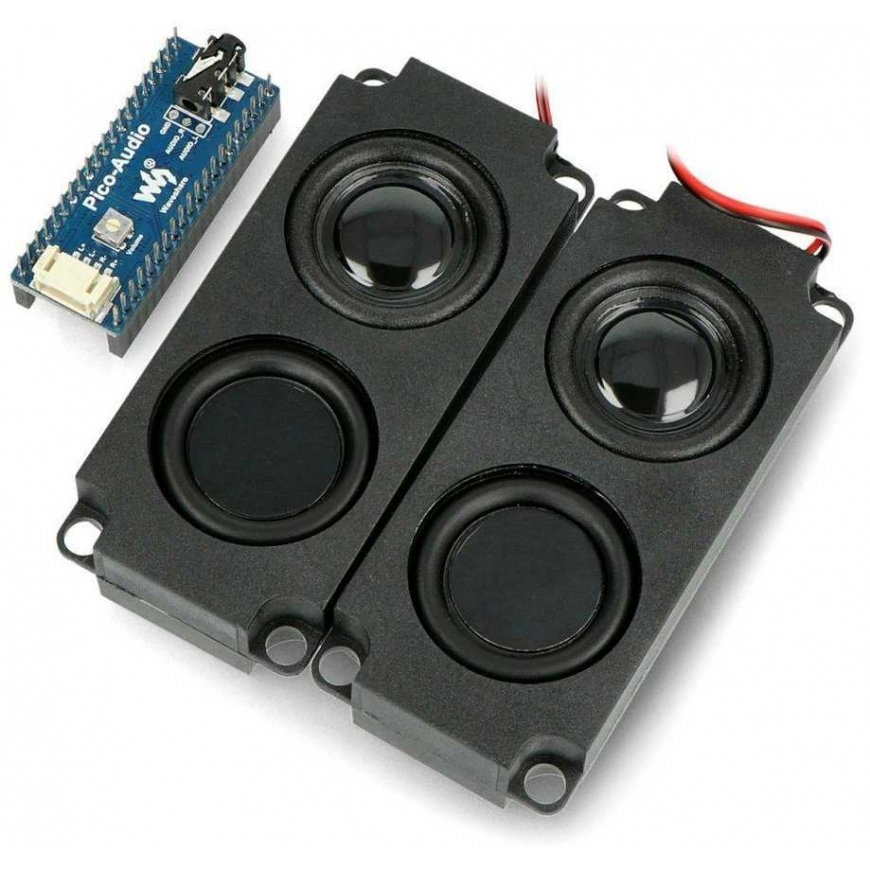

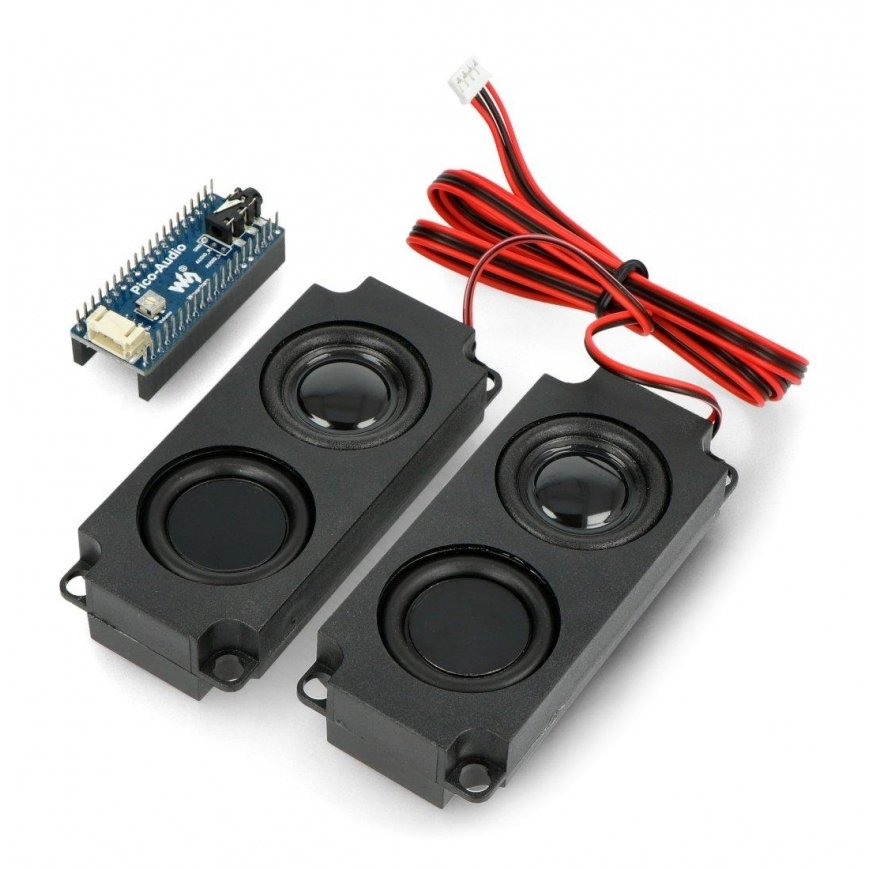

Audio expansion + 2x 5W speaker for Raspberry Pi Pico - Waveshare 20167
29.00 €
3824590 WSR-20096
5904422351847
Shipping 9-14 b.d.
You are interested in this product?
All about the product

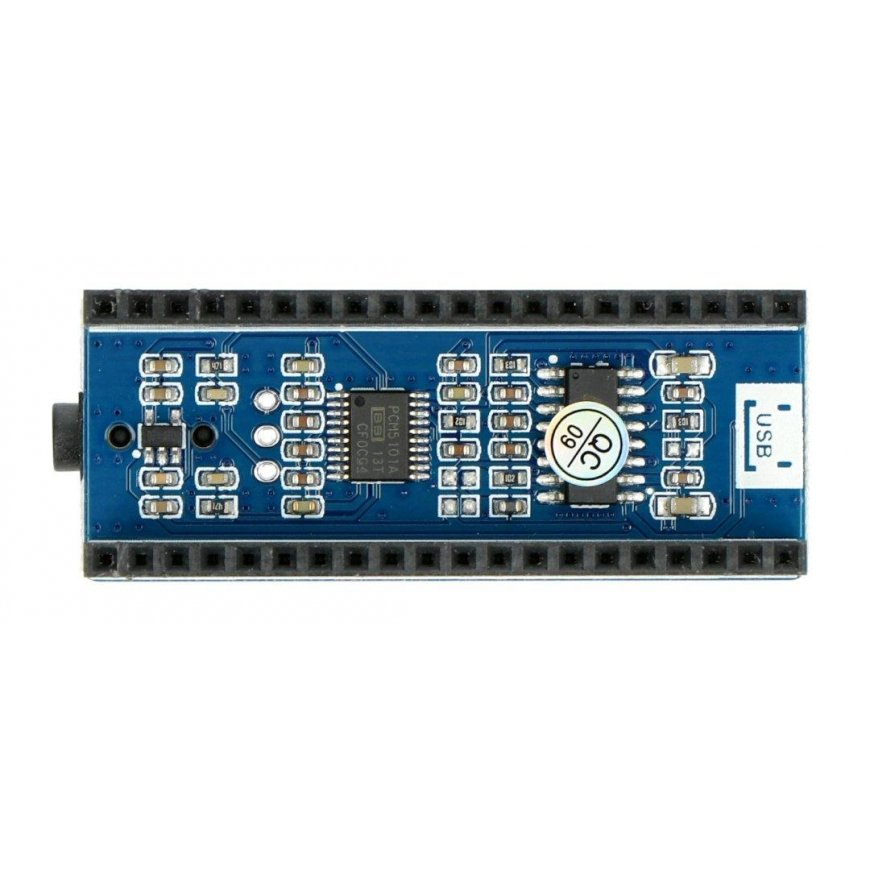

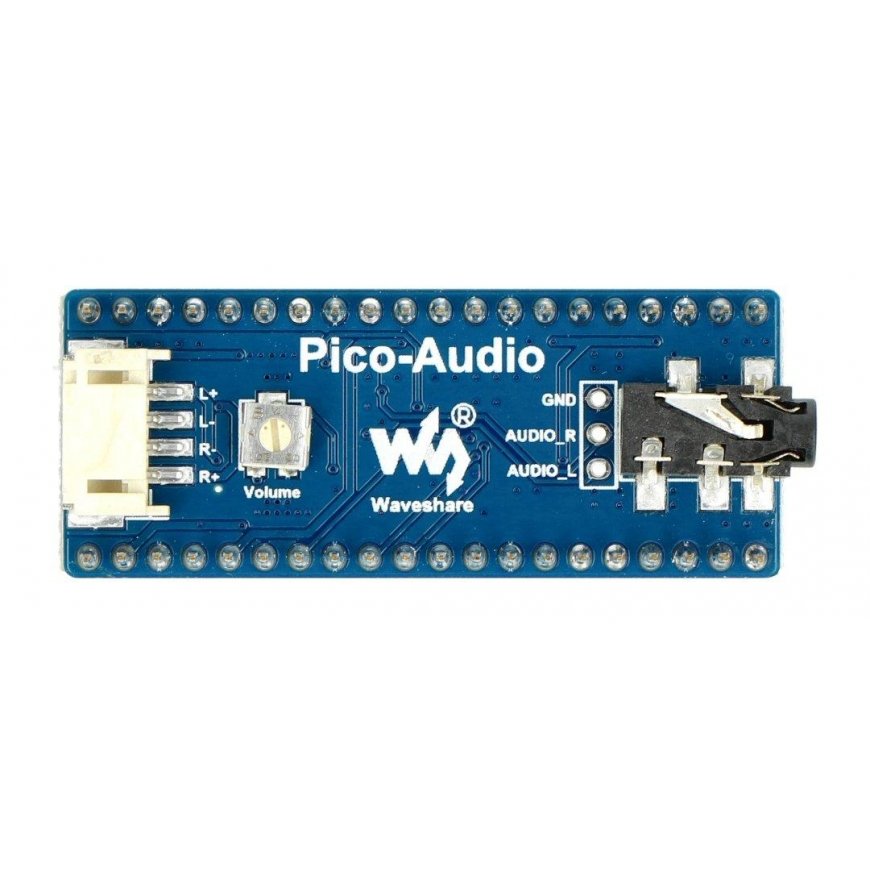

The Waveshare created module allows you to expand the capabilities of the Raspberry Pi Pico using audio output. The included module is based on the PCM5101A chip and has a speaker connector, a mini jack for headphones, and a volume control panel. The package also includes two 5 W speakers with an 8-ohm impedance.
Main features:

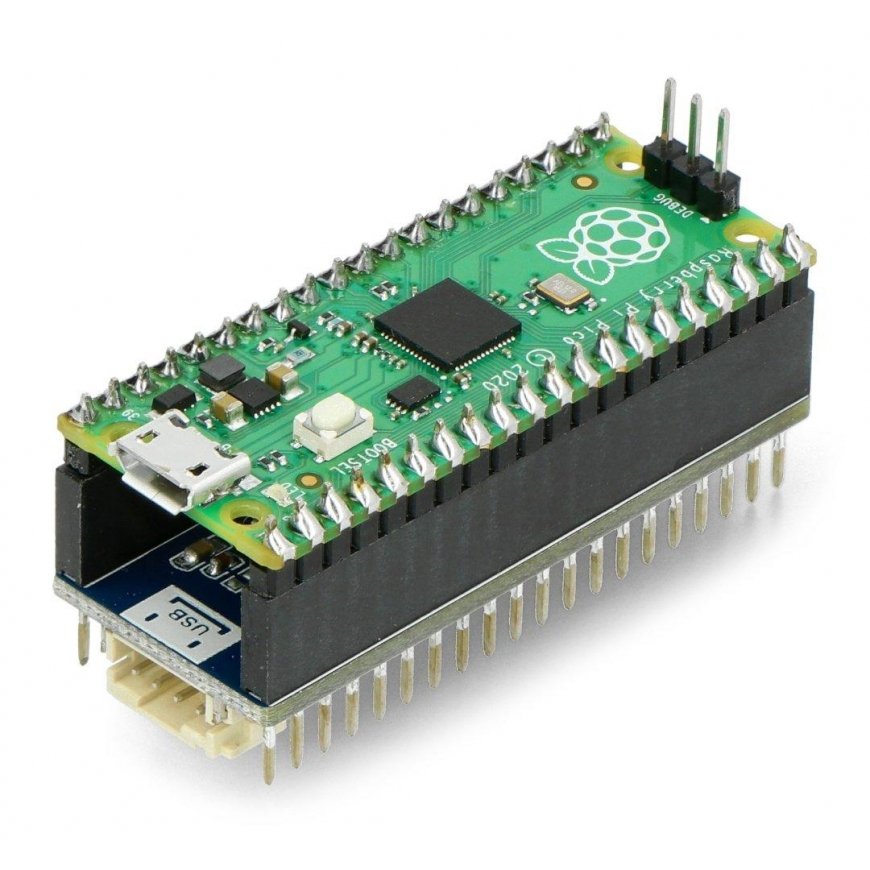

- The socket is compatible with Raspberry Pi Pico plugs
- Standard 3.5 mm jack for headphones
- For connecting two-channel speakers
- Sampling frequency from 8 Hz to 384000 Hz
- Output for stereo effect
- Uses I2S interface, effectively reducing EMI
- The manufacturer provides sample codes for Raspberry Pi Pico
- Chip: PCM5101A
- Power supply voltage: 5 V
- Logic voltage: 3.3 V
- Interface: I2S
- DAC SNR: 106 dB
- Supported speakers: 2.6 W / channel (4 Ω BTL)
- Dimensions: 52 x 21 mm
- Raspberry Pi Pico audio expansion module
- 5 W 8-ohm speakers
