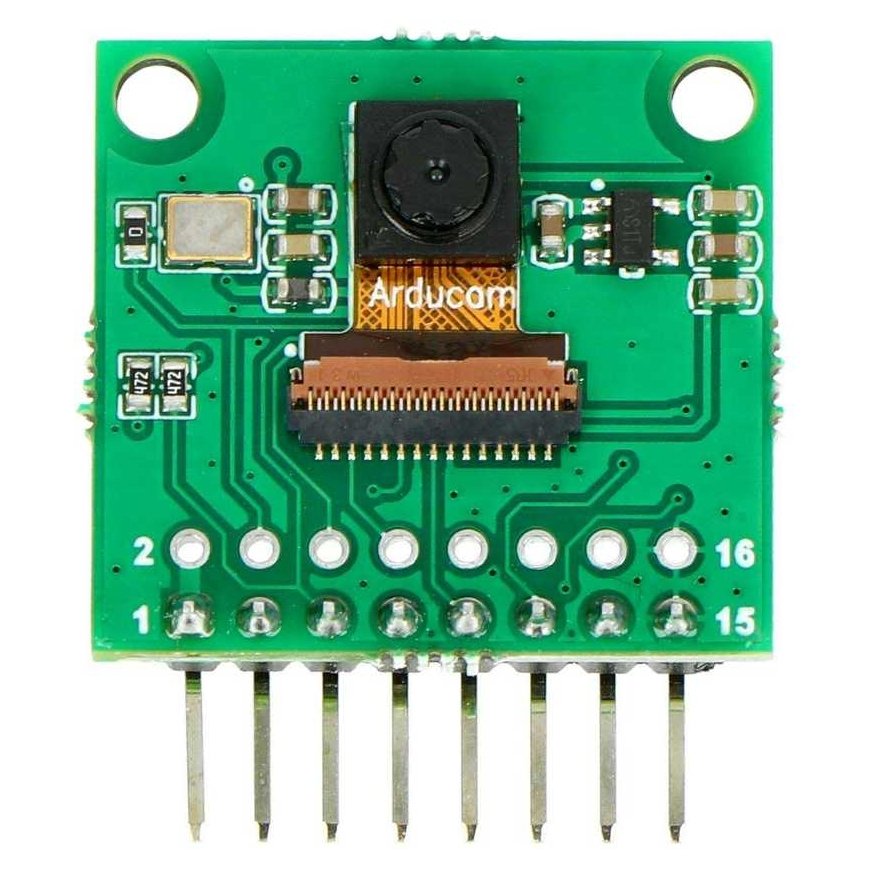

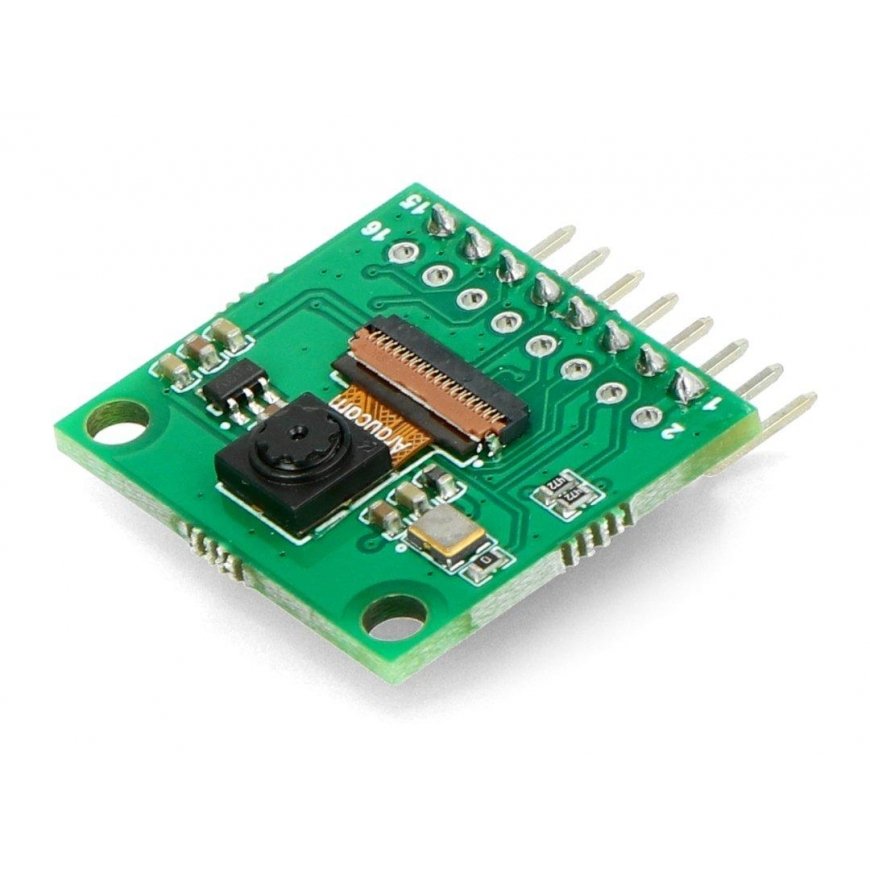

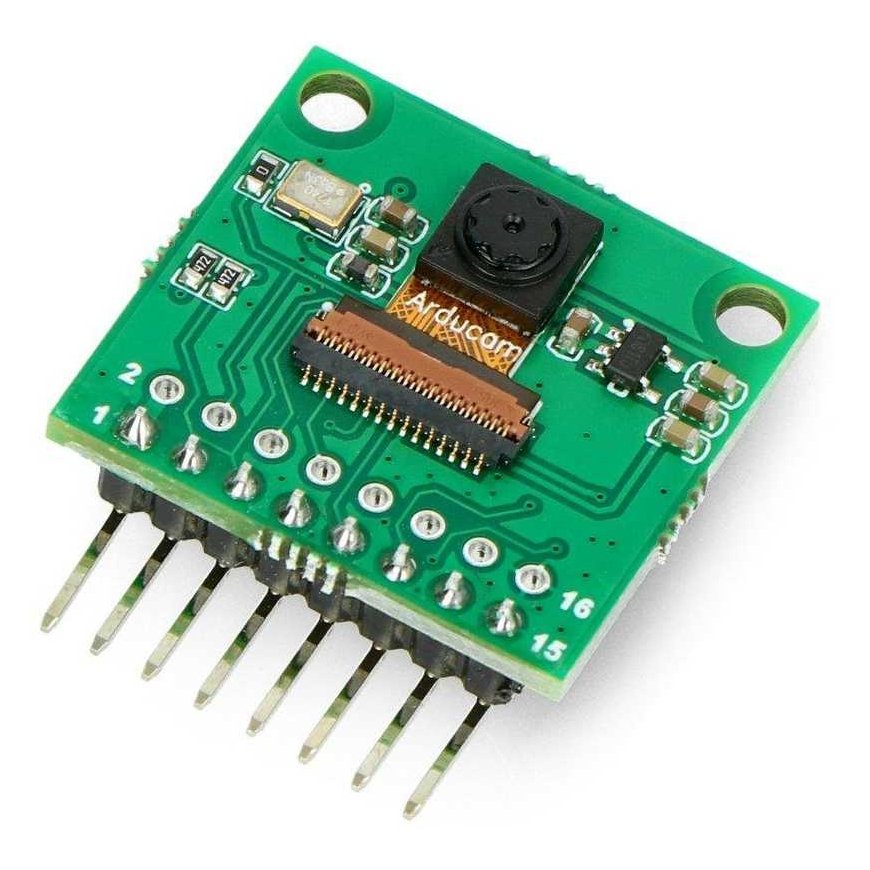

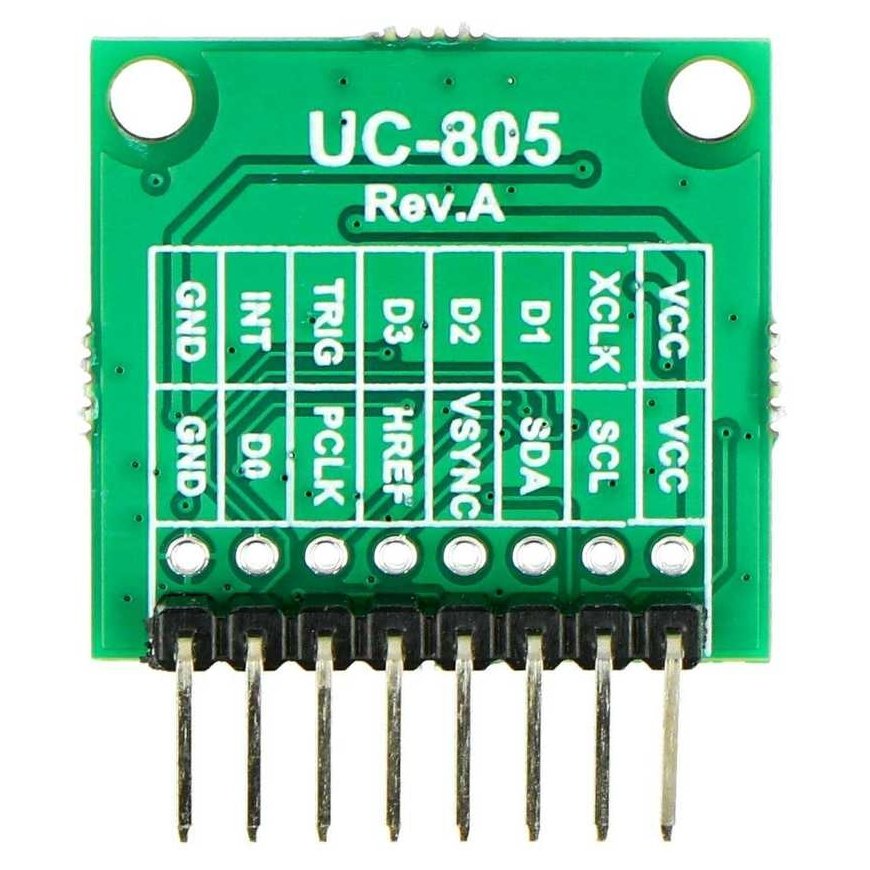

ArduCam HM01B0 QVGA camera, designed for Raspberry Pi Pico - ArduCam B0315
39.00 €
Monthly payment from 1,90 €
3822544 ACM-20257
5904422350376
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The ArduCam HM01B0 camera is a version designed specifically for the Raspberry Pi Pico and all available programming boards with the RP2040 microcontroller. The HM01B0 camera features very low power consumption, up to QVGA resolution, a 1-bit video data interface, and line synchronization. It is an ideal camera for creating machine vision projects and Always on Service applications that use energy-saving microcontrollers.
Key Features:
- Equipped with an ultra-low power image sensor for always-on video devices and applications
- High sensitivity and BrightSense pixel technology
- Active pixel resolution of 324x324px with QVGA, vertical tilt, and horizontal mirror image support
- Automatic exposure and gain control loop with 50/60 Hz flicker avoidance support
- Flexible 1, 4, and 8-bit video data interface with frame and line synchronization
- Motion detection circuit with programmable ROI and detection threshold with digital output
- Built-in oscillator
- Two-wire I2C serial interface
- CSP and Bare Die sensor package options
- High CRA for low-profile module design
- Sensor: HM01B0
- Active resolution: 320x320px
- Pixel size: 3.6 x 3.6 µm
- Pixel technology: BrightSense
- Total image area: 1152 x 1152 µm
- Optical format: 1/11'' (diagonal 1.63 mm)
- Color filter array: Bayer, monochrome, grayscale
- Readout mode: progressive
- Shutter type: electronic shutter
- Frame rate: 51 fps/320x320, 60 fps/320x240 (QVGA)
- CRA: no more than 30º
- Supply voltage:
- Analog: 2.8 V
- Digital: 1.5 V (internal LDO: from 1.5 V to 2.8 V)
- I/O: 1.5-2.8 V
- Reference clock (EXTCLK): From 3 MHz to 50 MHz
- Built-in internal oscillator
- Serial interface: I2C
- Video data interface: 1b, 4b, with frame / SYNC line (8b not supported)
- ArduCam HM01B0 QVGA SPI camera for Raspberry Pi Pico - ArduCam B0315

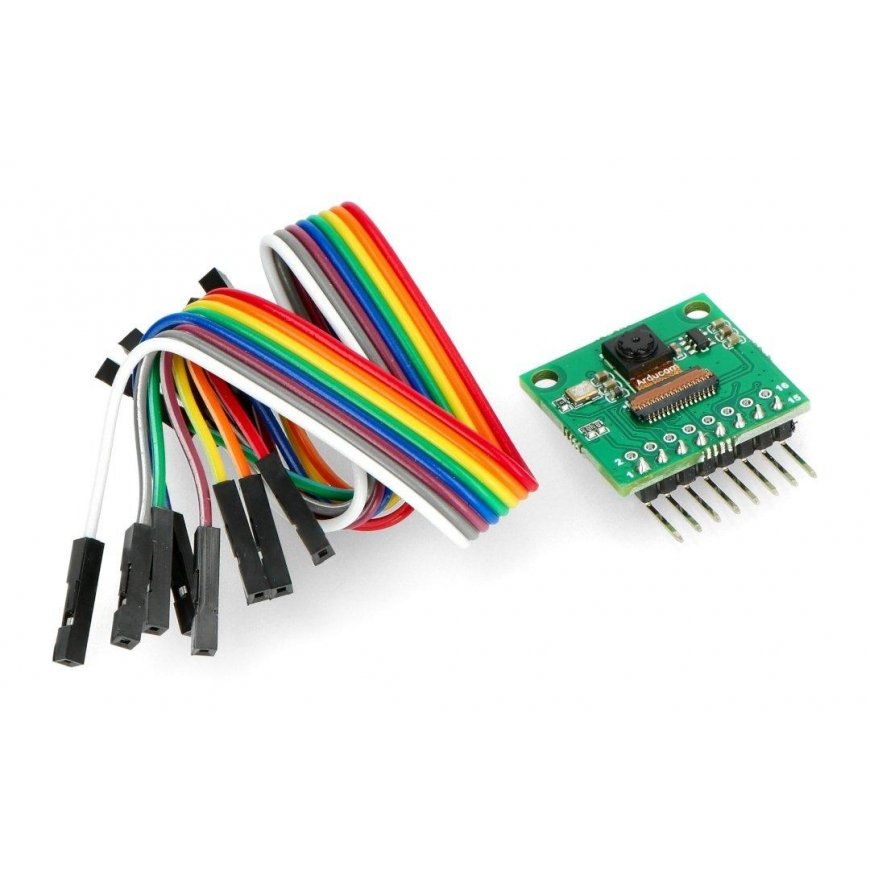

- Connecting wires with socket-to-socket connectors - 8 pcs
