1.14" 135x240px LCD screen - expansion module M5Stack development module block
39.00 €
Monthly payment from 1,90 €
3822233 AN-19921
5904422351373
Shipping 11-18 b.d.
You are interested in this product?
All about the product

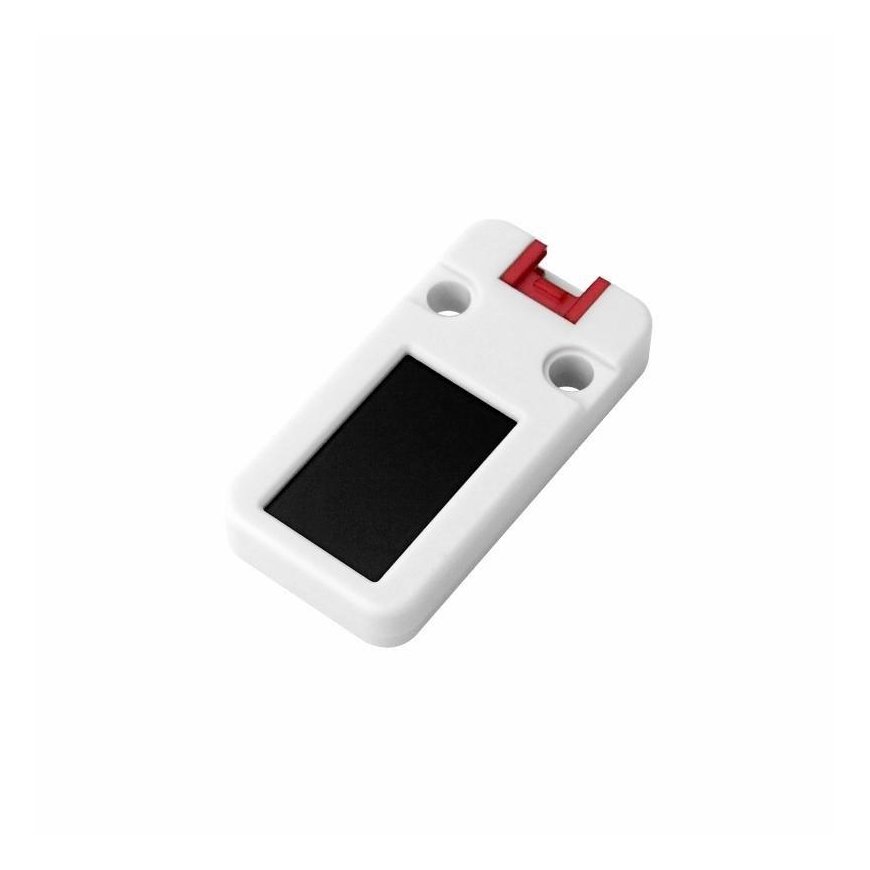

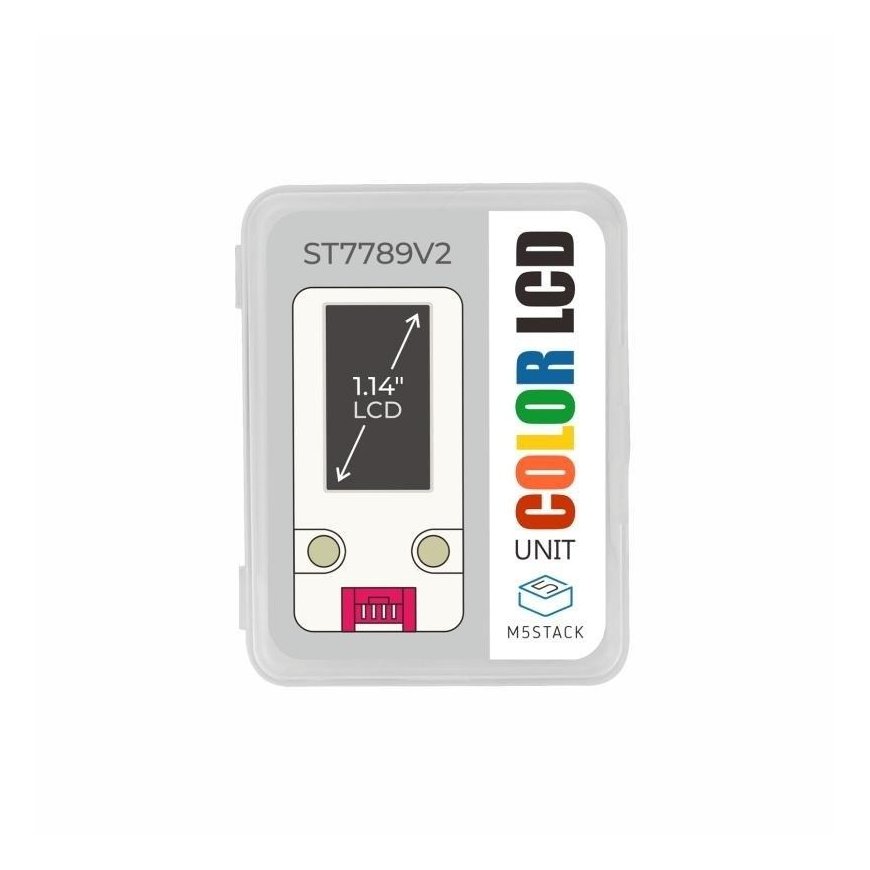

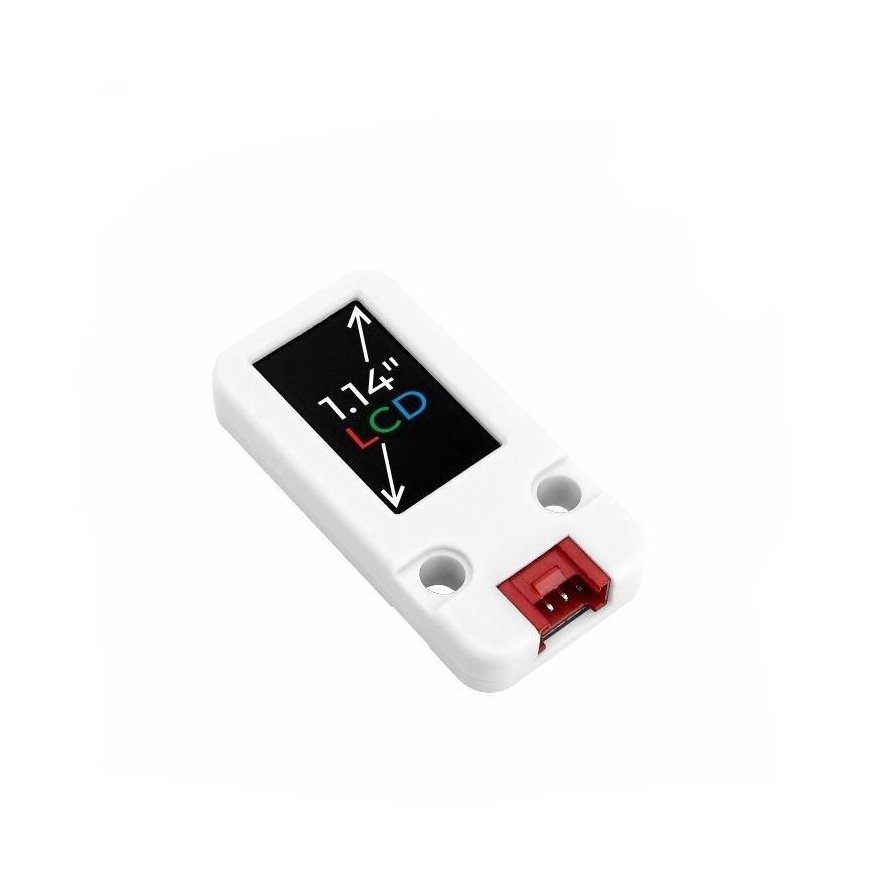

LCD screen in the form of a unit type expansion module, produced by the company known for its modules - M5Stack. The screen diagonal is 1.14", and the resolution is 135x240px. The dimensions of a single pixel are 0.1101 x 0.17 mm. The screen is equipped with an ESP32 and ST7789V2 control chip. The module provides values in the RGB666 range, allowing for a truly interesting effect consisting of up to 262144 colors.
Specifications:
- Compatible with M5Stack development modules: M5Stack Core, M5Atom, M5Stick
- Type: LCD screen
- Integrated control chip: ST7789V2
- Screen colors: RGB666 range - 262144 colors
- Screen resolution: 135x240px
- Screen diagonal: 1.14"
- Viewing angle: full
- Current consumption: 45.7 mA
- Interface: I2C bus
- Interface address: 0x3E
- Housing material: plastic (PC)
- Integrated magnets for non-invasive assembly

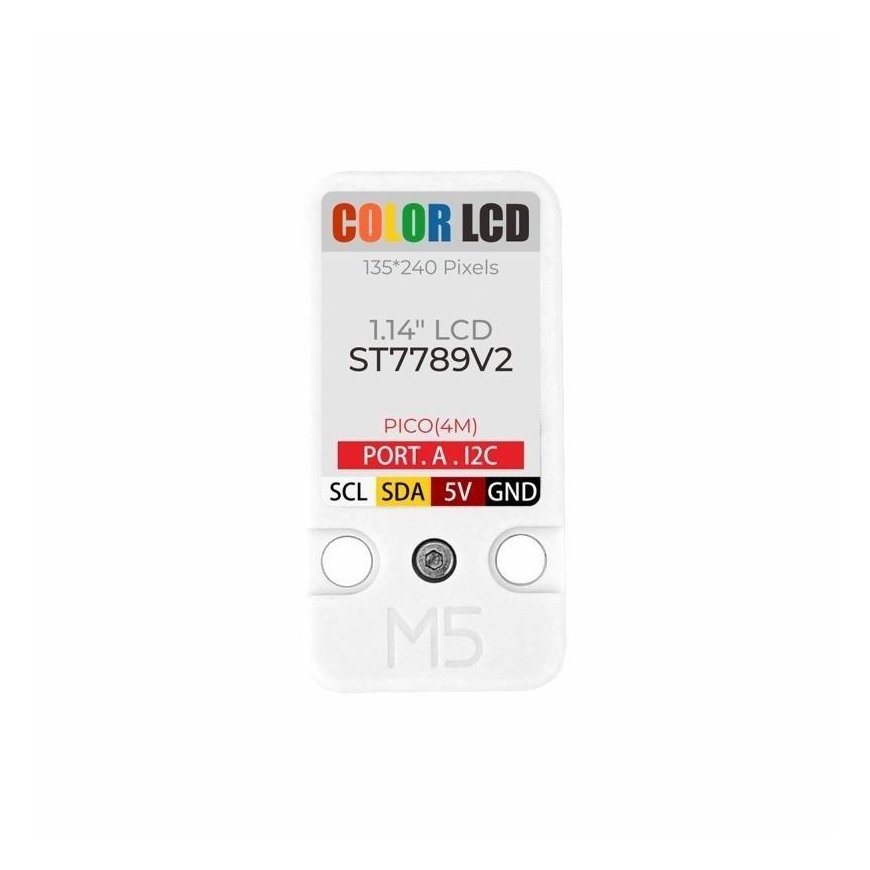

- Pin markings:
- SCL - I2C bus clock line
- SDA - I2C bus data line
- 5 V - power pin
- GND - ground system
- Pixel dimensions: 0.1101 x 0.1038 mm

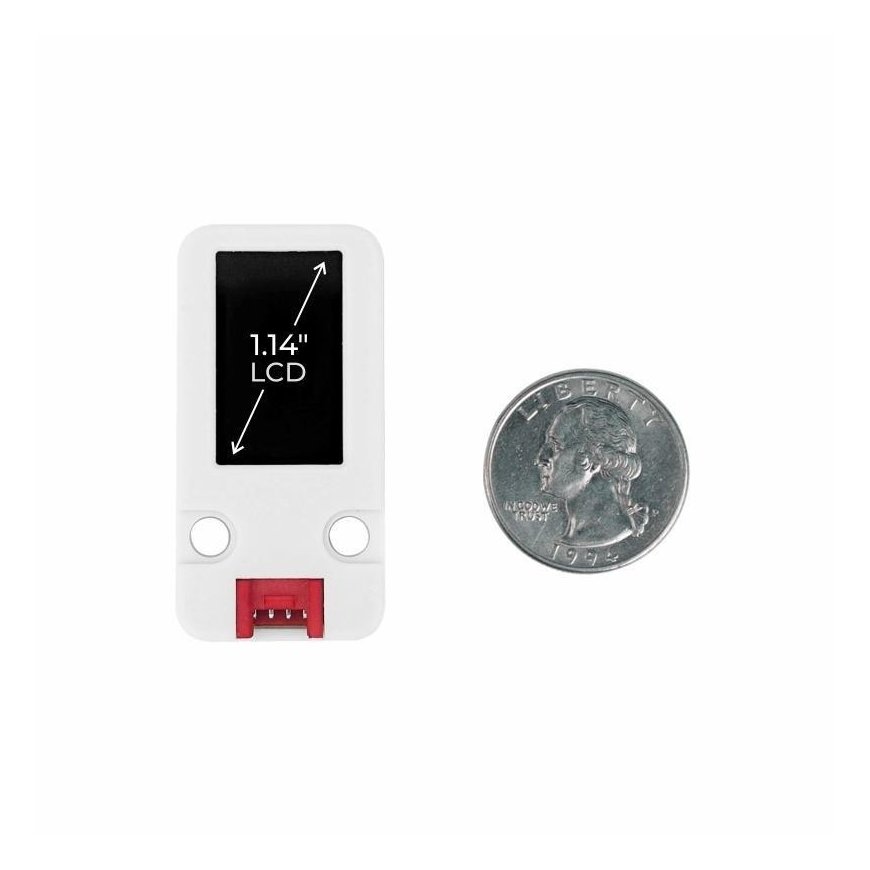

- Module dimensions: 48 x 24 x 8 mm
- Weight: 8.5 g
- 1.14" 135x240px LCD screen - expansion module
- Special 4-pin connection cable
