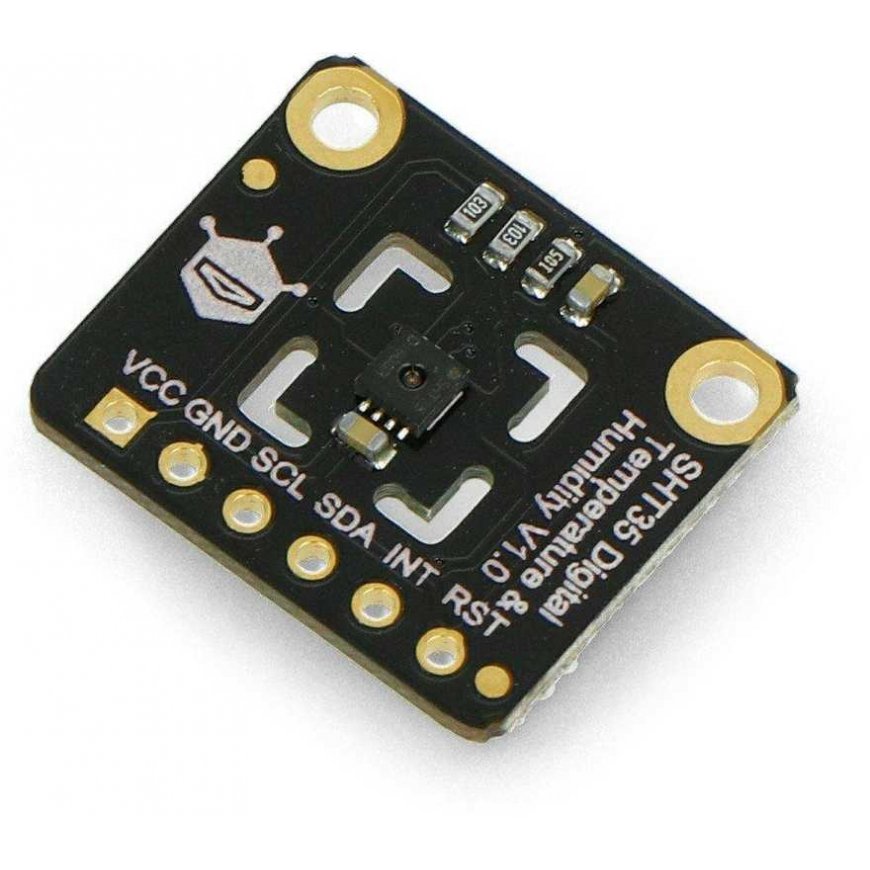

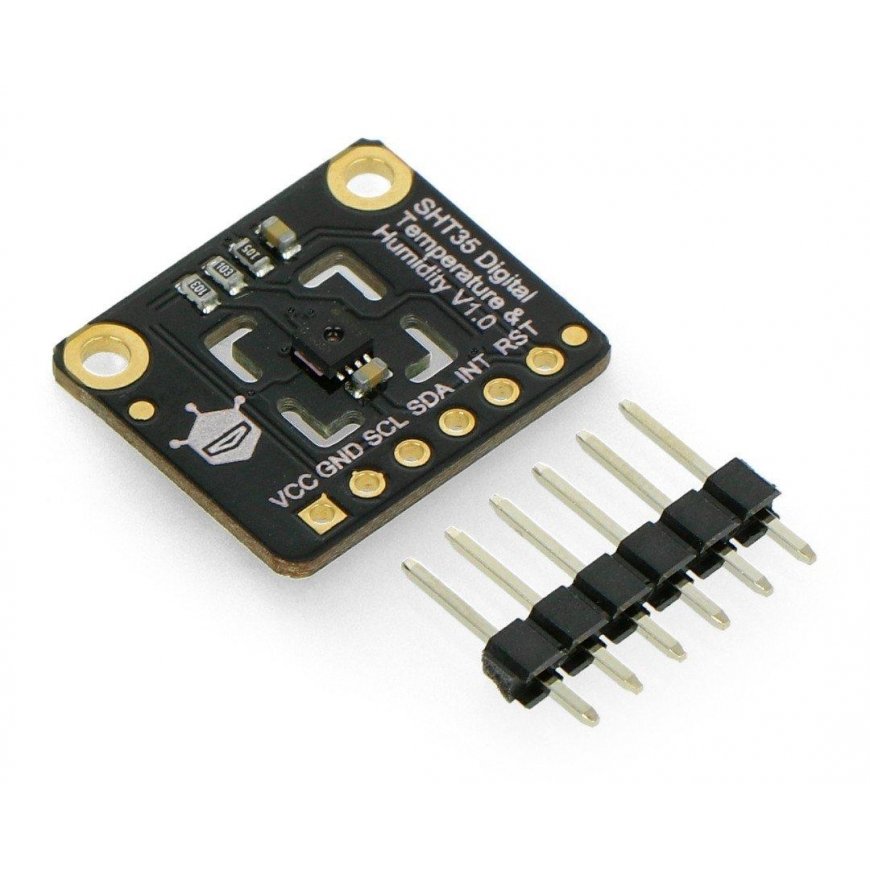

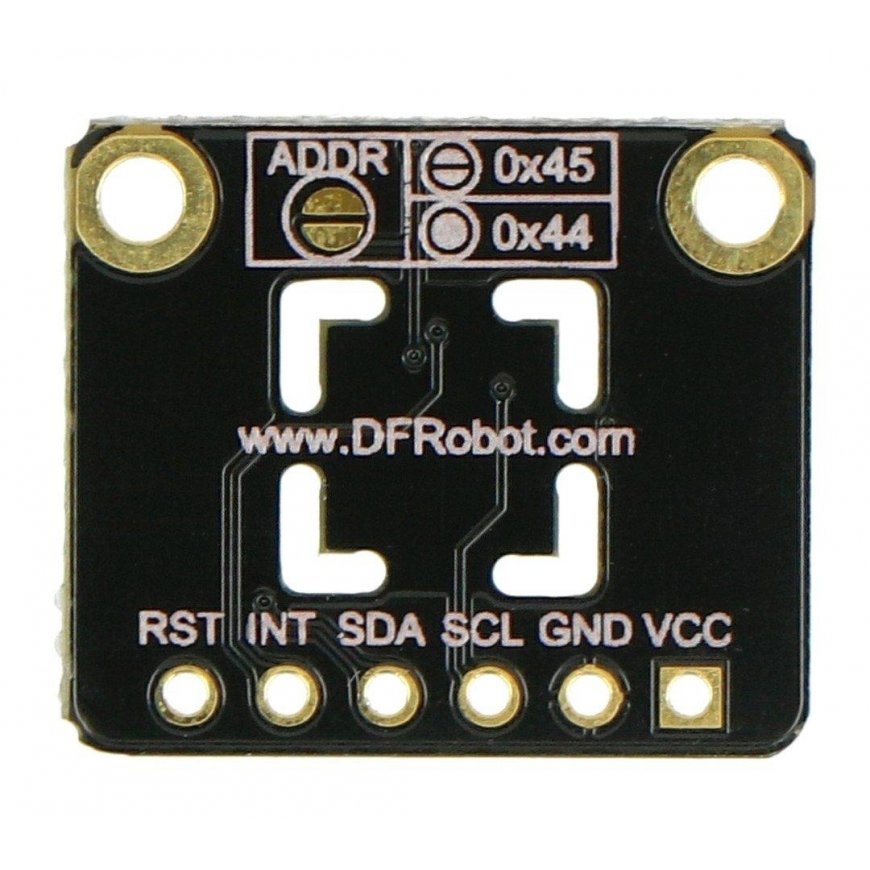

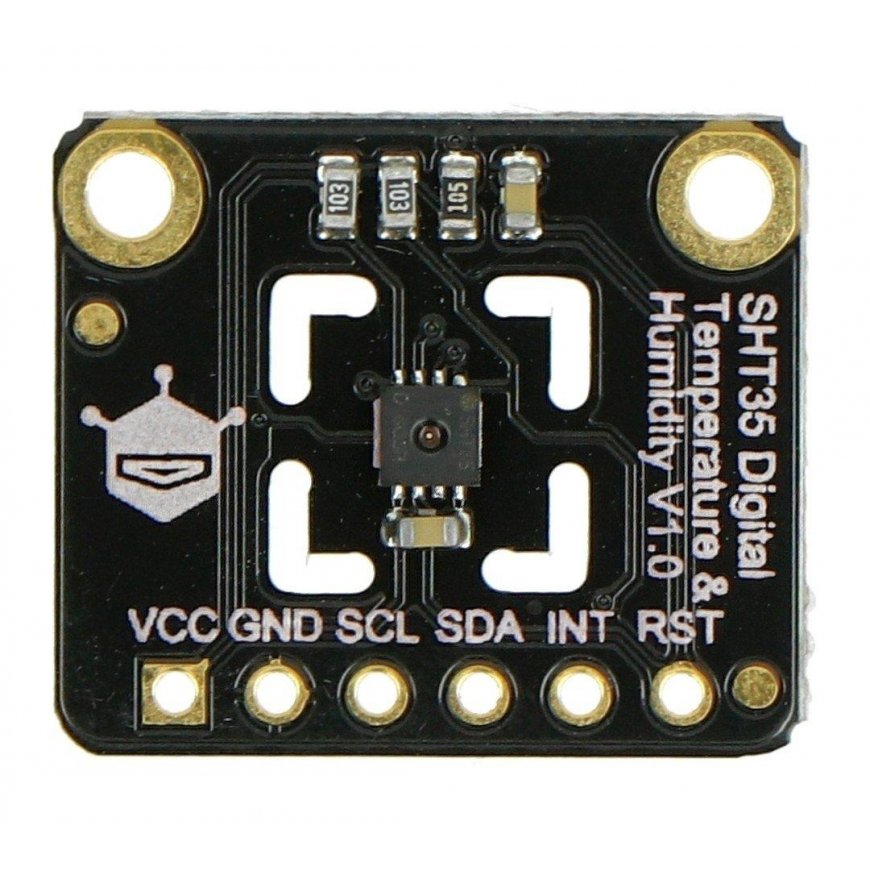

SHT35, digital temperature and humidity sensor breakout, DFRobot SEN0333
3822039 AN-17381
5904422345792
Shipping 11-18 b.d.
All about the product
DFRobot temperature and humidity sensor with I2C interface. Its operation is based on the Sensirion SHT35 sensor chip. Compatible with 3.3 V / 5 V Arduino, micro:bit, ESP32 type controllers. The temperature measurement range is from -40 °C to 125 °C (± 0.2 ℃ accuracy) and humidity from 0% to 100% RH (accuracy ± 1.5% RH). The advantage of the sensor is very accurate calibration, which occurs automatically. It consumes low power and also has high resistance to interference.
Specifications:
- Operating voltage: from 2.15 V to 5.5 V
- Operating current: 1.5 mA
- Temperature
- Measurement range: from -40 °C to 125 °C
- Accuracy: ± 0.2 °C
- Humidity
- Measurement range: from 0% to 100%
- Accuracy: ± 1.5% RH from 0% RH to 80% RH (at 25 ℃)
- Interface: I2C
- Dimensions: 19 x 16 mm
- Mounting hole size: 2 mm
- Mounting hole spacing: 15 mm
