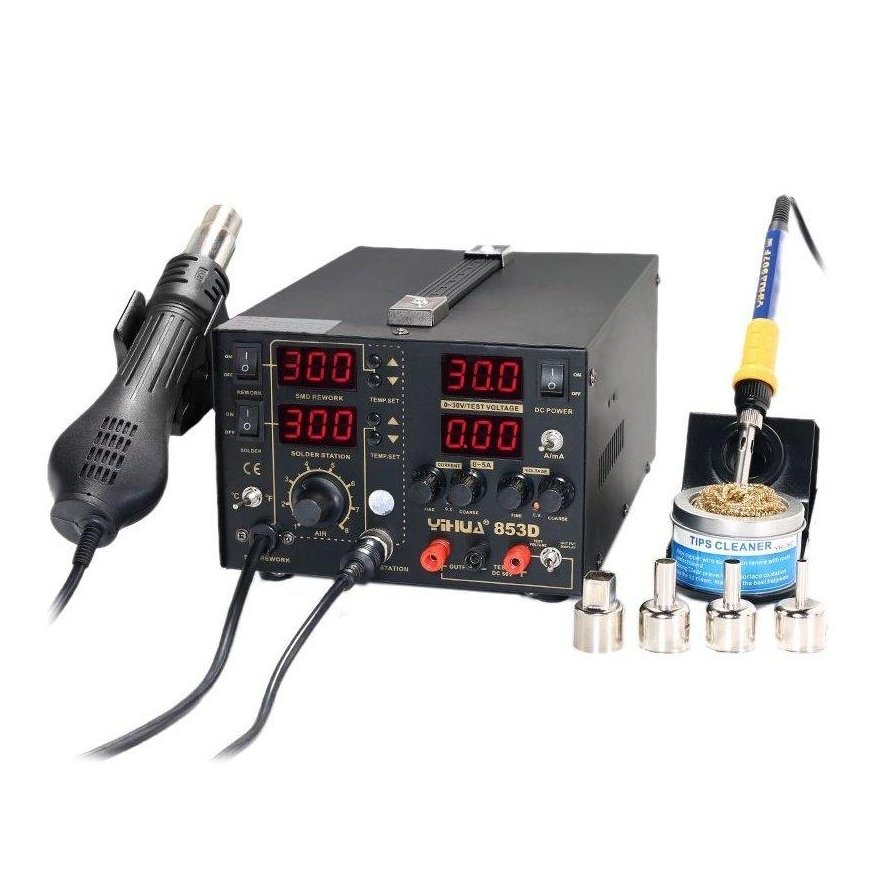

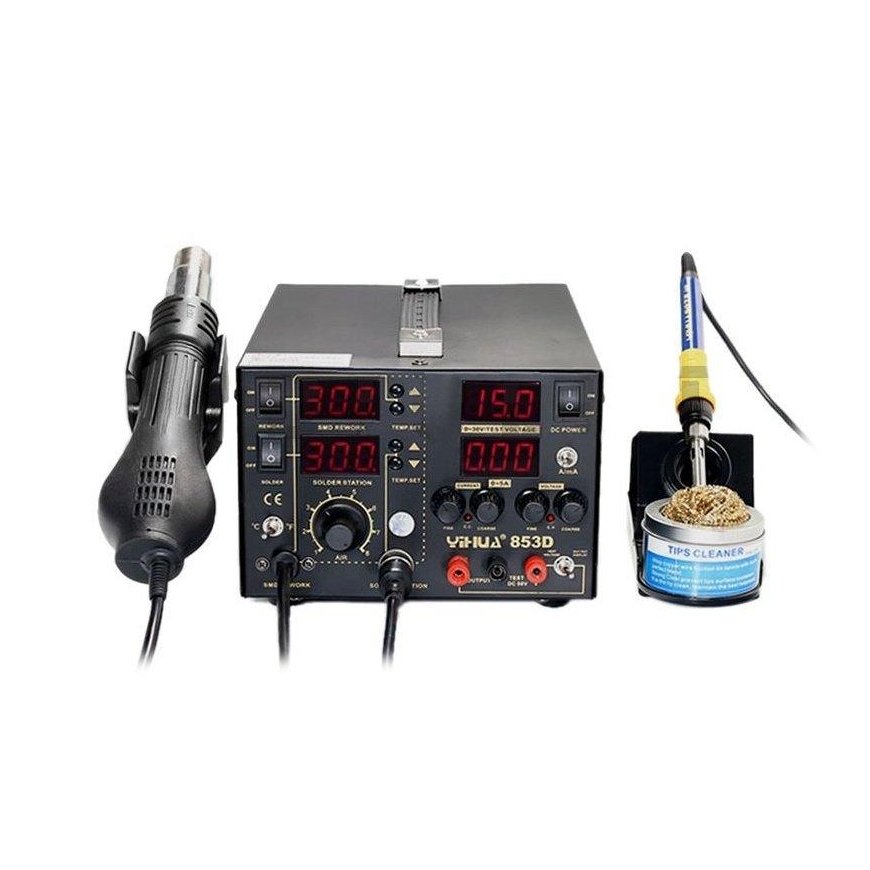

Soldering station based on hot air and nozzle + power supply 30V/5A Yihua 853D with fan in the handle - 800W
3821915 AN-21475
5908272000191
Shipping 8-15 b.d.
All about the product
The Yihua 853D soldering station, in addition to soldering and desoldering functions, also allows powering devices through a built-in power supply with adjustable voltage and current of 30 V / 5 A. It is designed for soldering tasks with components such as SPOC, QFP, PLCC, BGA, SMD, etc. Hot air can also be used to heat, thermally shrink seals, melt adhesives, burn paints, and heat up. Yihua also has a handle with high heating power. It features ESD protection, which protects electronic components from damage. The station works with 900M Tx series tips. Temperature control for hot air ranges: from 100 °C to 480 °C, tip: from 200 °C to 480 °C. Air is blown out by a fan located in the handle.
Specifications:
- Power voltage: from 220 V to 240 V AC
- Power consumption: 800 W
- Operating temperature: from 0 °C to 40 °C
- Storage temperature: -20 °C to 80 °C
- Hot air:
- Hot air temperature adjustment: from 100 °C to 480 °C
- Temperature stability: +/- 2 °C
- LCD display
- Temperature setting with buttons
- Airflow: up to 120 liters/min
- Smooth airflow adjustment with a knob
- Air is expelled by a fan located in the handle
- Cable length: 100 cm
- Soldering iron:
- Tip temperature adjustment: from 200 °C to 480 °C
- Temperature stability: +/- 2 °C
- Ground voltage: <2 mV
- Ground resistance: <2 Ohm
- Protection: ESD Safe
- Cable length: 100 cm
- Charger:
- DC output voltage: from 0 V to 30 V
- Current: up to 5 A
- LED digital display
- Stability: from 0.01 mV to 2 mV
- Ripple DB: up to 1 mvrms
- Temperature coefficient: <300 ppm/°C
- Hot air soldering station, Yihua 853D tip with a fan in the handle - 800 W + power supply 30 V / 5 A
- Stand for the soldering iron with a chip cleaner for cleaning the tip
- Tip cleaning sponge (must be moistened before use)
- Tip with type I or B tip
- Gripper for lifting systems
- Tips:
- round, diameter 4.4 mm
- round, diameter 7 mm
- round, diameter 9 mm
- round BGA 12 x 12 mm
- Two sets of power cables
- Power cable
- Instruction in Polish
