DMX - connection module with isolated RS485 transceiver - Device expansion module - M5Stack U183

20.19 €
3820485

AN-25431

6972934175472

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

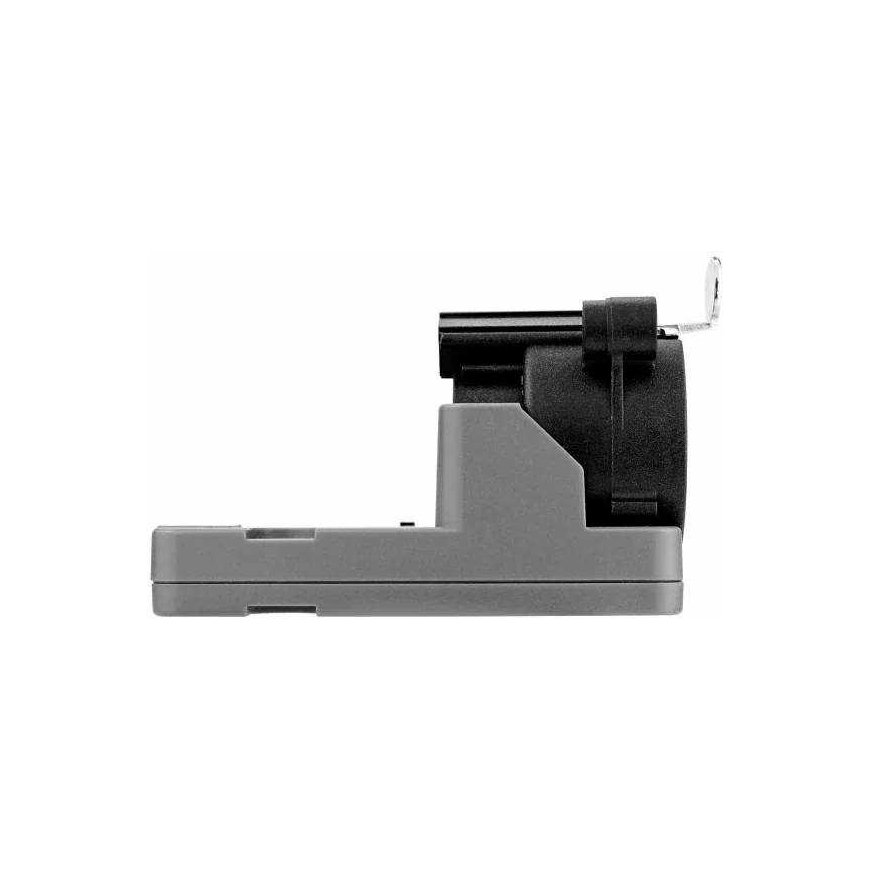

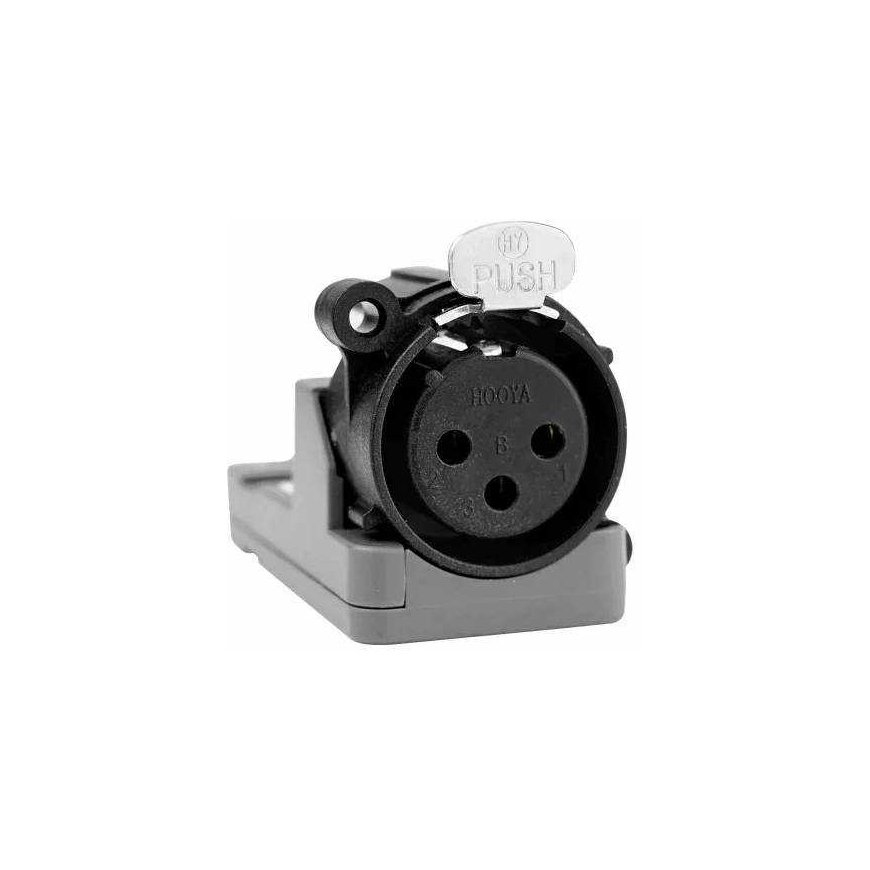

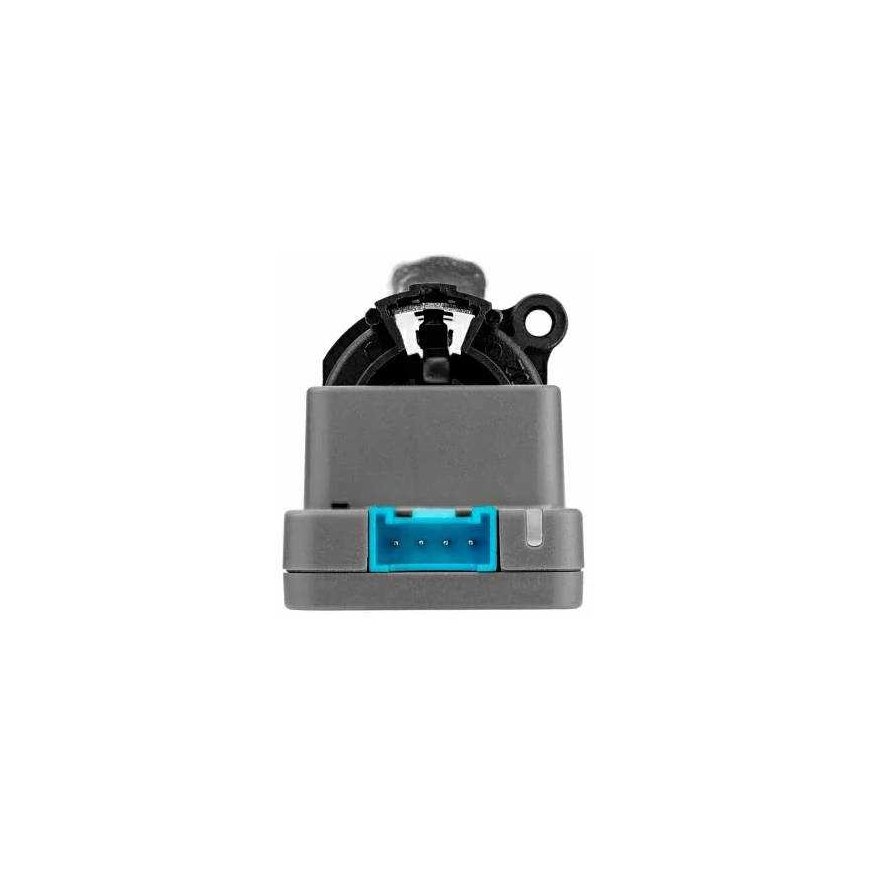

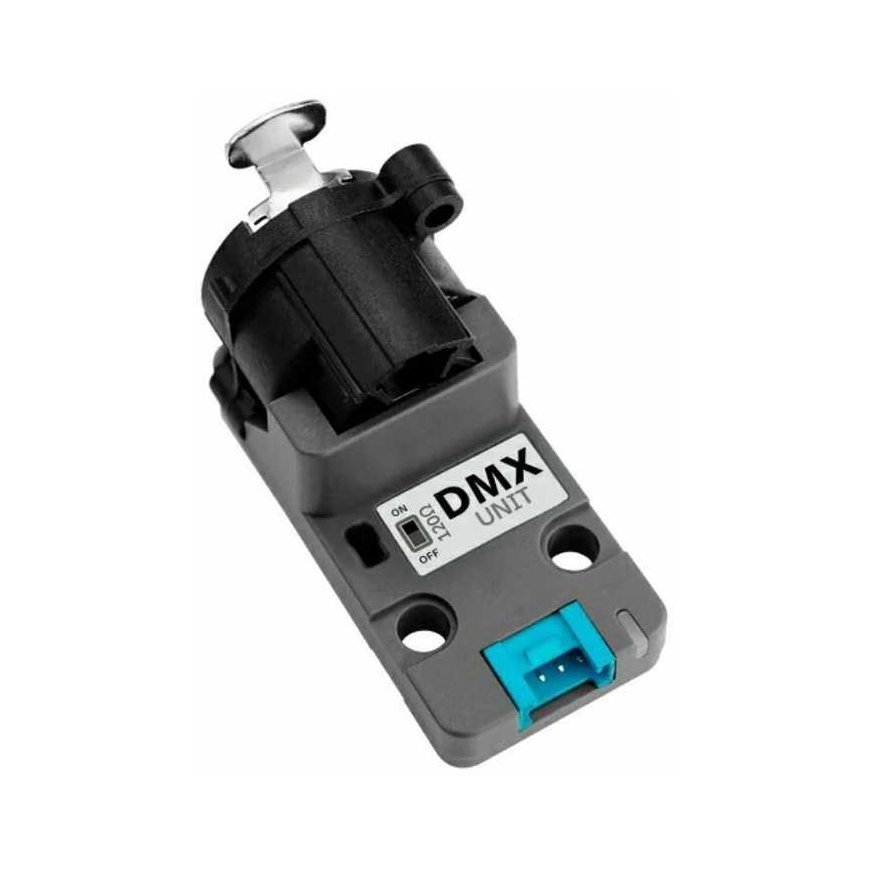

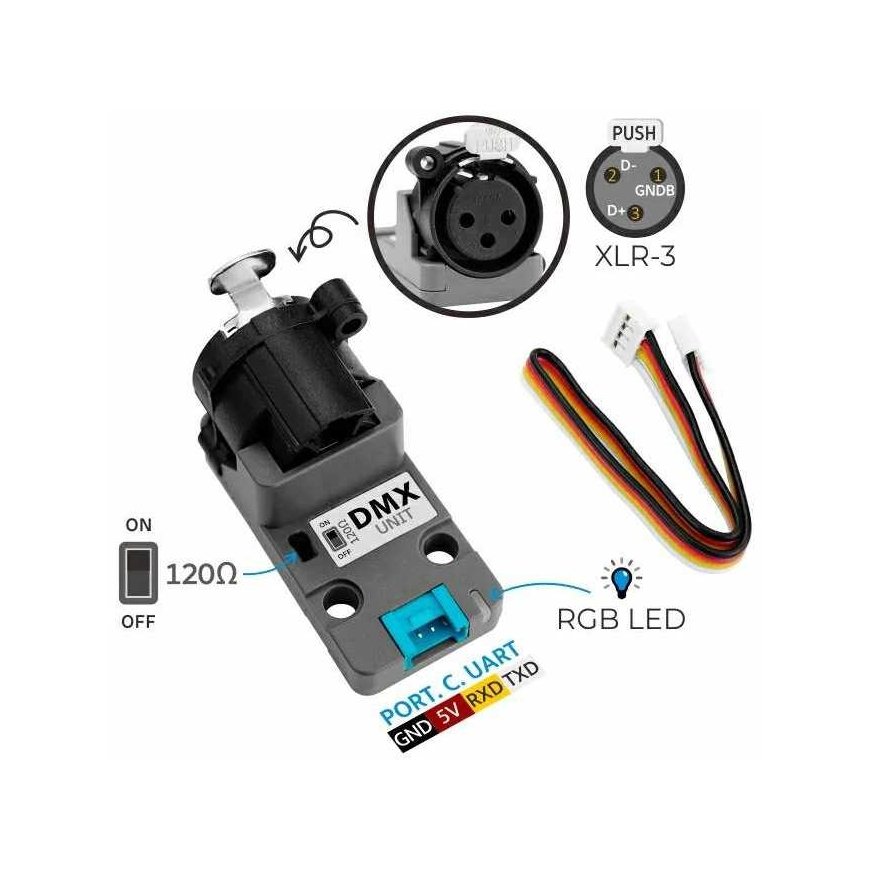

The DMX Unit is a communication module designed for data transmission according to the DMX-512 standard. It features an isolated RS485 transceiver (CA-IS3092W) with protection up to 5 kVrms. It communicates with the M5Stack host computer via the Grove interface (UART) and operates in half-duplex mode. The module has a 3-pin XLR socket for easy connection of DMX devices, and the integrated 120 Ω resistor protects against signal reflections. It is perfect for controlling stage, architectural, and decorative lighting.
