OEM Distance Sensor with Hall Effect - NJK-5002C 10mm 6-63V
3820045 AN-11861
5904422372675
Shipping 11-18 b.d.
All about the product

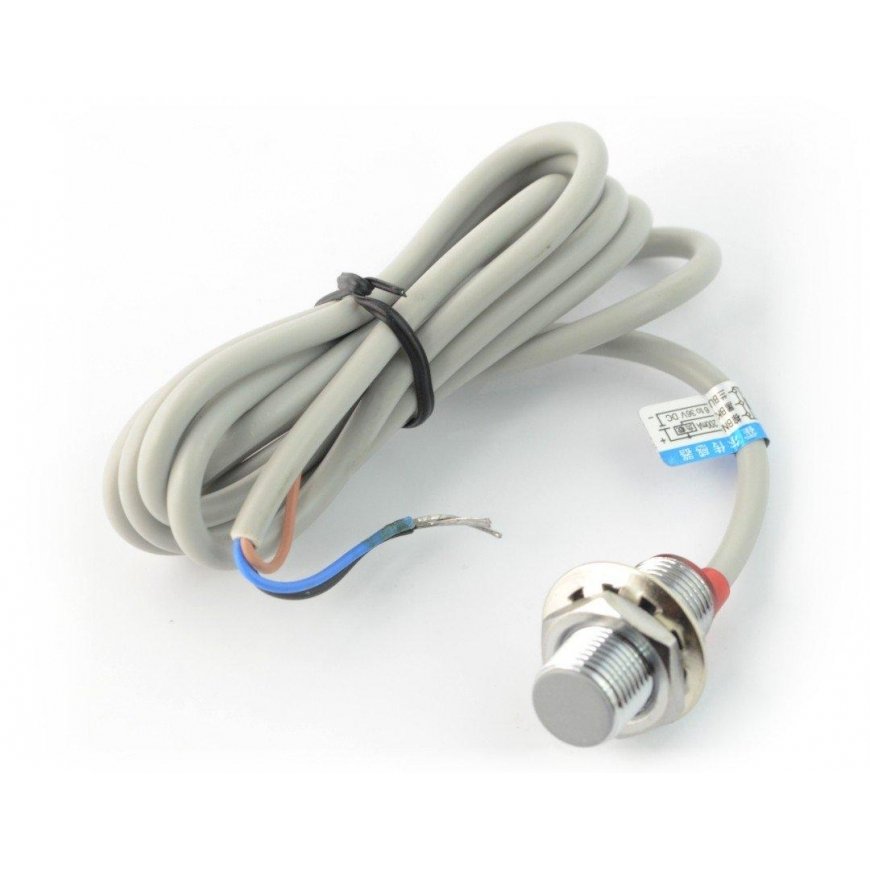

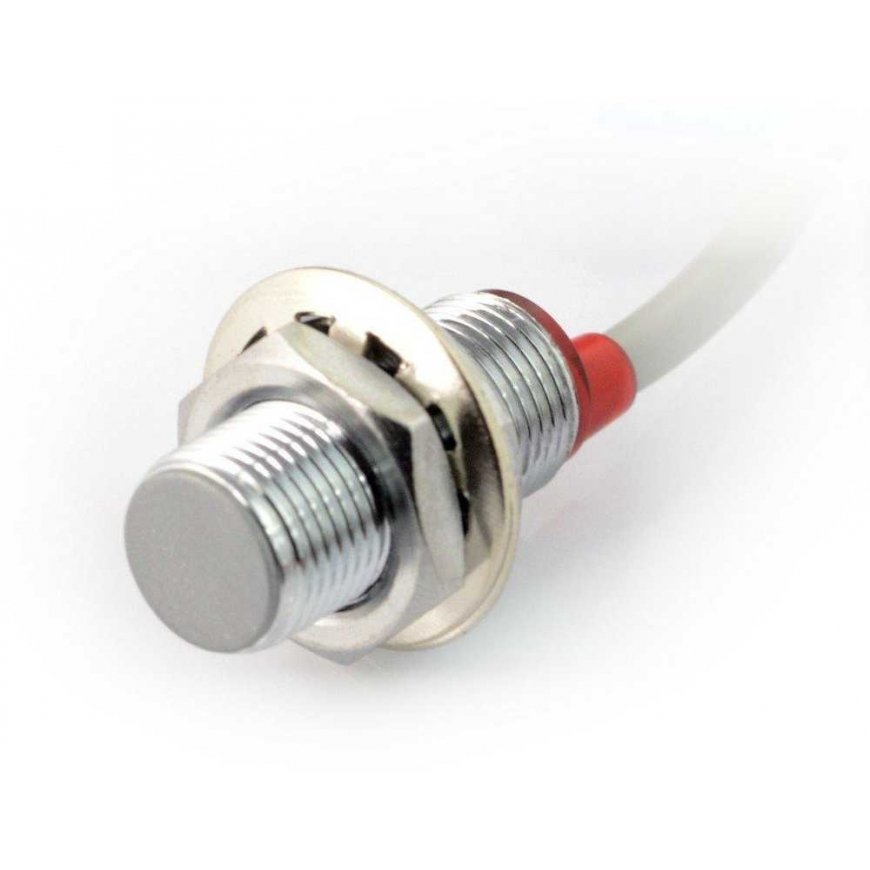

"Hall" effect proximity sensor has a 110 cm long cable and nuts for easy installation. Detects magnetic elements up to 2 mm away. The detection of an object is indicated by the appearance of a low state output. Powered by a voltage of 6 V to 36 V. Type: NPN. Proximity sensor with Hall effect, with a cable length of 110 cm, and nuts that facilitate installation. It detects metal up to 2 mm away. Powered by a voltage of 6 V to 36 V. The detection of an object is indicated by the appearance of a low state in the output (black wire) and the activation of a red LED.
Specifications:
- Supply voltage: from 6 V to 36 V
- Current consumption: 12 mA
- Measurement range: from 0 to 10 mm ± 10%
- Output signal: digital 200 mA
- Output state: by default, in high state, when an object is detected, it changes to low state
- Output type: NPN - NO
- LED indicating object detection
- Detected object: metal
- Response time: less than 2ms
- Diameter: 12 mm
- Sensor length: 25 mm
