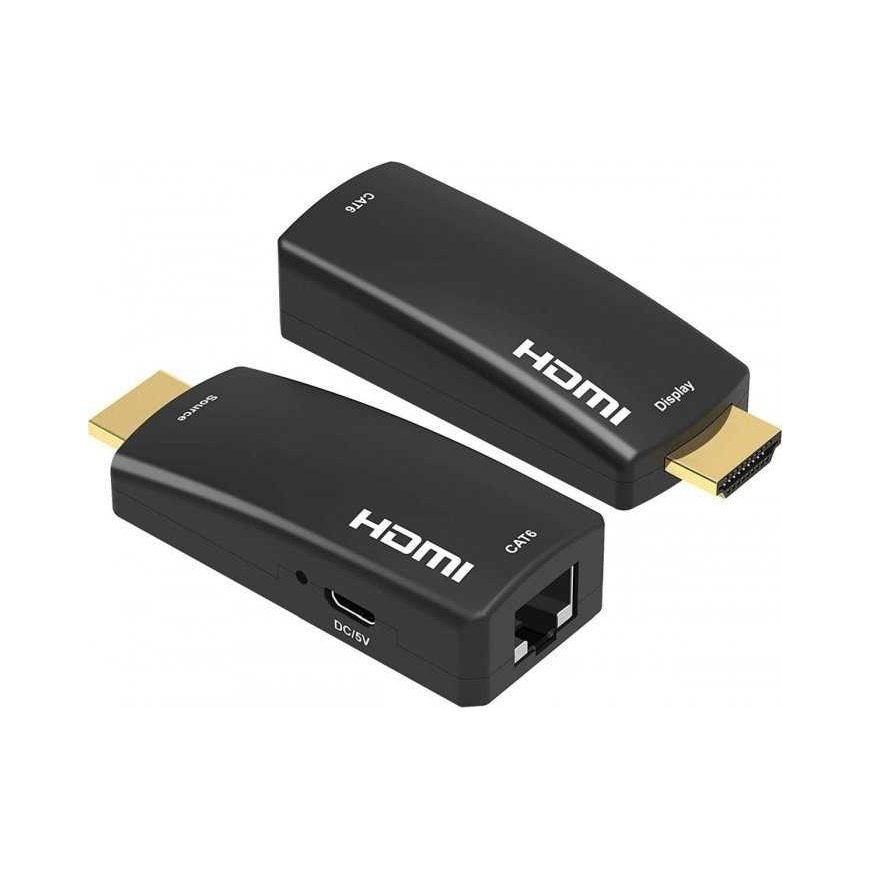

PREMIUMCORD HDMI FULL HD 1080p extender up to 50 m over a single Cat5e/6 cable
3817049 khext50-10
8592220021757
Shipping 12-16 b.d.
All about the product
The device allows the transmission of HDMI FULL HD 1080p signal up to 50 m distance over a single network cable.
- The extender has a transmitter and receiver connected by a single Cat5e, Cat6, Cat6A, Cat7 cable
- Supports FULL HD 1080p up to 50 m with Cat6 cable and longer distances (40 m with Cat5e). It is recommended to use a quality LAN cable with copper conductors and AWG23. The quality of the LAN cable limits the transmission length.
- 225 MHz bandwidth, 10.2 Gbps transmission speed
- HDCP 1.3 support
Compatible with HDMI 1.3
- Maximum resolution FULL HD 1080p
- Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- Input connector: HDMI plug
- Output connector: HDMI plug
- The transmitter and receiver adapter has a connector that can be directly connected to the monitor and signal source. No additional HDMI cable is needed.
- The transmitter and receiver are directly connected by cable with RJ45 connectors
- The transmitter and receiver have a micro USB connector, to which a short micro USB plug – USB A plug is connected. This cable is connected to the computer or monitor USB port and is used to power the extender.
- The extender transmits digital HDMI video and audio
- High-quality 1x LAN cable Cat5e, Cat6, Cat6A, Cat7 is used for connection
(For 50 m distance use copper cable with AWG23 conductors, for example, UTP Cat6 cable with the gauge code: sutpd6c3)
- The extender cannot be connected to an active LAN computer network, switch, router, or other active network device. The transmitter and receiver of the extender must be directly connected by LAN cable, preferably without a switch.
- The transmitter and receiver are powered by included USB cables that connect to the USB port
- Supports PoE – only one device needs to be connected to USB power, the second device is powered from the first via UTP cable
- Power consumption: transmitter: 2 W; receiver < 2 W
- The transmitter and receiver have a practical RESET button
- Operating temperature: 0–50 °C
- Dimensions of the transmitter and receiver: 61.5 × 27 × 16.8 mm
- Weight of the transmitter and receiver: 10 g
In the package:
1x transmitter unit
1x receiver unit
1x manual
2x power micro USB plug - USB A plug cables
