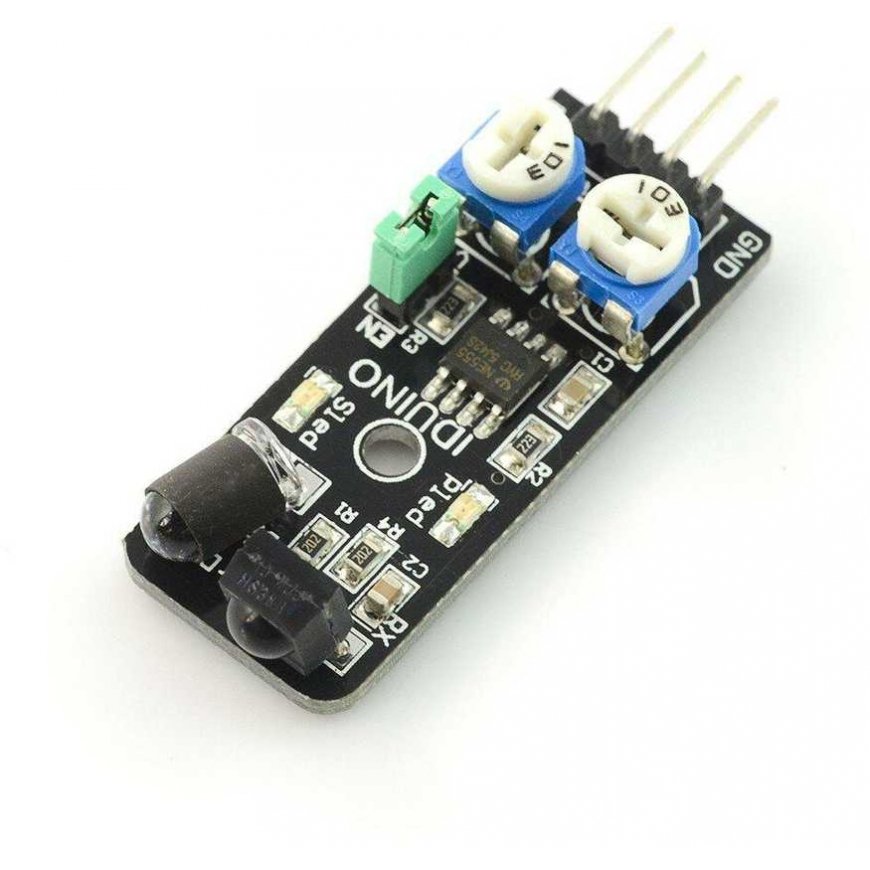

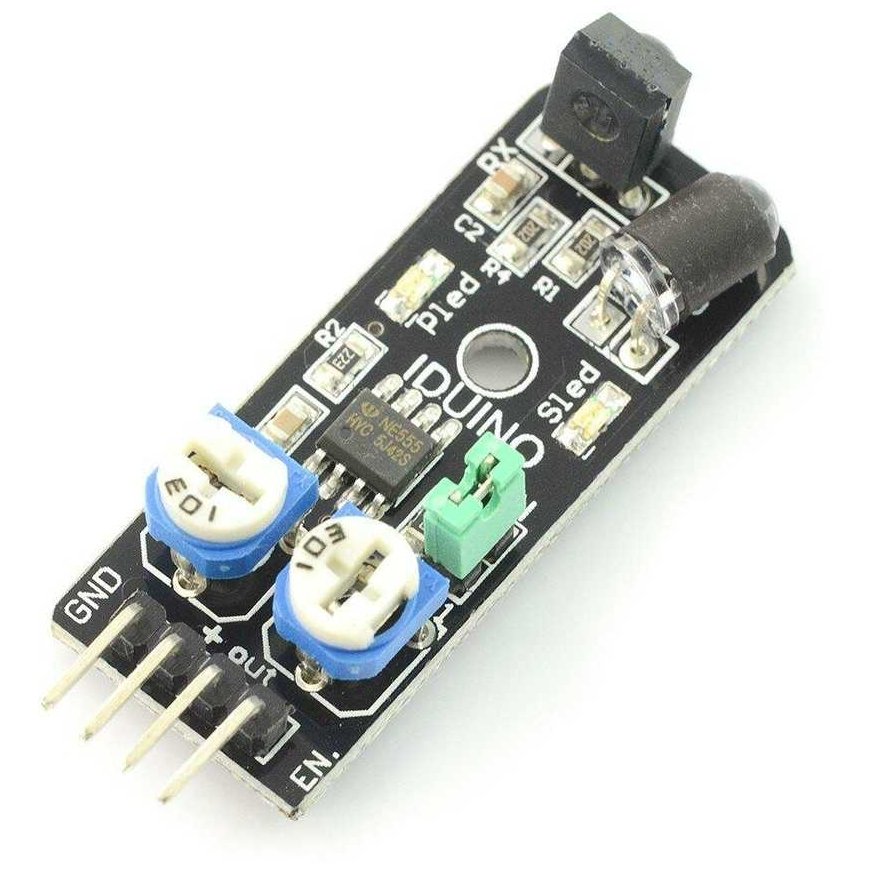

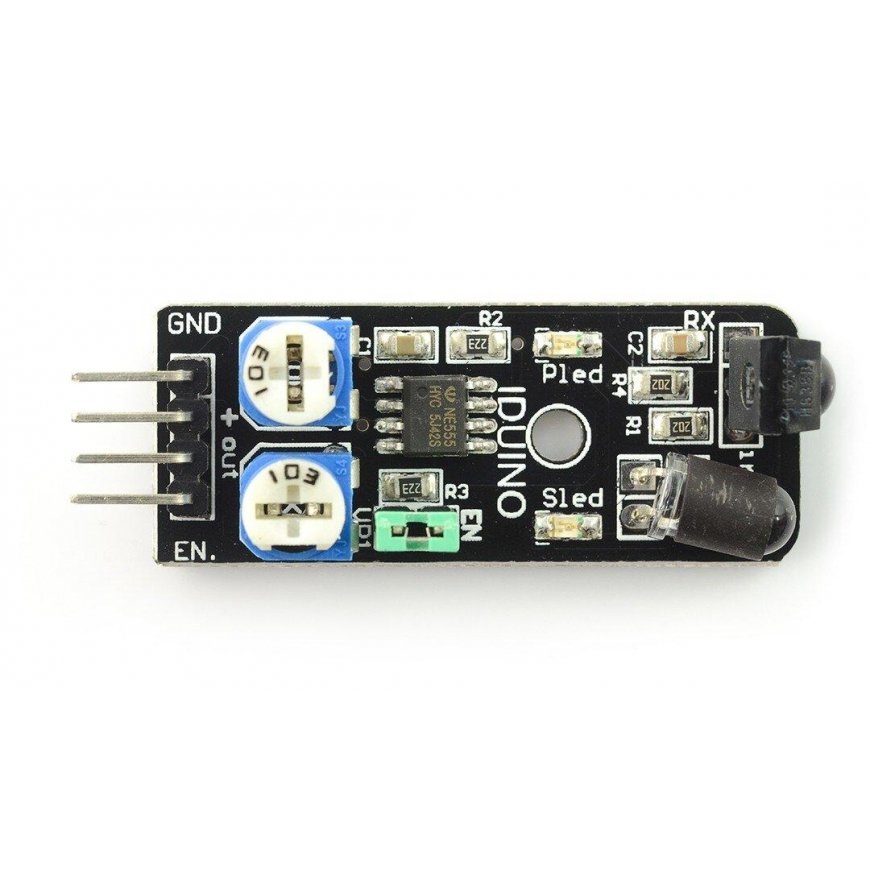

Distance sensor, reflective - receiver + IR transmitter - 3.3V/5V - 40cm - Iduino ST1081
14.82 €
3812644 AN-14256
5903351242288
Shipping 8-15 b.d.
You are interested in this product?
All about the product
The reflective module with a transmitter and infrared receiver has a digital output. It operates from 3.3 V to 5 V voltage. It enables obstacle detection from 2 to approximately 40 cm. Based on the NE555 chip.
Specifications:
- Supply voltage: from 3.3 V to 5 V
- Current consumption: 20 mA
- Digital output signal
- Detection range: from 2 cm to 40 cm
- Operating temperature: from -10 °C to 50 °C
- Adjustable resistance
- Viewing angle: 35°
- Module dimensions: 45 x 16 x 10 mm
- Weight: 9 g
