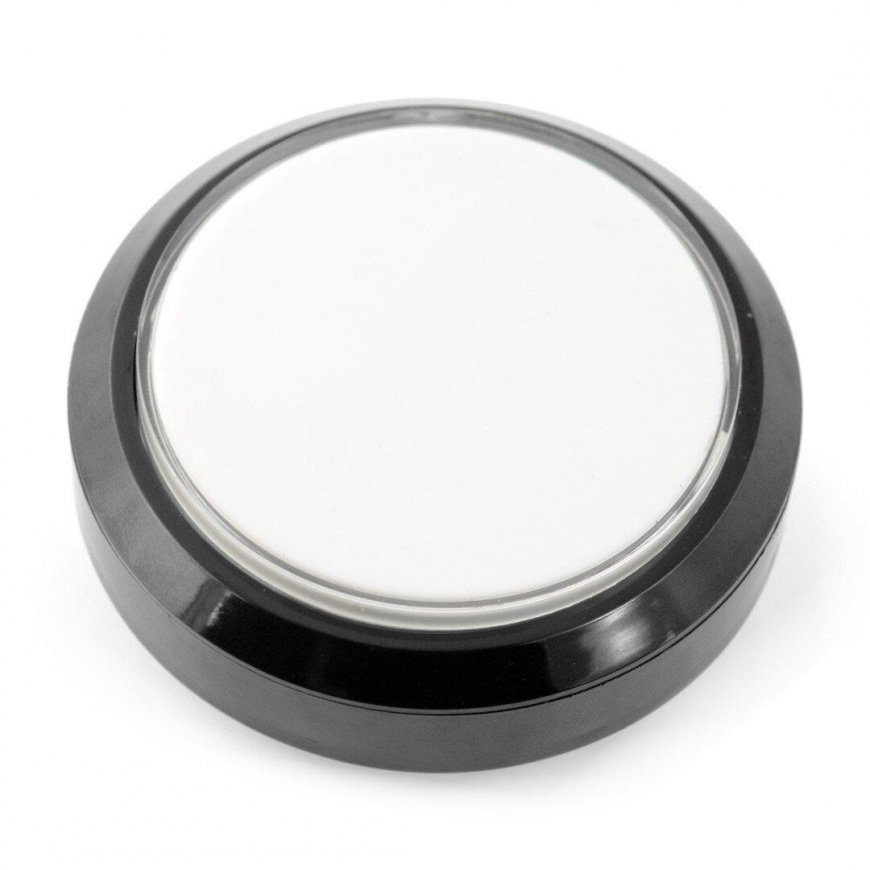

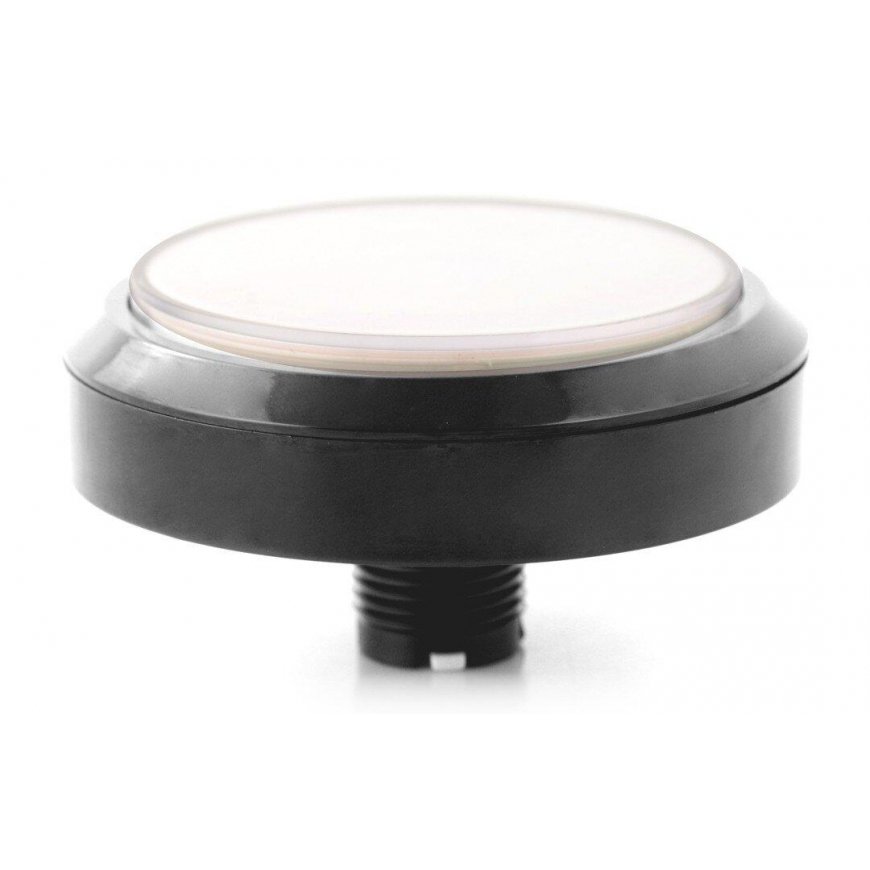

OEM Button 10 cm - white - flat
20.14 €
3811332 AN-12664
5904422341350
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Large 10 cm diameter button with an integrated white LED that illuminates the dome. This device can be mounted using the nut located at the bottom or attached to the countertop by unscrewing the black ring. The contact is easily connected to the rear position switch.
Specifications:

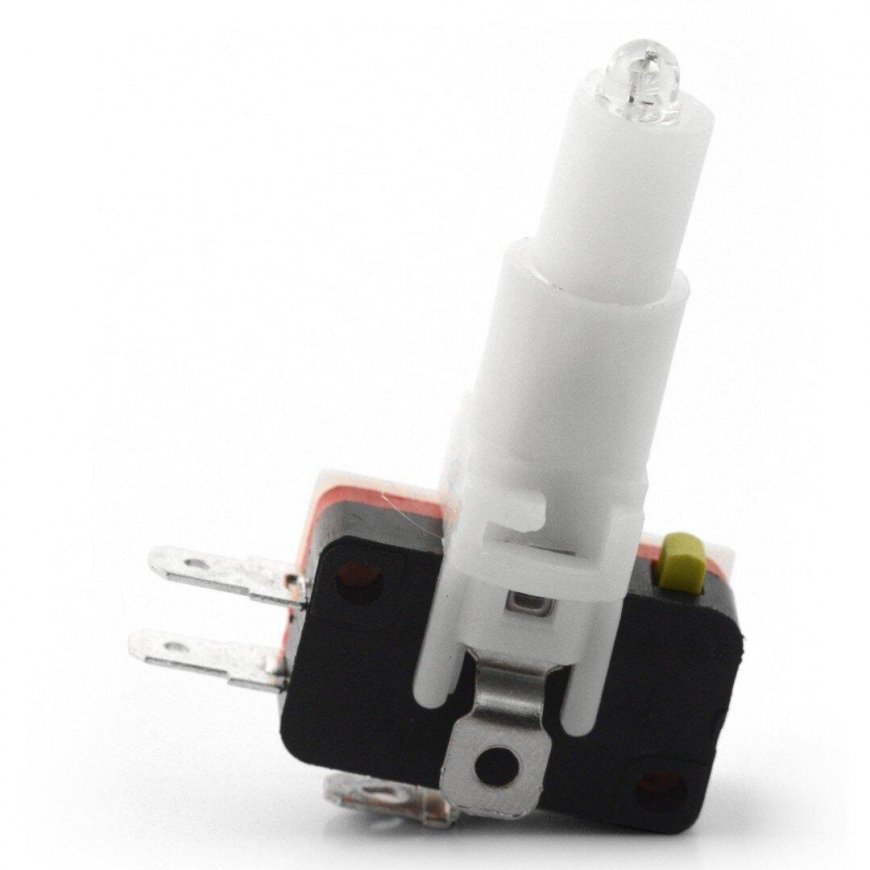

- Pins - rear position switch with two terminals
- The rear position switch can be replaced
- Lighting - integrated white LED powered by 5 V
- Includes plastic mounting nut
- Option to remove the button ring for attachment to the table surface
- Dimensions:
- Outer diameter: 100 mm
- Height: 53 mm
- Mounting hole diameter: 24 mm
