PCIe to M.2 adapter - compatible with Raspberry Pi CM4 - Waveshare 19091
3811225 AN-20091
5904422380106
Shipping 11-18 b.d.
All about the product

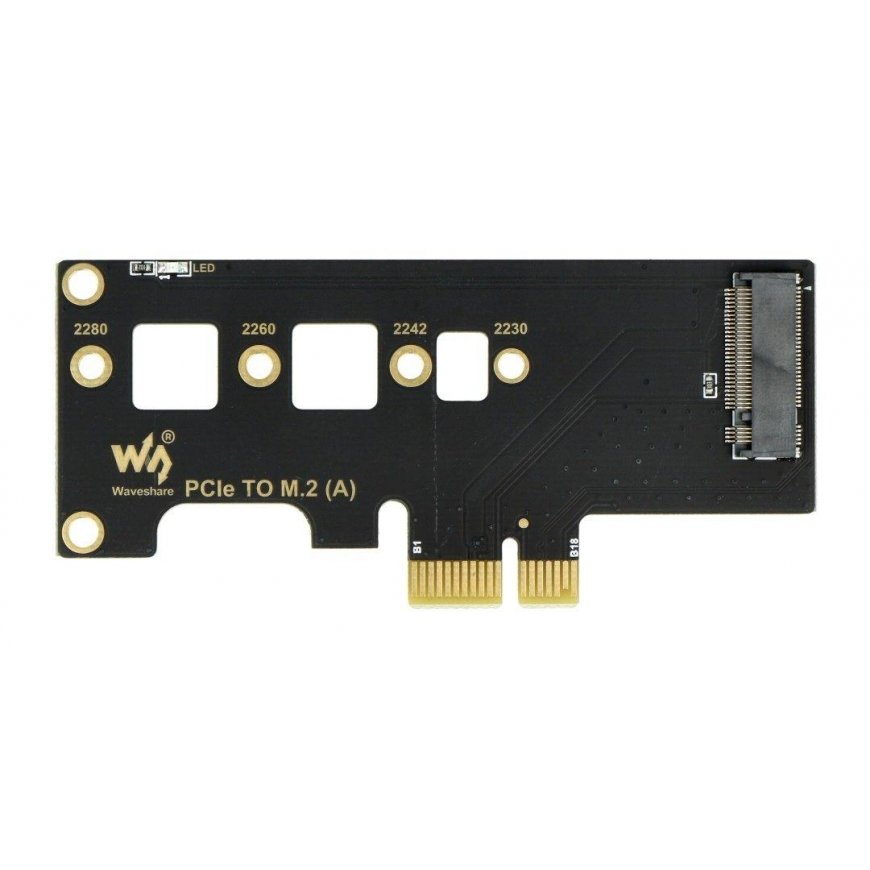

The Waveshare adapter allows you to connect a high-speed NVMe SSD using the M.2 interface to the PCIe bus. The module is also compatible with the Raspberry Pi Compute Module 4 expansion board and other boards with PCIe x1 / x4 / x8 / x16 ports.
NVMe SSDs have a much higher read and write speed than traditional HDDs. The adapter supports NVMe drives with an M key (notch on the right). The maximum NVMe data transfer rate is 32 Gbps. The bus supports devices of various sizes, such as 2230, 2242, 2260, and 2280. The adapter has an LED that lights up when powered on and blinks during data transfer.
Specifications:
- Adapter type: PCIe to NVMe
- Supported connections: PCIe x1 / x4 / x8 / x16
- Supported slots: M key
- Supported drive sizes: 2230, 2242, 2260, 2280
- Adapter dimensions: 90.30 x 35.60 mm

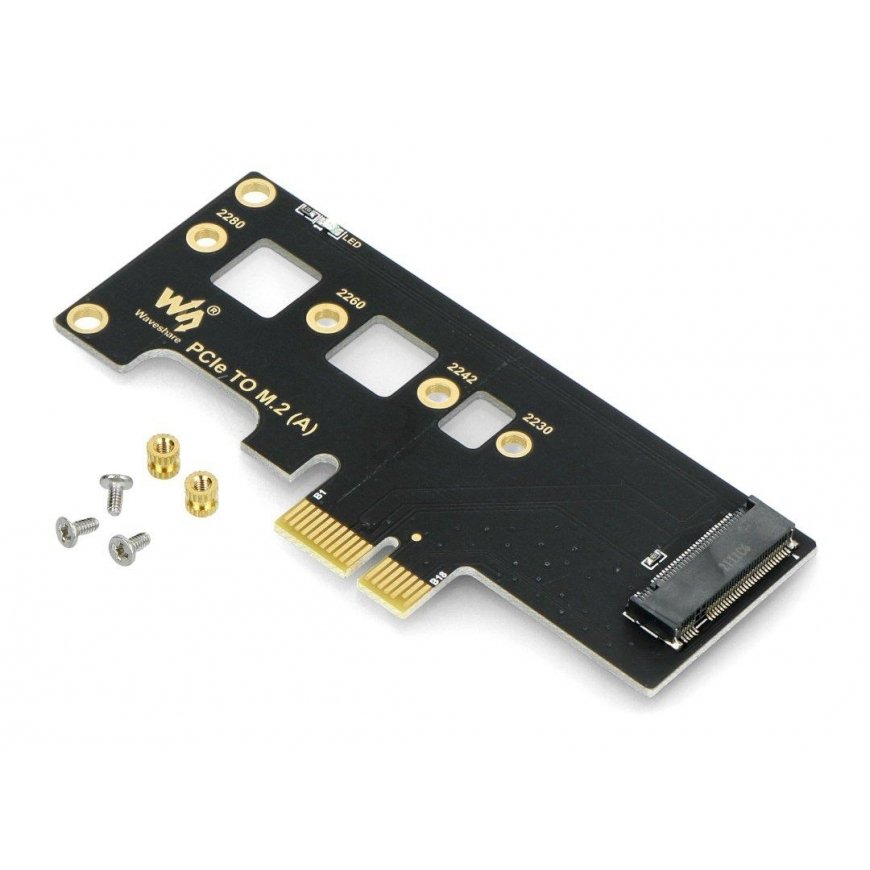

- PCIe to M.2 adapter
- Screw set
