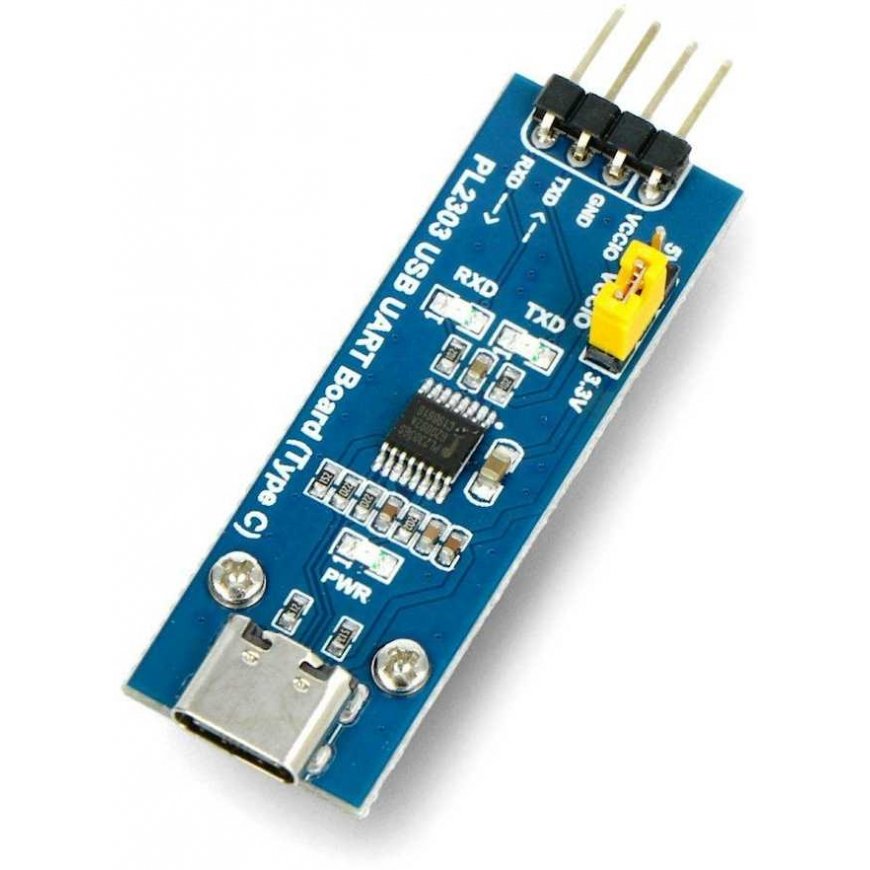

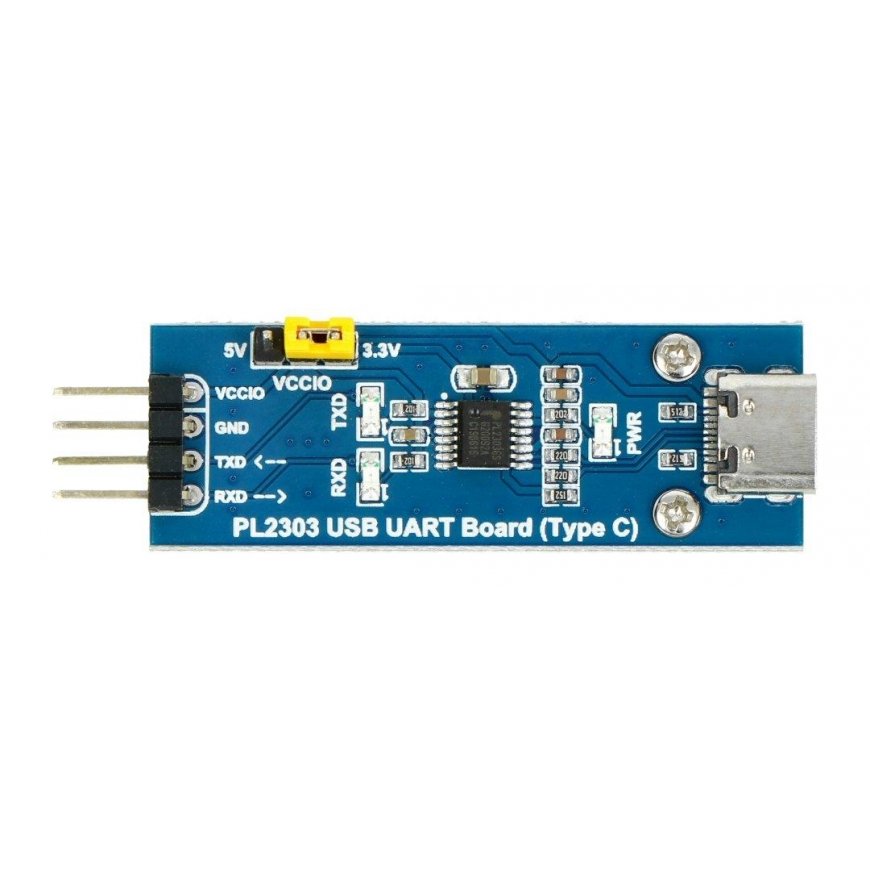

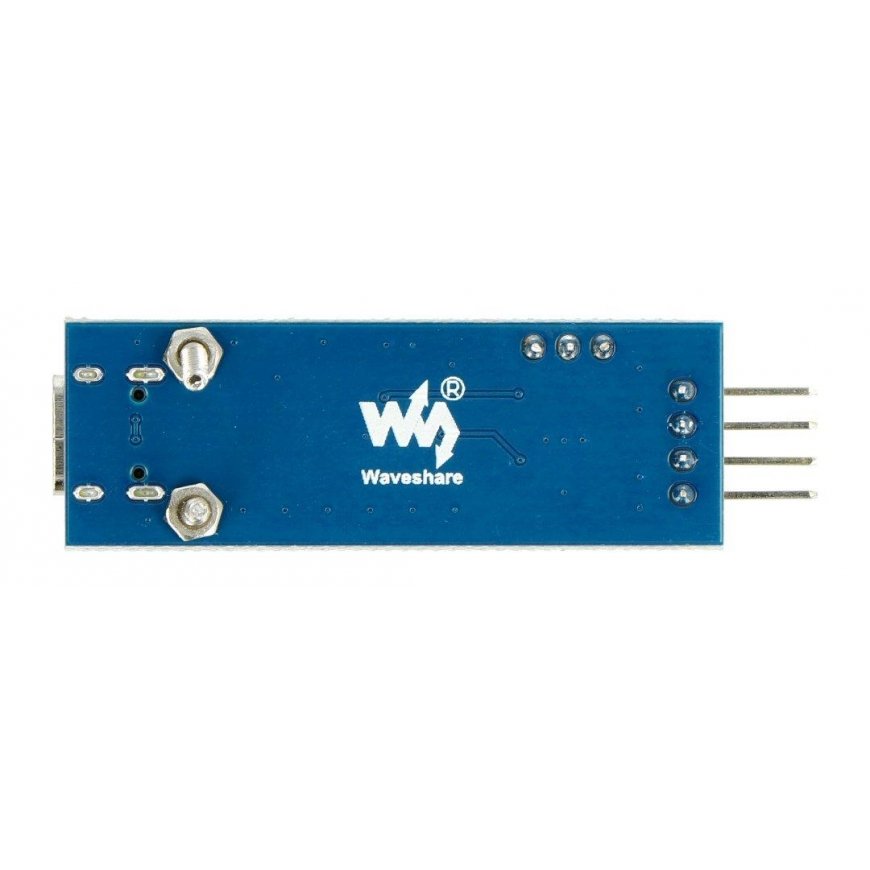

USB-UART TTL converter PL2303 - USB Type C connector - Waveshare 20645
19.43 €
3810947 AN-20539
5904422381592
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A converter that allows communication between USB and UART serial interfaces at TTL level. Equipped with a PL2303 chip, recognized by the operating system as a virtual COM port. Operates at 1.8 V / 2.5 V / 3.3 V / 5 V, selectable via a jumper. The device operates at the full 12 Mbps USB speed.
Main features:
- Data transfer from one chip USB to UART
- No external resistors needed
- USB controller complies with USB 2.0 specification; full speed 12 Mbps
- The module can be used to exchange data between a computer and a microcontroller system or to program boards with an output serial interface, such as Arduino or STM32Discovery
- It is recognized by the operating system as a virtual COM port
- It has 3 LEDs indicating power source, data transmission, and reception
- Module type: converter
- Conversion type: USB C - UART TTL
- Embedded circuit: PL2303
- Supported systems: Windows XP/7/8/10/11/
- 3x LEDs: TXD LED, RXD LED, POWER LED
- 3x VCCIO power mode with jumper setting:
- VCCIO-5 V: 5 V output
- VCCIO-3.3 V: 3.3 V output
- configurable via jumper: 1.8 V / 2.5 V / 3.3 V / 5 V
- Operating temperature range: -40 °C to 85 °C
- Module dimensions: 48.26 x 16.51 mm
- PL2303 USB-UART TTL converter - Type C USB connector - Waveshare 20645

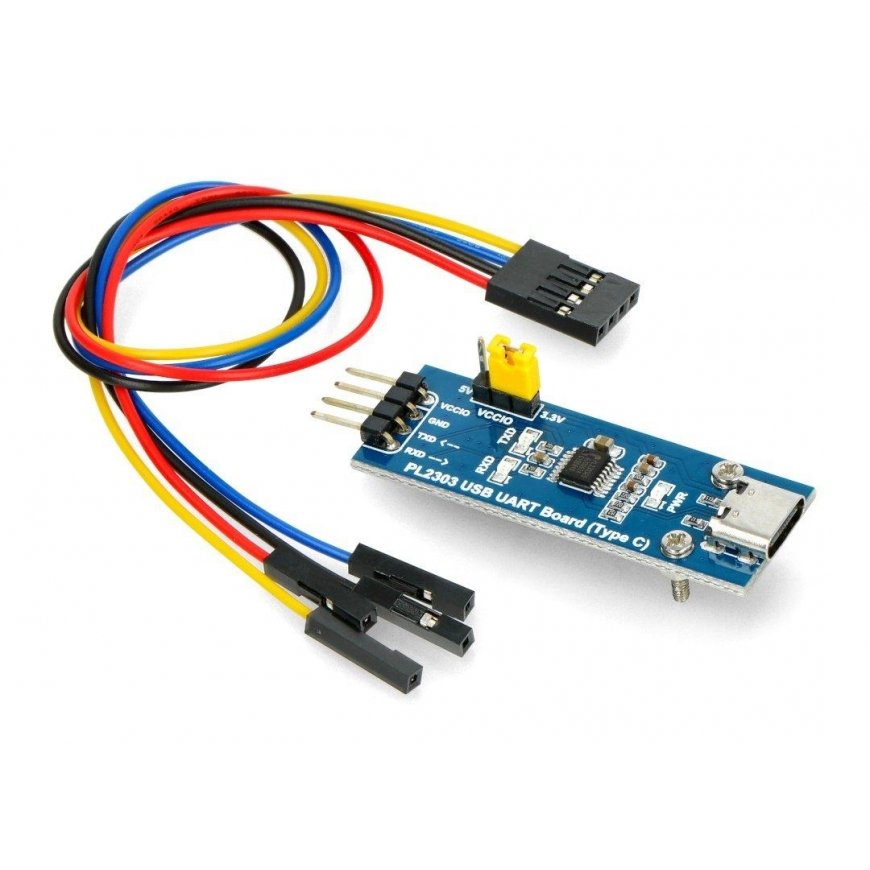

- 4-pin connection cable
