The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
VIDEO DOORBELL SET VDP-76A3 EURA
129.22 €
Monthly payment from 4,23 €
3810793 VDP-76A3
5905548279084
Shipping 11-15 b.d.
You are interested in this product?
All about the product
Video intercom set Eura brand with a surface-mounted gate station and a 7" color screen.
The video intercom is installed in a surface-mounted housing.

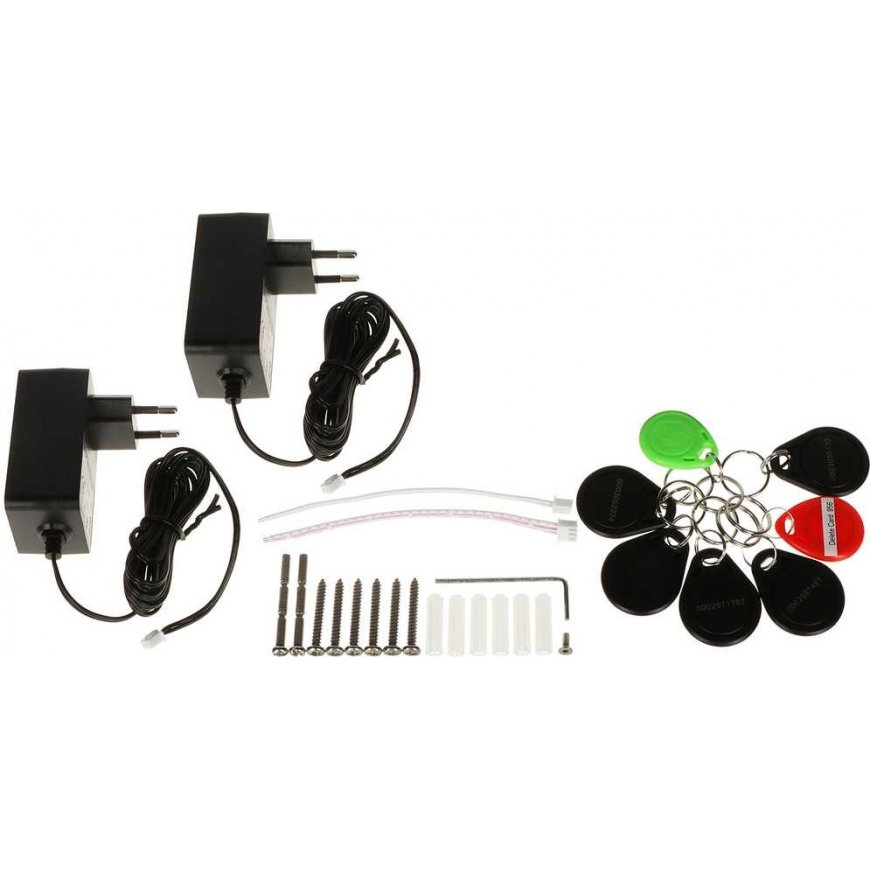

The set includes: indoor panel VDA-05A3, video intercom VDA-34A3, surface-mounted housing, and 2 impulse power supplies 12V/2A.

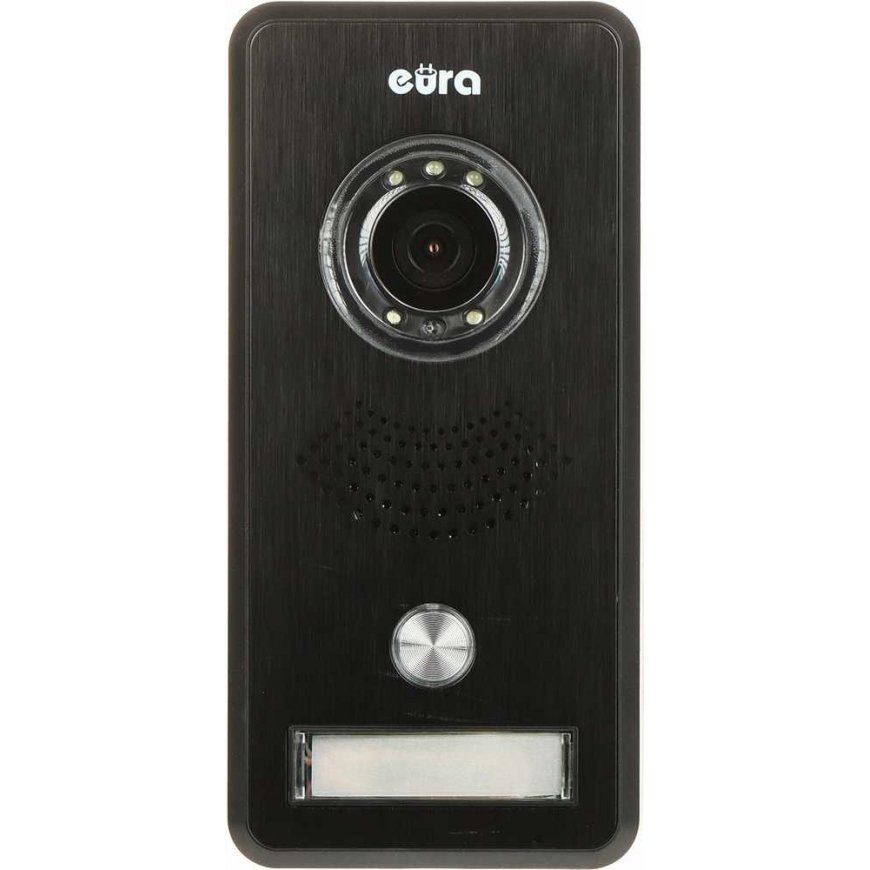

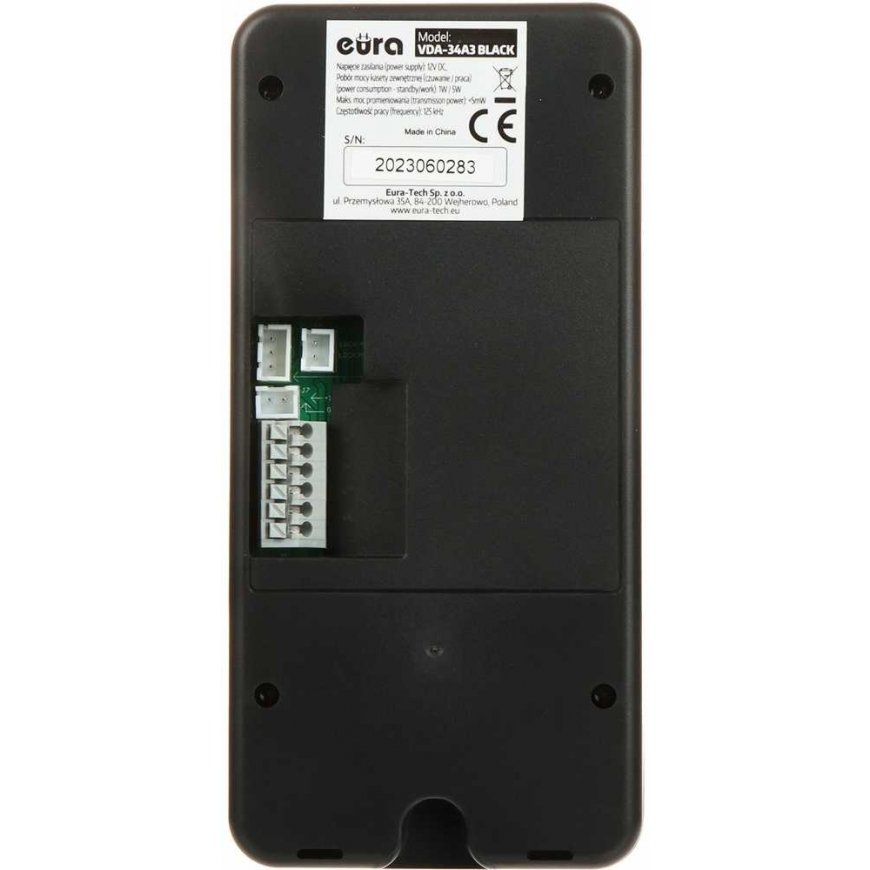

VIDEO INTERCOM :
| Compatibility : | Eura-Connect |
| Sensor : | 1/4 " CMOS |
| Camera viewing angle : | 46 ° |
| IR illuminator : | - |
| LED illuminator : | Built-in white light illuminator (LED) |
| Integrated contactless reader : | Unique EM 125kHz |
| Video output : | 1 Vpp / 75 Ω |
| Selected features : | Two-way communication Integrated microphone Integrated speaker Illuminated call button Output: 12 V / 350 mA - control of the lock Connection for additional output button Connections for connecting to electric door opening devices Installation to a four-core cable |
| Housing : | Aluminum alloy + Plastic |
| Color : | Black |
| Ingress protection class : | IP44 |
| Mechanical resistance class : | - |
| Power supply : | 12 V DC (included - power supply) |
| Power consumption : | < 5 W |
| Operating temperature : | -15 °C ... 50 °C |
| Weight : | 0.172 kg |
| Dimensions : | 153 x 73 x 32 mm |

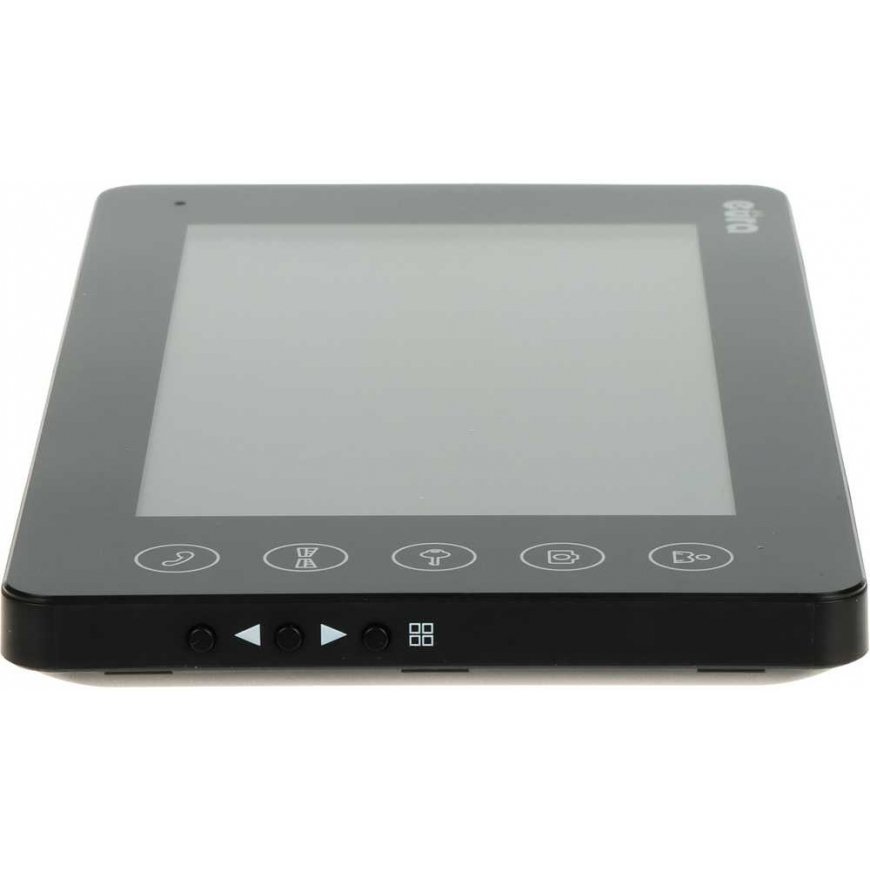

INDOOR PANEL :
| Compatibility : | Eura-Connect |
| Screen : | 7 " - TFT-LCD color matrix, Additional control buttons |
| Resolution : | 800 x 480 |
| Selected features : | Live video preview Two-way communication Internal memory: 100 photos 16 sounds to choose from, Ultra-flat monitor, without headphones, with speaker Smooth adjustment of monitor parameters: video brightness, call and conversation volume Installation to a four-core cable (not included), Electromagnetic lock – installation on a two-wire cable (not included) Additional gate control output 1: 12 V DC / 350 mA output 2: Relay NO - 24 V DC / 1 A (max) |
| Housing : | Plastic |
| Color : | Black |
| Power supply : | 12 V DC (included - power supply) |
| Power consumption : | ≤ 2 W Standby mode ≤ 7 W Active state |
| Operating temperature : | 0 °C ... 40 °C |
| Weight : | 0.35 kg |
| Dimensions : | 214 x 120 x 25 mm |
| Supported languages : | Polish, English |
DEVICE :
| Mounting : | Surface-mounted |
| Material : | Plastic |
| Color : | Black |
| Weight : | 0.062 kg |
| External dimensions : | 157 x 80 x 62 mm |
General data :
| Manufacturer / Brand : | EURA |
| Warranty : | 2 years |
